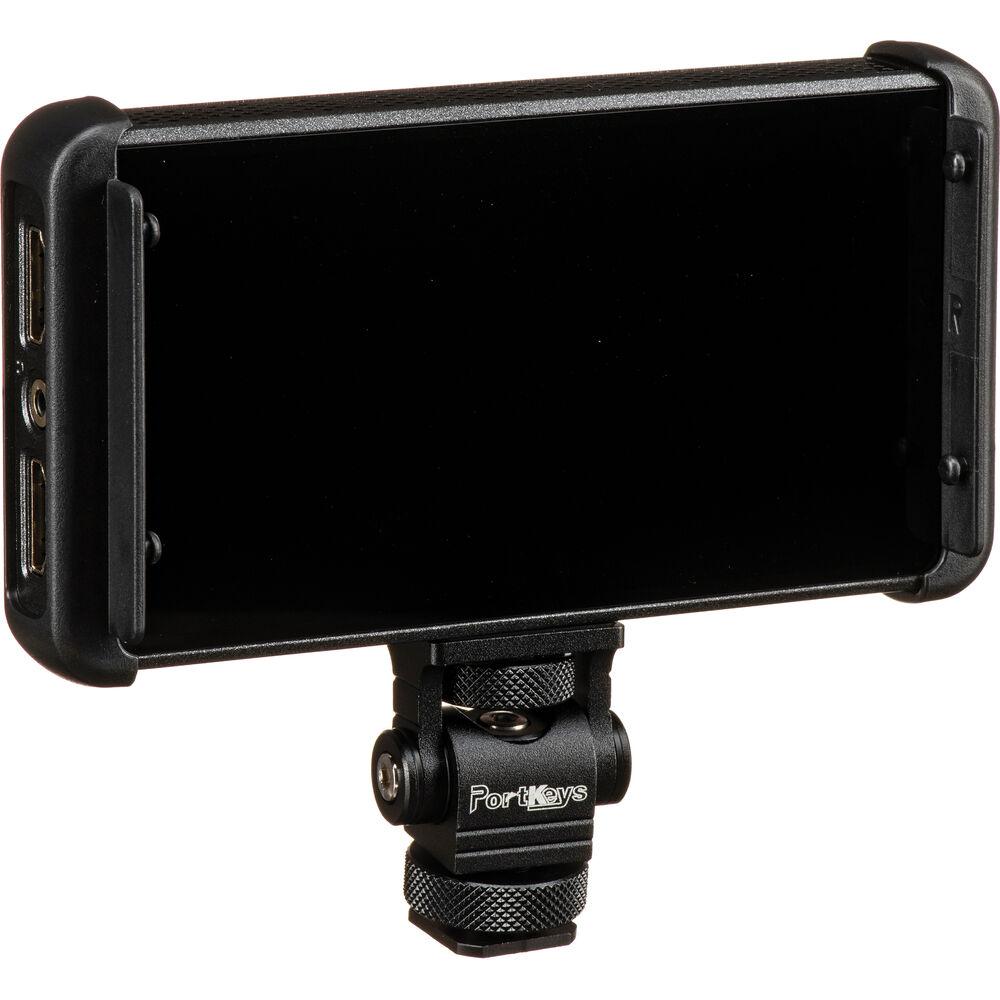

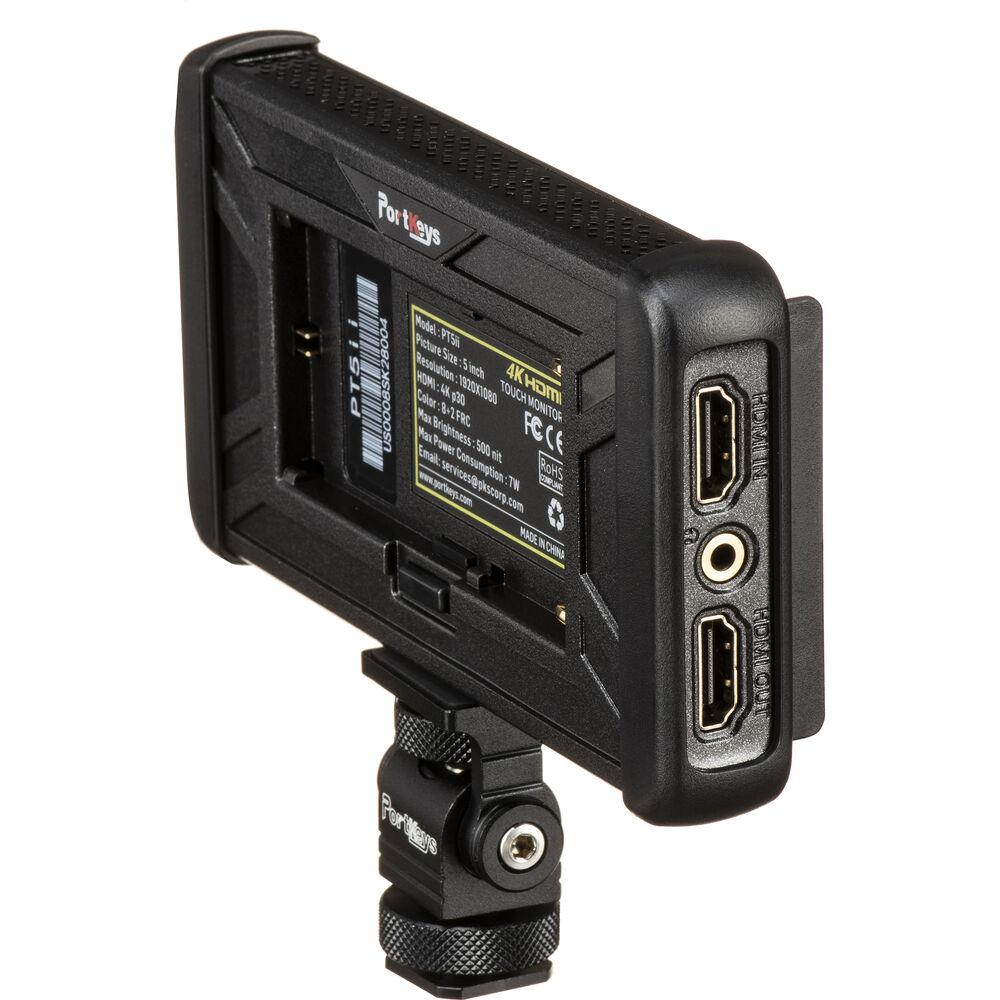

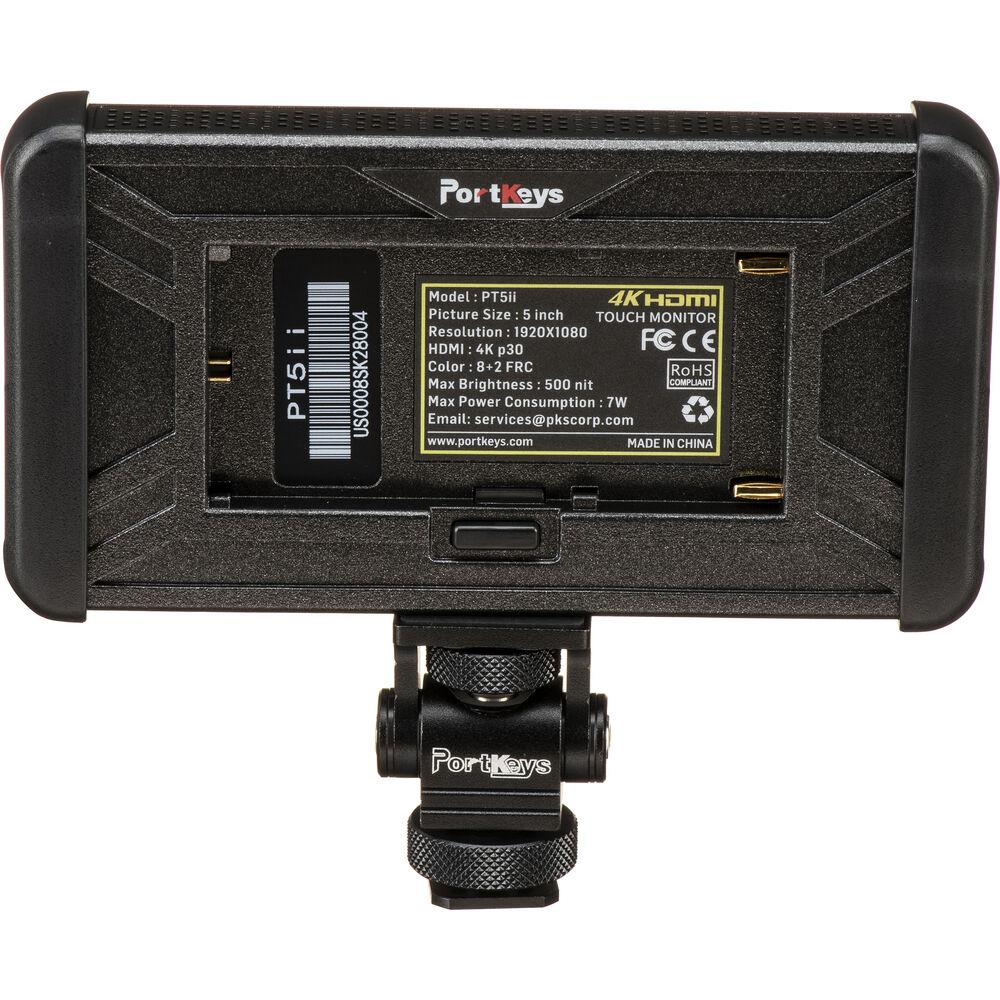

PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support
PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support

PORTKEYS PT5 II 5" 4K HDMI Touchscreen Monitor with 3D LUT Support

Brand: PORTKEYS

MFR: PT5 II

SKU: SF-2443-HYC1

460.00 ﾹ

  • 5" 1920 x 1080 Touchscreen Display
  • 4K HDMI I/O, 3D LUT Import via USB Port
  • 500 cd/m² Bright/1000:1 Contrast Ratio
  • Updated with Heat Vents for Cooling
  • Focus Peaking, RGB & Luma Waveforms
  • False Color, Histogram & Audio Metering
  • 3.5mm Headphone Jack, On/Off Switch
  • DC Input, USB Type-A Output Port

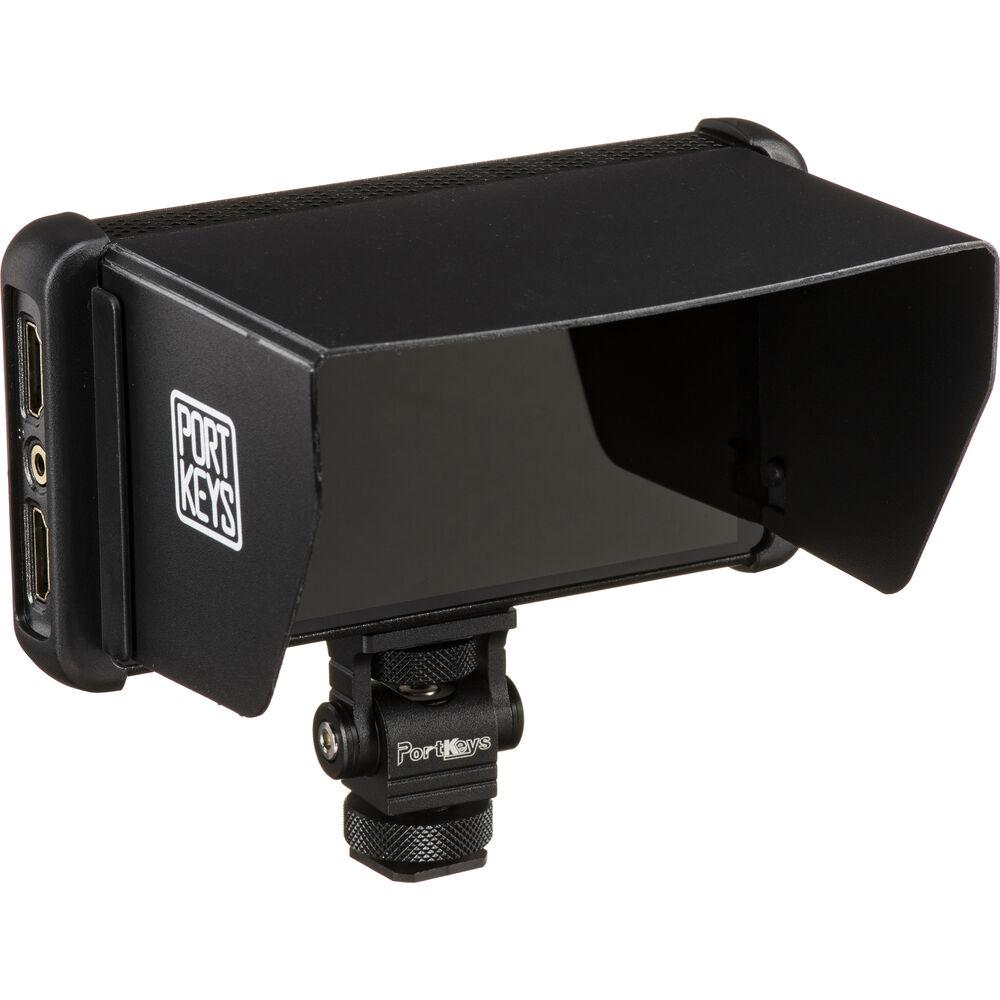

  • Sunshade & Tilting Shoe Bracket
  • Optional L-Series & LP-E6 Plates

Items Included

The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5" touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.

Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen
Bright, compact, 5" touchscreen for on-camera monitoring
3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
  • Exposure: RGB and luma waveforms, zebra, false color, and histogram
  • Focus: Peaking and zoom functions
  • Framing: Check field, grids, image flip, and crosshair marks
  • Display: Anamorphic, color temperature, contrast, and sharpness
  • Display: Brightness, tint, backlight, and underscan
  • Battery: Remaining power
  • Audio: Metering
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: On Camera Monitors , On Camera Monitors

The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5" touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.

Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen
Bright, compact, 5" touchscreen for on-camera monitoring
3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
  • Exposure: RGB and luma waveforms, zebra, false color, and histogram
  • Focus: Peaking and zoom functions
  • Framing: Check field, grids, image flip, and crosshair marks
  • Display: Anamorphic, color temperature, contrast, and sharpness
  • Display: Brightness, tint, backlight, and underscan
  • Battery: Remaining power
  • Audio: Metering

Display
Panel Type
IPS-Type LCD
Display Size
5.0" / 12.7 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
500 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
No
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O
1 x HDMI (Unspecified Signal) Input
1 x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel (24 VDC) Input
Other I/O
1x USB-A Input/Output
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
Yes
Mobile App Compatible
No
Format Support
Video Format
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Power
Input Power
7 to 24 VDC
Battery
1x L-Series/LP-E6 Combination Mount on Fixed Plate
Power Consumption
7 W
General
Material of Construction
Plastic
Dimensions
5.4 x 2.8 x 0.7" / 136 x 72 x 17 mm
Weight
4.59 oz / 130.00 g
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
9 x 5 x 2.4"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

The PT5 II 5" 4K HDMI Touchscreen Monitor from PORTKEYS is a compact, 5" touchscreen monitor offering bright on-camera monitoring. It features HDMI input and output, 3D LUT input via a USB Type-A port, and support for up to DCI 4K24 video signals. The PT5 II has been updated with improved heat dissipation with added holes on its enclosure to keep the monitor cool.

Redesigned Enclosure
The PT5 II enclosure has been redesigned for better cooling with additional vents
Up to 4K HDMI Input
Supports up to DCI 4K24 input via HDMI
Touchscreen
Bright, compact, 5" touchscreen for on-camera monitoring
3D LUT Input
Upload your 3D LUT via the USB Type-A port for customized viewing
Imaging Tools
  • Exposure: RGB and luma waveforms, zebra, false color, and histogram
  • Focus: Peaking and zoom functions
  • Framing: Check field, grids, image flip, and crosshair marks
  • Display: Anamorphic, color temperature, contrast, and sharpness
  • Display: Brightness, tint, backlight, and underscan
  • Battery: Remaining power
  • Audio: Metering
