Rosco Braq Cube 4C LED Light without Power Cord (Black)

Rosco Braq Cube 4C LED Light without Power Cord (Black)

Name: Rosco Braq Cube 4C LED Light without Power Cord (Black)
Brand: ROSCO
SKU: SF-2443-JX3J
Availability: InStock

Brand: ROSCO

MFR: 515901001114

SKU: SF-2443-JX3J

Price Available Upon Request

Only 5 x 5 x 5.3"
1,800 Lumen Output
4.2 Billion Discrete Color Mixes
Flicker-Free DMX Dimming: 0 -100%
20, 40, and 60° Lenses Included

Items Included

Rosco Braq Cube 4C LED Light without Power Cord (Black)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Stage Light

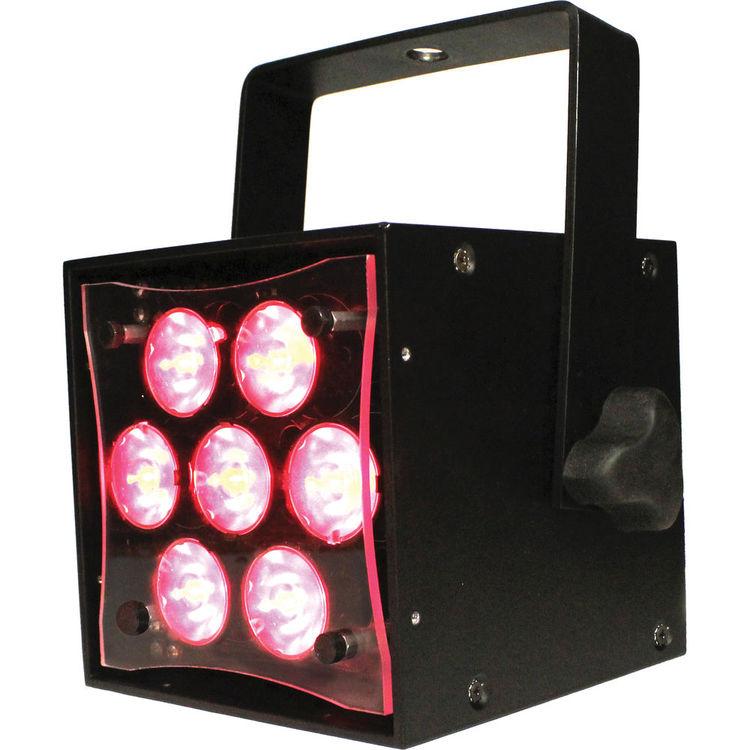

The Braq Cube 4C from Rosco packs 100W of color-mixing output into a black-finished 5" cube. Despite its surprisingly small size, the 4C pumps out more than enough light to replace conventional wash lights in broadcast studios, on stage, in film sets, or in commercial architectural installations. Using the RGBW quad-chip emitters, the Braq Cube 4C produces a rich palette of saturated, mid-tone, and pale tint colors that can be dialed in at the touch of a button. Thanks to the high quality of its emitters, the 4C is also capable of mixing a true white. The single chip optic eliminates multi-colored shadows and creates a powerful, fully blended color wash.

Color and Control

RGBW emitters make mixing the right color simple with the Braq Cube 4C. Powered by 4-channel chips from Osram, the fully blended color mix of the Braq Cube 4C offers superior rendering and a single, fringe-free shadow. Rosco includes 20°, 40° and 60° lenses to give lighting designers all the control they require

Innovative Compact Design

Very little space is wasted in the design of the Braq Cube. The unique, patented heat management system allows 100W of LEDs to be packed into a small 5" cube - a fraction of the space needed by other comparable 100W lights on the market. The Braq Cube has been engineered to be durable, reliable, and affordable without sacrificing the qualities expected by demanding lighting professionals

Future Proof

Using heat sinks, power supplies and electronics assemblies that are common to both models of Braq Cube allows engineers to quickly respond to improvements in LED technologies without significant alterations to the base unit. Braq Cubes are completely modular internally - allowing new LED boards to be installed in minutes. This feature is convenient for repairs and upgrades, or for converting a WNC to a 4C in the field

Sophisticated yet Simple

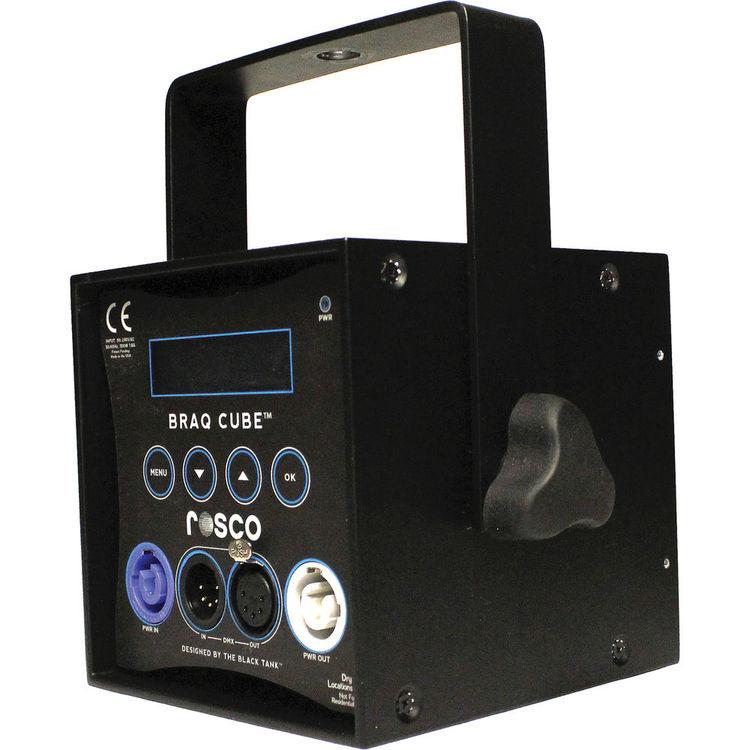

Ready for the most demanding professional environments, the Braq Cube is powered by a positive locking Neutrik Powercon connector with power pass-thru and 5-pin XLR, DMX In/Out connectors for easy daisy-chain configuration. Two universes of high speed DMX512 in 8 or 16 bit resolution allow for completely flicker-free dimming from a console. An optional Filament Mode can be set to mimic the fade of an incandescent lamp going to black. For use without DMX, an intuitive full text LCD control panel dials in brightness and color temperature

Versatile and Modular

Braq Cubes are small enough to be built into scenery or soffits, and light enough to mount as a track light. A novel yoke design allows cubes to be easily hung with C-clamps, configured in linear strips or in stacked arrays and mounted on C-stands. You can fit them with floor trunions, convert them to canopy mount or retrofit them with track hanging adapters or virtually any configuration an installer requires

Attributes and Benefits

Powerful, quad-chip, RGBW LED emitters blend light without shadow fringing
RGBW color mixing offers a dramatic, saturated palette that is balanced with a subtle, nuanced range of tints and accent colors
Optional Filament Mode mimics the delayed blackout glow of an incandescent lamp
Low 100W power consumption puts more than 40 fixtures on a single 20A circuit
No expensive power supply unit or ballast required. Directly connect to 90-240 VAC mains power
Comes with a complete lens set including 20° spot, 40° medium, and 60° wide flood
Flicker-free 0-100% DMX dimming and control
Intuitive full text LCD panel for manual operation
Compact design suitable for mounting in small spaces or architectural installations
Track lighting mounting adapters available for many common track brands or with Rosco fully integrated DMX Data Track
Auto temperature sensing with fault detection and protection
ETL/CE listed

Material	Powder-coated aluminum extrusion, 1/8" (3.0 mm)
Light Source	7x 12 W Osram Ostar multi-chip LEDs
Rating	100 W 1,800 Lumens (no lens) Lumen maintenance: 80,000 hours B10 L70 at 77°F (25°C), (LM79-08 Standard)
Color Range	4.2 Billion discrete mixes (255 x 255 x 255 x 254)
Control	DMX: 8 or 16 bit DMX512 Manual: Full Text LCD user interface sets color output
Operating Voltage	90-240 VAC 50/60 Hz
Power Consumption	100 W max.
Dimming	0-100% Locally or via DMX
Connectors	Neutrik Powercon input and pass-thru 5-Pin XLR male, 5-pin XLR female - DMX
Operating Temperature	13 to 113°F (-20 to 45°C)
Humidity	0-95% Non-condensing
Approvals and Compliance	FCC Class A Radiated and Conducted ETL / UL Standards 1573 and 8750 cETL / CSA C22.2#166-M1983 CE RoHS Compliant IP20 Rated, dry locations only
Dimensions	5.0 x 5.0 x 5.3" (127 x 127 x 135 mm)
Weight	3.5 lb (1.6 kg)
