Sony DWR-R01D/30 Dual Channel Diversity Receiver
Sony DWR-R01D/30 Dual Channel Diversity Receiver
Sony DWR-R01D/30 Dual Channel Diversity Receiver
Sony DWR-R01D/30 Dual Channel Diversity Receiver

Sony DWR-R01D/30 Dual Channel Diversity Receiver

Brand: Sony

MFR: DWRR01D/30

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wireless Receivers

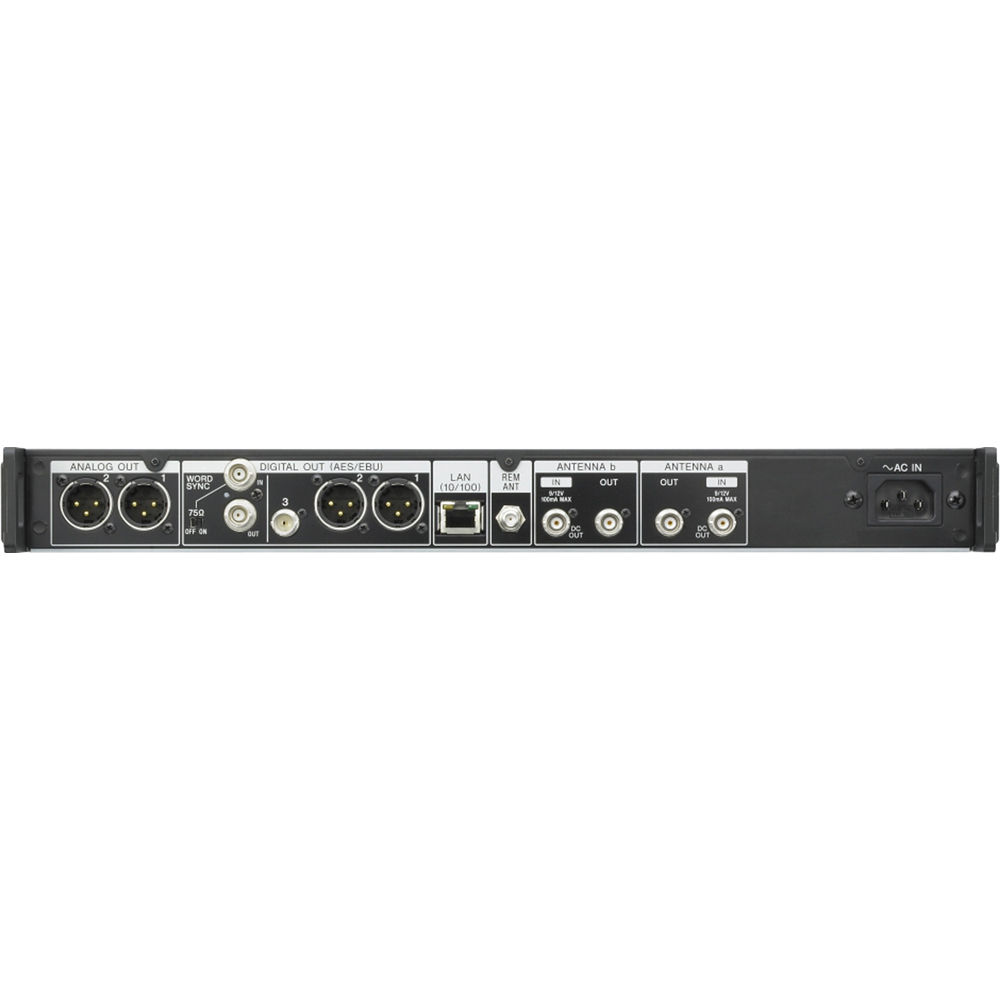

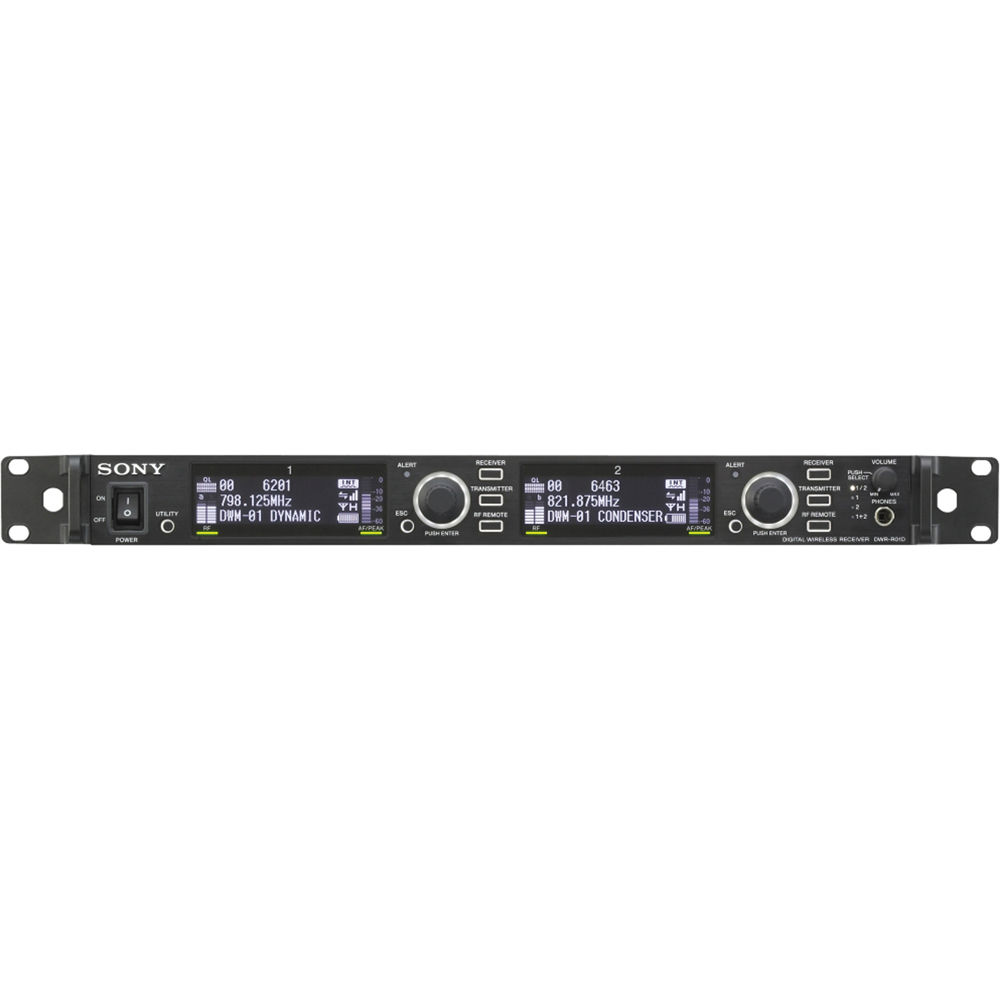

The DWR-R01D/30 Dual Channel Diversity Receiver from Sony is designed to work with DWL wireless systems. It is capable of receiving 48 kHz/24-bit audio via true diversity and features two XLR analog outputs as well as 2 AES/EBU digital outputs via XLR. Each channel features its own OLED display and is capable of controlling the connected transmitter. The clear and active channel scan is designed for easy setup by scanning available frequencies and automatically tuning the receiver to them. The DWR-R01D/30 can be controlled remotely via available remote control software for PC.

  • Covers a wide bandwidth of 66 MHz
  • Multiple pre-programmed channel groups which enable simultaneous operation of multiple channels
  • Auto channel scanning function
  • Large-scale OLED display & user jog wheel
  • Network remote control function
  • Wireless Studio software included for managing the status and parameters of multiple transmitters

Tuner

Wireless Interface2x WiDIF-HP
ReceptionSpace diversity
CircuitCircuit System: Double superheterodyne
Receiving Frequency Range566.125 to 637.875 MHz (TV-30 to TV-41 channels, except TV-37 channel)
Channel Step125 kHz
OscillatorsLocal Oscillators: Crystal-controlled PLL synthesizer
AntennaA/B In Connectors: 2x BNC-R, 50 ohms
A/B Out Connectors: 2x BNC-R, 50 ohms
Sensitivity20 dBu or less (at bit error rate = 1x 10-5, no decline in S/N ration 0 dBu=1 dBuVemf)

Audio

Analog OutputOutput 1/2 Connectors: 2x XLR-3-32 type (male)
Digital Out 1/2/3 Connectors: 2x XLR-3-32 type (male), 1x BNC-R
Reference OutputReference Output Level:
Analog:-58 dBu (mic output), -12 dBu (line output)
Digital: -36 dBFS
Dynamic Range106 dB or more (A-weighted)
THD0.03% or less
Audio Delay1/9 ms, analog and digital output
Word Sync I/OInput 1 & Output 1: BNC-R with a 75 ohm switch
External Word Sync32 to 96 kHz

Remote Control

Wireless RemoteCross remote function (2.4 GHz IEEE802.15.4 compliant)
LAN Connectors10/100 Connector: 1x RJ-45 modular jack

General

Operating Voltage120 VAC
Power Consumption22 W
Operating Temperature32° to 122°F (0° to 50°C)
Storage Temperature-4° to 140°F (-20° to 60°C)
Dimensions19 x 1.75 x 13.25" (482 x 44 x 335 mm)
Weight9.1 lb (4.1 kg)
