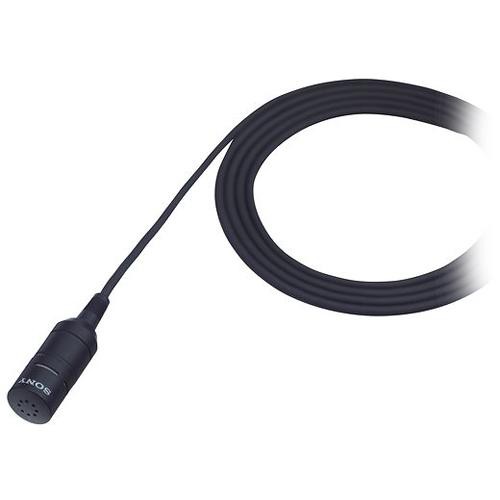

Sony ECM-66B Unidirectional Lavalier Condenser Microphone
Sony ECM-66B Unidirectional Lavalier Condenser Microphone

Sony ECM-66B Unidirectional Lavalier Condenser Microphone

Brand: Sony

MFR: ECM66B

Price Available Upon Request
  • Electret Condenser
  • Cardioid Polar Pattern
  • Runs on AA Battery or +48V Phantom Power
  • 70 Hz to 14 kHz Frequency Response
  • 9.8' Long Cable
  • Includes Foam Windscreen
  • Vertical and Horizontal Tie Clips
  • Microphone Case
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wired Microphones

The black Sony ECM-66B Lavalier Condenser Microphone design yields a clean, natural reproduction of voice or musical instruments while maintaining a suitable isolation from the acoustic environment. Unlike most miniature microphones, this mic has a cardioid polar pattern carefully contoured for better feedback control. The higher voltage supplied to the microphone by the built-in DC to DC converter increases the maximum input sound pressure level to 130 dB SPL.

This construction also complements the electret condenser design, resulting in excellent transient response and thus better tonal quality. For added versatility, the ECM-66B can be powered by a single AA battery or external 48V phantom power. The battery on/off switch on the power supply helps to save the battery. An LED illuminates to show the battery condition when power is turned on.

  • 2-way powering—AA-size battery or 48V phantom power
  • 130 dB maximum input sound pressure level
  • Designed for voice or instrumental applications
  • Black Finish
  • Complete with in-line battery unit for 2-way powering

TransducerElectret Condenser
Polar PatternCardioid
Frequency Response70 Hz to 14 kHz
Dynamic Range (Typical)> 101 dB
Signal-to-Noise Ratio> 65 dB, (@ 1 kHz)
Maximum Input Sound Level130 dB
Power RequirementsAA Battery (1.5 V), or Phantom
Output Impedance100 Ohms ±20% (1 kHz)
Low Frequency Roll-OffNone
DimensionsMicrophone: 1.0 x 0.4" / 24.2 x 10.6 mm
Power Supply: 6.4 x 0.8" / 163 x 20 mm
Cable: 10' x 0.1" / 3 m x 2.3 mm
WeightMicrophone: .25 oz / 7 g
Power Supply: 4.2 oz / 120 g

Packaging Info

Package Weight0.95 lb
Box Dimensions (LxWxH)9.55 x 4.3 x 1.75"
