Sony ECM-678/9X Shotgun Microphone
Sony ECM-678/9X Shotgun Microphone

Sony ECM-678/9X Shotgun Microphone

Brand: Sony

MFR: ECM678/9X

Price Available Upon Request
  • Supercardioid Polar Pattern
  • Suitable for Sony Pro Cameras
  • High Sensitivity & Low Noise
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wired Microphones

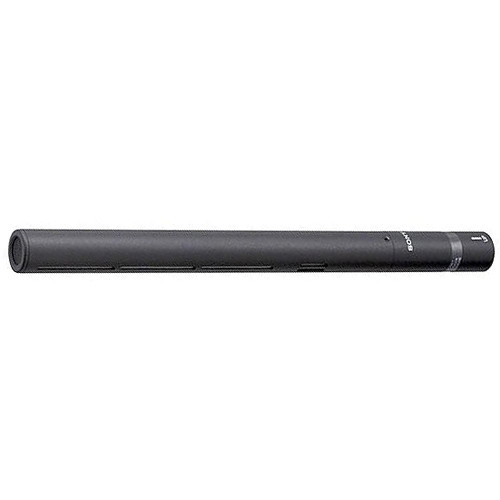

The Sony ECM-678/9X short shotgun microphone delivers professional audio signal reproduction while remaining camera mountable and cost effective. Designed for use in broadcast, professional video, film, and field audio applications, the ECM-678/9X is at home mounted on a boom pole or Sony HDV Series, DVCAM Series and XDCAM Series cameras.

The super-cardioid polar pattern aides in the microphone's directional response, allowing clear pick up of the target signal while eliminating noise and ambiance at the off-axis sections of the microphone.

The ECM-678/9X features a low-cut filter switch that eliminates noise and low frequency rumble. The microphone requires external +48V phantom power and it's rugged design proves suitable for rigorous use on the road.

Camera and Boom Pole Mountable

The ECM-678/9X is mountable on boom poles and Sony HDV Series, DVCAM Series and XDCAM Series cameras.

Flat and Wide Frequency Response

It's wide flat frequency response enables accurate, detailed reproduction of a wide range of signal sources.

High Sensitivity and Low Noise

The super-cardioid polar pattern is effective in rejecting off-axis noise, resulting in a close and focused pick up of the desired signal.

Low-Cut Filter

The ECM-678/9X features a low cut filter switch that eliminates low frequency hum, wind noise, ambient noise and proximity effect noise.


TransducerElectret Condenser
Polar PatternSuper-Cardioid
Frequency Response40Hz to 20kHz
Dynamic Range (Typical)111dB or more
Signal-to-Noise Ratio78 dB or more (A-weighted, 1 kHz, 1 Pa.)
Maximum Input Sound Level127dB SPL (0dB SPL=20 PA)
Power RequirementsExternal, DC 48V +/-4V
Output Impedance200 Ohms +/- 20%
Output Connectors3-pin XLR
PadNo
Low Frequency Roll-OffBuilt-in (non switchable)
Dimensions9.9 x 0.79" (Length x Diameter)
Weight7 oz

Packaging Info

Package Weight2.249 lb
Box Dimensions (LxWxH)15.6 x 5.5 x 3.4"
