Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)

Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)

Brand: Sony

MFR: ECM-V1BMP

Price Available Upon Request
  • For Broadcast, Journalism & Presentation
  • Omnidirectional for Consistent Levels
  • Compatible 3.5mm Transmitter List Below
  • Specifically Wired for Sony Transmitters
  • Requires 5V Power
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

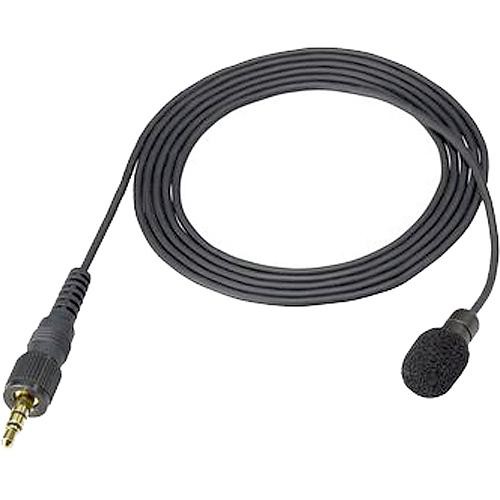

The black Sony ECM-V1BMP is an omnidirectional lavalier microphone with a locking 3.5mm connector wired specifically for use with selected Sony bodypack transmitters, including the UWP series.

The microphone features an omnidirectional polar pattern that picks up sound in a 360° radius around the mic capsule, helping to deliver consistent levels, even if the talent turns away from the capsule. The electret condenser capsule is optimized to run on 5 VDC, but will function with a 1.1 to 10 VDC power source.

The ECM-V1BMP offers a wide 40 Hz to 20 kHz frequency response and features 2.3mm diameter cable with a 3.9' length. A lapel clip to attach the mic to clothing and a windscreen to reduce wind and breath noise are both included.

Locking Sony 3.5mm Connector

Compatible Wireless Transmitters

  • Sony: Works with Sony transmitters equipped with a locking 3.5mm connector, including the following models: UTX-B40, UTX-B03, UTX-B1, UTX-B2, and WRT-805A.
  • The ECM-V1BMP is wired specifically for Sony transmitters and will not function reliably with third-party transmitters and equipment.

Sony ECM-V1 Specs

Microphone

Sound FieldMono
Capsule1 x Electret Condenser
Polar PatternOmnidirectional
WindscreenFoam (Included)

Performance

Frequency Range40 Hz to 20 kHz
Maximum SPL120 dB SPL Peak (A-Weighted)
Impedance1.2 Kilohms ± 30% (Unbalanced)
Sensitivity-43.0 dB
Dynamic Range86 dB A-Weighted
Signal-to-Noise Ratio60 dB A-Weighted
Equivalent Noise Level34 dB A-Weighted

Connectivity

Outputs1 x 1/8" / 3.5 mm TRS Male (Lockable)
Headphone ConnectorNone
Cable Length0 to 3.9' / 0.00 to 1.19 m
Cable Diameter0.1" / 2.3 mm

Power

Operating Voltage1.1 to 10 V
Operating Current Consumption0.2 mA

Physical

ColorBlack
MountingAlligator Clip (Included)
Operating Temperature32 to 122°F / 0 to 50°C
Storage Temperature-4 to 131°F / -20 to 55°C
Dimensionsø: 0.3 x L: 0.8" / ø: 6.8 x L: 19.5 mm
Weight0.57 oz / 16 g
