Sony ECM-X7BMP Electret Condenser Lavalier Microphone for UWP Transmitters
Sony ECM-X7BMP Electret Condenser Lavalier Microphone for UWP Transmitters

Sony ECM-X7BMP Electret Condenser Lavalier Microphone for UWP Transmitters

Brand: Sony

MFR: ECM-X7BMP

Price Available Upon Request
  • Mini 1/8" (3.5mm) Connection
  • Cardioid Polar Pattern
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Microphones for Wireless

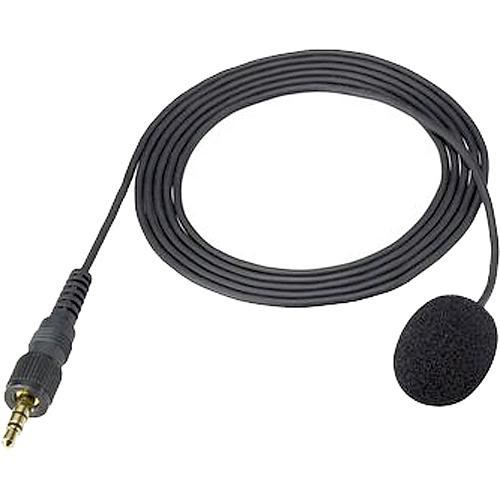

The Sony ECM-X7BMP Electret Condenser Lavalier Microphone is intended for use with the UWP series bodypack transmitters. The microphone features a 1/8" (3.5mm) mini connection and cardioid polar pattern.


Key Specs

Form FactorLavalier
Polar PatternCardioid
Frequency Range100 Hz to 15 kHz
Maximum SPL120 dB SPL
Output Connector1 x 1/8" / 3.5 mm TRS Male
ColorBlack

Microphone

Form FactorLavalier
Sound FieldMono
CapsuleElectret Condenser
Polar PatternCardioid
PadNone
High-Pass FilterNone
IndicatorsNone
WindscreenFoam (Included)

Performance

Frequency Range100 Hz to 15 kHz
Maximum SPL120 dB SPL
Load Impedance1.2 Kilohms +/- 30%
Sensitivity-44 dB
Dynamic Range88 dB
Signal-to-Noise Ratio62 dB
Equivalent Noise Level32 dB

Connectivity

Output Connector1 x 1/8" / 3.5 mm TRS Male
Headphone OutputNone
Cable Length3.9' / 1.2 m

Power

Operating Voltage5 V
Operating Current Consumption0.2 mA

Physical

ColorBlack
Included Mounting & Placement AccessoriesAlligator Clip
Mounting Thread SizeIncluded Mount Has No Threading

Packaging Info

Package Weight0.13 lb
Box Dimensions (LxWxH)4.4 x 4.3 x 0.9"
