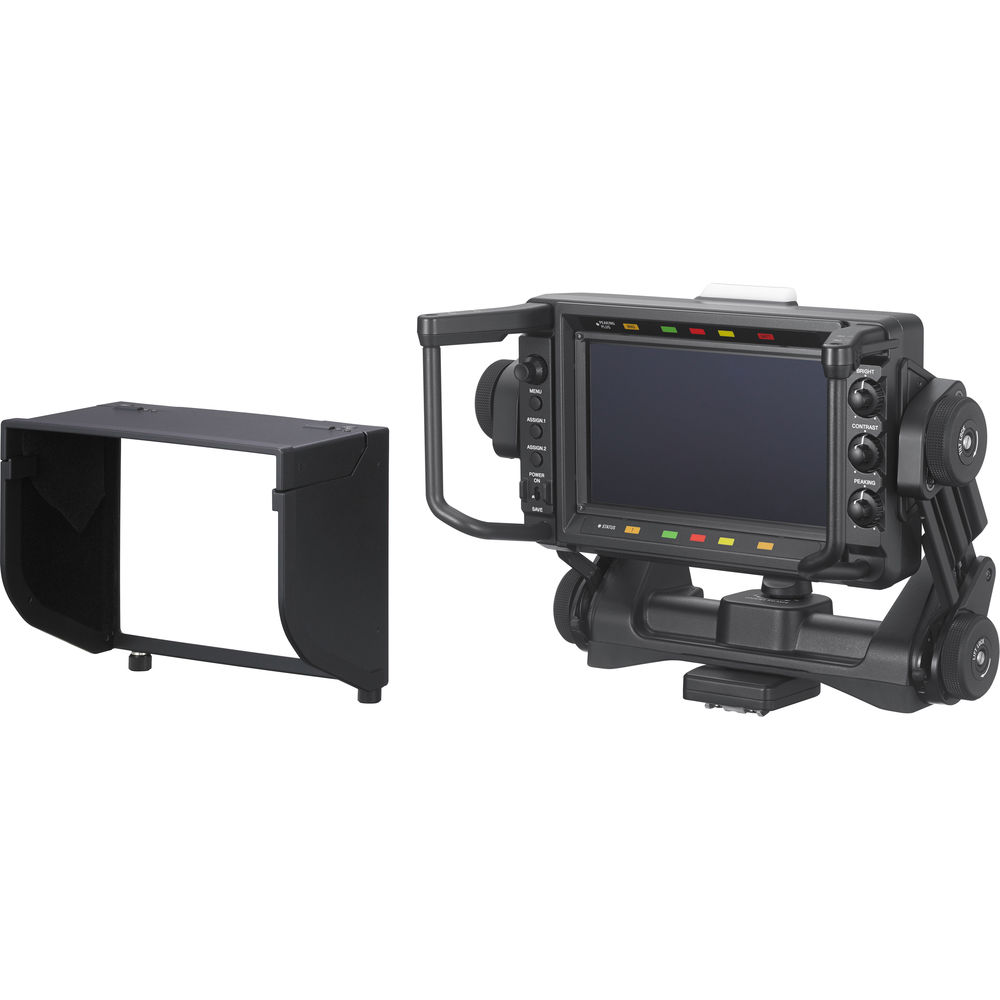

Sony HDVF-L770 7" LCD HD Viewfinder
Sony HDVF-L770 7" LCD HD Viewfinder

Sony HDVF-L770 7" LCD HD Viewfinder

Brand: Sony

MFR: HDVF-L770

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Viewfinders

The HDVF-L770 7" LCD HD Viewfinder from Sony is a 1920 x 1080 color viewfinder designed for use in 4K live production. It is directly compatible with Sony HDC and HSC series cameras. The 1920 x 1080 LCD panel allows for more precise focusing, with a very high 1000:1 contrast ratio and a WFM (waveform monitor) function for precise exposure control. The viewfinder has a large handle, a lifter, and a bezel, as well as a lift/tilt lock lever for adjusting friction. A 3G-SDI input connector adds flexibility for viewing camera or external sources, while six assignable switches on the handle allow for bespoke setups. The viewfinder comes with an attachable hood with a flip-up mechanism.

  • Full HD 1920 x 1080 7" LCD panel suitable for 4K and HD live production
  • 1000:1 high contrast ratio for enhanced visibility in outdoor live broadcast applications
  • WFM (waveform monitor) function for precise exposure control
  • External 3G-SDI input connector enables checking external video sources in the field, including third-party equipment
  • Lifter, large handle, and bezel with lock lever for adjusting friction
  • Hood with flip-up mechanism and HDVF cable included

Display Area6.13 x 3.5" / 155.5 × 87.5 mm
Aspect Ratio16:9
Brightness300 cd/m2 (Typical)
Contrast Ratio1000:1
Resolution1920 x 1080
Color TemperatureD65
Format1080p: 59.94, 50, 29.97, 25, 24, 23.98
1080i: 59.94 (29.97 fps), 50 (25 fps)
1080PsF: 29.97, 25, 24, 23.98
720p: 59.94, 50
Input Connectors1 x 20-Pin Round Type, CAM
1 x 26-Pin Rectangular Type, CAM
1 x BNC, SDI
1 x 4-Pin, DC Power
Operating Temperature32 to 113°F / 0 to 45°C
Storage Temperature-4 to 140°F / -20 to 60°C
Power Supply10.5 to 17.0 VDC
Power Consumption13 W
Dimensions12.2 x 10.0 x 6.6" / 30.9 x 25.3 x 16.7 cm
Weight6.6 lb / 3 kg (Without Hood)

Packaging Info

Package Weight10.6 lb
Box Dimensions (LxWxH)15.3 x 13.5 x 9.23"
