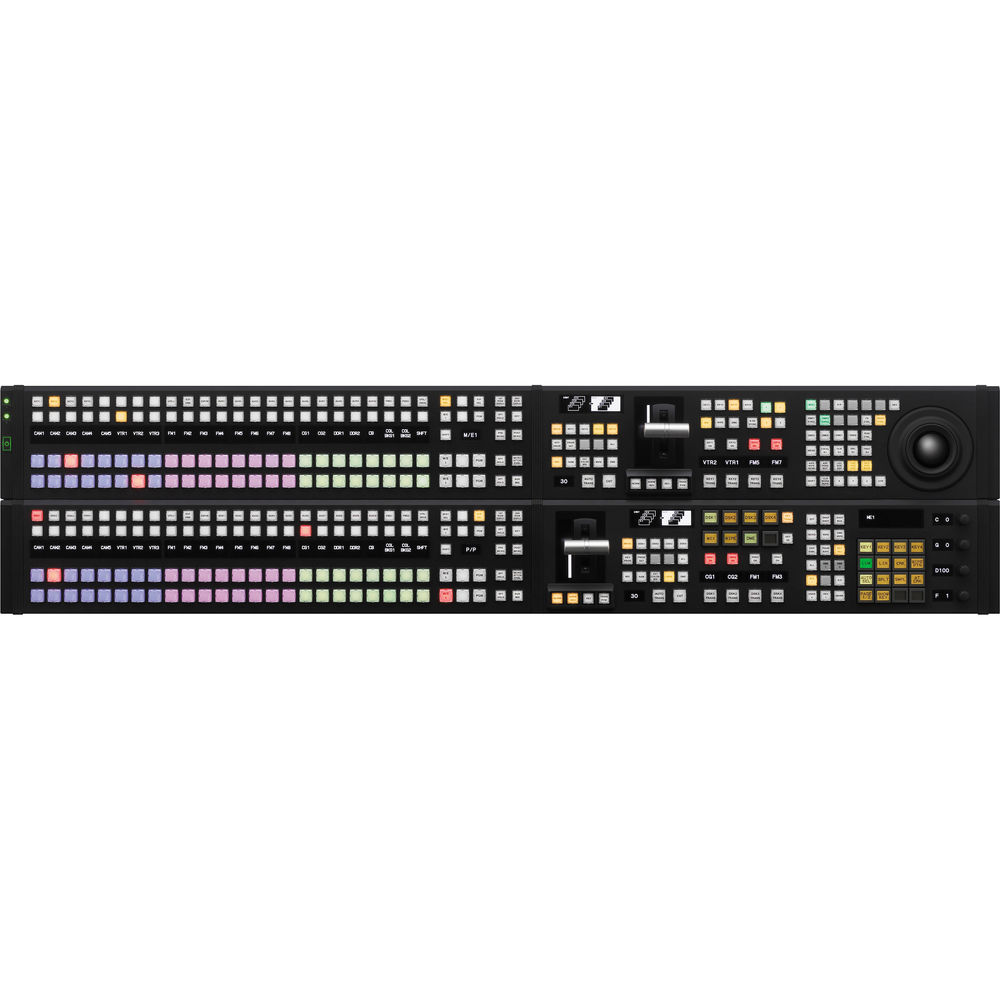

Sony ICP-6520 24-Button Control Panel for MVS-6520
Sony ICP-6520 24-Button Control Panel for MVS-6520
Sony ICP-6520 24-Button Control Panel for MVS-6520
Sony ICP-6520 24-Button Control Panel for MVS-6520
Sony ICP-6520 24-Button Control Panel for MVS-6520
Sony ICP-6520 24-Button Control Panel for MVS-6520

Sony ICP-6520 24-Button Control Panel for MVS-6520

Brand: Sony

MFR: ICP6520

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Control Panel Modules & Accessories

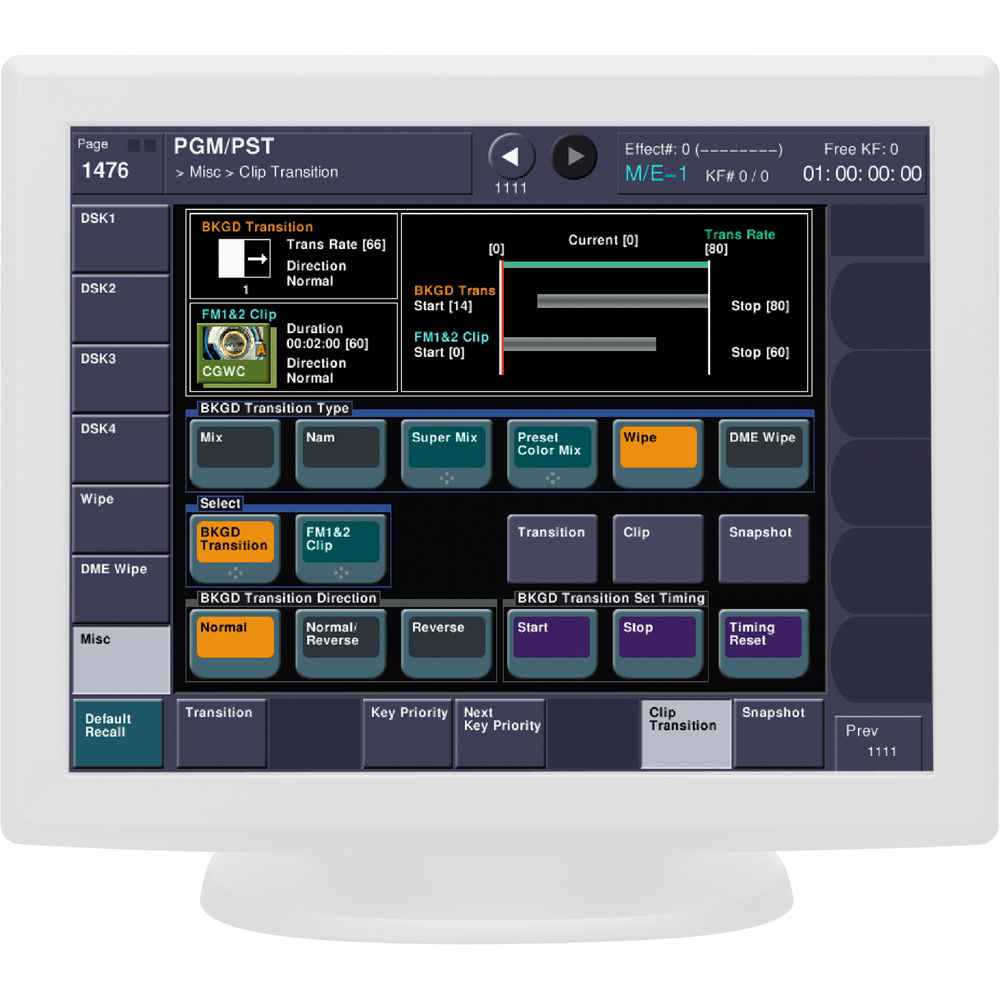

The ICP-6520 24-Button Control Panel from Sony is designed for the MVS-6520 switcher. It features 2 M/E rows, 24 cross-point colored buttons, OLED mnemonic displays for optimal visibility, and an intuitive menu operation (menu display sold separately).

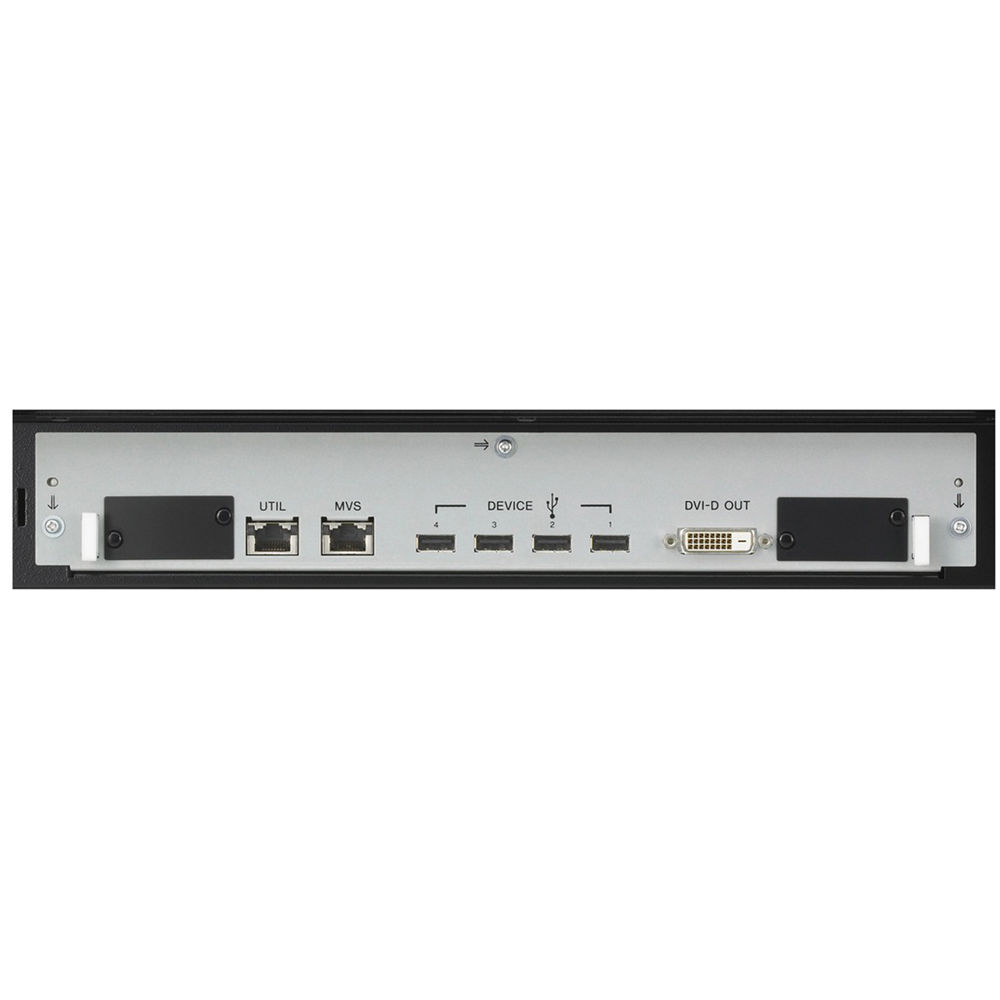

CompatibilityMVS-6520 switcher
ConnectorsRJ-45, 1000BaseT
USB type A, Device 1 to 4
25-pin DVI-D output
Operating Temperature41 to 104°F (5 to 40°C)
Operating Humidity10 to 90%
Storage Temperature-4 to 140°F (-20 to 60°C)
Power Requirements100 - 240 VAC, 10%, 50/60 Hz
Current ConsumptionMax 1.1 A
Inrush Current44 A peak, 10 A rms (240 VAC)
Dimensions45.4 x 10.4 x 7.1" (115.4 x 26.4 x 18.0 cm)
Weight31.9 lb (14.5 kg)
