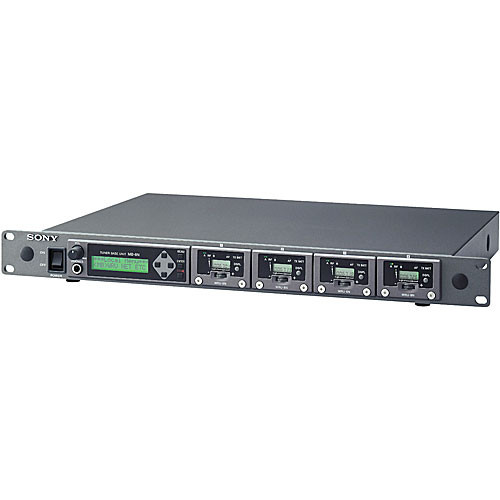

Sony MB-8N/9F Tuner Base for WRU-8N Wireless Tuner Modules
Sony MB-8N/9F Tuner Base for WRU-8N Wireless Tuner Modules

Sony MB-8N/9F Tuner Base for WRU-8N Wireless Tuner Modules

Brand: Sony

MFR: MB8N/9F

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wireless Receivers

The Sony MB-8N/9F Tuner Base is a wireless microphone tuner module base that eliminates the need for multiple wireless receivers. The MB-8N/9F accommodates up to four Sony WRU-8N tuner modules that feature 188 user selectable UHF frequencies, LCD display and much more.

A built-in antenna splitter allows up to four MB-8N/9F Tuner Bases to be daisy-chained for simultaneous operation of up to 16 tuner modules and wireless microphone transmitters. The supplied PC control software enables full control of up to 49 tuner modules via PC. The MB-8N/9F Tuner Base is an ideal solution for theaters, sound stages, houses-of-worship and anywhere multiple wireless microphones are to be used simultaneously.

Accommodates Four WRU-8N Tuner Modules

The Sony MB-8N/9F accommodates up to four WRU-8N tuner modules which feature 188 selectable UHF frequencies, comprehensive LCD display and more.

Built-In Antenna Splitter

A built-in antenna splitter allows up to four MB-8N/9F to be daisy-chained for simultaneous operation of up to 16 tuner modules and wireless microphone transmitters.

XLR Audio Outputs

Four balanced XLR outputs end discrete signal from each of the tuner modules.

PC Control Software

The supplied PC control software enables full control of up to 49 tuner modules via PC.


Type of ReceiverUHF Four Bay Tuner Base
RF Carrier Frequency RangeUHF-TV channels 30-69
Approx. Working RangeNot Specified By Manufacturer
Overall Frequency Response40Hz to 20kHz
Signal-to-Noise RatioDistortion: 1.0% or less
# Of Channels188 (per tuner module)
Type of Output(s)XLR-3 pin type (x 4) balanced
Headphone MonitoringTRS 1/4" Phone with level control
Power RequirementsAC 100 to 240V, 50/60Hz
DC 10 to 24V
Battery Type/Approx. LifeNot Applicable
DisplayLCD (tuner modules)
Mounting Options19-inch Rackmount
Antenna TypeInputs: BNC-R type (x 2), 50 ohm (nominal)
Outputs: (for cascade connection): BNC-R type (x 2), 50 ohm(nominal)
Dimensions18.97 x 1.73 x 11.81" (482 x 44 x 300mm)
Weight8 lb 6 oz (3.7 kg)

Packaging Info

Package Weight10.55 lb
Box Dimensions (LxWxH)21 x 16.5 x 4.5"
