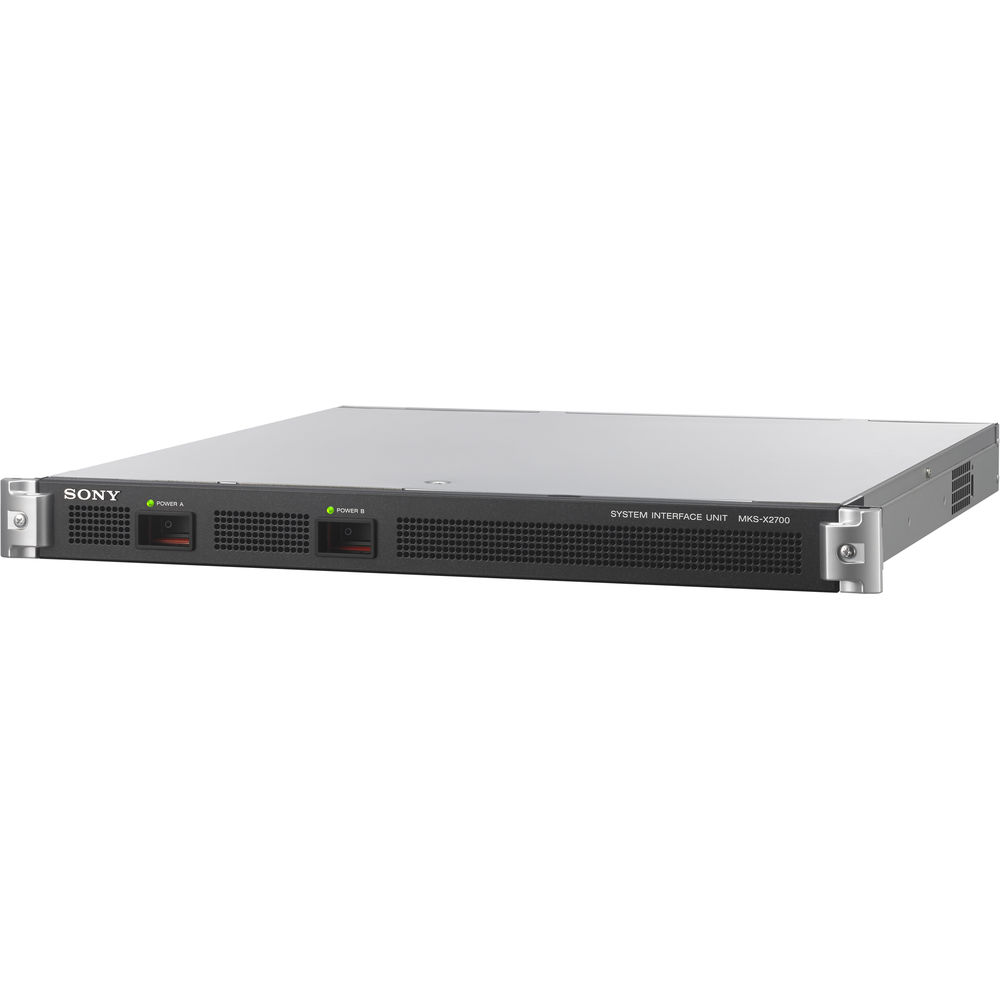

Sony MKS-X2700 System Interface Unit for ICP-X7000 Control Panel
Sony MKS-X2700 System Interface Unit for ICP-X7000 Control Panel

Sony MKS-X2700 System Interface Unit for ICP-X7000 Control Panel

Brand: Sony

MFR: MKSX2700

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Control Panel Modules & Accessories

The Sony MKS-X2700 System Interface Unit is used in the ICP-X7000 Control Panel. It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols.


Connections

LAN1 x RJ45, 1000BASE-T (MVS LAN)
1 x RJ45, 1000BASE-T (UTIL LAN)
TallySerial: 2 x 9-Pin D-Sub, RS-422A
TALLY/GPIInputs: 2 x 37-Pin D-Sub, TTL level inputs (34 each)
Outputs: 2 x 37-Pin D-Sub, relay contact outputs (18 each)
Remote6 x 9-Pin D-Sub, RS-422A, various protocols
Bus1 x BNC, S-Bus protocol

Power

Power Requirement100 to 240 VAC ±10%, 50/60 Hz (power cord not included)
Power Consumption0.5 to 0.7 A
Inrush CurrentMaximum 85 A (at peak) / 20 A rms (240 VAC)

General

Operating Temperature41 to 104°F (5 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity10 to 90% Non-condensing
Dimensions19.0 x 1.8 x 20.5" (482 x 44 x 520 mm)
Weight17.6 lb (8 kg)
