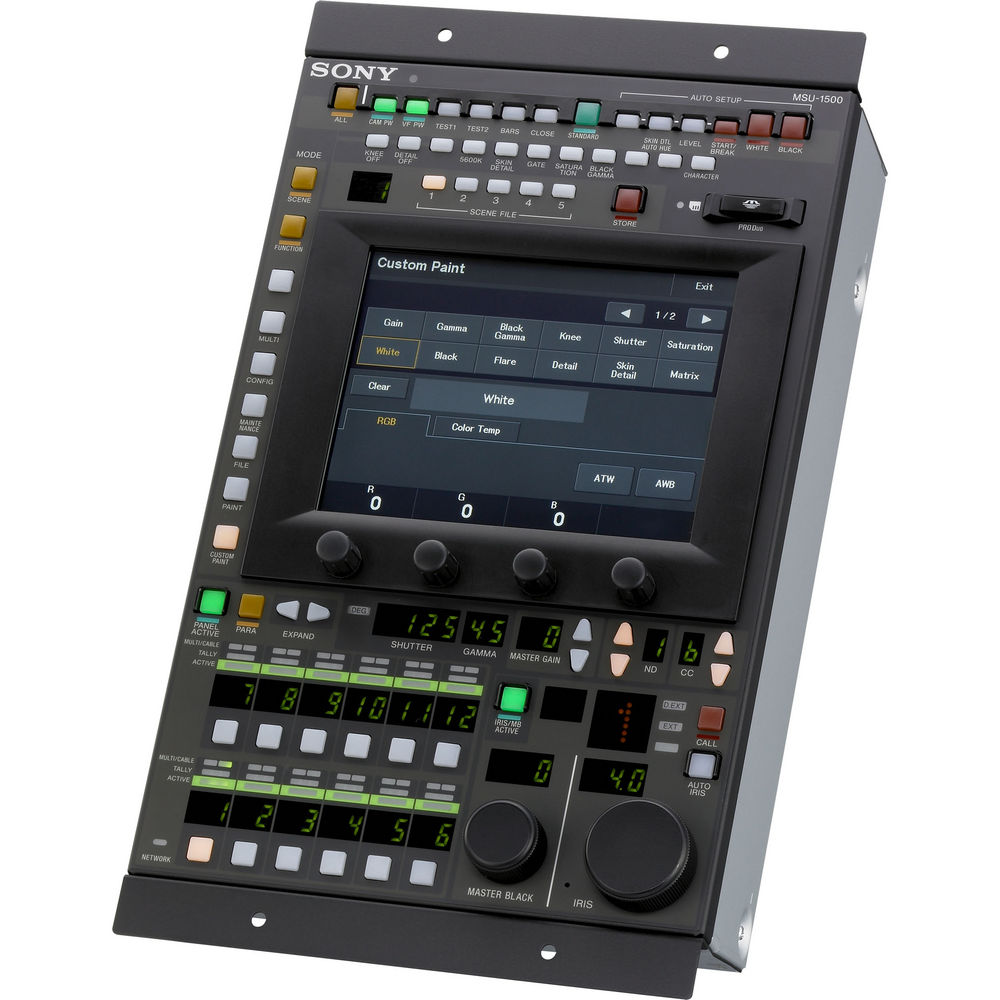

Sony MSU-1500 Master Setup Unit (Vertical Type)

Brand: Sony

MFR: MSU1500

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

The Sony MSU-1500 Master Setup Unit is a vertically oriented control panel designed for camera configuration and maintenance. Control of multiple camera systems is possible via an optional CNU-700 Camera Command Network Unit or using an Ethernet LAN--which allows control of up to 96 cameras.

Large and Flexible System Configuration

The MSU-1500 is part of a family of products that provides flexibility in the configuration of large and small camera control systems.

Ethernet LAN Capability

The MSU-1500 supports interconnectivity using an Ethernet LAN as well as a CNU-700.

Customizable Switch and Menu

MSU-1500 users can map any function to an assignable switch or menu item.


Input and Output ConnectorsEthernet: 8-pin RJ-45 (x1)
CCU/CNU: 8-pin Multi-connector, female (x1)
AUX: 8-pin Multi-connector, female (x1)
EXT I/O: 50-pin D-Sub, female (x1)
AC IN: 3-pin (x1)
DC IN: 4-pin (x1)
Power Supply100-240VAC, 50/60 Hz, 0.35 A (max)
10.5-17VDC, 1.2 A (max)
Operating Temperature41° to 104°F (5° to 40°C)
Dimensions (WxHxD)8.13 x 14 x 2.75" (20.4 x 35.4 x 6.7 cm)
Weight7.9 lbs (3.6kg)

Packaging Info

Package Weight10.95 lb
Box Dimensions (LxWxH)19 x 12 x 10"
