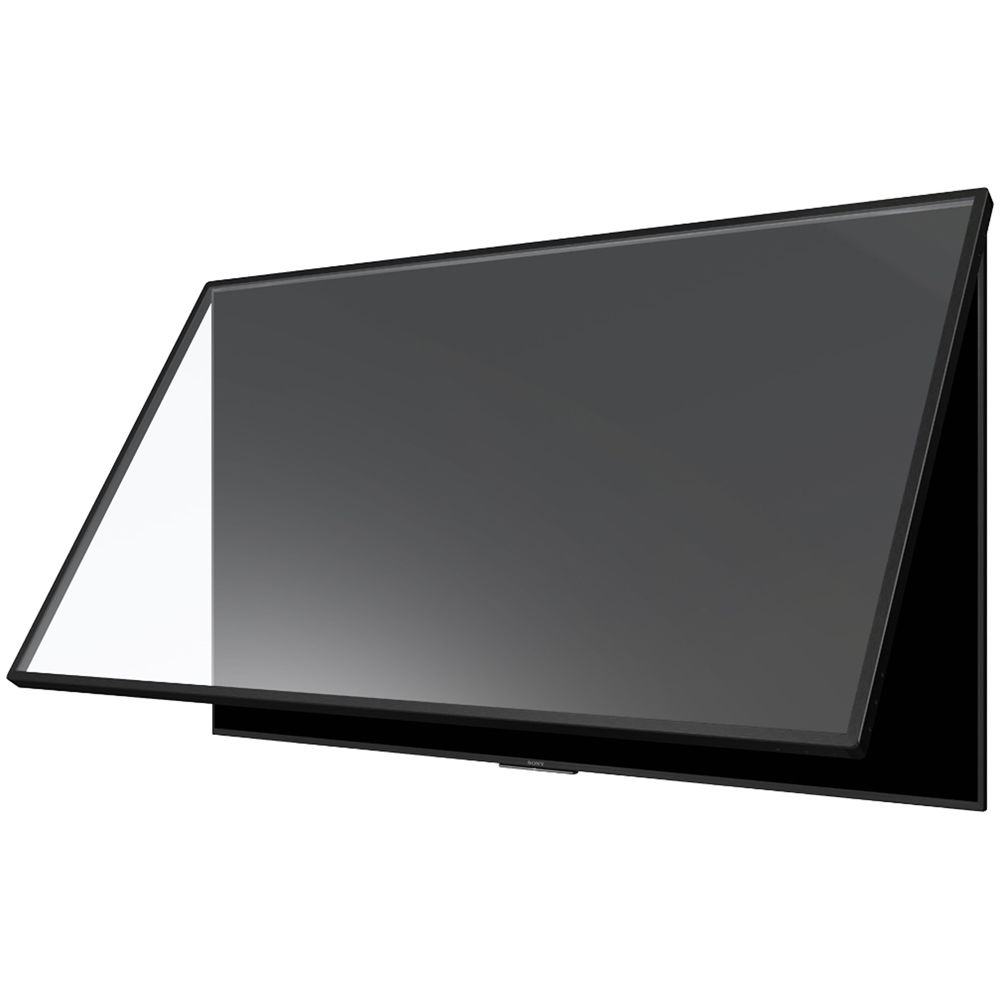

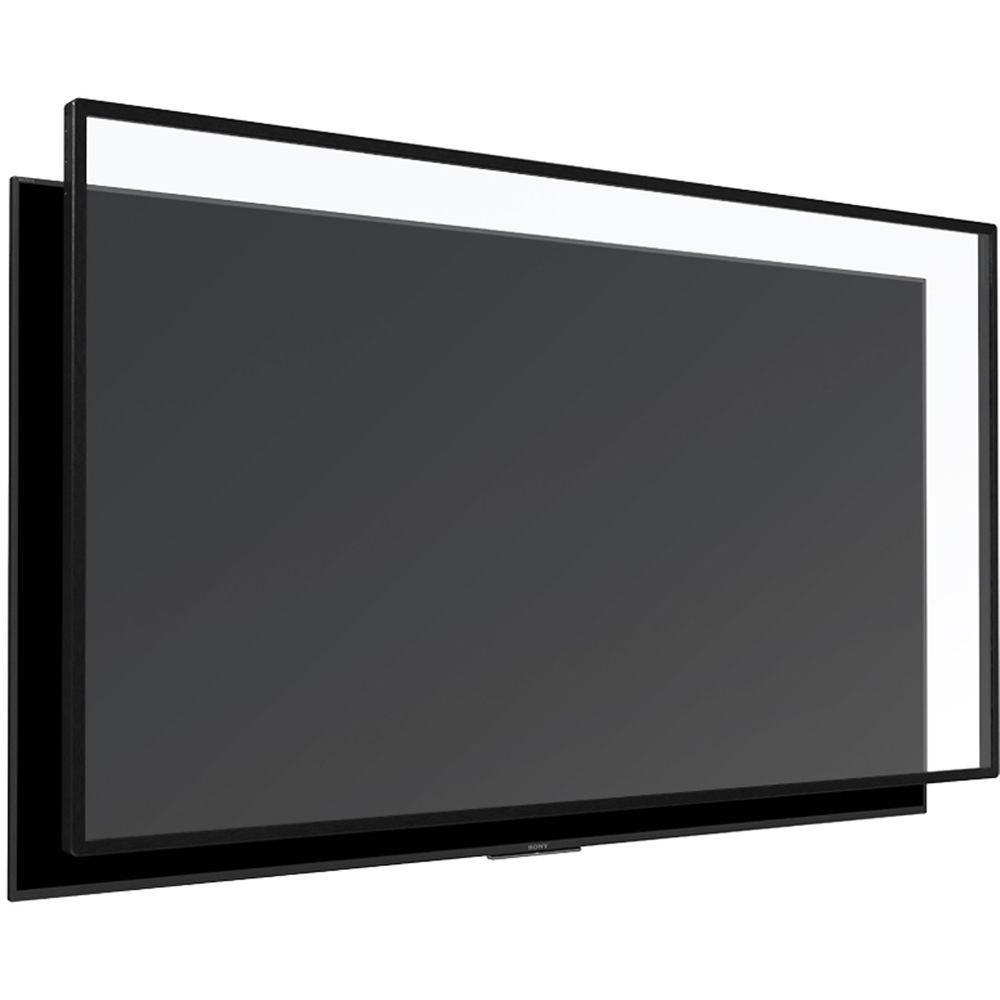

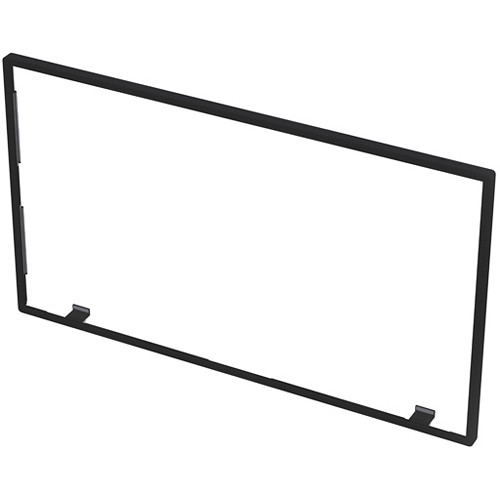

Sony Multi-Touch Overlay Kit for 43" BRAVIA 4K Professional Display
Sony Multi-Touch Overlay Kit for 43" BRAVIA 4K Professional Display
Sony Multi-Touch Overlay Kit for 43" BRAVIA 4K Professional Display
Sony Multi-Touch Overlay Kit for 43" BRAVIA 4K Professional Display

Sony Multi-Touch Overlay Kit for 43" BRAVIA 4K Professional Display

Brand: Sony

MFR: STP-43IR100

Price Available Upon Request
  • Up to 10-Point IR Multi-Touch
  • Interact via Finger, Pen, Opaque Object
  • Slim Bezel Design
  • USB Powered
  • 15 ms Response Time
  • 32,767 x 32,767 Touch Resolution
  • ±0.08" Touch Accuracy
  • Installation Hardware Included
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Monitor Accessories , Monitor Accessories

Transform your compatible 43" BRAVIA 4K professional display into a multi-touch-enabled interactive screen with this Sony Multi-Touch Overlay Kit. Featuring a slim and lightweight design, this overlay enables you to interact with your BRAVIA 4K display using a finger, a pen, or other opaque object. IR technology helps ensure a smooth, accurate, and highly responsive user experience with up to ten touch points, depending on application support.

The overlay sports a slim bezel engineered to blend discreetly into most environments, and fingerprint-resistant glass that minimizes unsightly smears and marks. Once touch-enabled, your BRAVIA 4K display will be ready for a wide range of interactive signage and information kiosk applications at schools, universities, museums, libraries, boardrooms, offices, hotel lobbies, hospitality zones, retail stores, and tourist sites.

Engage Audiences with a Touch

This responsive, high-quality touchscreen overlay transforms your compatible 43" BRAVIA 4K Professional Display into a super-size, touch-enabled interactive terminal.

Responsive, Accurate Multi-Touch Performance

Up to 10 multi-touch points (depending on application) ensure accurate, responsive performance across the entire display area.

Easy Installation and Setup

Powered directly via USB, this multi-touch display solution is designed to be deployed in minutes.


Touch System

Compatible ModelsSony 43" BRAVIA 4K Professional Displays
Touch TechnologyIR (Infrared) Spread
Input MethodFinger, Pen, Opaque Objects
Object SizeAvailable Object Size for Touch:

Single Touch: 0.24" / 6.1 mm
Multi Touch: 0.31" / 7.9 mm
Response Time15 ms
Frame Rate125 Hz
Accuracy±0.08" / 2 mm (over 90% Area)
InterfaceUSB 2.0
Glass ThicknessNot Specified by Manufacturer
Transmission85%
Compatible Operating SystemsWindows 7, 8, 8.1, 10
macOS X 10.6 or Later
Android Kernel 4.0 or Later
Linux Kernel 3.5 or Later
Chrome
Multi-Touch PointsUp to 10 Points
Touch Resolution32,767 x 32,767

Connectivity

InputUSB
Current300 mA, Average
Working Voltage5 VDC ±5%

Standards and Certifications

CertificationsFCC, CB, RCM, EAC, GB, ICES, RoHS

Environmental Specifications

Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity20 to 80%

Physical Specifications

Bezel WidthNot Specified by Manufacturer
DimensionsNot Specified by Manufacturer
WeightNot Specified by Manufacturer
