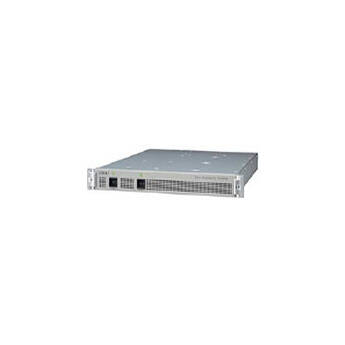

Sony PFV-SP3100 Signal Processing Frame (1RU & 4-Slot)

Brand: Sony

MFR: PFVSP3100

Price Available Upon Request
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

The PFV-SP3100 Signal Processing Frame (1RU & 4-Slot) from Sony is a signal processing frame that accommodates up to (4) HKSP/HKPF-SP Series function boards with a redundant power supply. When this unit is used in conjunction with a HKSP-300 processing module, the PFV-SP Series processing boards can be managed via a LAN 100Base-T Ethernet network.

This unit features a rack height of 1U and can be placed in a standard 19" wide rack. It also allows for an optional hot-swappable backup power supply and CPU option. This unit's internal air-forced cooling and robust power supply allow it to support any combination of modules. The frame's flexible configuration options and range of modules for multi-format and multi-bit-rate compliant applications also make it well suited as a migration path from SD to HD, among many other possibilities.

This unit supports the following HKSP/HKPF-SP boards:



  • HKPF-SP003 Digital Video Distribution Amp

  • HKPF-SP021 Optical to Electrical Converter

  • HKPF-SP022 Electrical to Optical Converter

  • HKSP-008HD HD Frame/Line Synchronizer

  • HKSP-061M 8 x 4 Digital Video Selector

  • HKSP-105 HD Audio/Video Multiplexer Board

  • HKSP-106 HD Audio/Video Demultiplexer Board

  • HKSP-1125 HD Up-converter Board

  • HKSP-300 Processing Module Controller

  • HKSP-313 HD Color Corrector Board

  • HKSP-525 Down Converter Board

  • HKSP-R80 Routing Switcher Controller

  • HKSP-R81 Routing Switcher Backup CPU

  • UCP-8060 Universal Control Panel

  • HKSP-313 HD Color Corrector Board

  • HKSP-525 Down Converter Board

  • HKSP-R80 Routing Switcher Controller

  • HKSP-R81 Routing Switcher Backup CPU

  • UCP-8060 Universal Control Panel



Accommodate (4) HKSP/HKPF-SP Series Function Boards

This unit is a signal processing frame that accommodates up to (4) HKSP/HKPF-SP Series function boards with a redundant power supply.

Remote Ethernet Control

When this unit is used in conjunction with a HKSP-300 processing module, the PFV-SP Series processing boards can be managed via a LAN 100Base-T Ethernet network.

Rack Ready

This unit features a rack height of 1U and can be placed in a standard 19" wide rack.

Hot-Swappable Power & Cooling Features

This unit's internal air-forced cooling and robust power supply allow it to support any combination of modules.

Customization

This frame's flexible configuration options and range of modules for multi-format and multi-bit-rate compliant applications make it well suited as a migration path from SD to HD, among many other possibilities.


Operating RequirementsThis frame is designed to accommodate up to (4) HKSP/HKPF-SP Series function boards with a redundant power supply in a standard 19" rack.
Dimensions1U rack height
19" wide

Packaging Info

Package Weight23 lb
Box Dimensions (LxWxH)42 x 22 x 10"
