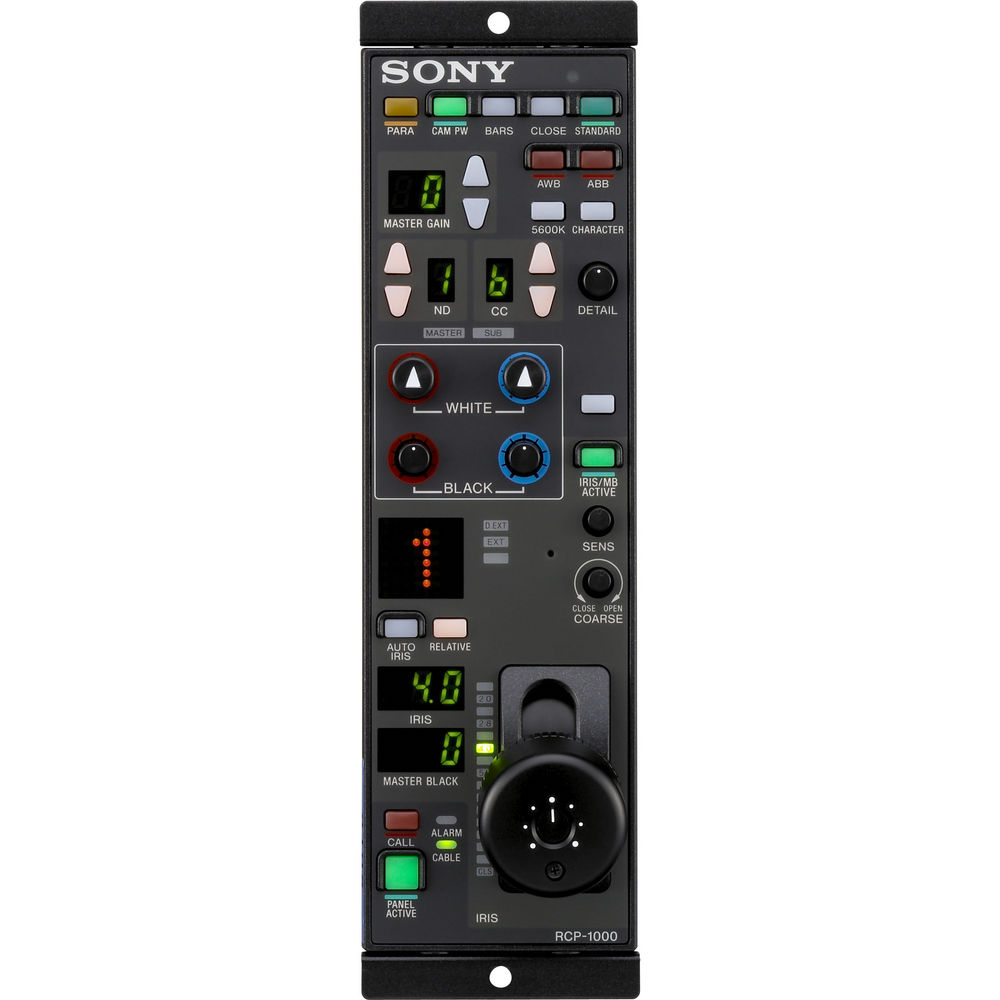

Sony RCP-1000 Simple Remote Control Panel (Joystick)
Sony RCP-1000 Simple Remote Control Panel (Joystick)

Sony RCP-1000 Simple Remote Control Panel (Joystick)

Brand: Sony

MFR: RCP1000

Price Available Upon Request
  • Programmable Menu
  • Joystick Tension Adjustment
  • Network Capability
  • RCP Camera Assignment
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Camcorder & Camera Peripherals

The Sony RCP-1000 Simple Remote Control Panel provides specialized, basic operations of professional studio camcorders, using a joystick-type control for iris and master black adjustments. In accordance with your system's particular configuration, the RCP-1000 allows customizing of frequently used settings. And it's compact enough that up to 6 units can be mounted in a single 19" rack.

Simple and Compact

This remote control panel is provided with the control functions required to perform the basic operations of cameras, enabling the simple and accurate operation of various functions.

IRIS/MB (Master Black) Display Window

The IRIS window displays the iris setting as an F number. If the lens is closed, "CLS" is displayed. The Master Black display window displays the master black setting value.

Direct Control Filters and Master Gain Buttons

Easily access ND/CC filters as well as master gain control.

Customizable Switch

User can assign any function to a spare switch.

Compatible with a Variety of Control Systems

HDC/HSC/BVP system camera users can build a multi-camera control system through the use of the CNU-700. In a system that uses CNU-700s, two CNUs can be used to control a camera system of up to 24 cameras. A system that uses a LAN can also be built by connecting to a LAN-compatible CCU.


Sony RCP1000 Specs

Input and Output ConnectorsCCU/CNU: Multi-connector 8-pin (female) x1
EXT I/O: 9-pin D-Sub (female) x1
Power Requirements10.5 - 30VDC
Power Consumption2W
Operating Temperature41°F - 104°F (5°C - 40°C)
Dimensions (WxHxD)2.8 x 9.6 x 4.9" (6.8 x 24.4 x 12.4 cm)
Weight2.4 lbs (1.1kg)
