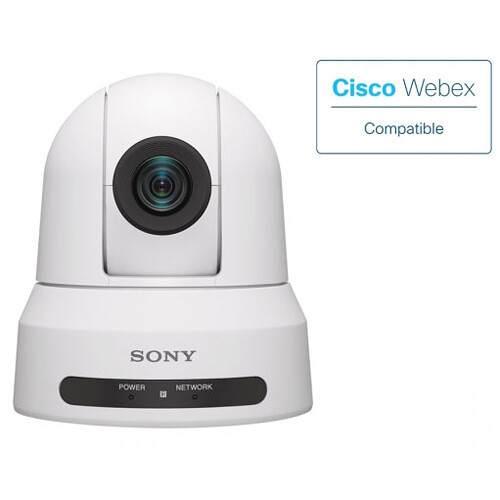

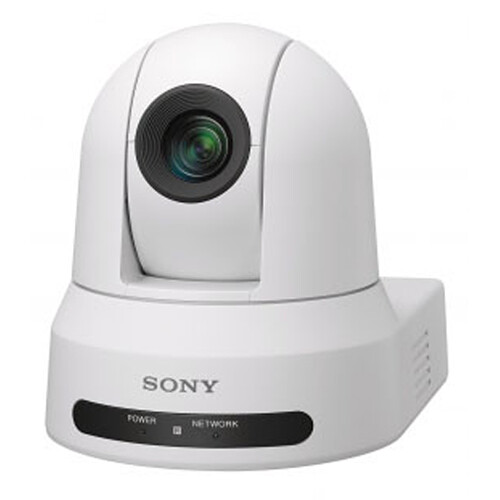

Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (White)

Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (White)

Name: Sony SRG-X40UH 4K/HDMI/USB Optical 20x PTZ Camera with PoE+ (White)
Brand: Sony
SKU: 12726
Availability: InStock

Brand: Sony

MFR: SRGX40UH/W

Price Available Upon Request

Up to UHD 4K30 HDMI & 1080p60 USB 3.0
1/2.5" Exmor R CMOS Sensor

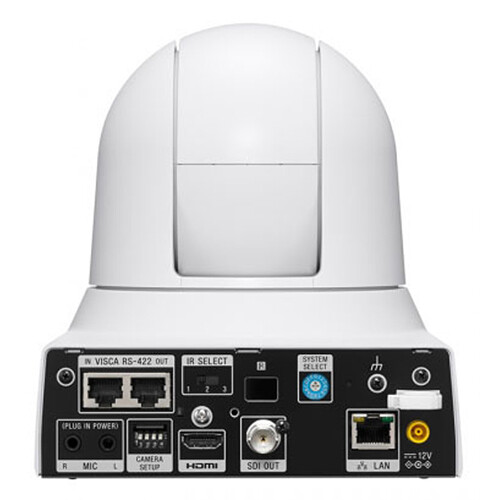

HDMI, USB-C & LAN/VISCA Port
Wide 70° AOV, 20x Optical Zoom
340° Pan and 110° Tilt
Low-Light Rating: 1.6 lux at 1/30s
Runs on PoE+ or DC Power
IR Remote Control Included

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: PTZ Cameras

Capture all the details of your meetings and lectures with the white SRG-X40UH 4K PTZ Camera from Sony. This camera captures video at resolutions up to UHD 4K30 via HDMI and up to 1080p60 via USB. The SRG-X40UH camera is equipped with an 8.5MP CMOS sensor and a 4.4-88mm lens with a wide 70° field of view. Clear Image Zoom Technology can extend the 20x optical zoom up to 40x, enabling frame-filling close-ups in 1080p.

PTZ Moves with Manual or Automatic Focus

The integrated pan/tilt system offers 340° panning and 110° tilting at up to 300° and 126° per second respectively. Focusing can be performed manually or set to automatic. The camera outputs video via its HDMI and USB-C interfaces. PoE+ technology simplifies setup by enabling you to power the camera directly via its network connection and a single cable. An IR remote commander, mounting hardware, and an HDMI clamp are included with the camera.

Optimal Imaging

The 1/2.5" Exmor R sensor captures optimal, low-noise images even in dimly lit environments down to 1.6 lux.

Up to 4K30 Video

Output clear, detailed video at resolutions up to UHD 4K30 via HDMI and up to 1080p60 via the USB-C port.

Wide Viewing Angle

The horizontal angle of view of 70° captures your whole meeting or lecture.

Versatile Zoom

A 20x optical zoom with up to 40x Clear Image Zoom in HD and up to 30x CIZ in UHD 4K enables you to get detailed, sharp close-ups of any your participant.

Day/Night Function

The Day/Night functions automatically switches between full-color Day mode and black and white Night mode and offers boosted sensitivity for seeing in almost complete darkness.

Simple Setup

Mounts easily on a desktop or from the ceiling.
Simple UVC or HDMI video connection.
Uses PoE+ support and VISCA/VISCA over IP to enable a single-cable LAN setup.

Note:

Alternate color shown.

Hi-Speed Movement

Pan moves at rates up to 300°/second, up to 126°/second tilt, and Picture Freeze Presets enable you to quickly and accurately capture your presenter's movements.

Image Sensor	1/2.5"-Type CMOS
Sensor Resolution	Effective: 8.5 Megapixel
Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/10000 to 1 Second
Optical Zoom Ratio	20x
Max Digital Zoom	30x ( in UHD 4K)
External Recording Modes	4:4:4 8-Bit via HDMI UHD 4K (3840 x 2160) at 25/29.97 fps HD (1920 x 1080p) at 25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB HD (1920 x 1080p) at 25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps Show More

Imaging

Image Sensor	1/2.5"-Type CMOS
Horizontal Resolution (TV Lines)	1700 TV Lines
Sensor Resolution	Effective: 8.5 Megapixel
IR Cut Filter	Yes
Built-In ND Filter	None
Image Stabilization	Digital
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Type	Electronic Rolling Shutter
Shutter Speed	1/10000 to 1 Second
Gain	0 to 48 dB
Minimum Illumination	1.6 Lux at 1/30 Shutter Speed
Flip / Mirror Support	Image Flip
White Balance	Presets: Auto, Indoors, Manual, One Push, Outdoors

Lens

Focal Length	4.4 to 88mm
Optical Zoom Ratio	20x
Max Digital Zoom	30x ( in UHD 4K)
Field of View	Horizontal: 70°
Maximum Aperture	f/2 to 3.8
Minimum Focus Distance	Wide: 3.1" / 8.0 cm Telephoto: 31.5" / 80.0 cm

Video Capture

External Recording Modes	4:4:4 8-Bit via HDMI UHD 4K (3840 x 2160) at 25/29.97 fps HD (1920 x 1080p) at 25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB HD (1920 x 1080p) at 25/29.97/50/59.94 fps HD (1920 x 1080i) at 50/59.94 fps 1280 x 720 at 50/59.94 fps
Embedded Audio	USB: 2-Channel HDMI: 2-Channel
Broadcast Output	NTSC/PAL

Control

Presets	100 via VISCA
Move Speed	Pan: 0.5 to 300°/sec Tilt: 0.5 to 126°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 110° (-20 to 90°)
Tally Light	No
Supported Control Protocols	RS-422 VISCA

Interface

Video I/O	1 x HDMI Output 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O	2 x 1/8" / 3.5 mm TRS Stereo Mic/Line (Plug-in Power) Input
Other I/O	1 x RJ45 (RS-422, VISCA) Input 1 x RJ45 (RS-422, VISCA) Output 1 x RJ45 (LAN, VISCA)

Power

PoE Support	PoE+ 802.3at
Power I/O	1 x Barrel (10.8 to 13.2VDC) Input
Power Consumption	PoE: 25.5 W Power Supply: 23.8 W

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

General

Mounting	1 x 1/4"-20 Female for Tripod
OS Compatibility	Windows 10 to 11 (64-Bit Only) macOS 10.15 *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Sound Level	NC30
Dimensions (W x H x D)	7.9 x 7 x 6.2" / 200.2 x 177.5 x 158.4 mm
Weight	4.0 lb / 1.8 kg

Packaging Info

Package Weight	7.425 lb
Box Dimensions (LxWxH)	13.3 x 12.9 x 12.1"
