Brand: SOUNDCRAFT
MFR: MINI STAGEBOX 16I US
Categories: Stage Boxes

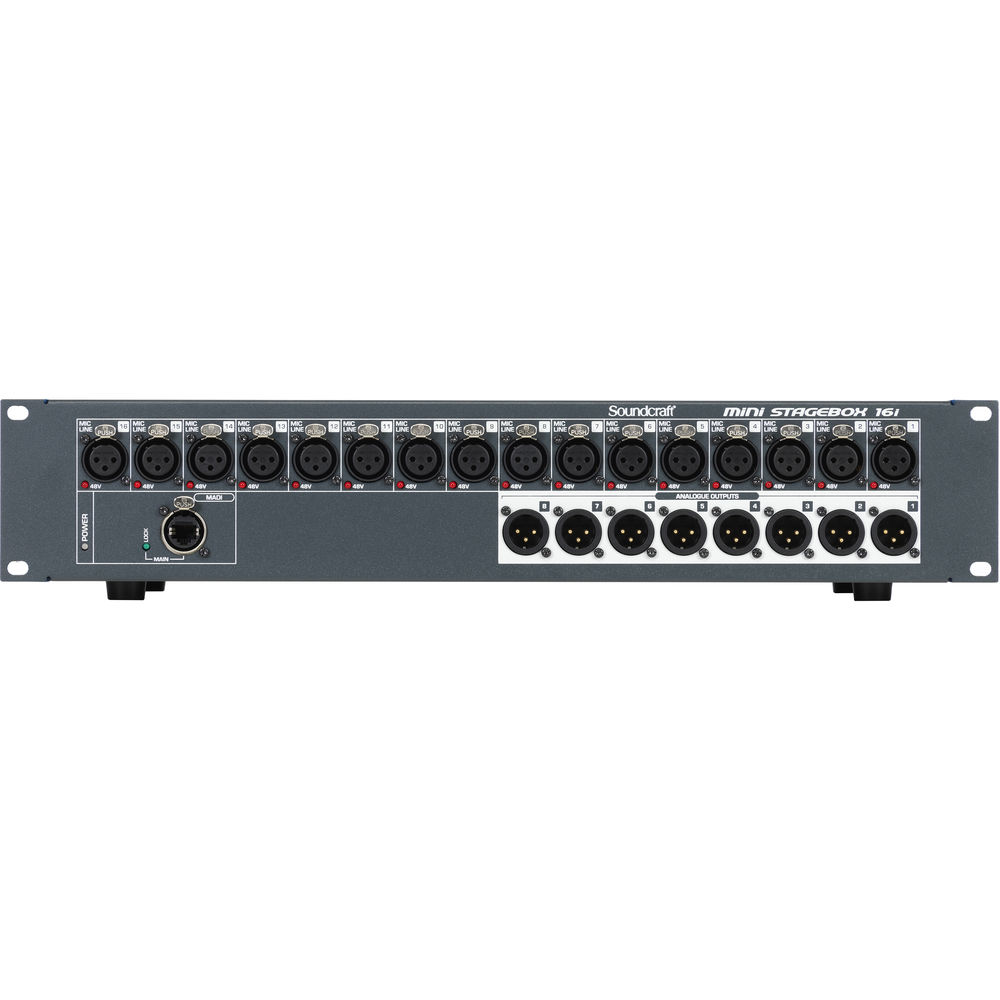

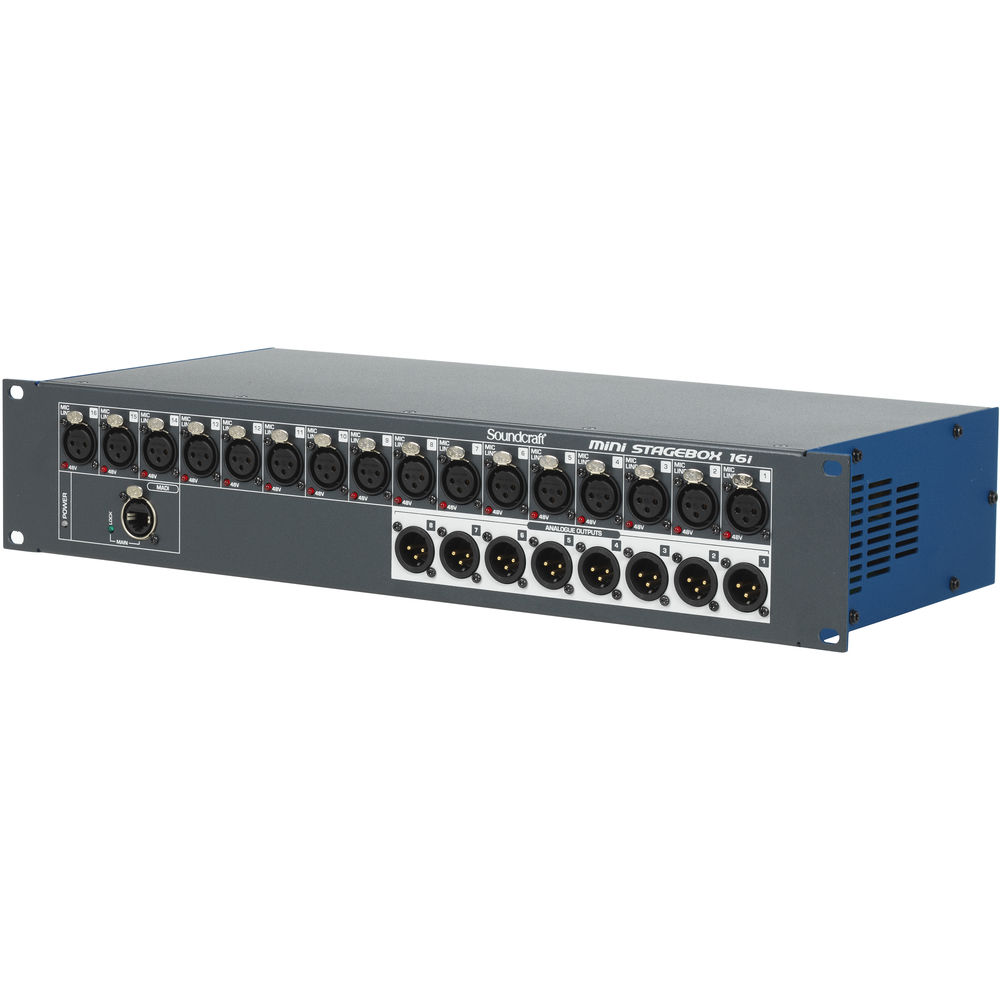

The Mini Stagebox 16i from Soundcraft offers multiple channels of remote controlled I/O for Si Series products—including the Si Impact mixing console—and is well suited for live sound engineers, houses of worship, bands, clubs, and corporate events. The Mini Stagebox requires only 2 RU of rack space, yet provides 16 recallable, high-quality, Studer-designed microphone preamp inputs, and 8 balanced line outputs, all remotely controlled from the console.
The Mini Stagebox 16i comes fitted with a single MADI over RJ45 connector, eliminating the need for expensive and heavy analog cable snakes for the stage to the front-of-house mixing position. The RJ45/Cat5 connector allows for cable runs up to 328' (100m) between the stage and front-of-house.
General
| Compatibility | Allen&Heath |
Inputs / Outputs
| Audio I/O | 16 x XLR 3-Pin Line/Mic Input 8 x XLR 3-Pin Line Output |
Power
| Power Source | AC Input (Included) |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| Power Consumption | 33 W |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 0 to 90% |
Physical
| Color | Black |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 13.3 lb |
| Box Dimensions (LxWxH) | 21.2 x 16.7 x 9.7" |
