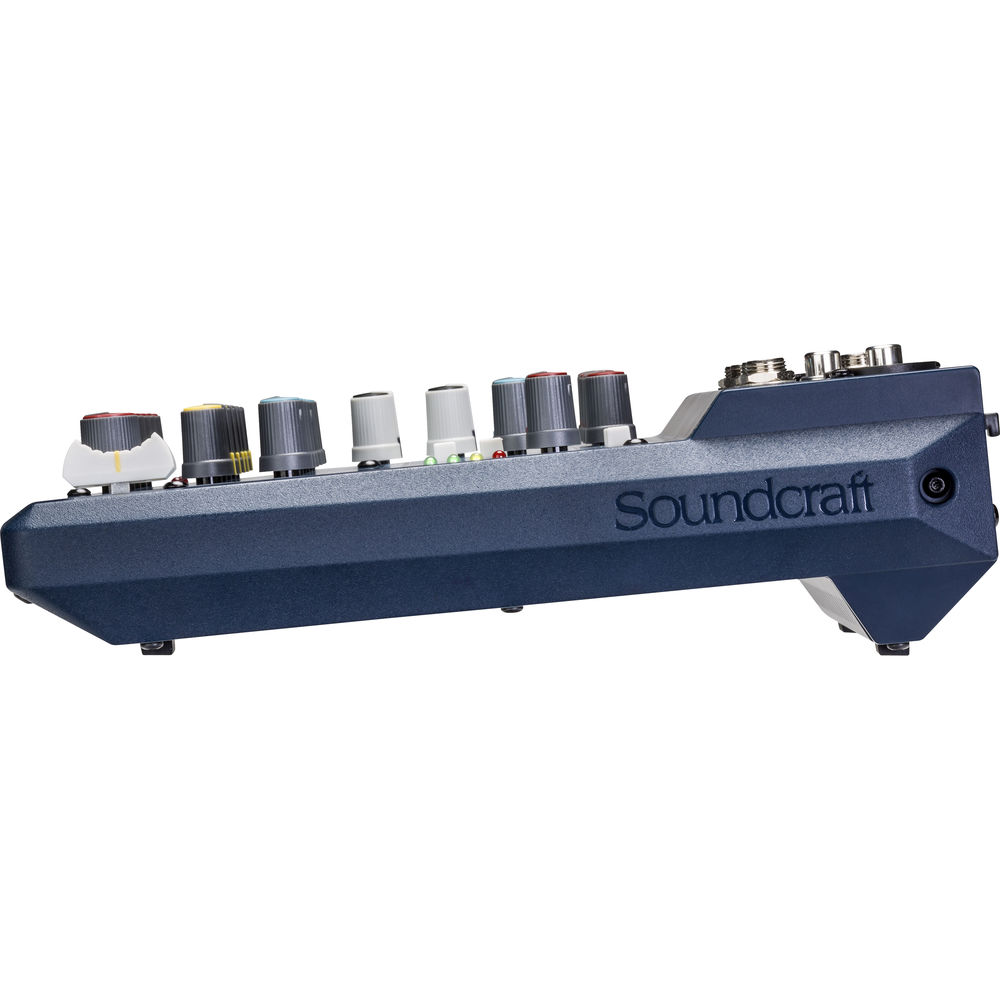

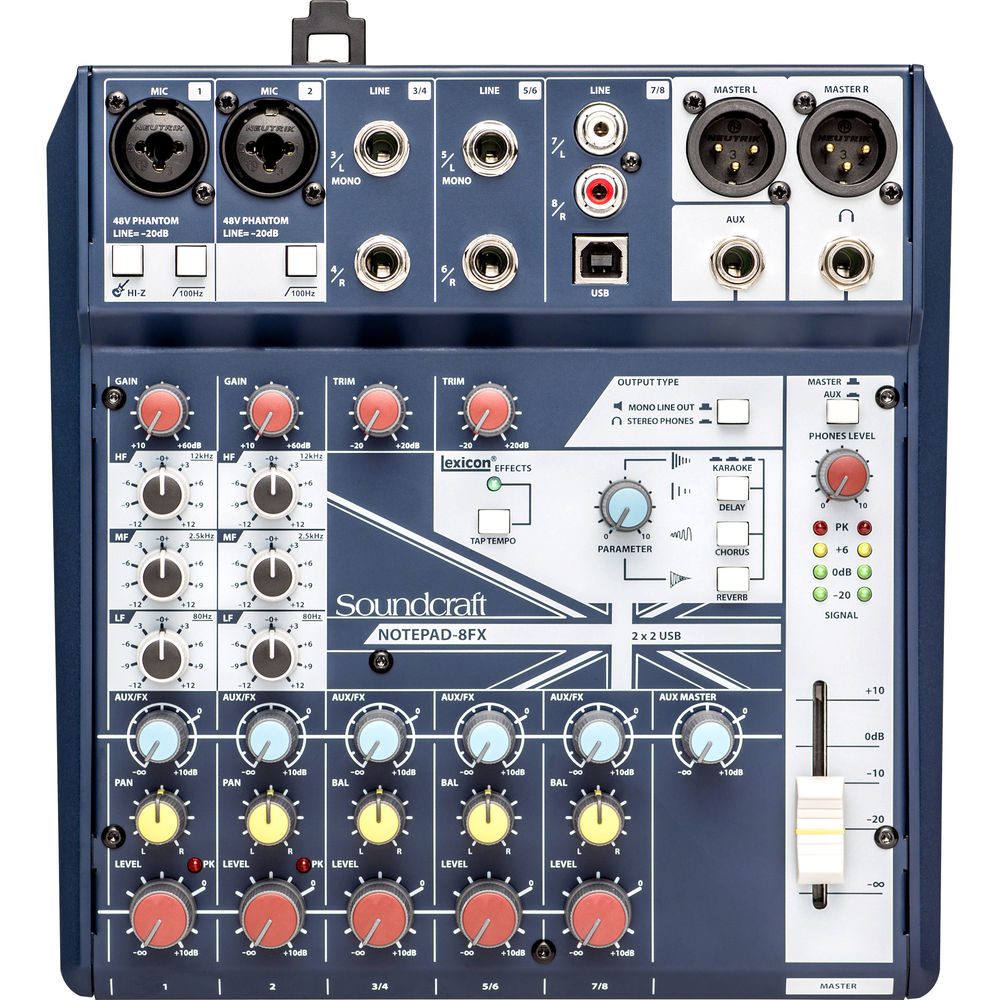

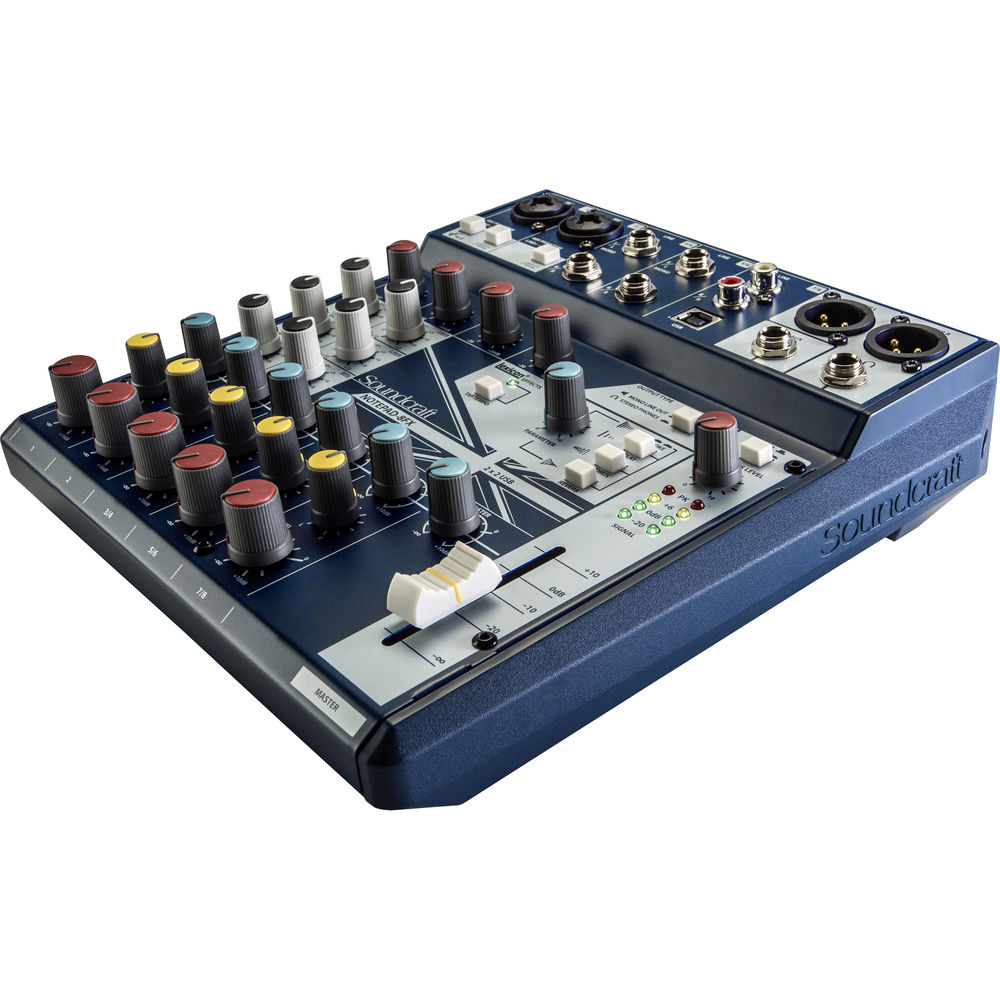

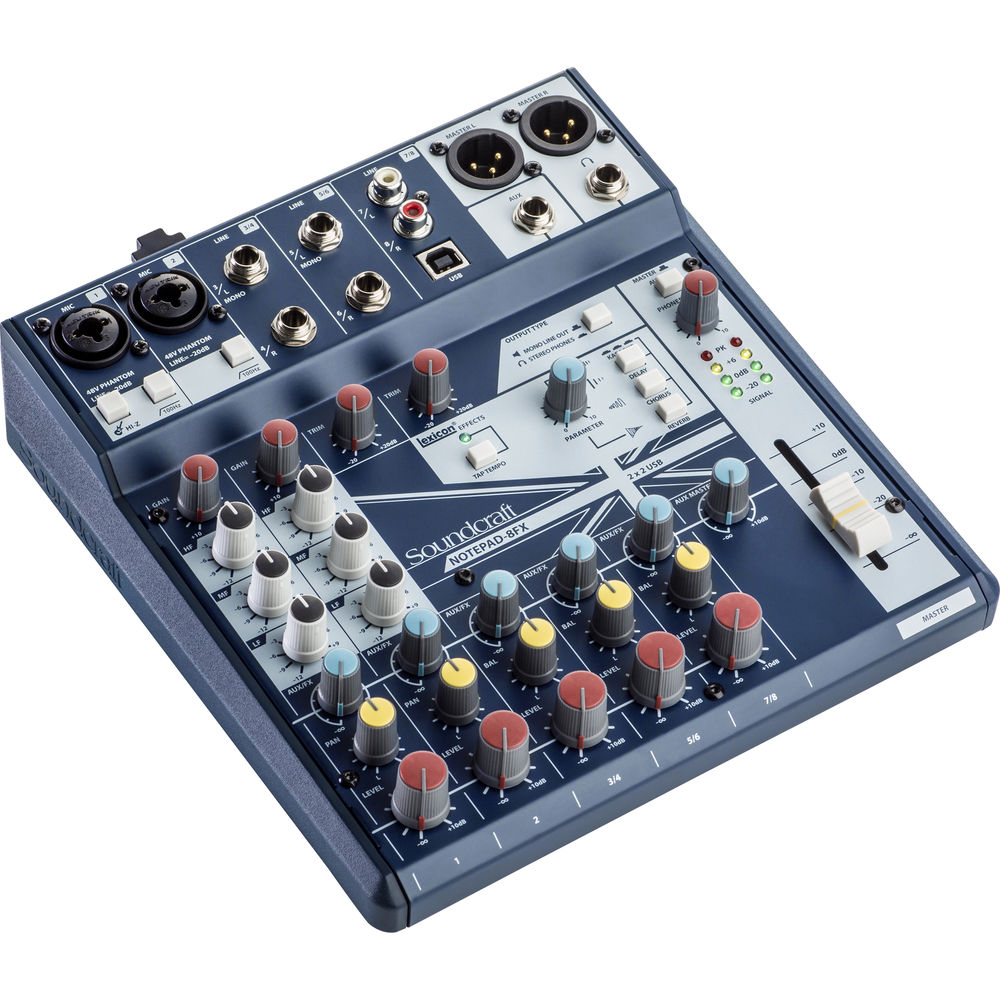

The Notepad-8FX from Soundcraft is a small-format, 8-channel analog mixing console with an integrated 2x2 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as two microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, input 1 offers a Hi-Z instrument input for incorporating guitars and other high-impedance instruments.
Channels 1-6 include gain/trim controls, and all channels feature an aux send, pan knob, and level controls. Channels 3/4 and 5/6 feature 1/4" line-level inputs, while channels 7/8 include stereo RCA inputs. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or aux bus. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-8FX features a durable metal enclosure and ships with an external power supply.
Mixer
| Number of Analog Input Channels | 8 (2 Mono / 3 Stereo) |
| Number of Mic Preamps | 2 |
| Analog Output Channels | 1 x Stereo Master Output 1 x Mono Aux Send Output 1 x Stereo Headphone Output |
| Meters | Main Meter: 2 x 4-Segment LED |
| Meter Range | -20 dB to +6 dB Plus Peak/Clip |
Signal Processing
| EQ Parameters | Mono Channels: High: ±12 dB at 12 kHz Mid: ±12 dB at 2.5 kHz Low: ±12 dB at 80 Hz |
| Built-In Effects | Delay Chorus Reverb |
Connectivity
| Analog Inputs | 2 x Combo XLR-1/4" Mic/Line Input 4 x 1/4" Line Input 1 x Stereo RCA Line Input |
| Analog Outputs | 2 x XLR 3-Pin Main Output (1 Stereo Pair) 1 x 1/4" Aux Output 1 x 1/4" TRS Headphone Output |
| USB | 1 x USB-B |
| USB I/O Capacity | 2 x Input / 2 x Output |
Physical
| Rack Mountable | No |
Packaging Info
| Package Weight | 3.385 lb |
| Box Dimensions (LxWxH) | 12.05 x 10.8 x 3.6" |
