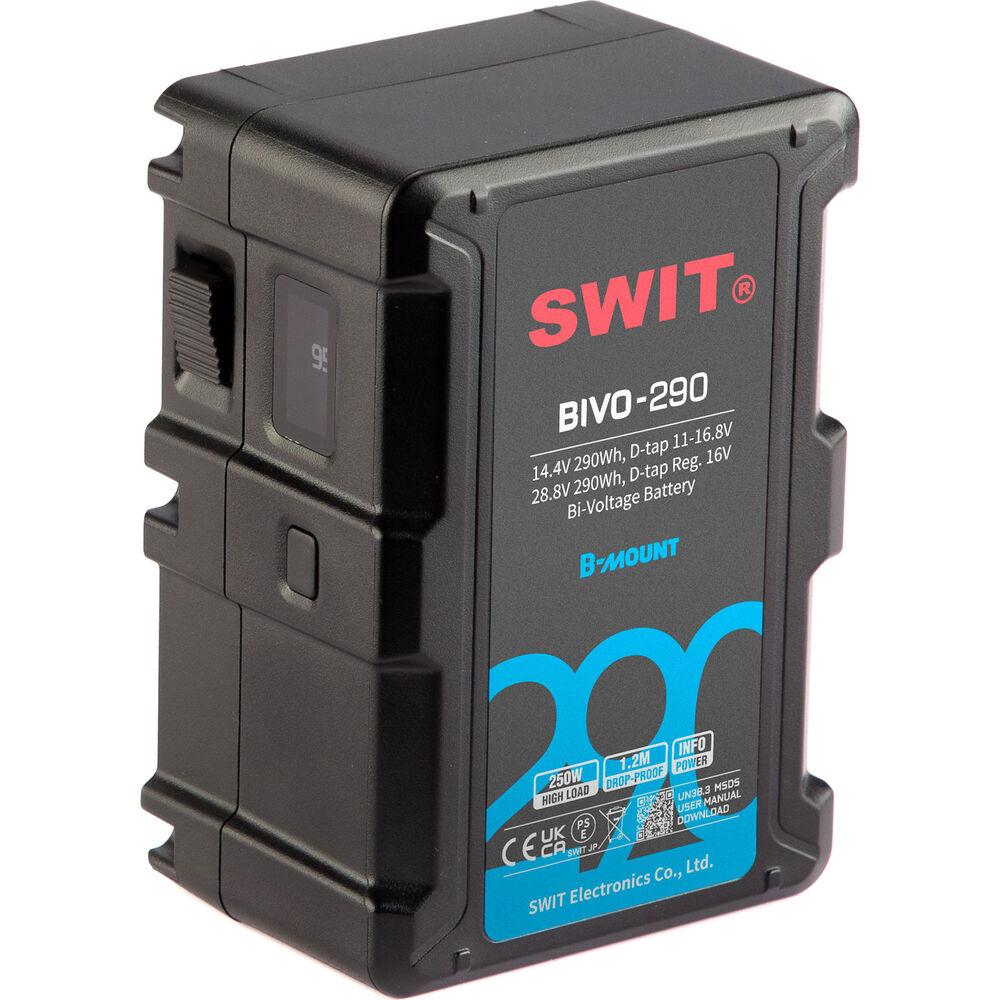

SWIT 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery

SWIT 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery

Name: SWIT 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery
Brand: SWIT
SKU: SF-2443-PDIL
Availability: InStock

Brand: SWIT

MFR: BIVO-290

SKU: SF-2443-PDIL

Price Available Upon Request

14.4/28.8V Dual-Voltage B-Mount Battery
290Wh Capacity
250W Continuous Load
100W/33.6V Fast Charging
2 Dual-Voltage D-Tap Outputs
OLED Power/Info Display
Built-In LED Flashlight
Withstands Falls from up to 3.9'
Integrated Circuit Protection

Items Included

SWIT 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery

(In Stock)

Request Now

Categories: Batteries & Power

Power your B-mount camera and pro video accessories with this high-capacity 14.4/28.8V Dual-Voltage 290Wh B-Mount Battery from SWIT. Robust and versatile, the battery's B-mount interface enables powering B-mount accessories, cameras, or lights with the correct voltage, which is determined by the device's B-mount plate. This dual-voltage model can power either 14.4V or 28.8V devices, including cine-style cameras, via its B-mount interface.

Versatile Design

The BIVO-290 has several powerful features, including multiple circuit protections to prevent overcharging, an OLED power/info status display, and a built-in flashlight to illuminate the mount when you are installing the battery. Two D-Tap outputs can be used to power accessories. Designed to be strong, reliable, and versatile, this battery is built to withstand falls from 3.9'

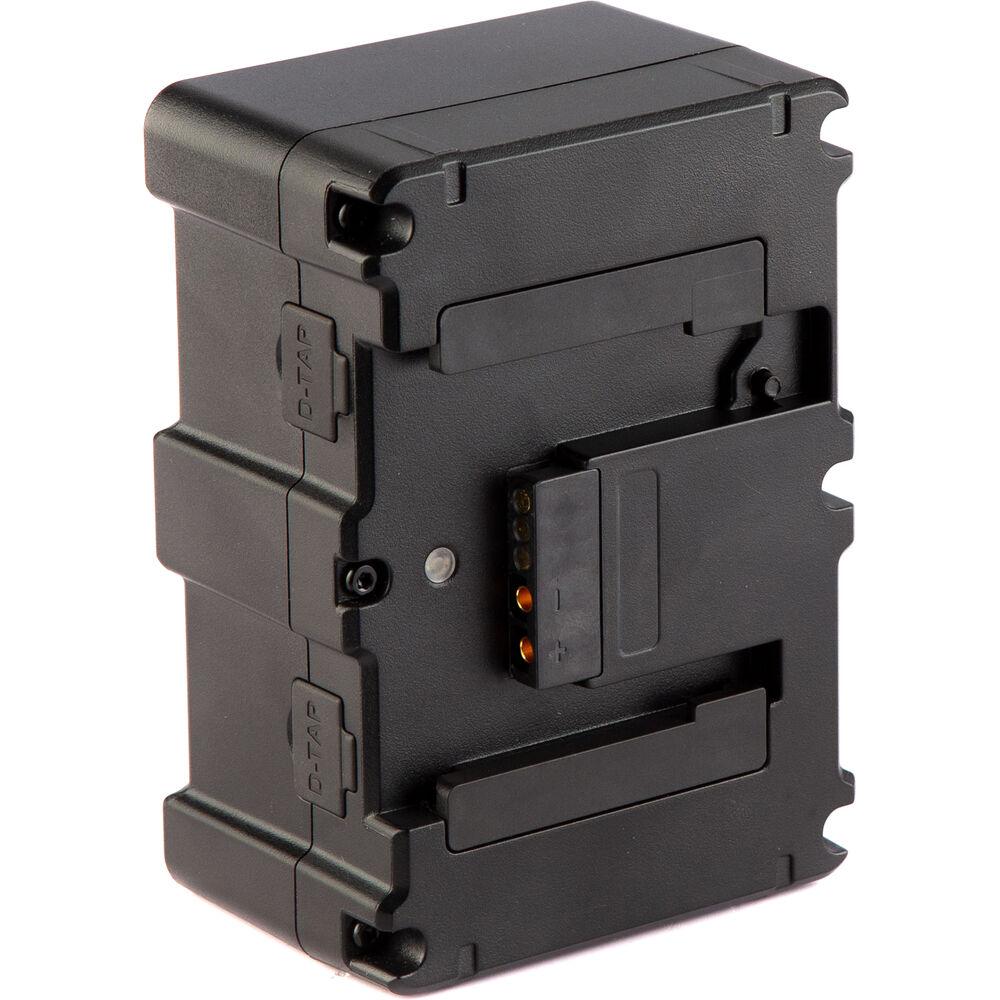

ARRI-Standard B-Mount Battery

The B-mount battery interface is a new industry standard endorsed by ARRI and the wider production industry.
Provides high-voltage support and a reliable lock system.

14.4 and 28.8V for Any Cine Gear

The 14.4 and 28.8V (22-33.6V) dual-voltage battery is compatible with all ARRI cameras and lights and equivalent high-powered cine equipment.
OLED Status Screen
The battery provides an OLED screen that displays power/info status.
High Capacity
The BIVO-290 battery has a high 290Wh capacity and provides at least a 250W constant high load suitable for cine cameras and devices.

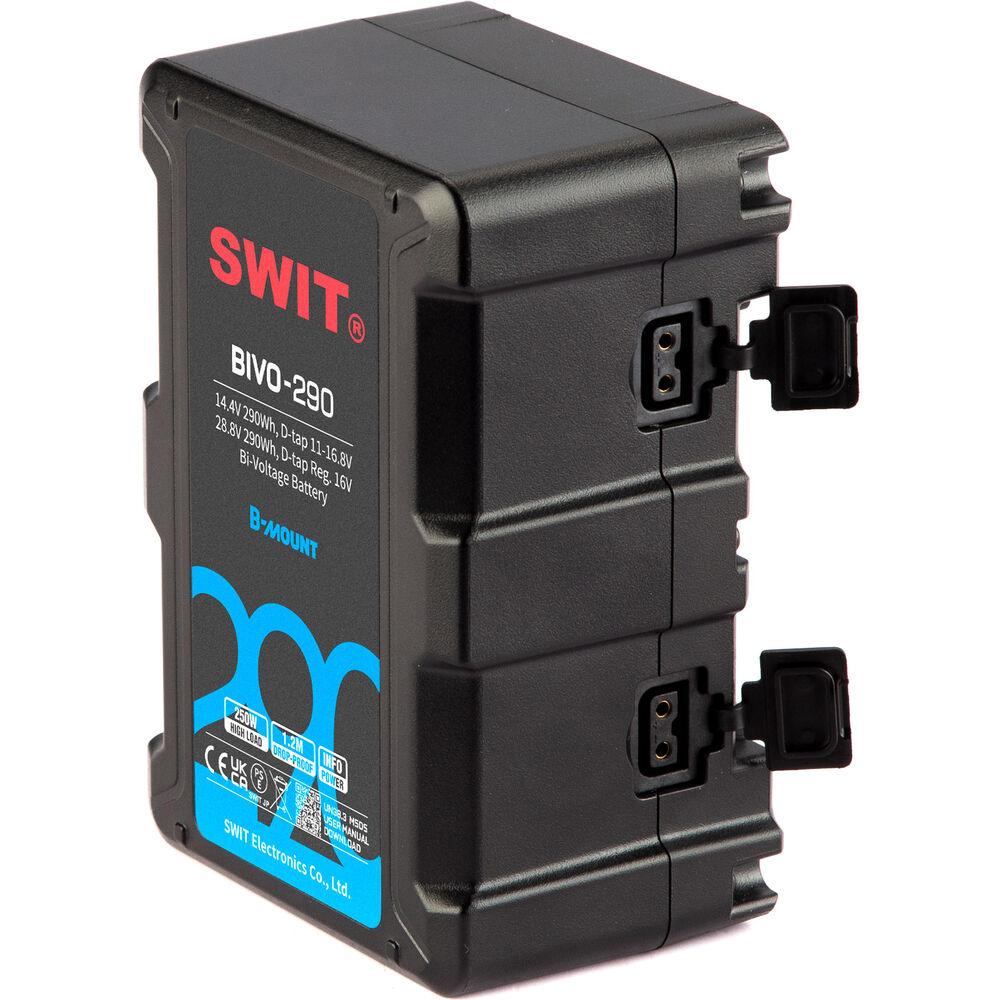

D-Tap Accessory Ports
The BIVO-290 provides two regulated D-Tap outputs for powering camera accessories.
Circuit Protection
The battery features multiple circuit protections to protect your battery and your gear.
100W Super-Fast Charging

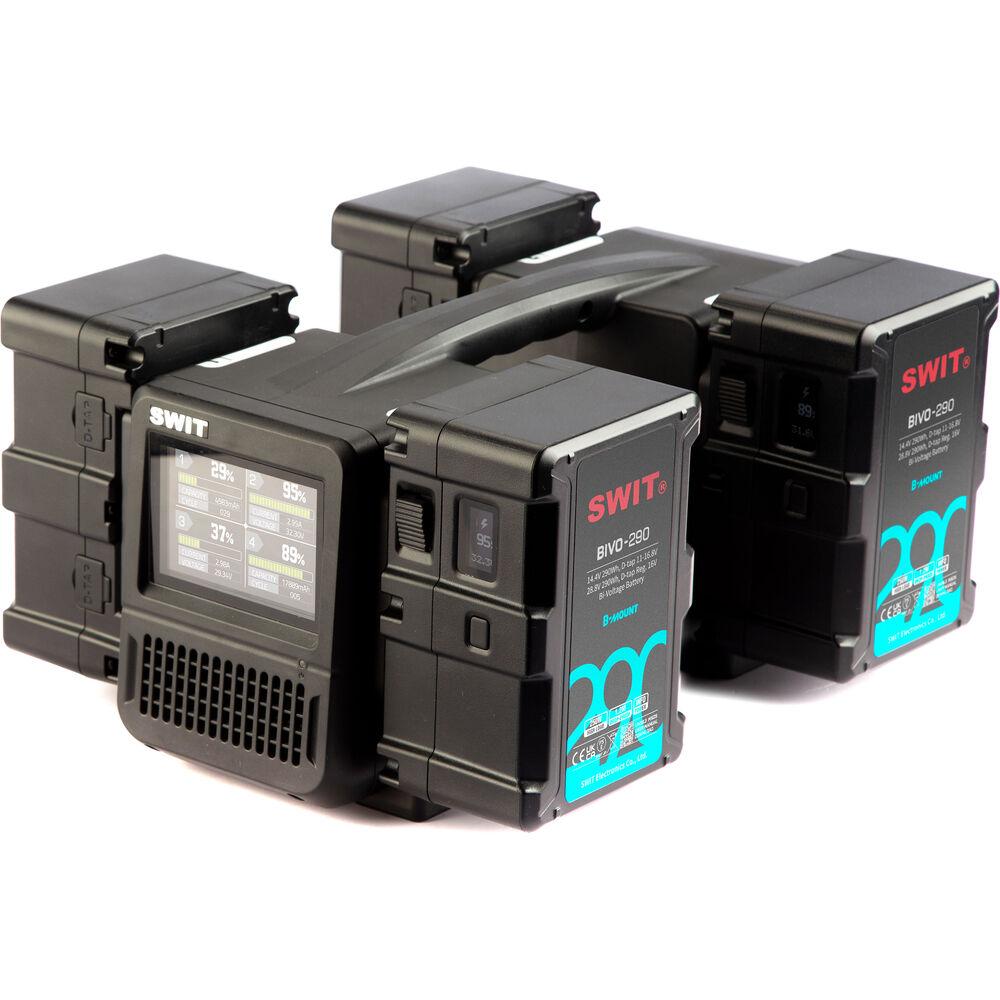

You can charge four batteries simultaneously on the SWIT PC-P461B B-mount charger using 33.6V, 100W super-fast charging.
LED Flashlight
Double-press the Power Check button to switch on the LED flashlight on the rear of the battery to help you find the B-mount plate in a dark environment.
Rugged Drop-Proof Design
The BIVO-290 battery's rugged design enables it to survive a drop from 3.9' at any angle.

Mount / Series Type	B-Mount
Chemistry	Lithium-Ion
Battery Capacity	290 Wh
Output Voltage	14.4 VDC 28.8 VDC
Maximum Load	250 W, 10 A 250 W, 20 A
Accessory I/O	2x D-Tap / P-Tap Output 14.4 V: 10.8-16.8 VDC, 200 W 28.8 V: 16 V, 50 W Regulated
Maximum Load (Accessory I/O)	250 W (D-Tap)
Charging Voltage	33.6 VDC
Charging Temperature	32 to 104°F / 0 to 40°C
Discharging Temperature	-4 to 122°F / -20 to 50°C
Environmental Resistance	No
Dimensions (W x H x D)	5.7 x 3.9 x 2.8" / 14.4 x 10 x 7 cm
Weight	3.35 lb / 1.52 kg
