SWIT 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O

SWIT 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O

Name: SWIT 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O
Brand: SWIT
SKU: SF-2443-GPDE
Availability: InStock

Brand: SWIT

MFR: LB-SU90C

SKU: SF-2443-GPDE

Price Available Upon Request

Comparable to Sony BP-U Li-Ion Battery
14.4V Output, 90Wh/6.2Ah Capacity
Supports up to 70W/6A Draw
D-Tap & USB-C Input/Output Ports
Circuit Protection
4-LED Battery Level Indicator
For Sony PXW-FS5/FS7 & PXW-FX6/FX9
For Sony PXW-Z280/X280

Items Included

SWIT 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O

(In Stock)

Request Now

Categories: Batteries & Power

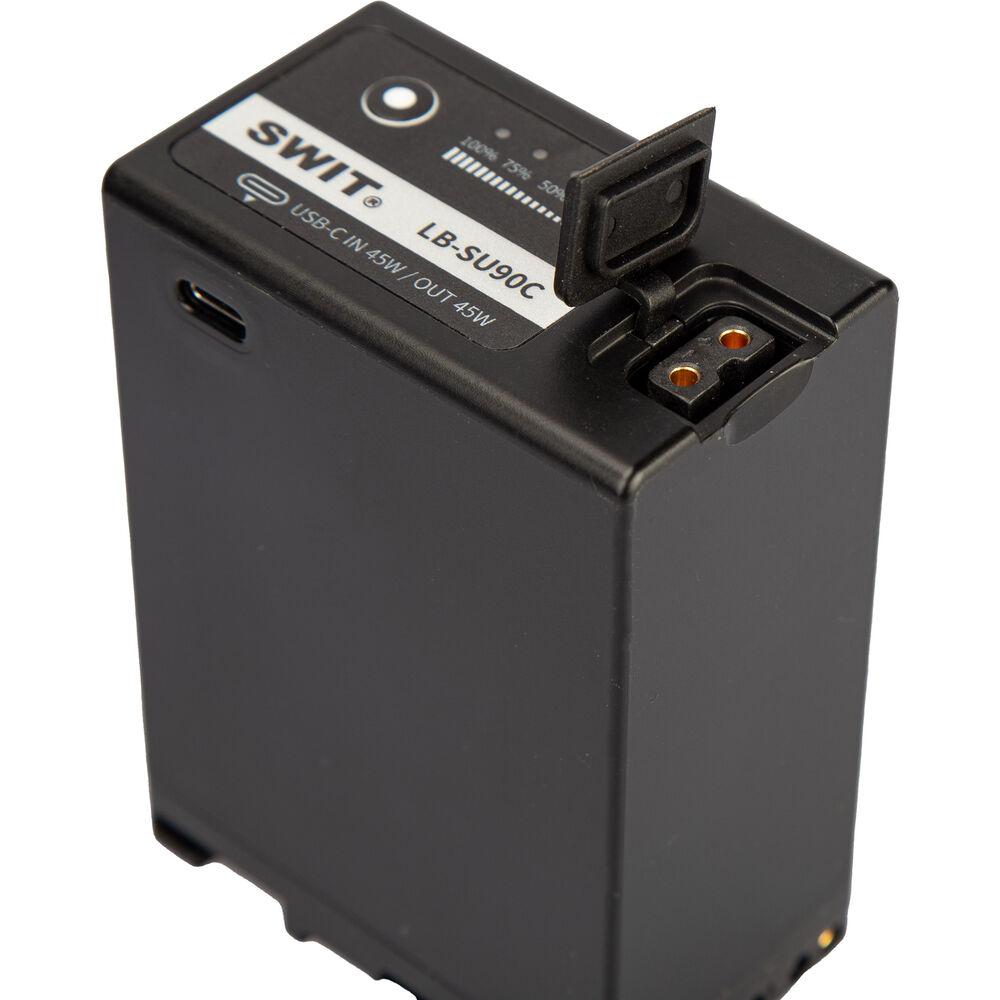

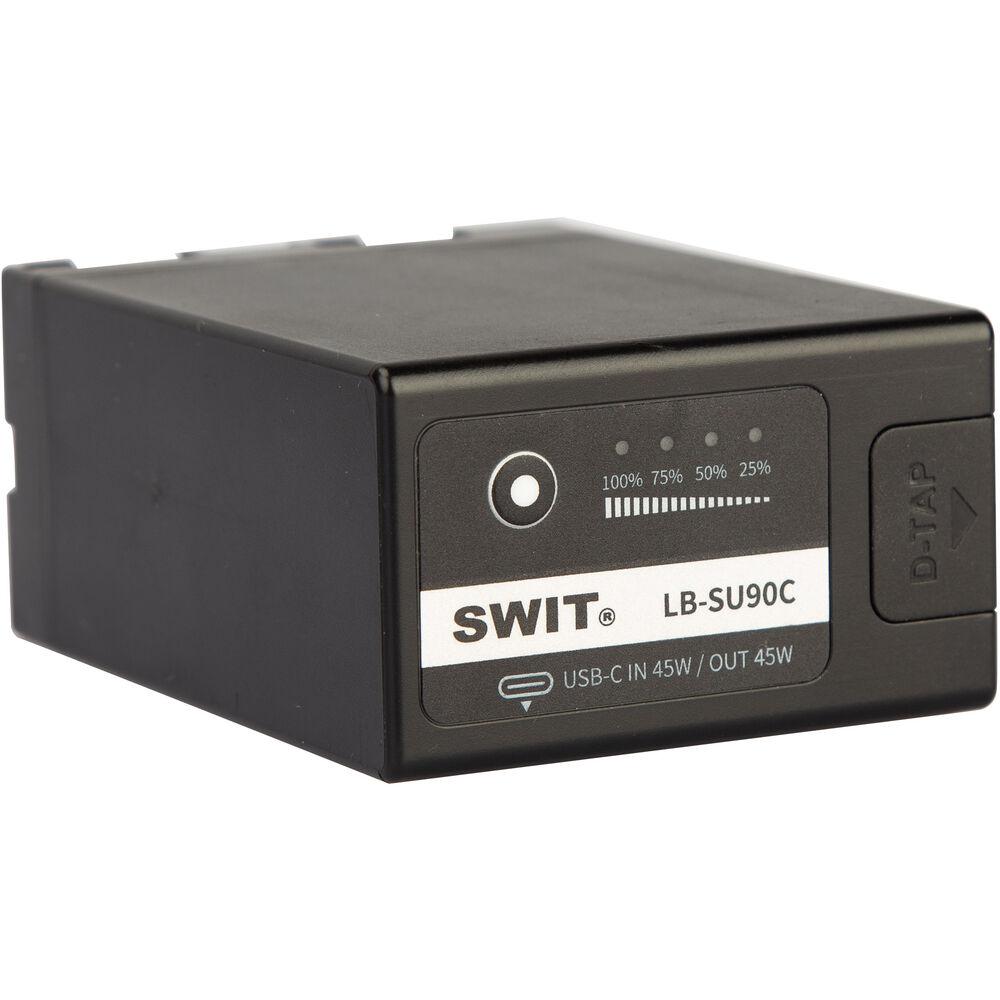

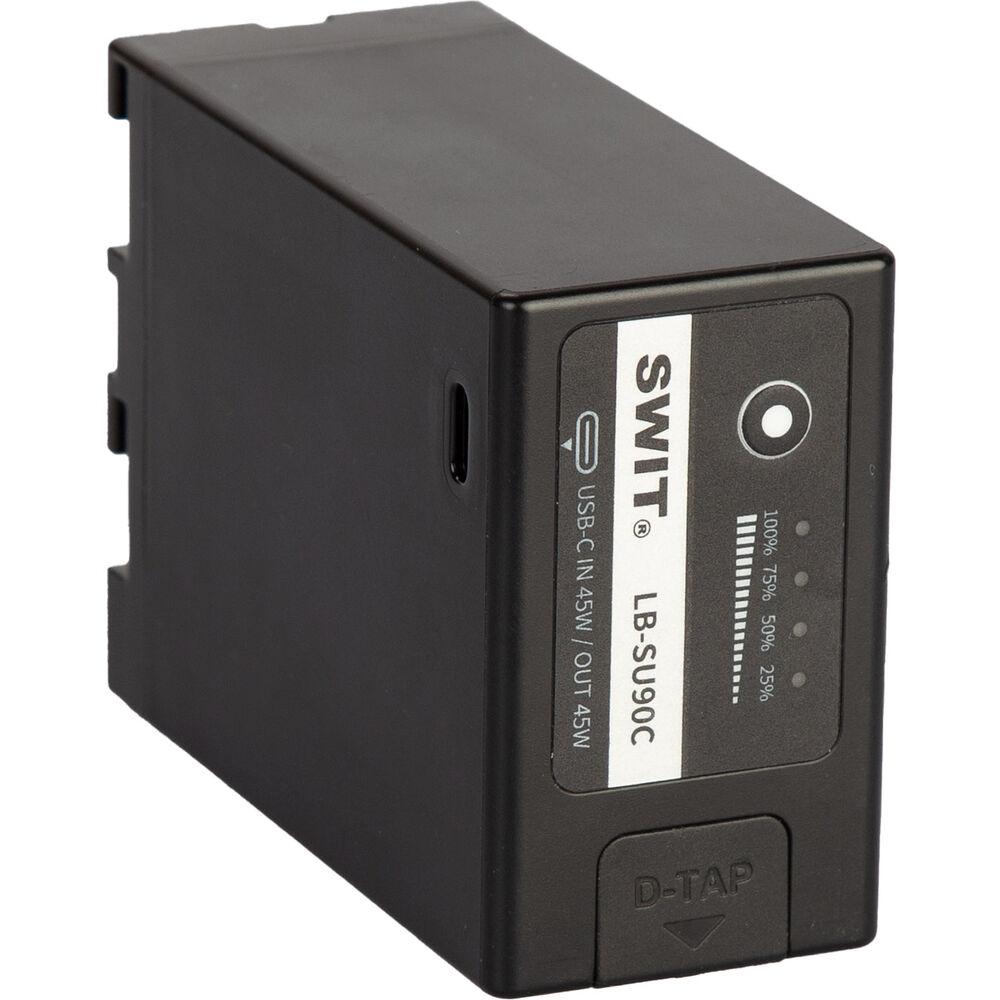

The 90Wh/14.4V Sony BP-U Series Battery with D-Tap and USB-C I/O from SWIT is a lithium-ion BP-U battery comparable with gear that uses the Sony BP-U30 BP-U60, or the BP-U100 batteries such as Sony cameras such as the PXW-FS5/FS7, PXW-FX6/FX9, PXW-Z280, and PXW-X280.

The battery features a 14.4V D-Tap input/output that can be used to charge the battery using an optional D-Tap charger. It also features 45W USB-C input/output that can charge the battery using an optional 45W charger. Other features include a 4-LED status gauge, internal circuit protection, and a maximum 70W/6A draw.

NOTE: This battery is not compatible with the original Sony battery charger and requires a SWIT charger, D-Tap charger, or USB-C charger.

Compatibility

Cameras that use Sony BP-U30, BP-U60, or BP-U100 batteries such as the PXW-FS5, PXW-FS7, FX6, FX9, PXW-Z280, and PXW-X280
SWIT Dual charger S-3602U
SWIT Quad charger LC-D421U
SWIT D-Tap charger PC-U130B2 or other brand D-Tap charger
USB-C charger (45W)

Mount / Series Type	Sony BP-U Series
Chemistry	Lithium-Ion
Battery Capacity	90 Wh
Output Voltage	14.4 VDC
Maximum Load	70 W, 6 A (Peak)
Accessory I/O	1x D-Tap / P-Tap Input/Output 14.4 VDC, 50 W, 4 A Regulated 1x USB-C Input/Output 45 W; 5/9/12/15/20 VDC, 2.25 A Regulated
Maximum Load (Accessory I/O)	70 W, 6 A (D-Tap)
USB Output	20 V, 2.25 A 15 V, 2.25 A 12 V, 2.25 A 9 V, 2.25 A 5 V, 2.25 A
Charging Temperature	32 to 104°F / 0 to 40°C
Discharging Temperature	-4 to 122°F / -20 to 50°C
Dimensions (W x H x D)	2.8 x 3.8 x 1.7" / 70 x 96 x 42 mm
Weight	16.3 oz / 462 g
