SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System

SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System

Name: SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System
Brand: SWIT
SKU: SF-2443-FLJA
Availability: InStock

Brand: SWIT

MFR: FLOW2000

SKU: SF-2443-FLJA

Price Available Upon Request

Up to 2000' Line-of-Sight Range
1 x Transmitter & 1 x Receiver
Transmits up to 1080p60, L-Series Plate
Uncompressed HDMI & 3G/HD/SD-SDI
2-Channel SDI/HDMI Embedded Audio
Multicasting to up to 4 x Receivers
AES 128-Bit Encryption
L-Series Battery or DC Adapter Power

Items Included

SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System
Transmitter
Receiver
6 x Antenna
Locking D-Tap to Barrel Cable (2')
Power Adapter
Articulating Arm
Carrying Case

(In Stock)

Request Now

Categories: Camcorder & Camera Peripherals

View your video capture up to 2000' away from your camera using the FLOW2000 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.

Up to 2000' Transmission

Transmits uncompressed video and embedded audio at distances up to 2000' (line-of-sight)
Robust wall-penetrating transmission with RF and image quality optimization

SDI & HDMI Inputs/Outputs

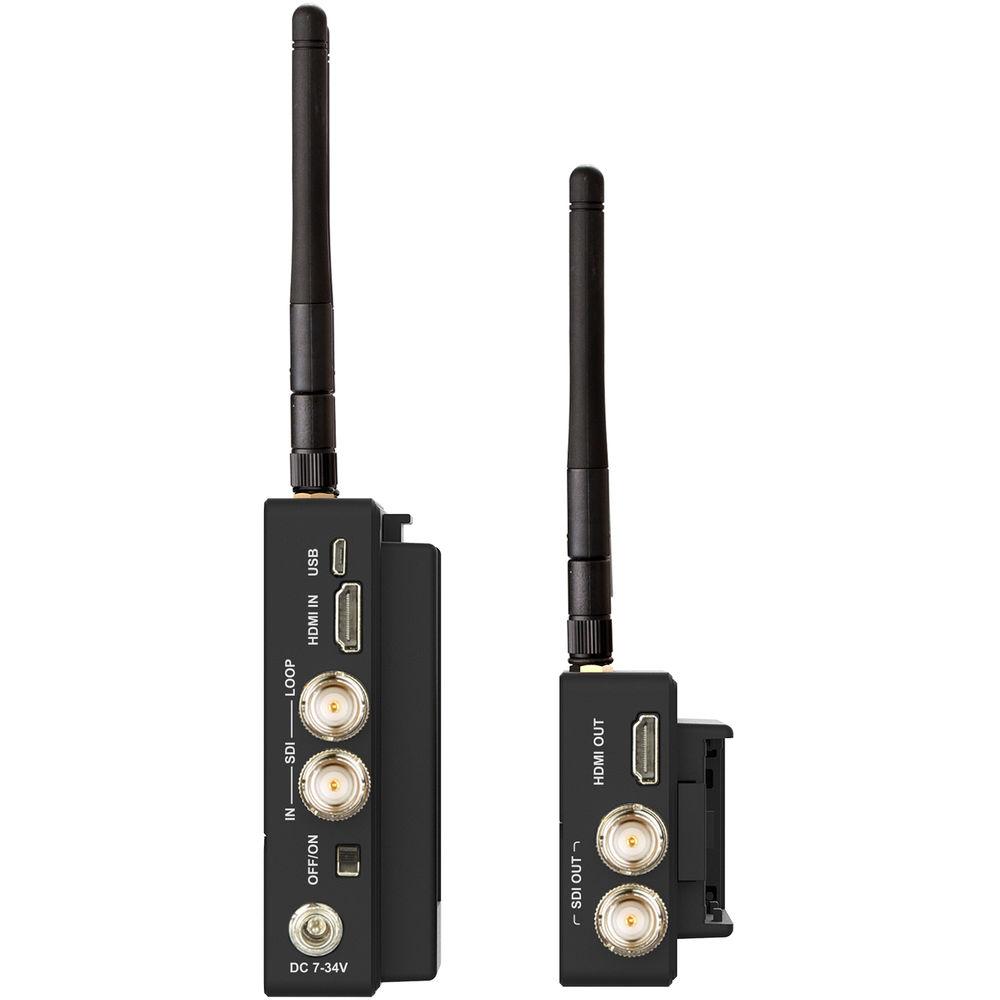

Transmitter has single HDMI Type-A input
Transmitter has single SDI (BNC) input and loop output
Receiver has single HDMI and dual SDI (BNC) outputs

1080p60 HD Video

Supports multiple video resolutions up to 1080p60

5.1 to 5.9 GHz Transmission

License-free operation at 5.1 to 5.9 GHz
Automatic DFS-compliant and manual non-DFS channel selection

Embedded Audio

2-channel embedded SDI/HDMI audio transmission

Timecode Transmission

Transmits timecode from original video source

Multicast Compatible

Use with separately available receivers to multicast one transmitter to up to four receivers

AES Encryption

AES128 encryption secures your footage transmission

Reclocking

Reclocking for optimal signal transmission

USB Updating

Firmware updating via micro-USB port on both transmitter and receiver

OLED Display

1" OLED display on both transmitter and receiver

Power Options

Transmitter and receiver both have:

One Sony L-Series type battery plate
One 5.5mm DC barrel input

Mounting Options

Transmitter and receiver both have 1/4"-20 mounting threads
Includes one articulated arm with 1/4"-20 and shoe mounts

Inputs/Outputs

Antenna I/O	Transmitter: 2x RP-SMA Receiver: 4x RP-SMA
Video I/O	Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI 1.3 Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI 1.3 Output
Embedded Audio	HDMI/SDI: 2-Channel
Audio I/O	No
Power I/O	Transmitter: 1x Barrel 5.5 mm (34 VDC) Input Receiver: 1x Barrel 5.5 mm (34 VDC) Input
Other I/O	Transmitter: 1x Micro-USB
Encryption	Yes: 128-Bit AES

Wireless

Wireless Range	2000' / 609.6 m
# of Channels	7
Frequency Range	DFS Frequencies 5.1 to 5.9 GHz
Wi-Fi	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Mobile App Compatible	No
Cellular Support	No

Format Support

Video Format	SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50
Audio Format	Not Specified by Manufacturer
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

Input Power	7 to 34 VDC
Battery	Receiver/Transmitter: 1x L-Series Mount on Fixed Plate
Power Consumption	Transmitter: 8 W Receiver: 8 W

Mounting

Tripod/Accessory Mounting

1x 1/4"-20 Female

General

Environmental Resistance	No
Operating Conditions	32 to 104°F / 0 to 40°C
Dimensions	Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm (Excluding Antenna, Battery Plate) Receiver: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm (Excluding Antenna, Battery Plate)
Weight	Transmitter: 8.32 oz / 236.00 g, Excluding Antenna Receiver: 8.64 oz / 245.00 g, Excluding Antenna

Packaging Info

Package Weight	5.695 lb
Box Dimensions (LxWxH)	14.7 x 11.7 x 4.5"
