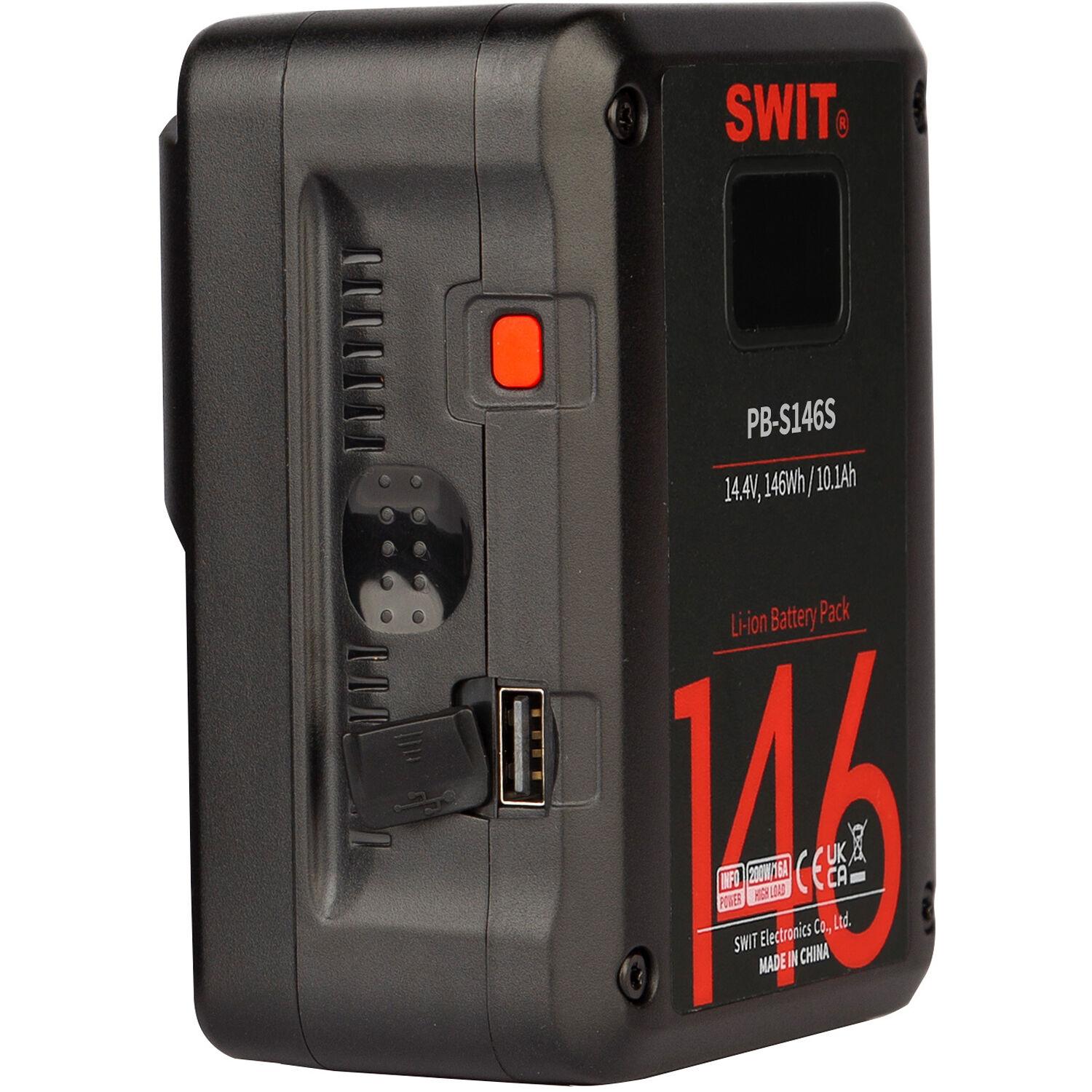

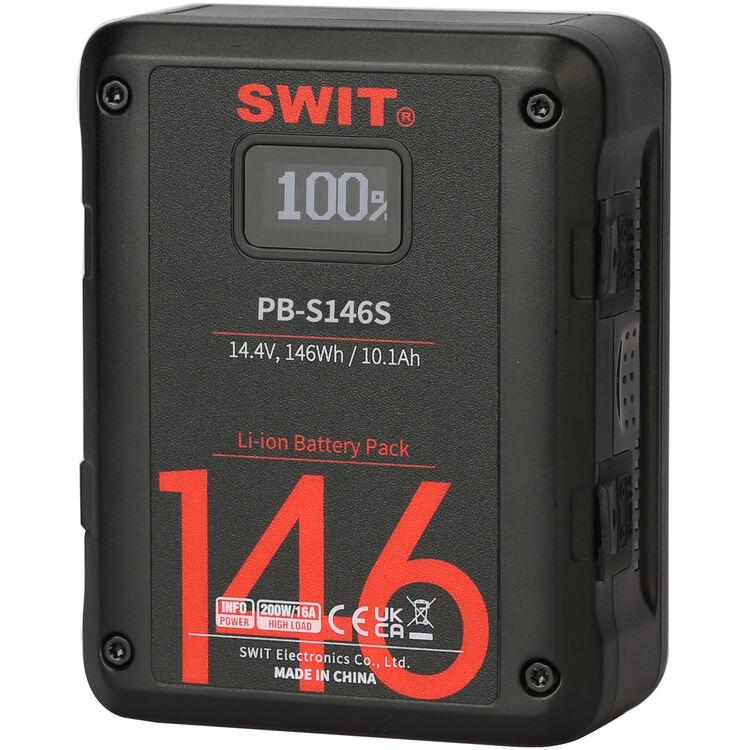

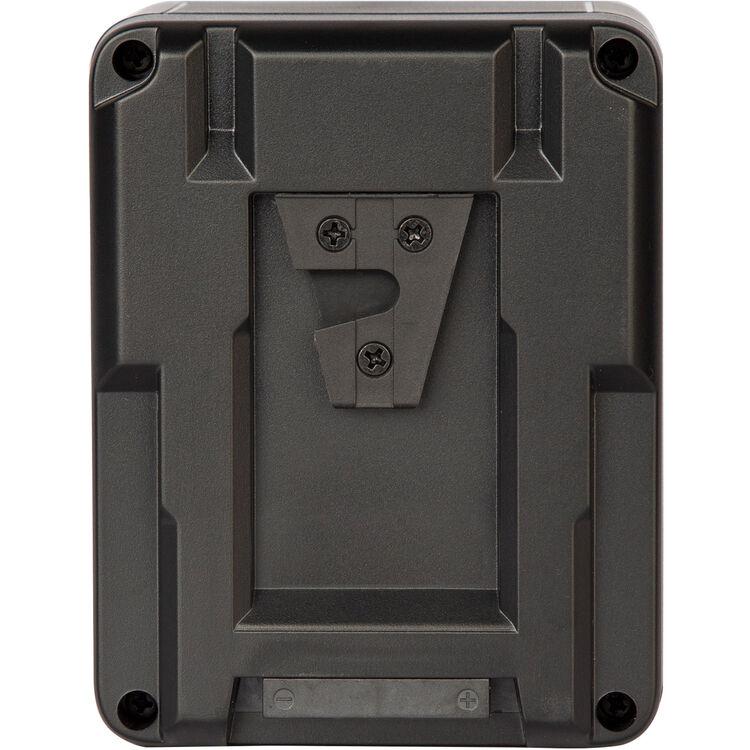

Power your cine camera with V-mount plate using this V-mount PB-S146S 146Wh Lithium-Ion Battery Pack with OLED Display from SWIT. The PB-S146S features a 146Wh 14.4V capacity and a 200W/16A constant high load that can keep your camera rolling for five hours. Integrated into the front of the battery is an OLED display showing power status, battery cycle, or any detected issues like overcharge or short circuit.
You can even supply additional accessories like external monitors or a timecode unit with power using the two D-Tap and one USB-A output port simultaneously. Multiple circuit protections—overload, overcharge, short circuit, and high or low temperature—ensure long battery life.
| Battery Type | 1x V-Mount |
| Battery Capacity | 146 mAh |
| Output Voltage | 14.4 VDC |
| Battery Chemistry | Lithium-Ion |
| Power I/O | 2x D-Tap/P-Tap Female Output 1x USB-A Female Output • Output: Unspecified W Maximum (Up to 5 VDC) |
| Accessory Mounting Thread | No |
| Indicator | Display |
| Dimensions | 4.8 x 3.7 x 2.3" / 121 x 95 x 59 mm |
| Weight | 1.94 lb / 0.88 kg |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Package Weight | 1.985 lb |
| Box Dimensions (LxWxH) | 5.1 x 4.4 x 2.6" |
