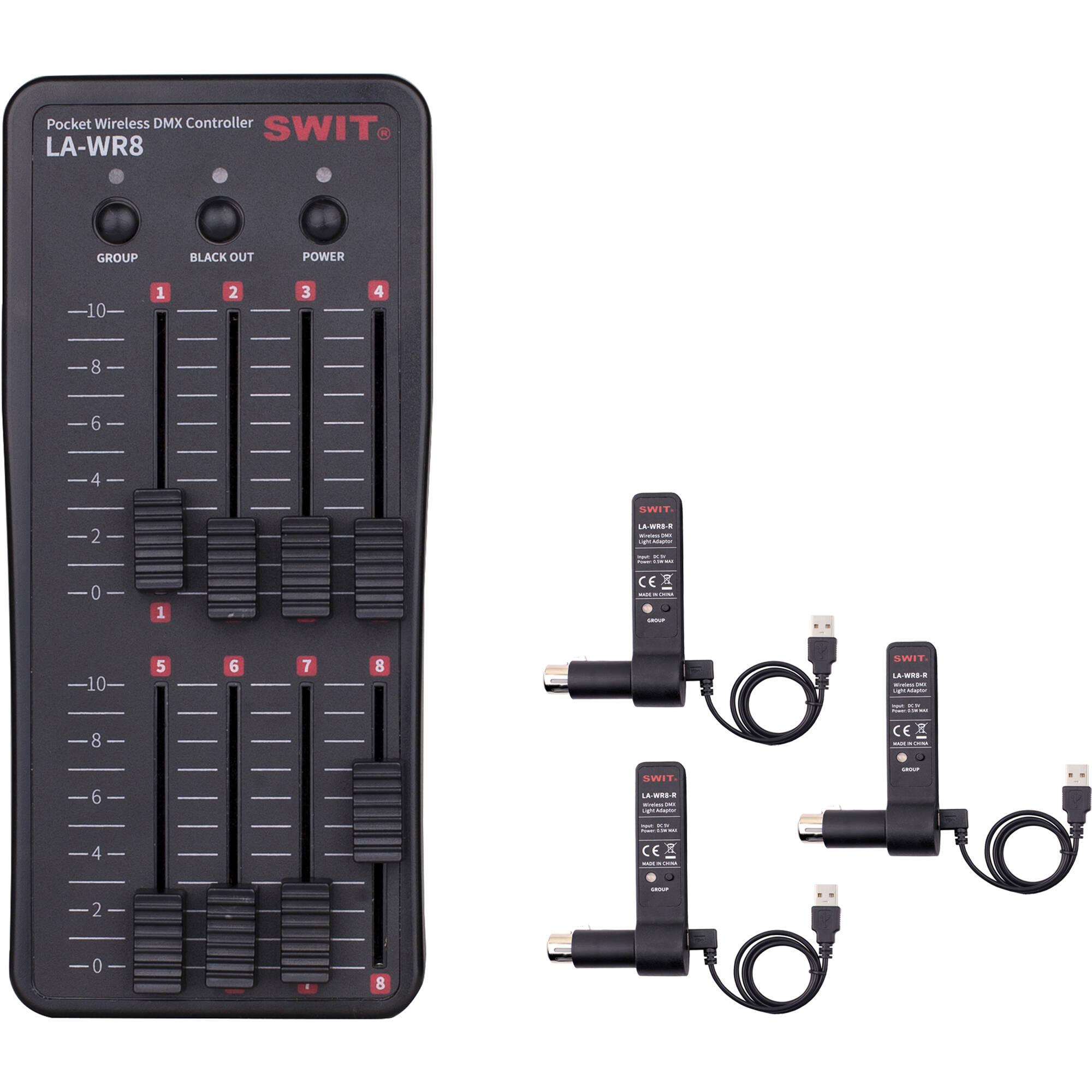

Take DMX wireless in the field with this SWIT Electronics Pocket Wireless DMX Controller Kit and leave all the extra DMX cabling home. With the three included light adapters, this kit makes an excellent tool for tweaking and adjusting three-point lighting setups in the field. This kit supports up to three fixtures, but with more wireless light adapters (not included), you can control additional fixtures for larger DMX controlled lighting setups.
The kit supports standard DMX512 protocols, allowing it to work with virtually any DMX enabled LED fixture that has USB a socket that can take the light adapter such as Skypanel, SWIT CL-60D, CL-120D, PL-E series, FL-C series. Additionally, the wireless kit allows you to control fixtures more than 1300' L.O.S. away from the controller/transmitter.
Eliminate long DMX wiring cable runs for up to seven groups of light fixtures with the SWIT Electronics Pocket Wireless DMX Controller when the fixtures are connected by an optional wireless receiver. This portable DMX controller controls your fixtures wirelessly via 2.4 GHz or wired (requires optional USB to XLR cable). When using the wireless control with the optional receivers, it has a range of over 1300' line-of-sight, which saves you the headache of running all that cable.

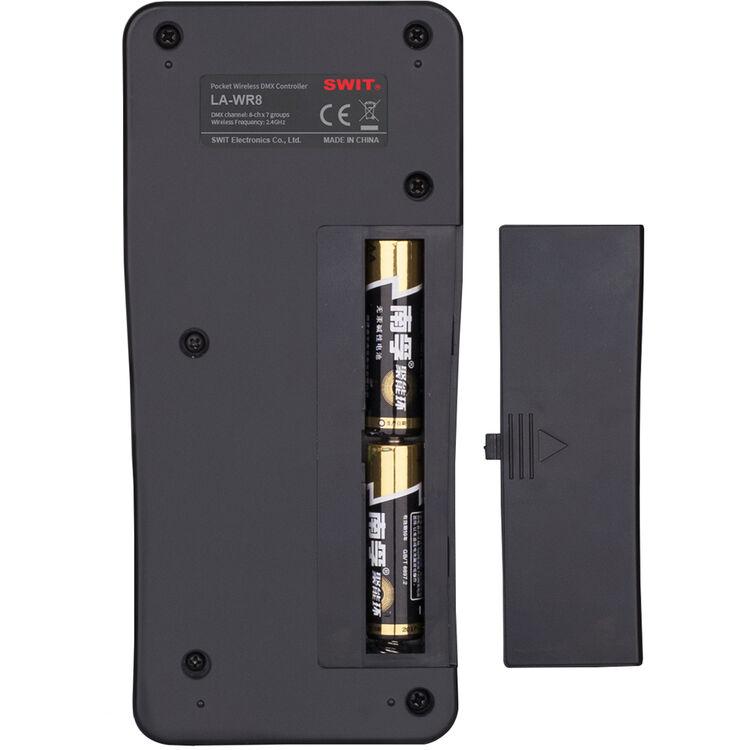

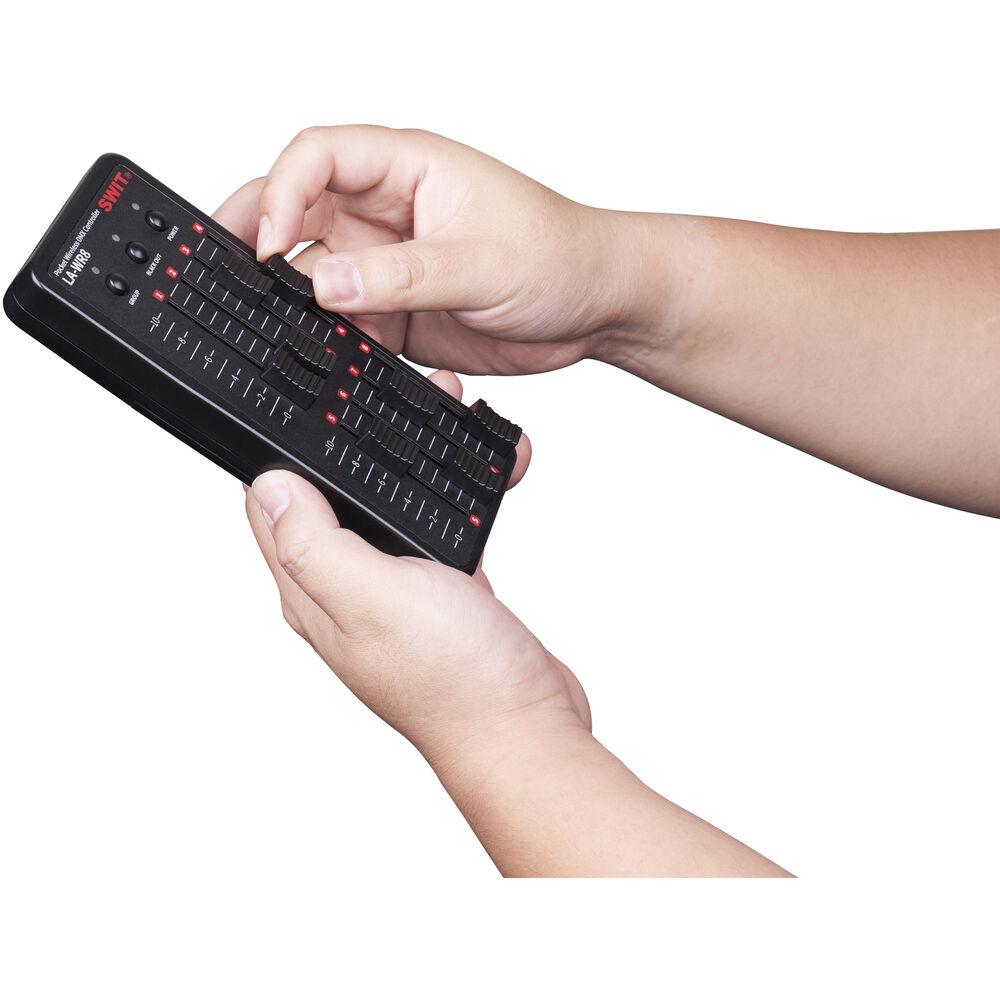

The unit features eight sliders for controlling up to eight channels per light fixture. You can create up to seven groups of lights, for a total of 56-channels. The controller powers from two AA batteries, which will run it for approximately four hours, and you can also power the unit via a micro-USB port using the included cable and USB power supply. To save power the unit enters sleep mode after one minute of inactivity.
For professional lights such as the Skypanel, SWIT PL-E series, and FL-C series that have a USB socket on the light, the USB-powered Light Adapter from SWIT operates on the 2.4 GHz frequency at distances up to 1312' line of sight to control the lights.
| DMX 512 Protocol | |
| Signal Output | |
| Connectors | |
| Wireless Transmission | |
| Power | |
| Dimensions | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
