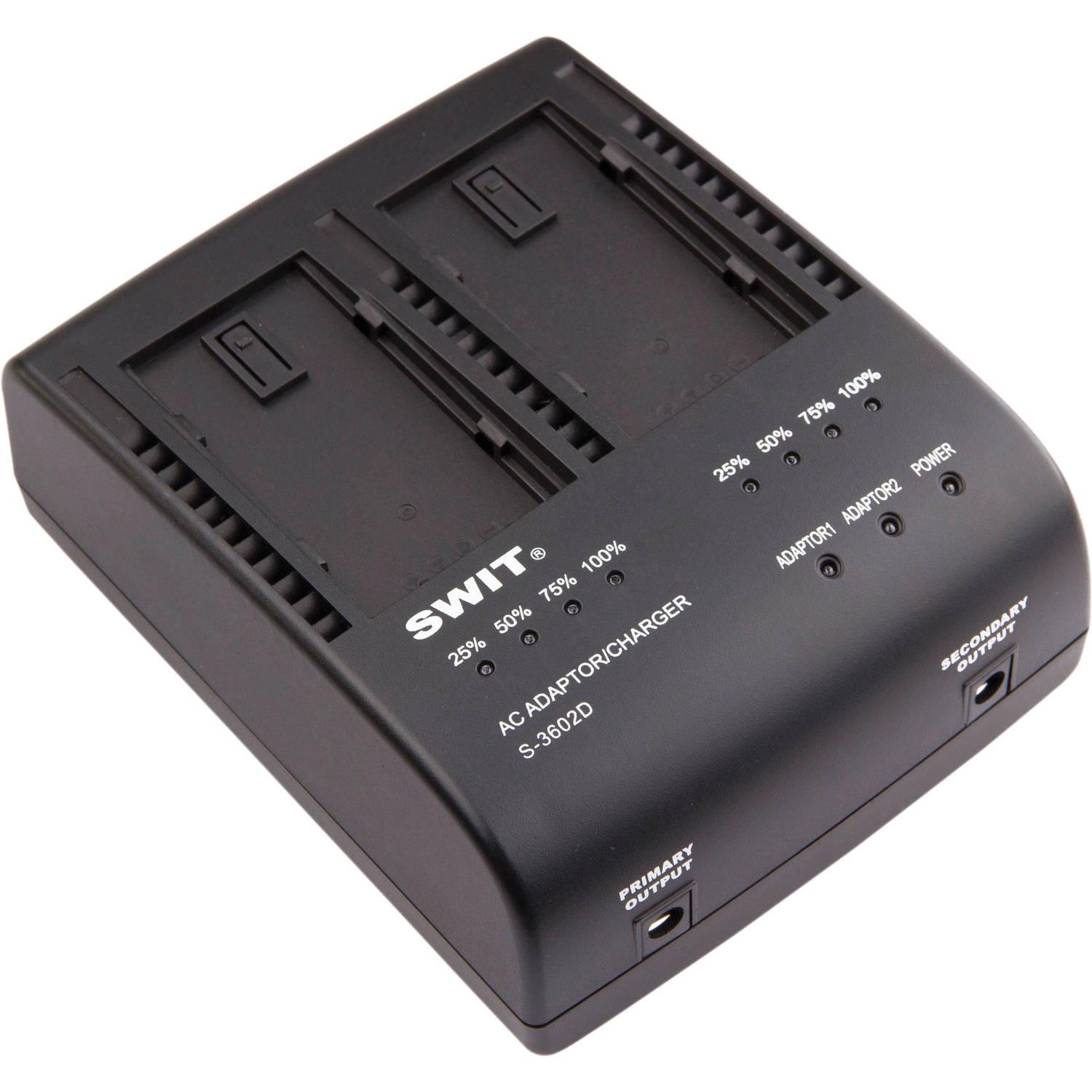

The SWIT S-3602D Dual Charger/Adapter has two charging channels with 7-8.4 VDC, 2A output each for simultaneously charging two batteries. It is compatible with the SWIT S-8D58/S-8D62 and Panasonic VW-VBD58 and CGA series D54 and D28 DV batteries. Four-level LED charging indicators for each channel indicate the percentage of charge remaining.

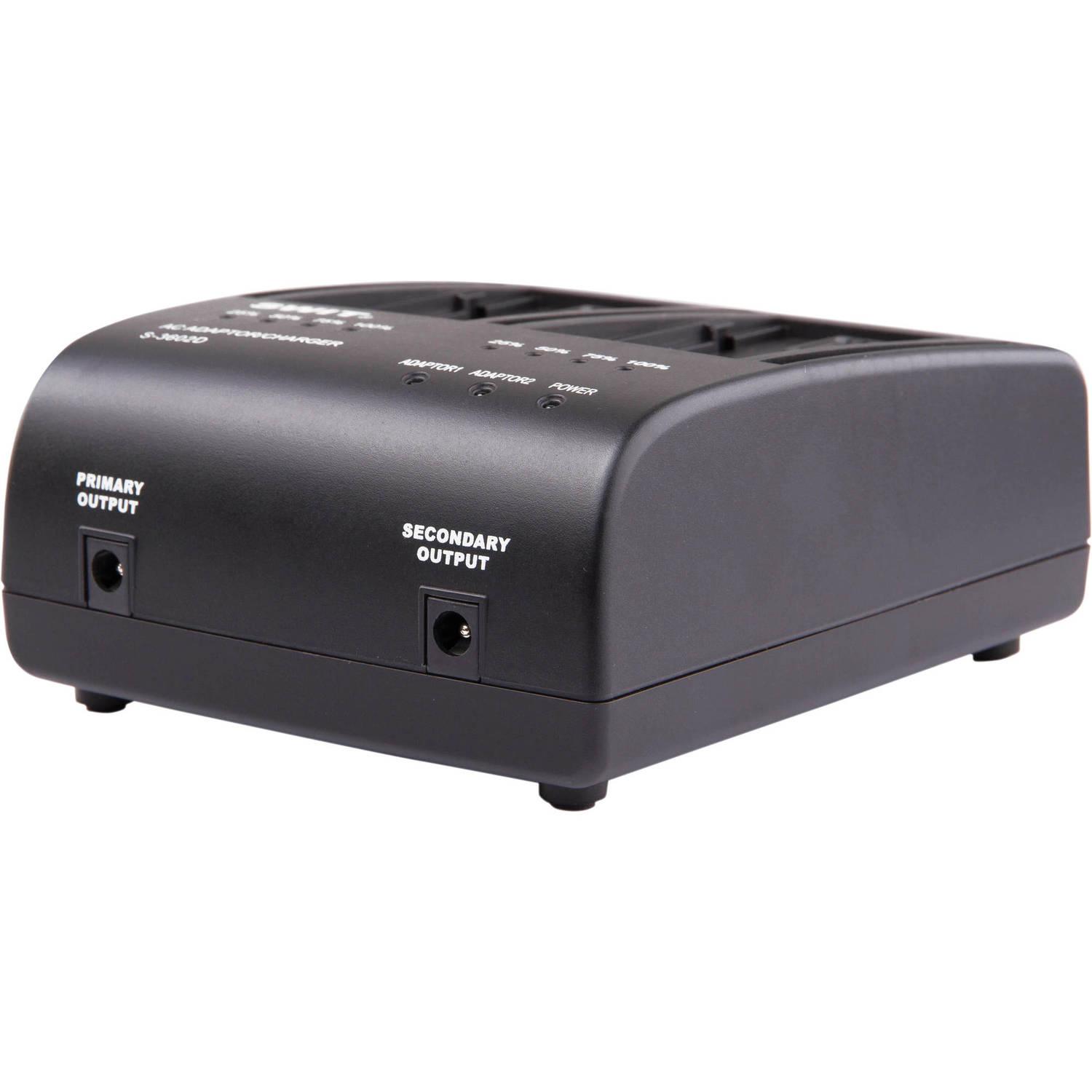

The dual charger also has two 5.5/2.1mm DC pole sockets to provide 8.4V, 3.5A (total) DC adapting output. Both channels can simultaneously provide DC output to the connected cameras/accessories or one channel can be used to charge a battery by dropping it in, while the other can be used to adapt to a camera/accessory.
| Charger Type | 1x Bay Charger for 2x Battery |
| Compatibility | Battery: Panasonic VW-VBD Series / Panasonic CGA-D Series |
| Charging Modes | Simultaneous |
| Power I/O | 1x IEC Female Input • 100 to 240 VAC, 50 / 60 Hz 2x Barrel/Coax Female Output • Output: 15 W Maximum (Up to 8.4 VDC at 1.8 A) Included Power Adapter/Cable 1x Cable with USA Type-A/B Plug to IEC Male |
| Indicator | Status Light |
| Dimensions | 5.4 x 4.3 x 1.9" / 136 x 110 x 47 mm |
| Weight | 12.7 oz / 360 g |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 9.1 x 7.7 x 2.5" |
