The SWIT S-3602F Dual Charger/Adapter has two charging channels with 7-8.4 VDC, 2A output each for simultaneously charging two batteries. It is compatible with the SWIT S-8972/S-8970 and Sony L-series batteries. Four-level LED charging indicators for each channel indicate the percentage of charge remaining.

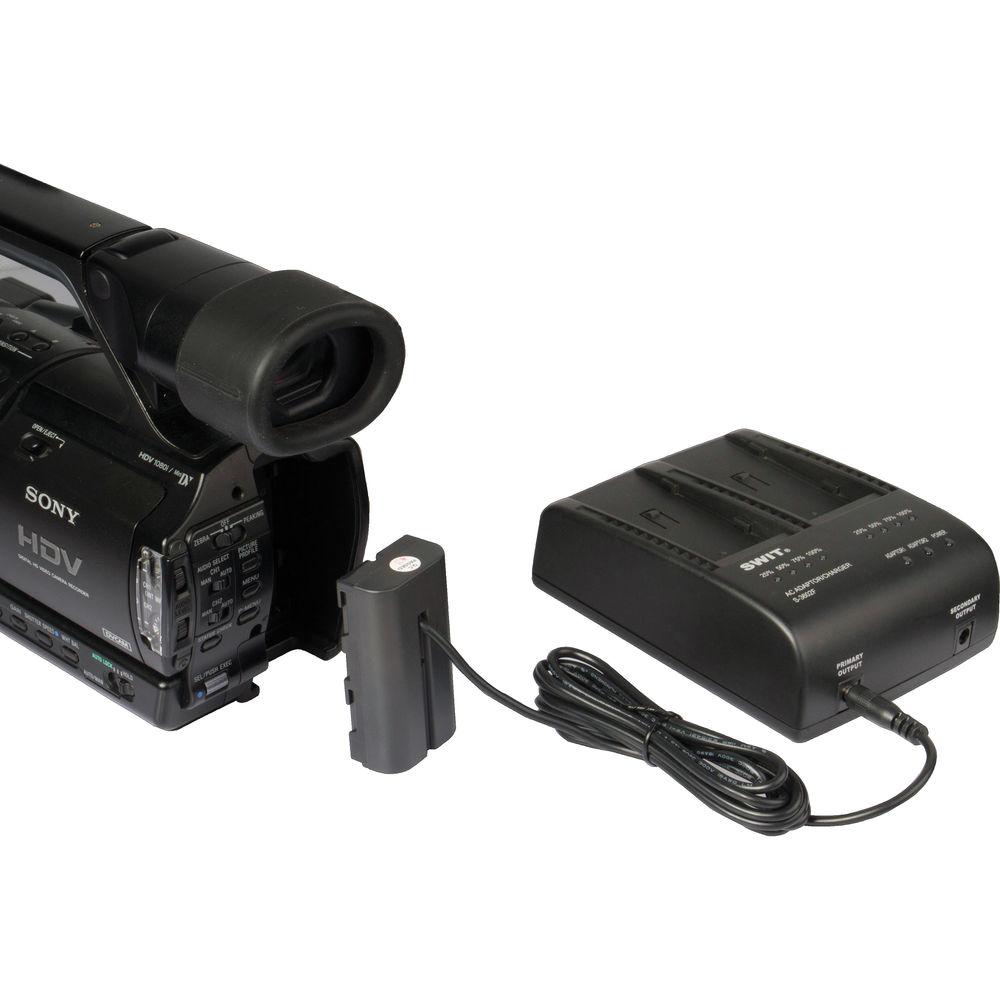

The dual charger also has two 5.5/2.1mm DC pole sockets to provide 8.4V, 3.5A (total) DC adapting output. Both channels can simultaneously provide DC output to the connected cameras/accessories or one channel can be used to charge a battery by dropping it in, while the other can be used to adapt to a camera/accessory.
| Charger Compatibility | Sony L Series/NP-F |
| Number of Battery Bays | 2 |
| Charger Power Source | AC Power (Cable Included) |
| Charger Power I/O | 1x IEC Female Input • 100 to 240 VAC, 50 / 60 Hz 2x Barrel/Coax Female Output • 7 to 8.4 VDC at 1.8 A (15 W) |
| Charger Included Adapter / Cable | 1x USA Type-A/B Plug to IEC Male Cable |
| Dimensions | 5.4 x 4.3 x 1.9" / 136 x 110 x 47 mm |
| Weight | 12.7 oz / 360 g |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Package Weight | 1.645 lb |
| Box Dimensions (LxWxH) | 9.1 x 7.65 x 2.6" |
