Key Features
Categories: Professional Time Code Generators & Readers

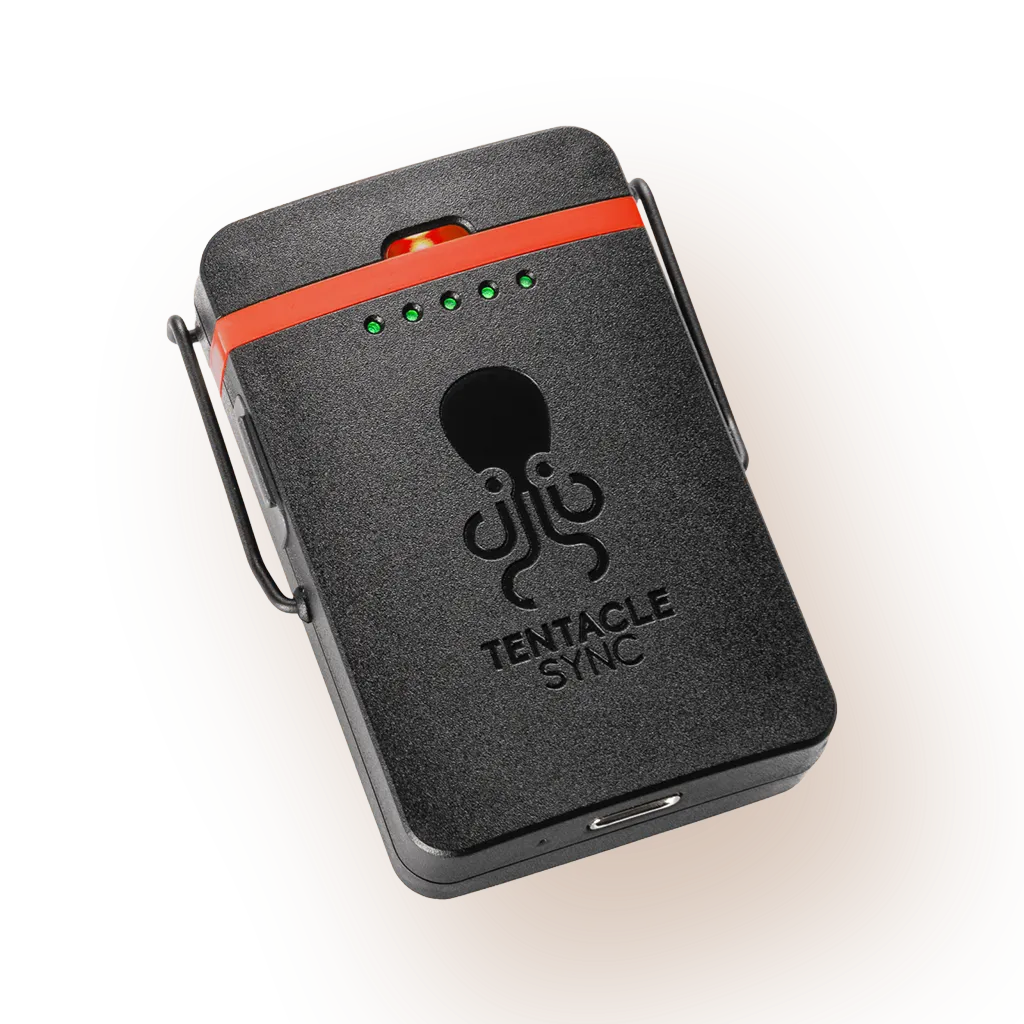

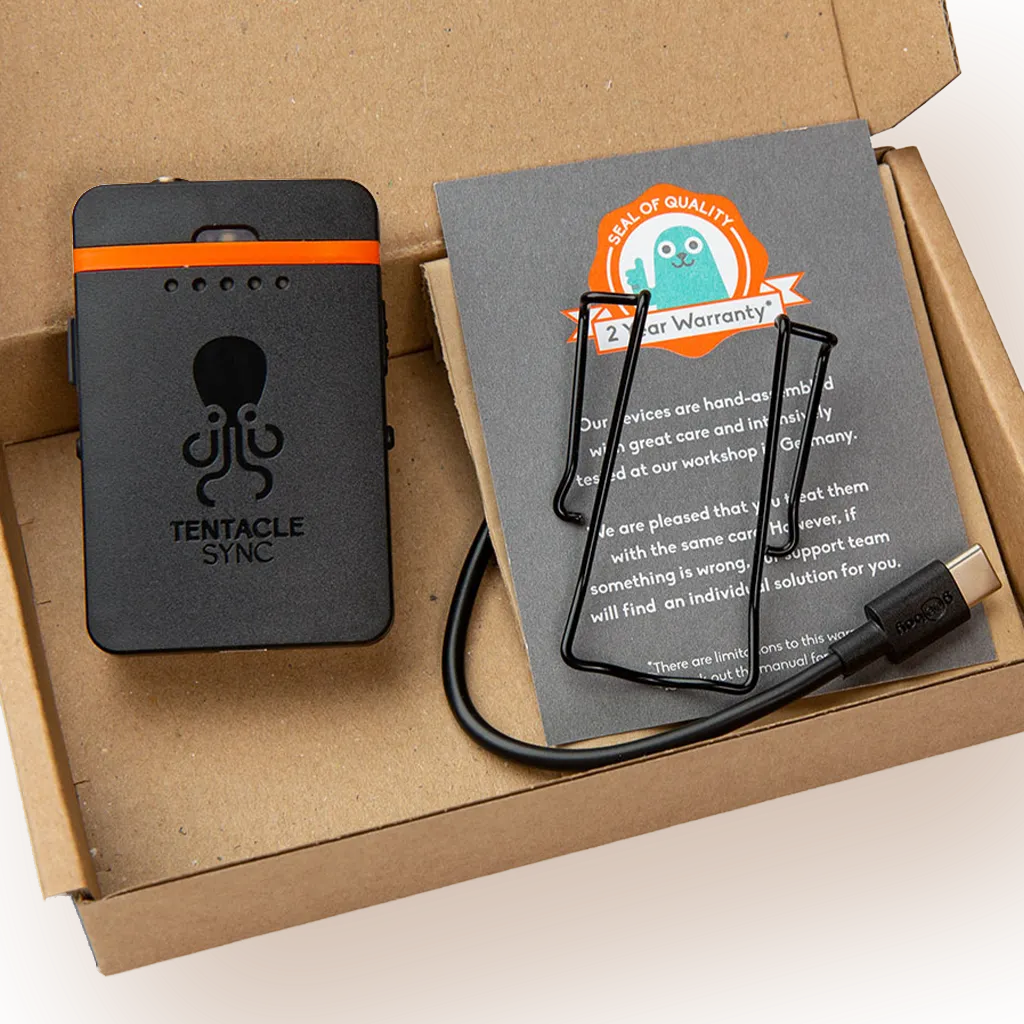

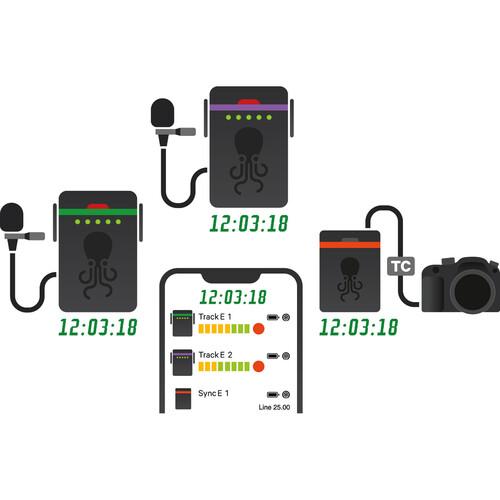

The TRACK E Basic Box includes a compact and precise timecode audio recorder for mobile productions, designed to work reliably even where wireless systems fail. Recording to an up to 64 GB microSD card, the TRACK E captures high-quality audio in 32-bit float or 24-bit, providing extended dynamic range without digital clipping. Bluetooth® enables remote control, wireless audio monitoring, and timecode synchronization via the Tentacle Setup App on iOS, Android, or Apple Watch. With LTC timecode I/O, a locking 3.5 mm mic input, built-in limiter, and high-pass filter, the TRACK E integrates seamlessly into professional workflows. Its 10-hour battery life and lightweight, robust design make it ideal for both solo and multi-device setups.
| Category | Details |
|---|---|
| Recording Tracks | 1 (Mono) |
| Sampling Rate | 48 kHz |
| Recording Bit‑Depth | 32‑bit Float / 24‑bit |
| File Formats | WAV (BWF) |
| Recording Time | 30 hrs (24‑bit) / 23 hrs (32‑bit) with 16GB card |
| Storage Media | microSDHC up to 64GB (Class 10 recommended) |
| Signal Processing | Low‑Cut Filter, Limiter (24‑bit only) |
| Microphone Input | 3.5 mm Jack (Lockable) |
| Plug‑In Power | 5 V |
| Headphone Output | 3.5 mm Jack (Dual Mono) |
| Timecode In & Out | 3.5 mm Jack (Headphone) |
| USB Connection | USB‑C (USB 2.0) |
| USB Modes | Charging, Card Reader, Firmware Update, MIDI TC |
| Frequency Response | 20 Hz – 20 kHz |
| Gain Range | +6 to +46 dB |
| Dynamic Range | 110 dB (Typical) |
| THD+N | ≤ –85 dB (0.05%) |
| Bluetooth | 5.2 (Low Energy) |
| Remote Control & Monitoring | Tentacle Setup App (iOS / Android / Apple Watch) |
| Audio Monitoring | Wireless via Bluetooth (Setup App) |
| Control | Push Notifications via Bluetooth (Setup App) |
| Synchronization | Bluetooth (Setup App & Apple Watch) or Jam‑Sync via Cable |
| Timecode Input | LTC via Microphone In |
| Timecode Output | LTC via Headphone Out (Firmware 2.4.1+) |
| Frame Rates | SMPTE 12M / 23.98, 24, 25 (50), 29.97, 29.97DF, 30 (60) fps |
| Power Source | Built‑in Rechargeable Li‑Polymer Battery |
| Battery Capacity | 900 mAh |
| Battery Operating Time | Up to 12 Hours |
| Battery Charging Time | Max. 2 Hours |
