Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)
Tilta L-Series Battery Plate (Black)

Tilta L-Series Battery Plate (Black)

Brand: Tilta

MFR: TA-BTP2-F970-B

180.00 ﾹ

  • Mount Sony F970 Battery onto Tilta Cage

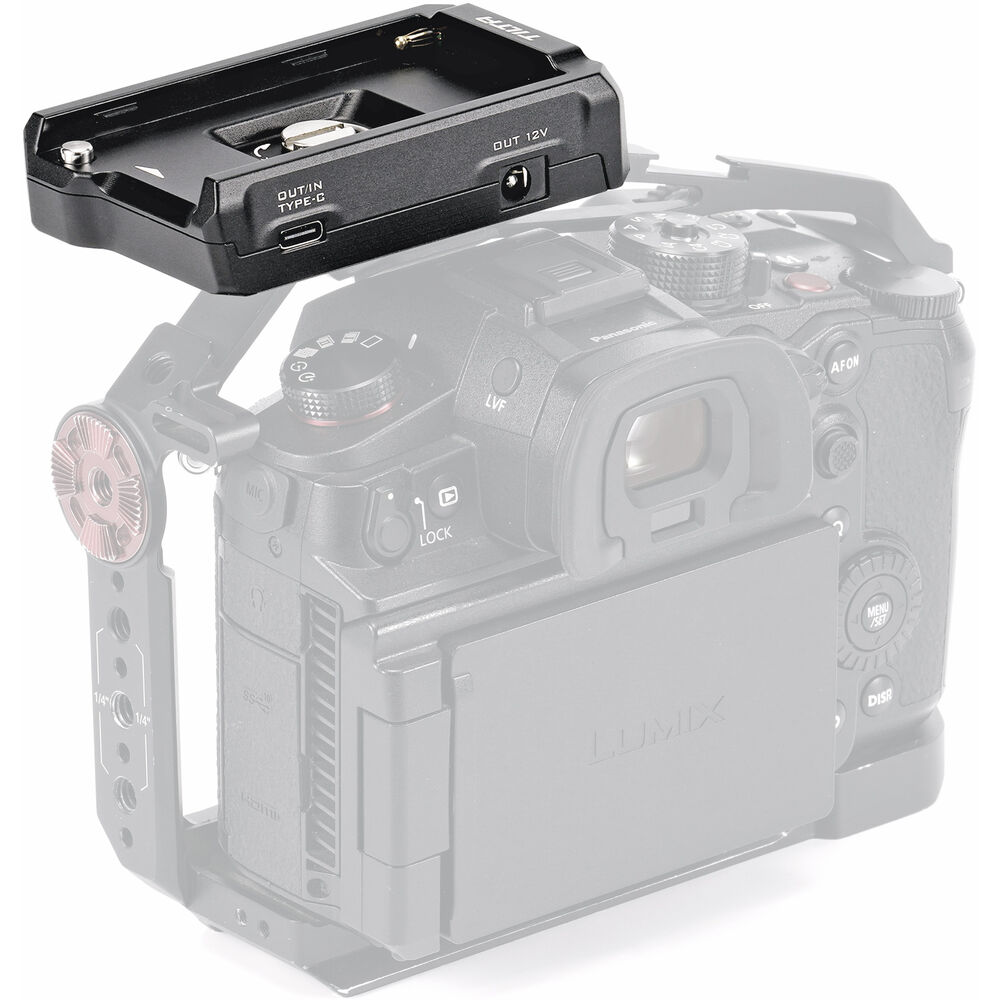

  • Mount onto Full or Half Cage
  • 2 x DC Barrel Accessory Power Outputs
  • USB-C Charge/Out & USB-A Power Output
  • 1 x 1/4"-20 Anti-Twist Mounting Screw
  • Aluminum & Stainless Steel Construction
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

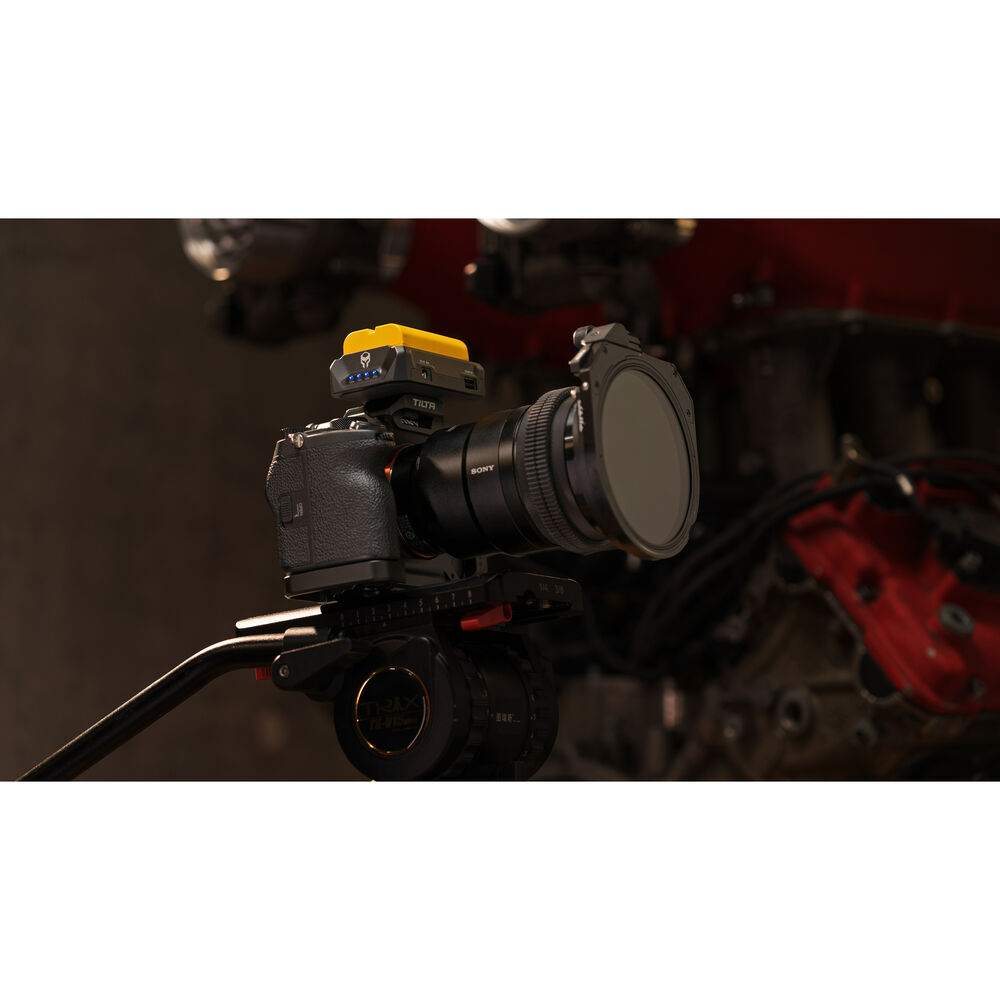

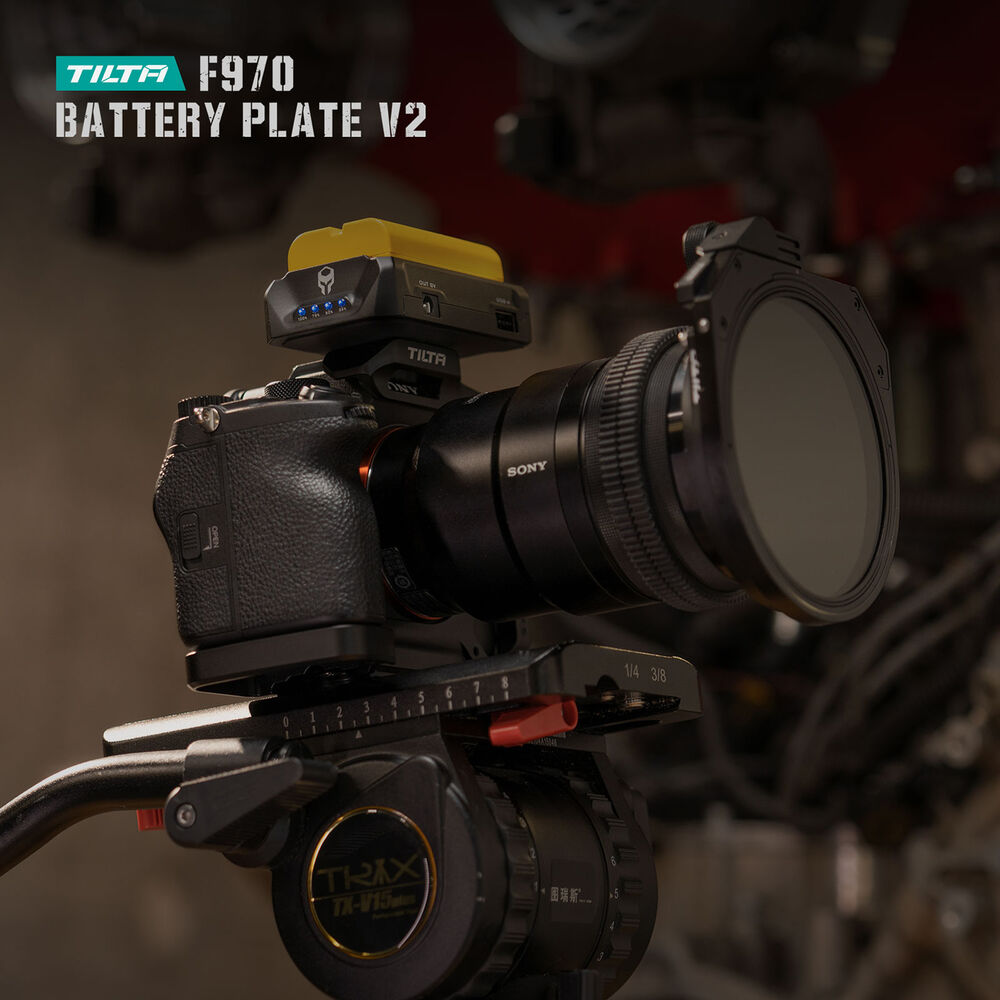

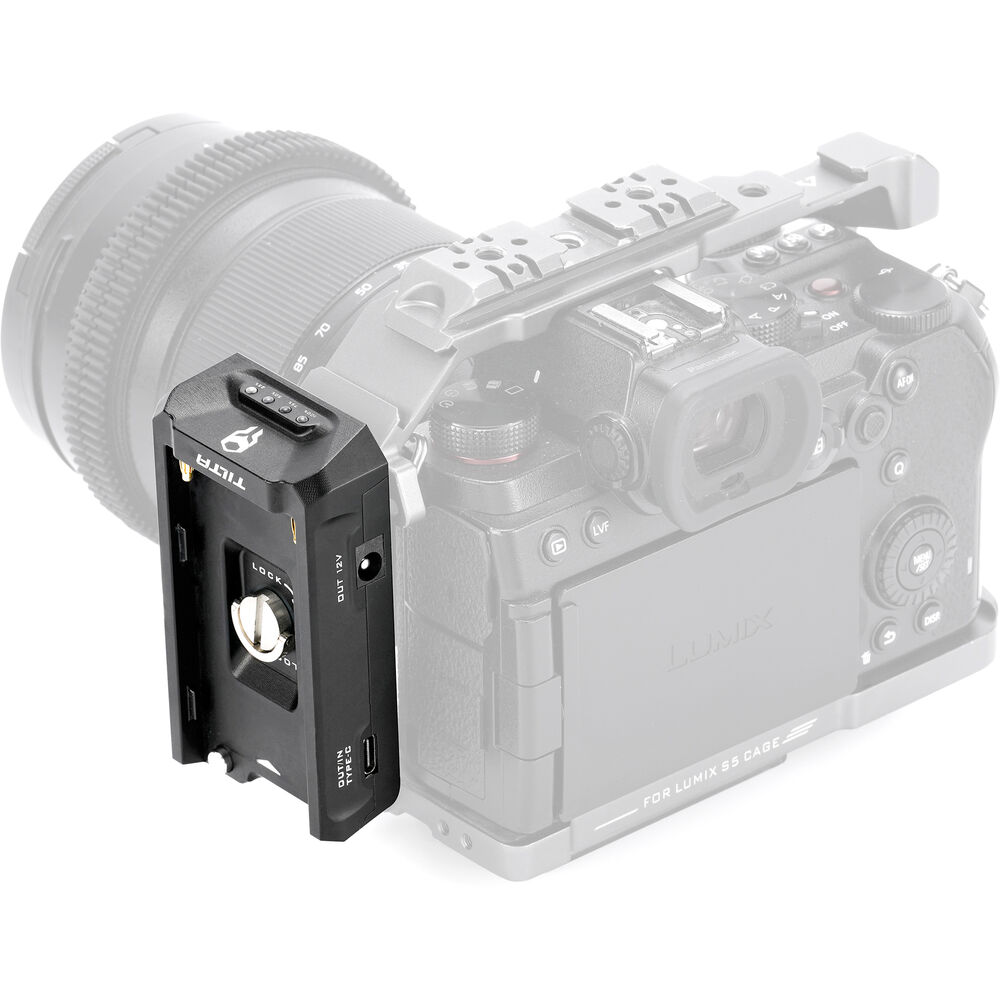

Power your camera and accessories mounted on a full or half cage with this Tilta gray L-Series Battery Plate from Tilta. The plate mounts one Sony NP-F970 L-series battery and features DC barrel and USB outputs to power your camera and additional accessories. It is constructed with durable aluminum with stainless steel components.

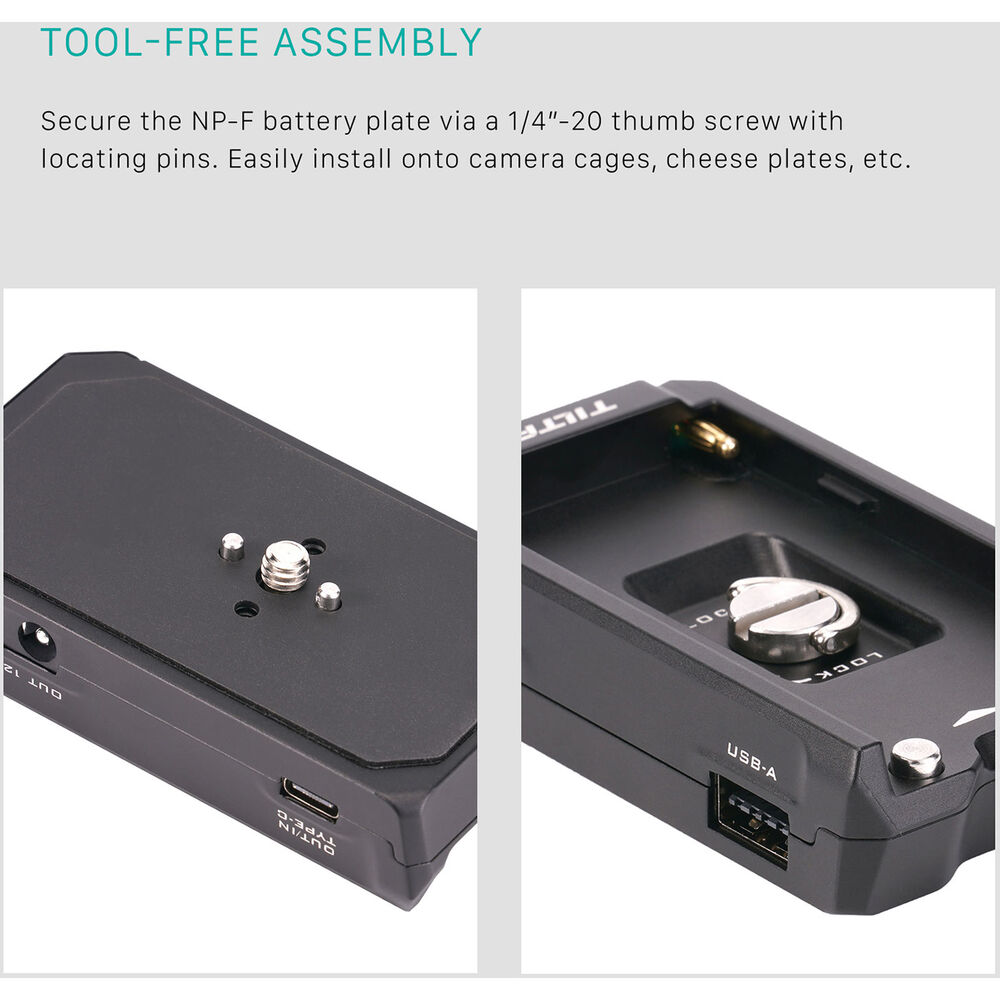

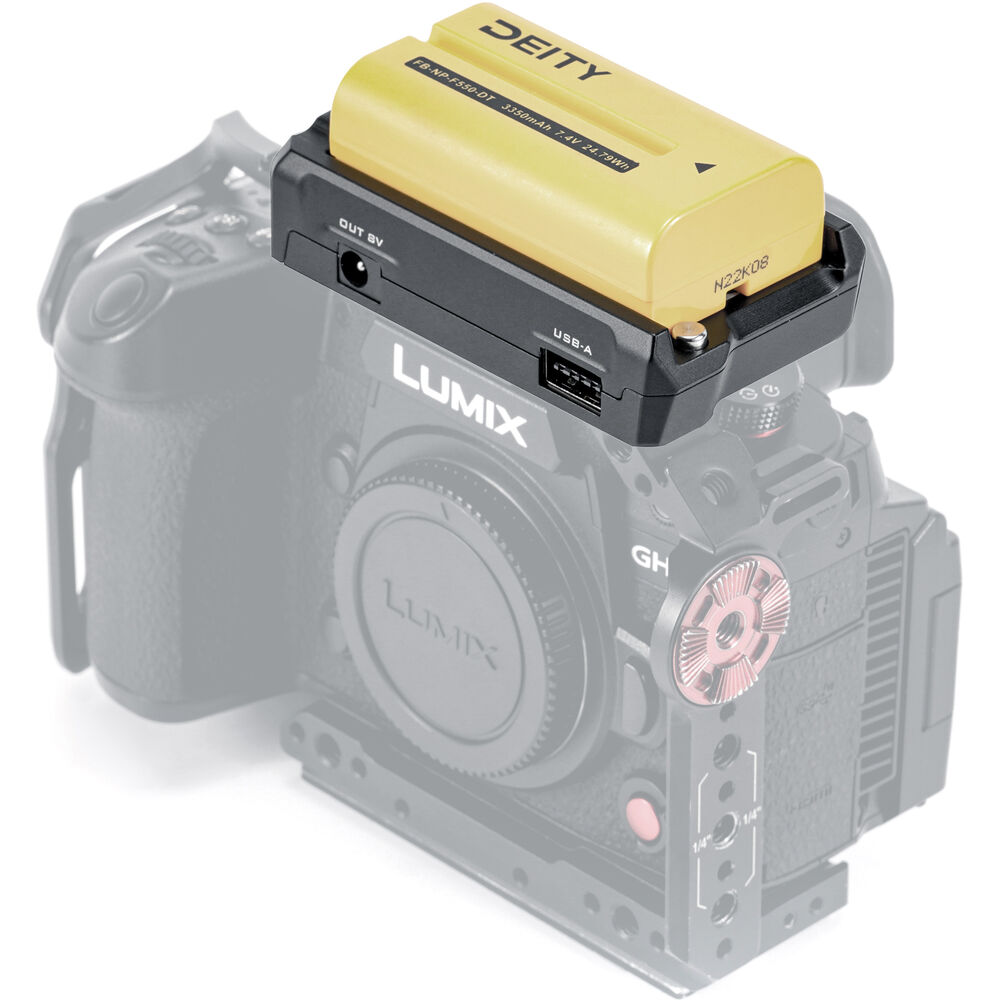

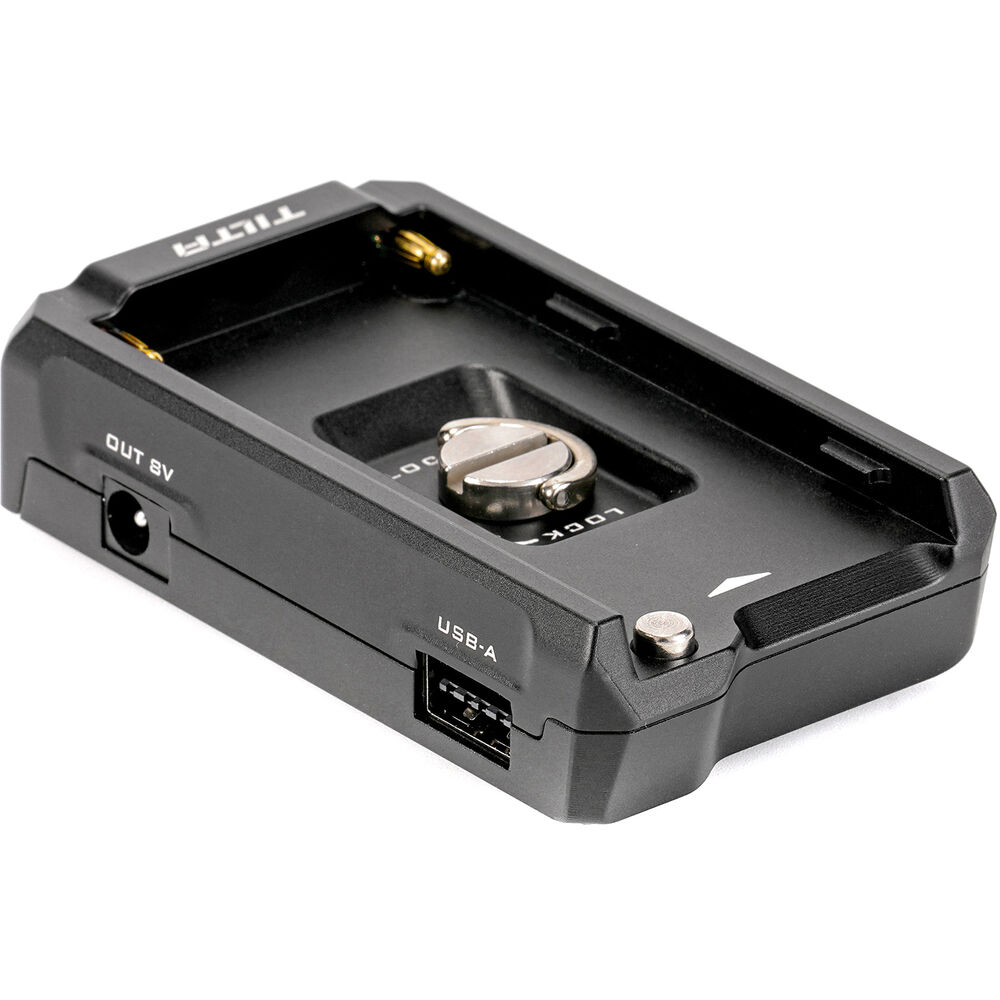

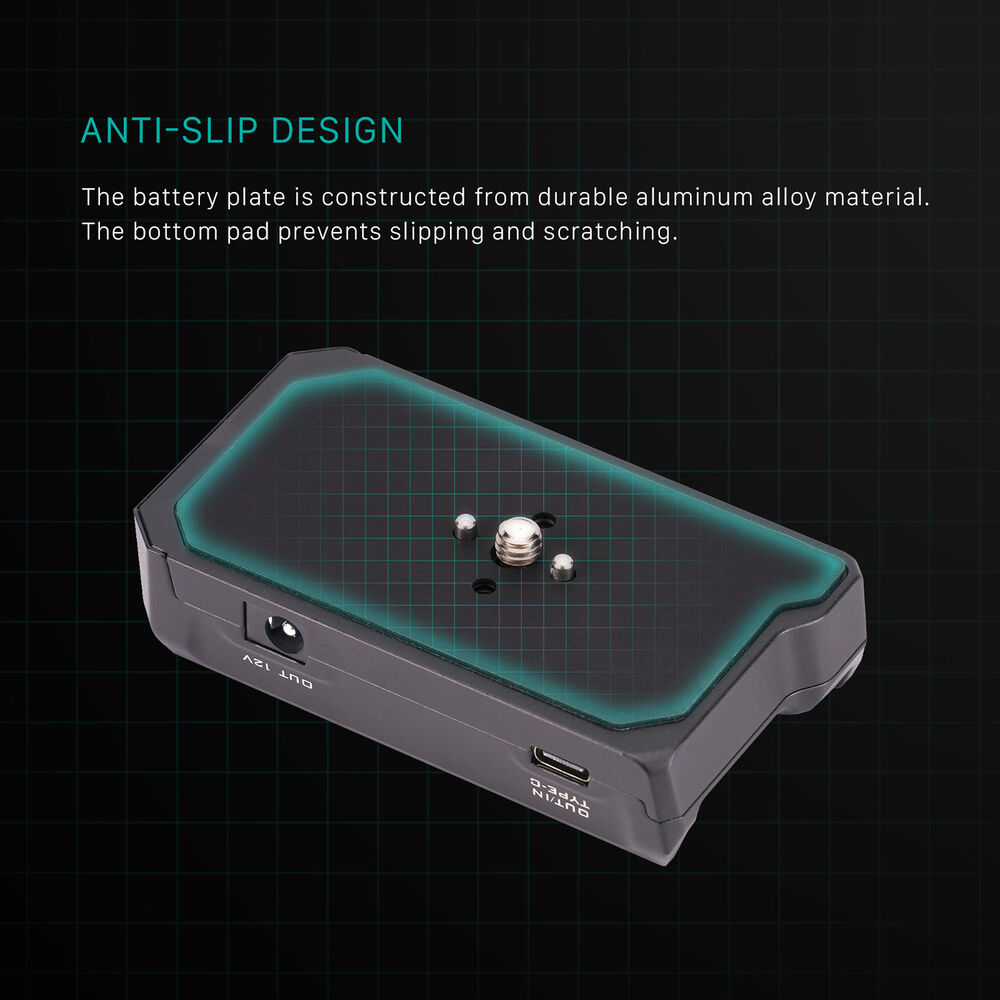

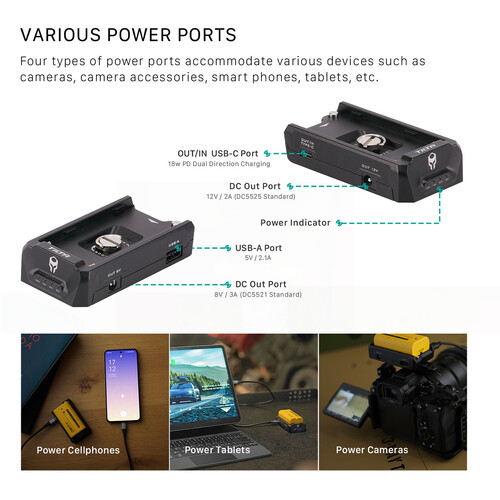

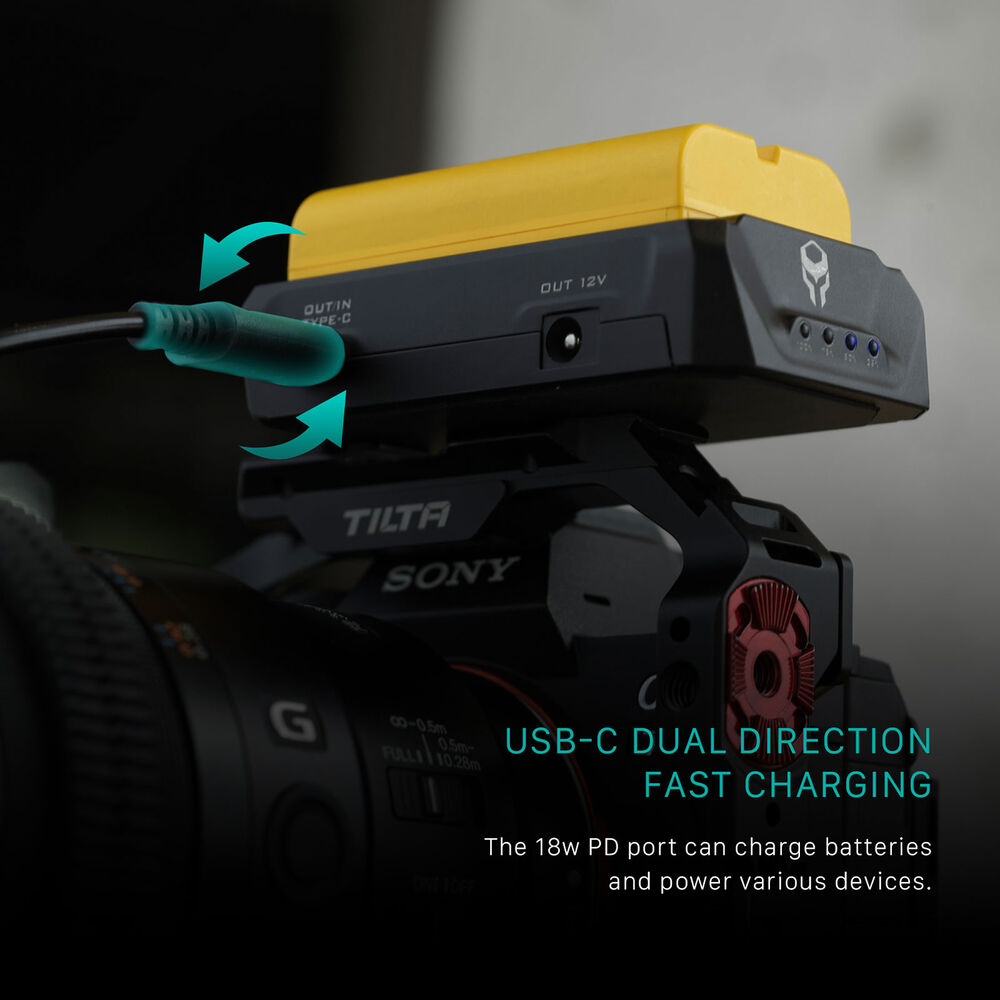

The battery plate features one 8 VDC 2.1mm barrel output and one 12 VDC 2.5mm barrel output on either side. It also features a 5 VDC USB-A port on one side to power small accessories like a smartphone, and on the other side a USB-C port allows you to charge the battery via its 18W PD input or it provides charging output. The plate also features a 1/4"-20 screw with anti-twist pins for mounting onto the cage, and soft padding prevents slipping and scratching when mounted.

Compatibility

  • Tilta full or half cages with a 1/4"-20 thread

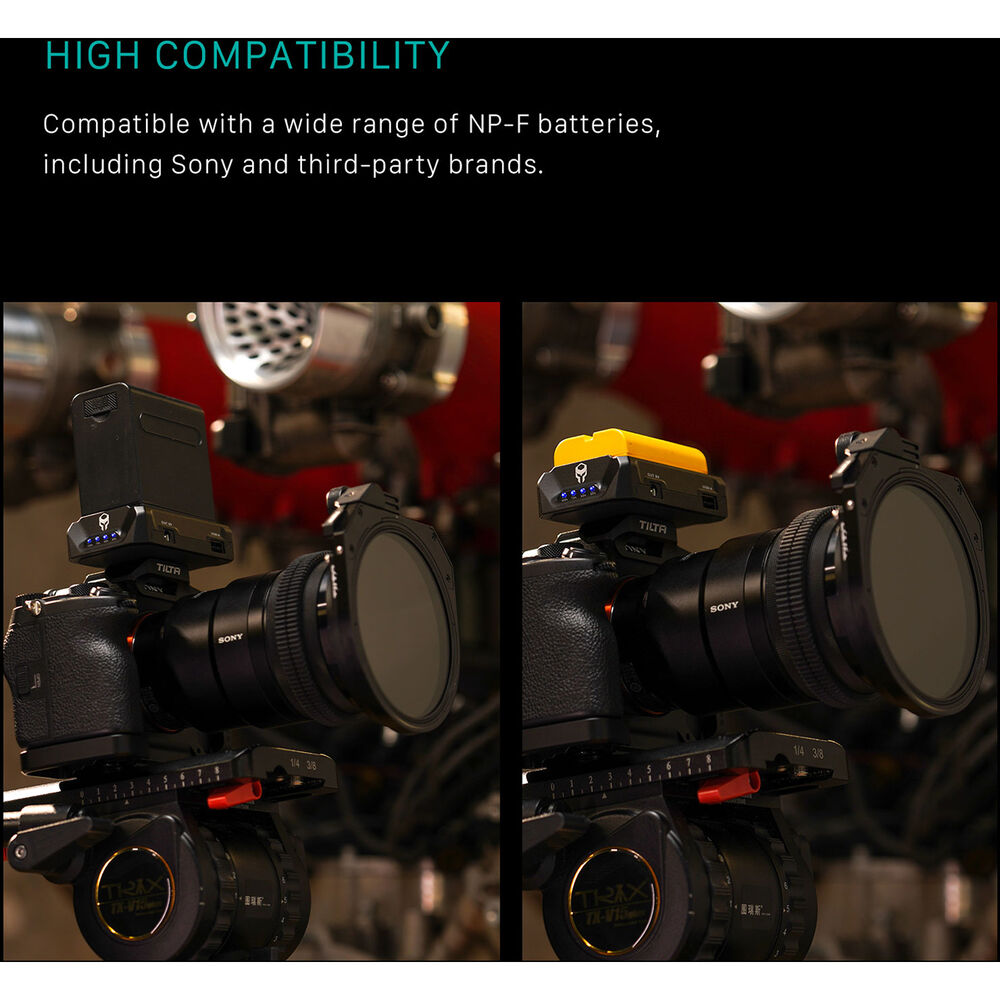

  • One Sony NP-F970 L-series battery

Power

Power InputUSB-C: VDC
Power OutputDC Jack: 12 VDC at 2 A
DC Jack: 8 VDC at 3 A
USB-A: 5 VDC at 2.1 A
USB-C: VDC

General

Camera Power MethodConnector, Dummy Battery
Inputs/Outputs1 x 2.1 mm Coaxial
1 x 2.5 mm Coaxial
1 x USB-A
1 x USB-C
Plate Front / Battery MountSony L-Series
Plate Rear Mount1/4"-20 Female
Number of Battery Bays1
Material of ConstructionAluminum, Stainless Steel

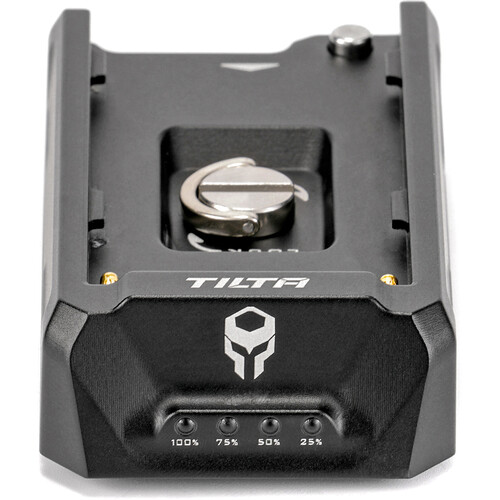

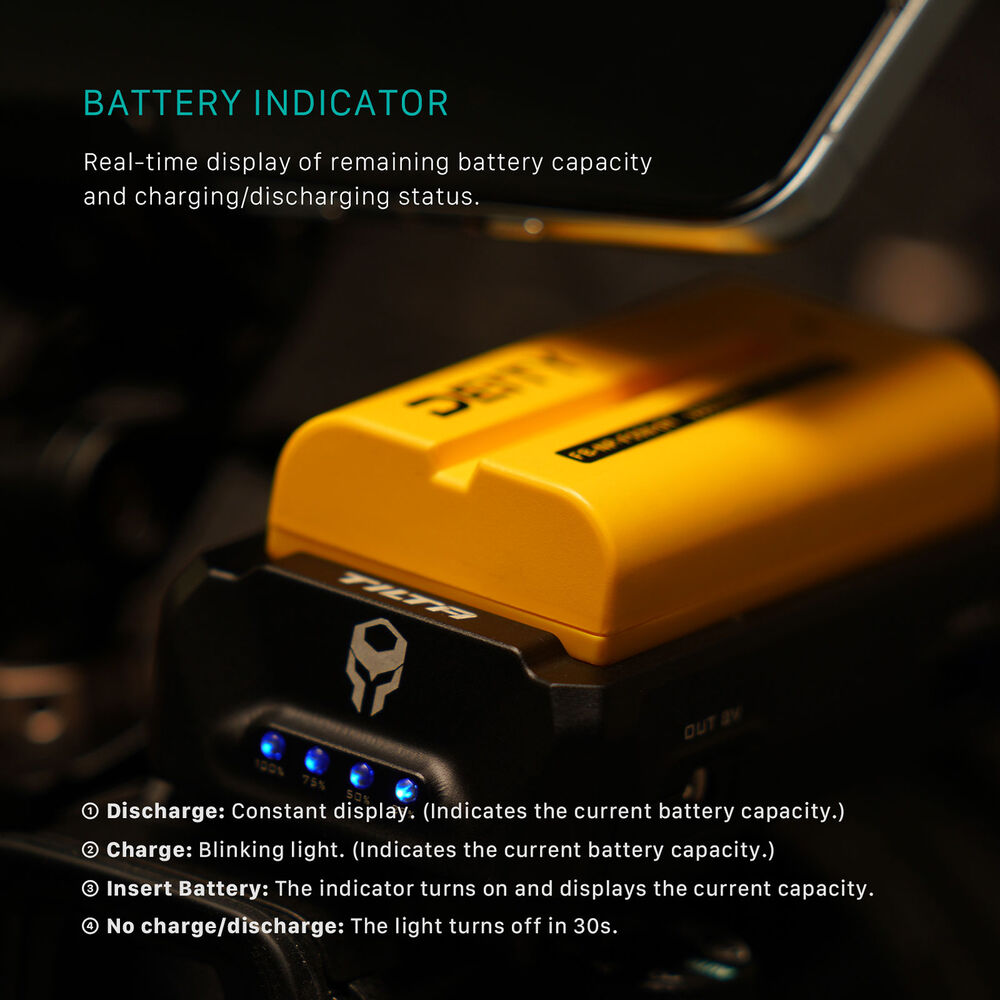

IndicatorLED

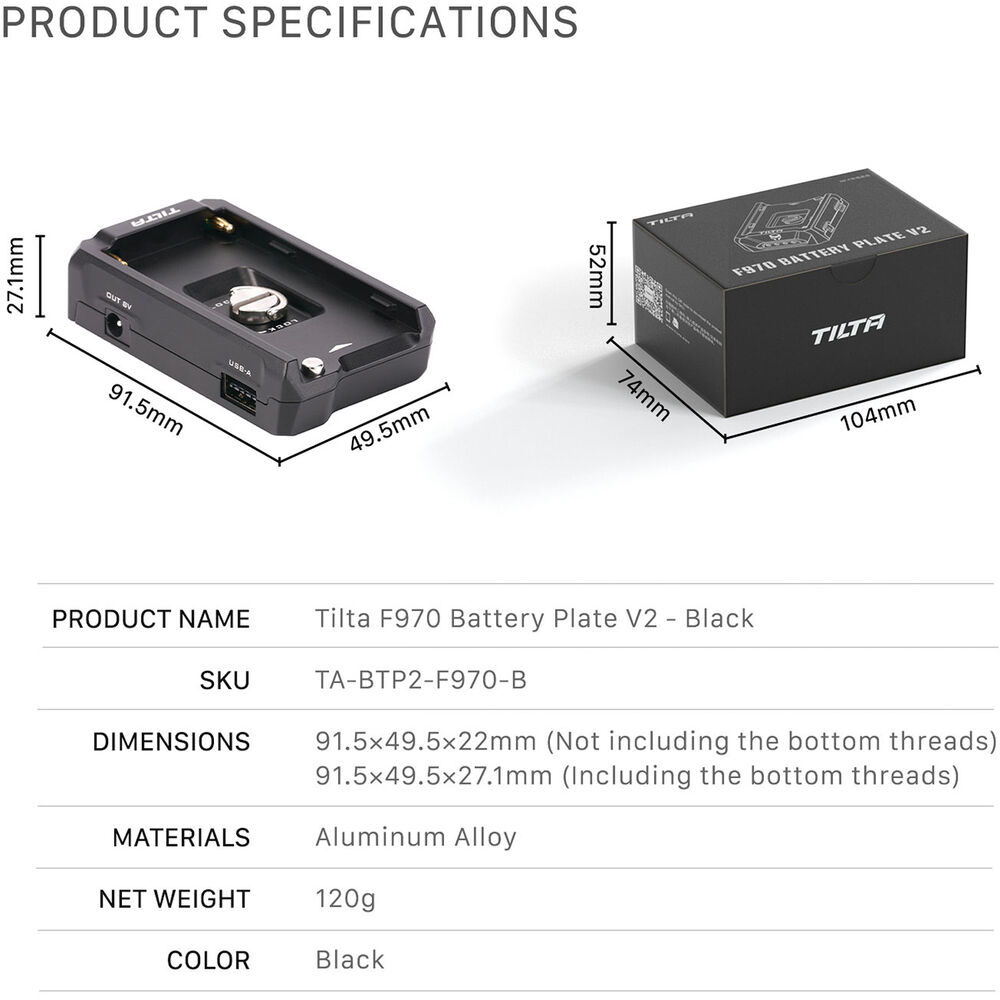

Dimensions3.6 x 1.9 x 0.9" / 91.5 x 49.5 x 22 mm
Weight4.2 oz / 120 g
