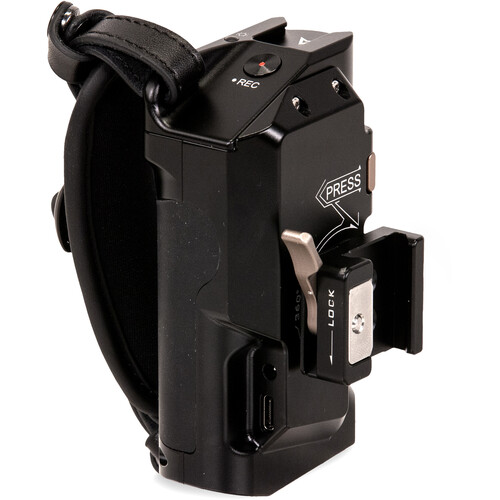

Tilta Left-Side Advanced Power Handle with Run/Stop for F570 Battery (Black, Type IV)
Tilta Left-Side Advanced Power Handle with Run/Stop for F570 Battery (Black, Type IV)
Tilta Left-Side Advanced Power Handle with Run/Stop for F570 Battery (Black, Type IV)
Tilta Left-Side Advanced Power Handle with Run/Stop for F570 Battery (Black, Type IV)

Tilta Left-Side Advanced Power Handle with Run/Stop for F570 Battery (Black, Type IV)

Brand: Tilta

MFR: TA-LRH4-57-B

433.00 ﾹ

  • Power Accessories
  • Control Start/Stop
  • Accepts Select L-Series Batteries
  • NATO Rail Clamp Attcahment Included
  • 360° of Rotation
  • Run/Stop Cable Included
  • Numerous Attachment Options Available
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Handles & Grips

Power your Nucleus Nano lens motor and add start/stop control for select cameras with the type-IV Left-Side Advanced Power Handle with Run/Stop for F570 Battery from Tilta. This handgrip with a black finish comes with a NATO rail clamp, allowing you to attach it to a suitable camera or cage. The NATO clamp can be removed to reveal two threaded mounting holes that allow you to choose from a variety of attachment options for mounting on your camera cage or baseplate. The comfortable handgrip accepts an F55/F570 L-series battery internally, allowing you to power a variety of optional accessories, and it includes a run/stop cable. The handgrip also features a 12 VDC output port.

The integrated female mounting threads permit 360° rotation for adjustment of the handgrip's angle, and it allows you to choose your mounting attachment such as the Tilta Rosette Attachment, ARRI Locating Pin Attachment, NATO Rail Adapter, and more. An included adjustable wrist strap helps keep your hand comfortably on the handgrip.

Required Attachment Bracket

The handgrip requires an attachment device, which is not included, and it works with the following Tilta products:
Rosette Attachment
ARRI Locating Pin Attachment
NATO Rail Adapter
NATO Extender
Extender Arm
Dovetail Adapter (left)

Battery

The handgrip accepts an F550/F570 L-series battery (not included) for powering accessories.


Tilta PowerGrip Handle With Trigger Specs

Item TypeLeft-Side Handgrip
RotationYes, 360°
Built-In ControlsRemote Trigger, Focus Control

Mounting

Attachment MethodAttaches via 2 Screw (Unspecified Type)
Shoe MountingNone
RosettesNone
Rail MountingNone

General

Battery1 x Sony L-Series Battery (Not Included)
Powers Focus Motor
Inputs/Outputs1 x USB-C (8 VDC)
1 x DC Barrel (12 VDC)
MaterialsAluminum, Silicone
Dimensions4.2 x 2.4 x 1.7" / 106.2 x 60.8 x 43 mm
Weight7.2 oz / 204 g

Packaging Info

Package Weight0.665 lb
Box Dimensions (LxWxH)5.5 x 4.3 x 2.8"
