Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System
Tilta Nucleus-M Wireless Lens Control System

Tilta Nucleus-M Wireless Lens Control System

Brand: Tilta

MFR: WLC-T03

5,117.00 ﾹ

  • 1000' Wireless Range
  • Two Lens Drive Motors
  • Motors Feature Integrated Receivers
  • 0.8 MOD Drive Gears
  • Focus, Iris, Zoom Hand Unit
  • Motors Daisy-Chain for Power

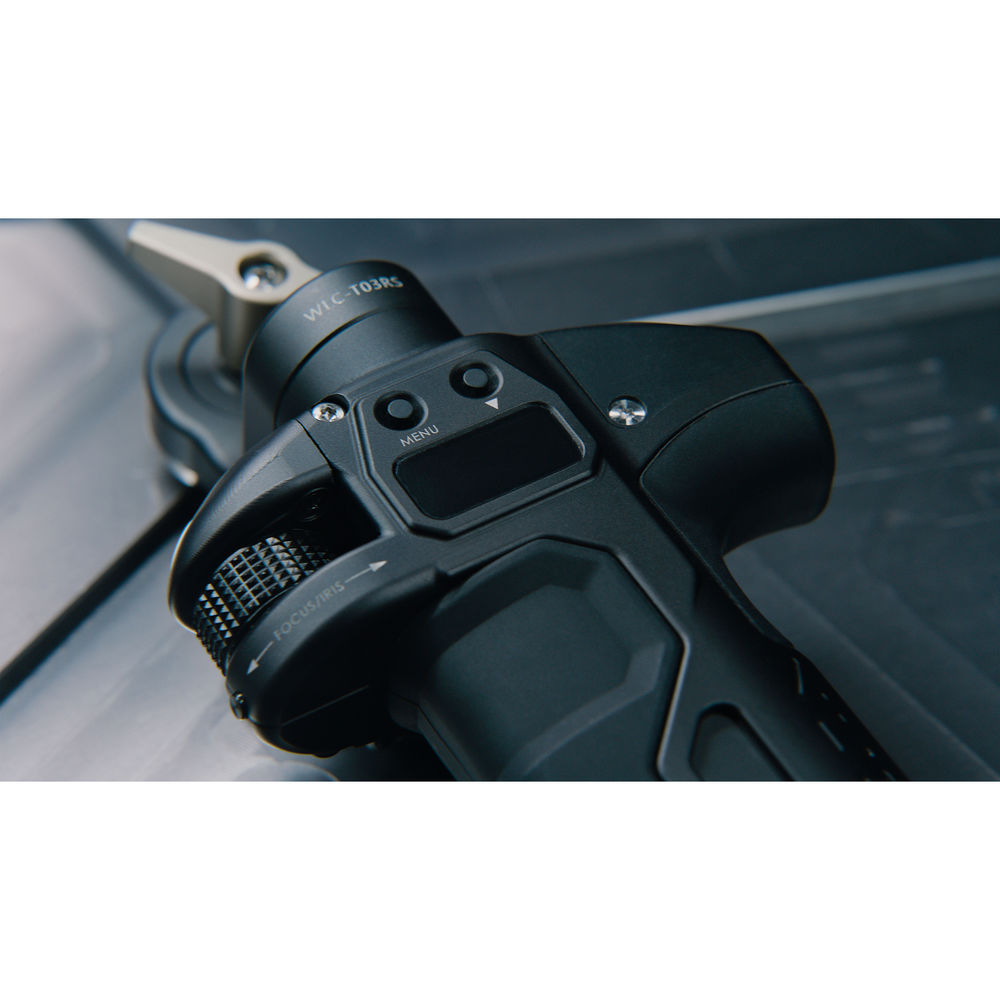

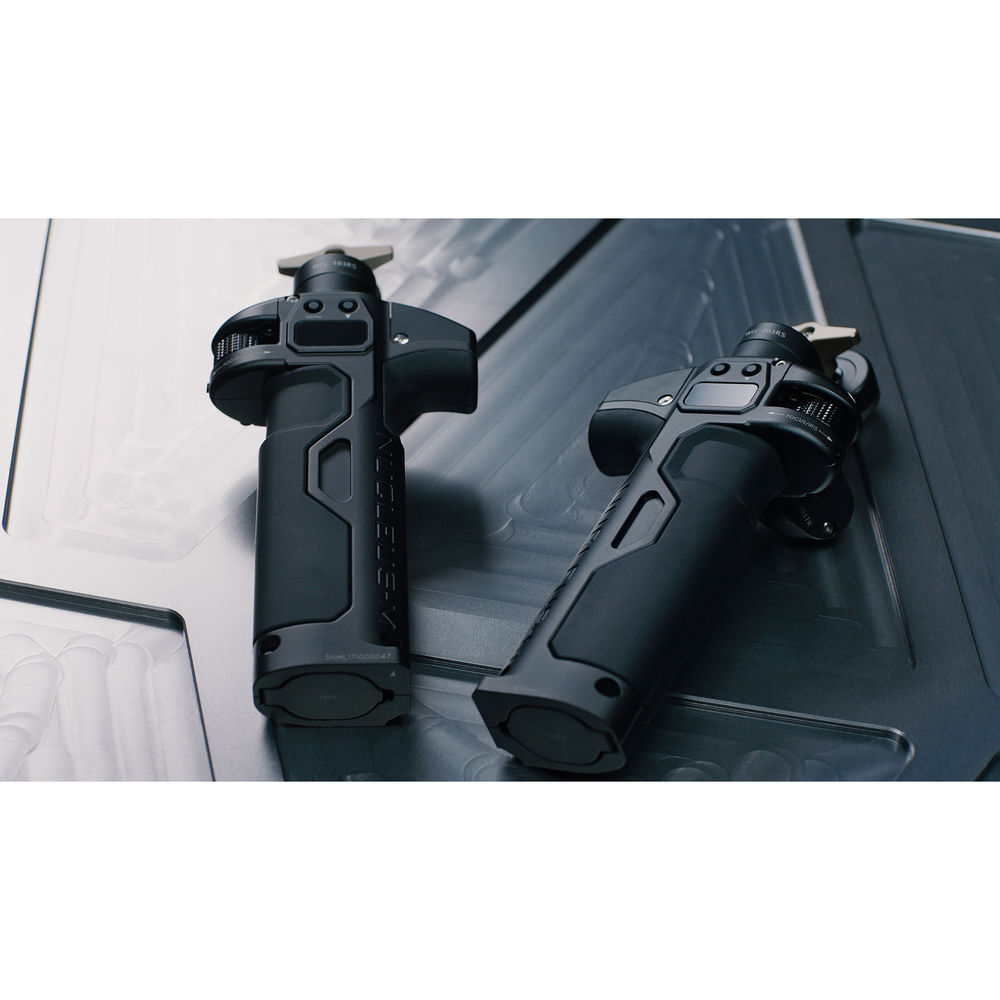

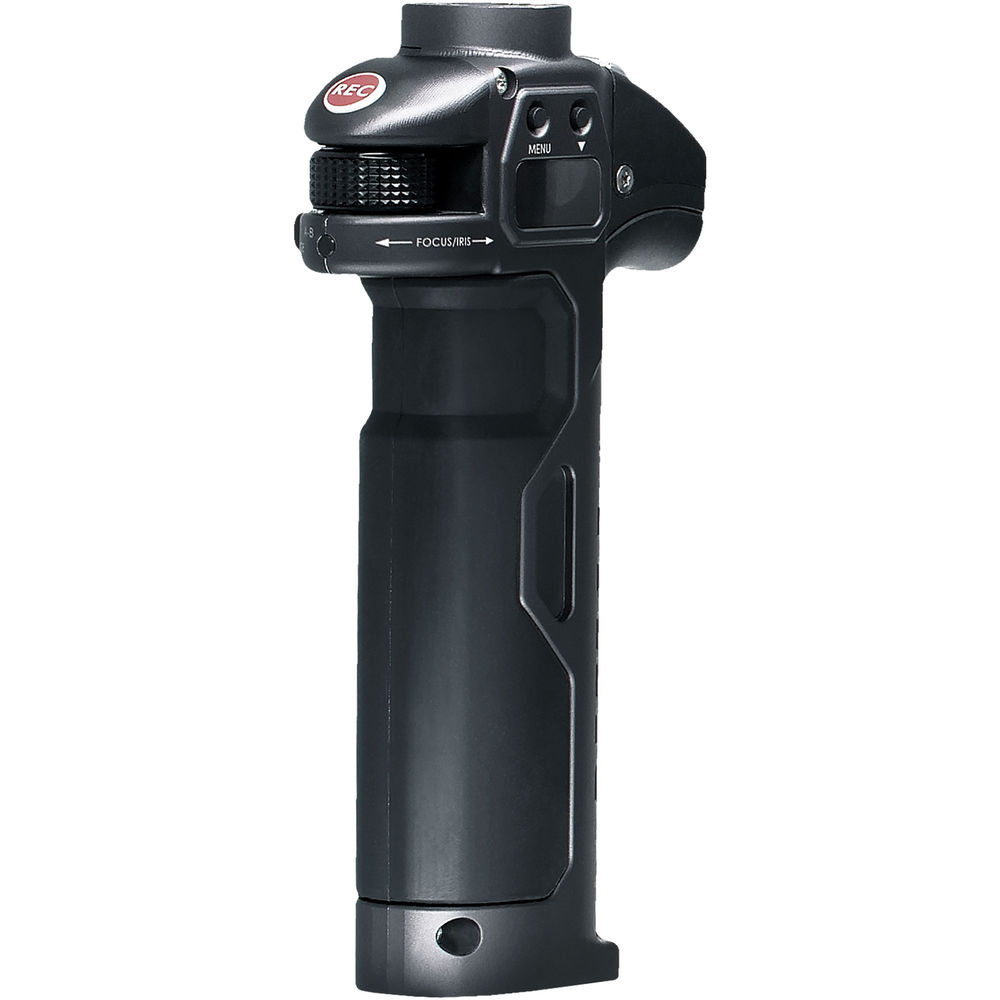

  • Right Handgrip with Focus Control

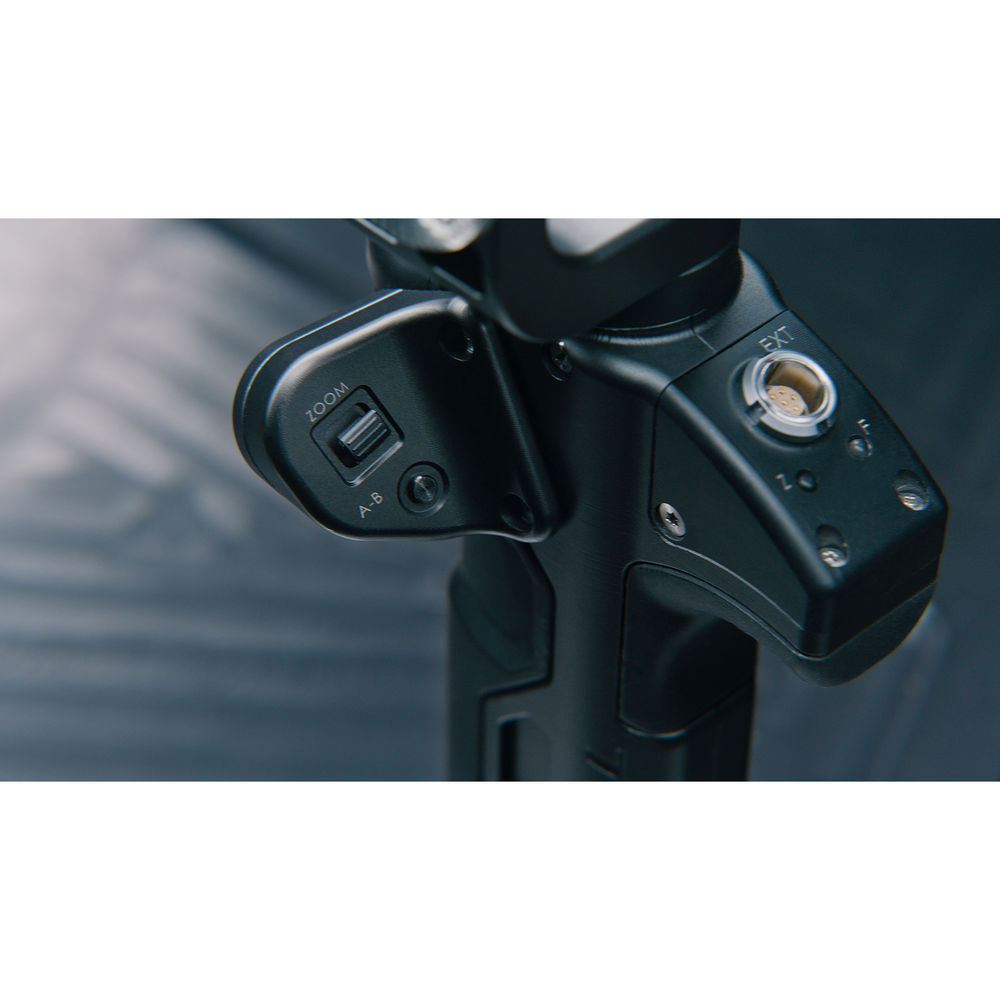

  • Left Handgrip with Iris and Zoom Control
  • Hard-Shell Waterproof Case Included
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Wireless Lens Control Solutions , Wireless Lens Control Solutions

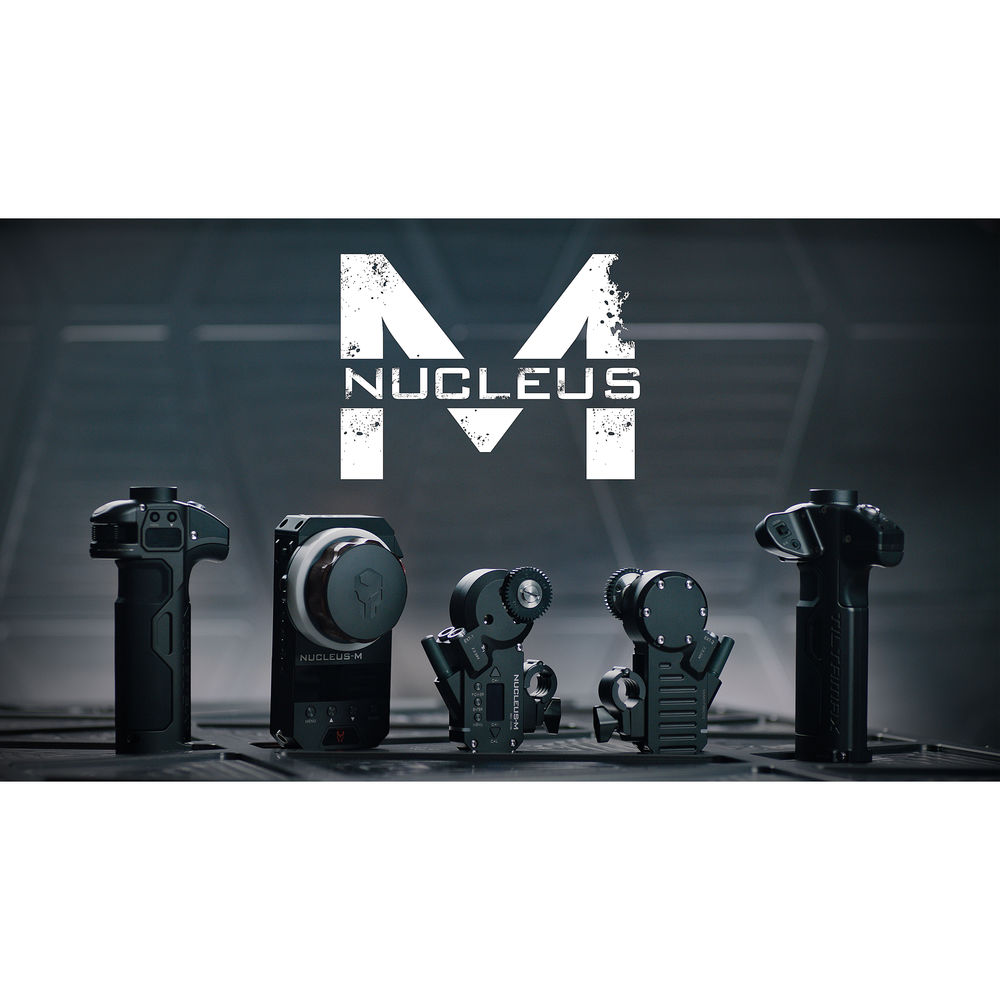

The Tilta Nucleus-M Wireless Lens Control` System features a 1000' transmission range and comes with two lens drive motors with built-in wireless receivers, a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear and two 7-pin connectors, enabling you to freely swap or interchange each motor. The motors power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.

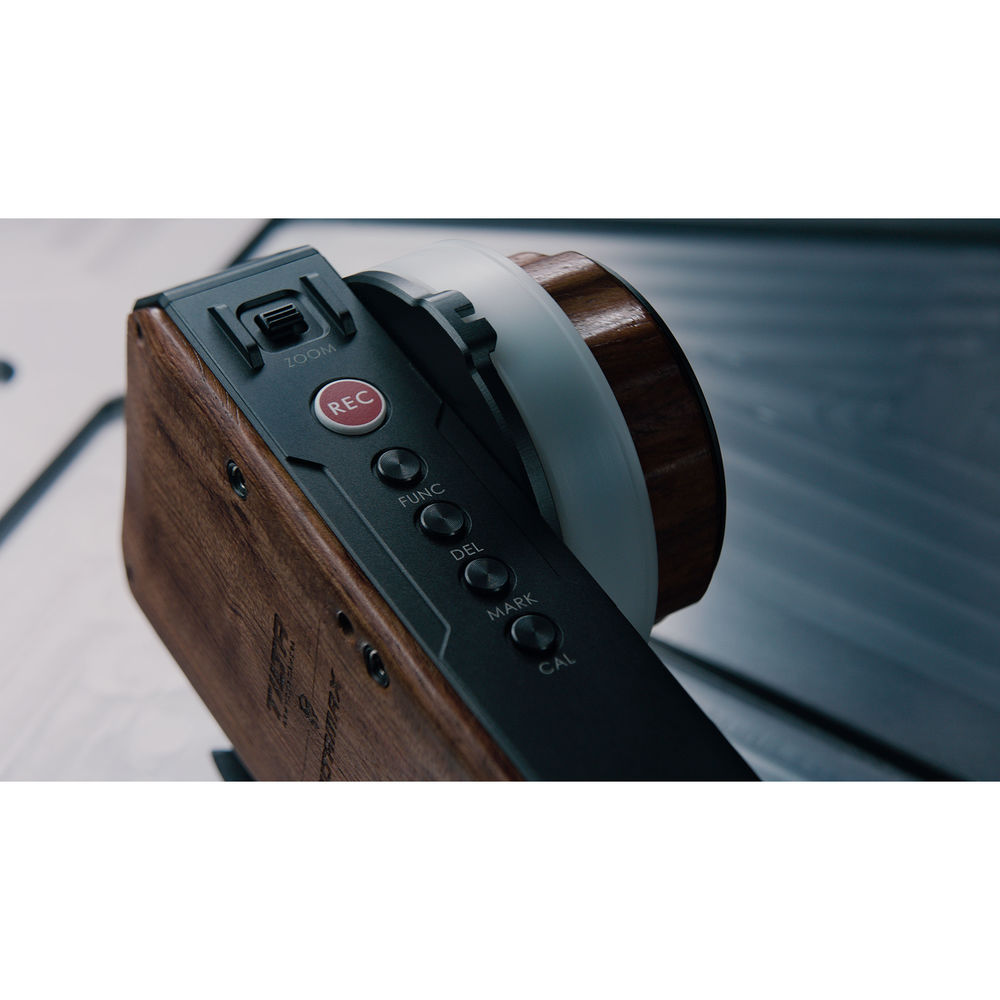

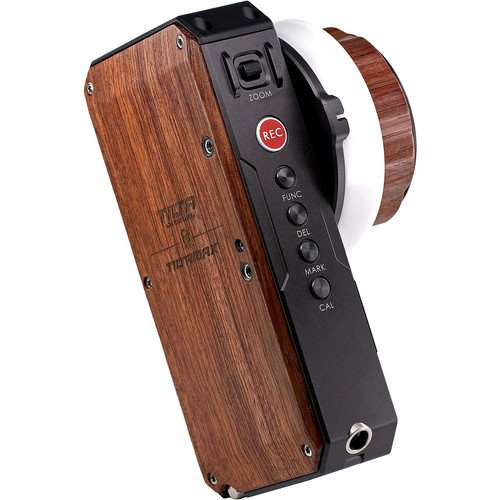

The FIZ hand controller allows you to control focus, iris, and zoom, and it includes a neck strap. The handgrips feature adapters that enable mounting the controllers onto ARRI-compatible rosettes or onto 25/30mm diameter rods, such as those used with gimbals. The system comes packed in a waterproof hard case that protects your gear during transport and storage.

  • Please note that batteries are not included and must be sourced separately.
  • The system features three ranges: low, medium, and high. It supports up to 15 channels to select from, and the controllers pair with each motor via the motor ID.
  • The FIZ hand unit can control three channels (focus, zoom, and iris), as well as override the handgrips.
  • The motors can calibrate on lenses with or without hard stops, such as a photo lens with follow focus gears.

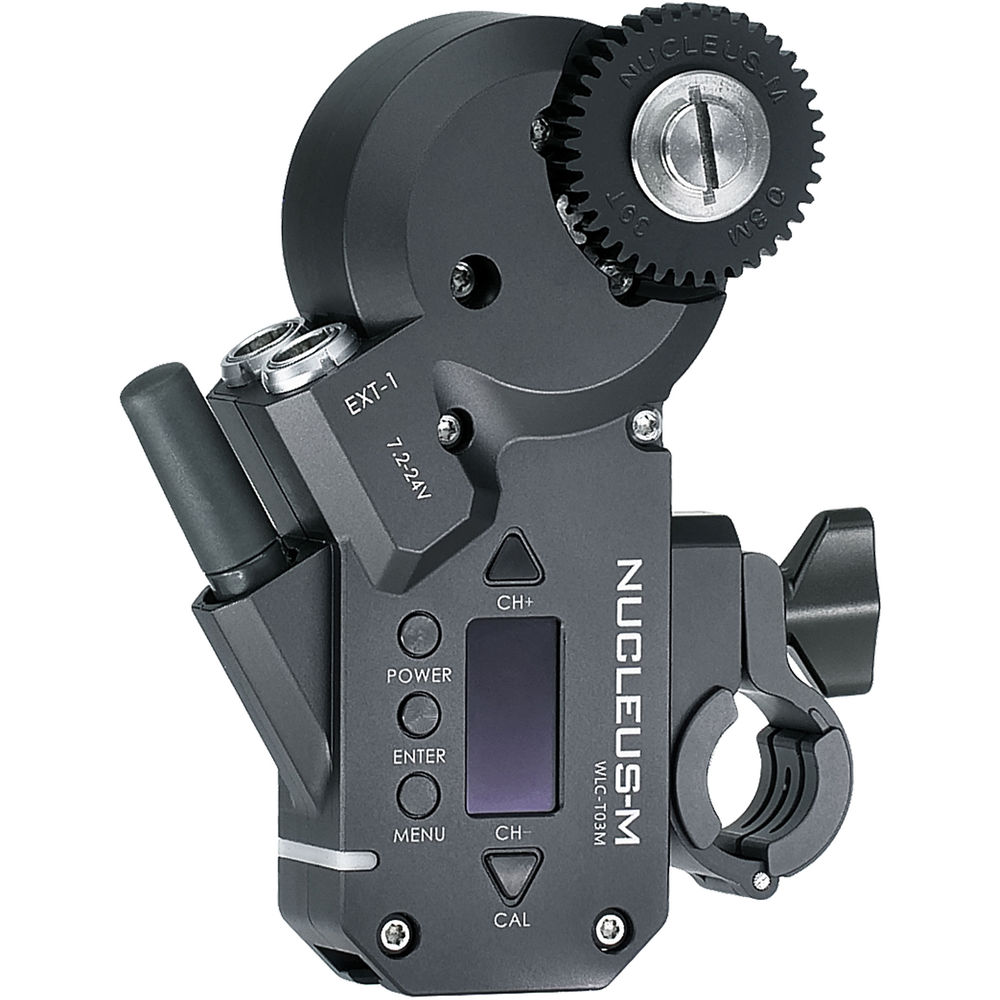

  • The motors feature cine standard 0.8 MOD 32 pitch drive gears. Each motor includes a 19mm rod clamp and a 15 to 19mm adapter bushing, allowing you to mount the motors onto either a 15mm or 19mm rod.
  • The motors power from a D-Tap connector, and then pass power by daisy-chaining via the 7-pin connectors with the included cables.

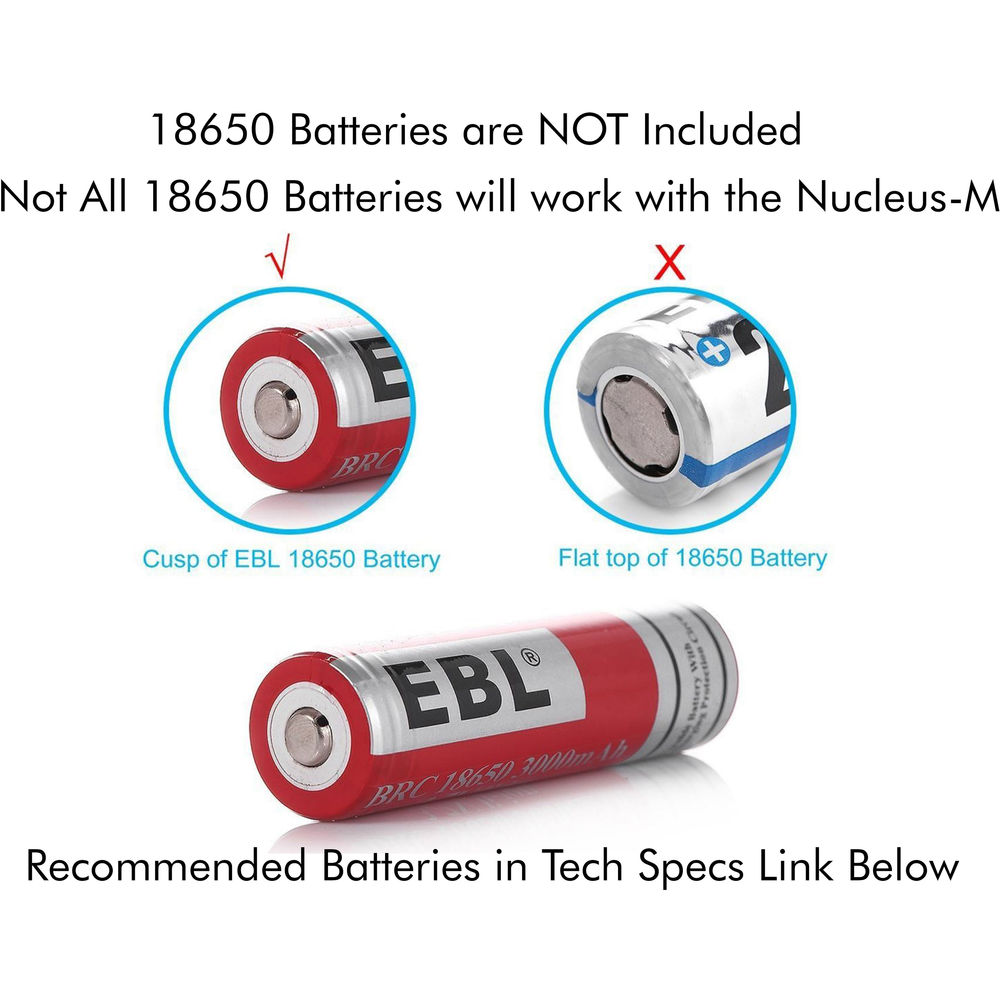

  • The FIZ hand controller and each handgrip power via two 18650 3000mAh, 3.7V Li-ion batteries.
  • The batteries in the FIZ hand controller will last for more than 10 hours, and up to 48 hours in each handgrip, when idle.

Tilta Nucleus-M Specs

System

Number of Channels3
Maximum Range1000' / 304.8 m

Receiver / Motor

BluetoothNone
Included Drive Gear0.8 MOD
Rod StandardReceiver / Motor: 19 mm Single Rod
Included Motors2
ModelNucleus-M
Maximum Peak Torque2.5 Nm
DC Input Power7.2 to 24 VDC
DimensionsReceiver / Motor: H: 4.5 x W: 3.25 x D: 1.38" / H: 11.4 x W: 8.26 x D: 3.51 cm
WeightReceiver / Motor: 0.49 lb / 222 g

Transmitter / Controller

Camera TriggerYes
Battery TypeProprietary Rechargeable
DC Input Power3.7 VDC
Weight15.5 oz / 440 g

Packaging Info

Package Weight9.4 lb
Box Dimensions (LxWxH)13.65 x 11.7 x 5.85"
