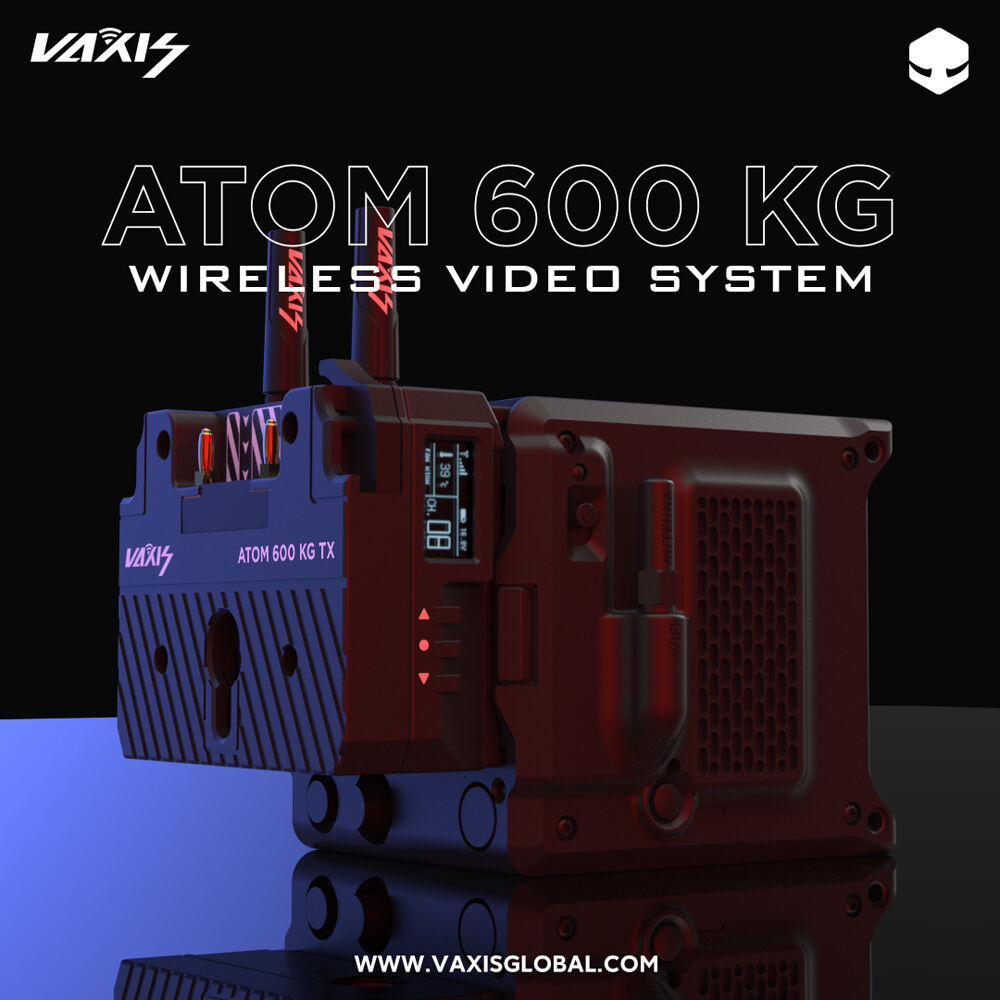

Vaxis ATOM 600 SDI Wireless Video System for RED KOMODO (Gold Mount, Black)
Vaxis ATOM 600 SDI Wireless Video System for RED KOMODO (Gold Mount, Black)

Vaxis ATOM 600 SDI Wireless Video System for RED KOMODO (Gold Mount, Black)

Brand: VAXIS

MFR: VA20-600KG-TR01

3,672.00 ﾹ

  • For RED KOMODO Camera
  • Includes Transmitter and Receiver
  • Transmits Wireless Video up to 600'
  • Supports up to 1080p
  • Multiple Device App Monitoring
  • Adjustable Cooling Fan
  • Low <80 ms Latency Transmission
  • OLED Display on Transmitter & Receiver
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Wireless Video Transmission Systems

Certified and authorized by RED DIGITAL CINEMA, the ATOM 600 SDI Wireless Video System for RED KOMODO (Gold Mount) from Vaxis enables visually lossless video transmission with less than 80 ms latency. The powerful line-of-sight signal can transmit to 600 feet while multicasting to up to four mobile devices via Wi-Fi for monitoring, using the dedicated Vaxis app.

Both transmitter and receiver feature a bright OLED display and a cooling fan that can be turned on and off to prevent undesirable noise during production. A USB Type-C connector provides connectivity for firmware updates and may also be used as a 5V/2A power output.

Performance and Flexibility

  • Supports 1080p wireless video up to 600'
  • Multicast support for transmitting video via Wi-Fi to up to four devices
  • The unit supports 13 optimized channels with automatic channel scanning
  • Pass-code protection
  • Scan QR code to monitor
  • Built-in SDI/HDMI signal converter
  • Audio/video sync at 100%

Power and Cooling

  • Transmitter powers using a single, separately available Gold mount battery that passes power through to the dual battery plate; the receiver powers using a USB Type-C power source or using its L-series battery plate
  • Adjustable cooling fan
  • Gold mount battery plate can be mounted in horizontal and vertical modes

Key Specs

TouchscreenNo

Display

Panel TypeTransmitter/Receiver: OLED
ResolutionNot Specified by Manufacturer
Aspect RatioNot Specified by Manufacturer
TouchscreenNo
Video I/OTransmitter: 1 x BNC (3G-SDI) Input
Transmitter/Receiver: 1 x BNC (3G-SDI) Output
Transmitter/Receiver: 1 x HDMI Output
HDCP SupportNot Specified by Manufacturer
Embedded AudioHDMI/SDI/Wireless
Audio I/ONone
PowerTransmitter: 1 x USB-C (2 A / 5 VDC) Output
Receiver: 1 x USB-C (5 VDC) Input

Wireless

Wireless Range600' / 182.9 m (Line-of-Sight)
# of Channels13
Frequency RangeUS: 4.9 to 5.8 GHz
Latency< 80 ms
RF Power17 dBm
RF Sensitivity-80 dBm
Wi-FiYes
BluetoothNone

Format Support

Video FormatSDI
1080PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/50
HDMI
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60
Video Signal ConversionSDI to HDMI

Wireless Video CompressionCompressed
Timecode SupportYes

Power

Battery TypeTransmitter: 1 x Gold Mount
Receiver: 1 x L-Series
Power ConsumptionTransmitter: 6.5 W
Receiver: 6.5 W

Environmental

Environmental ProtectionNone

General

DimensionsTransmitter: 3.8 x 2.9 x 2" / 96.5 x 74 x 50.4 mm
Receiver: 4.4 x 2.5 x 0.8" / 113 x 63.5 x 20 mm
WeightTransmitter: 14.1 oz / 400 g
Receiver: 6.0 oz / 170 g
