Vaxis Storm 1000S Wireless Transmitter + Dual Receivers Kit (V-Mount)

Vaxis Storm 1000S Wireless Transmitter + Dual Receivers Kit (V-Mount)

Name: Vaxis Storm 1000S Wireless Transmitter + Dual Receivers Kit (V-Mount)
Brand: VAXIS
SKU: SF-2443-7NAK
Price: 17637 AED
Availability: InStock

Brand: VAXIS

MFR: VS19-1000S-TRR01

SKU: SF-2443-7NAK

17,637.00 ﾹ

1 x Transmitter and 2 x Receivers
Up to 1148' Line-of-Sight Range
Supports up to 1080p Video
SDI/HDMI Input/Outputs
V-Mount Plates on Receivers
2-Pin LEMO Power Input
Instant Playback Mode for ALEXA Mini
Multicast to Multiple Receivers
Compatible with Select Vaxis Systems
Low Latency, LCD Screen

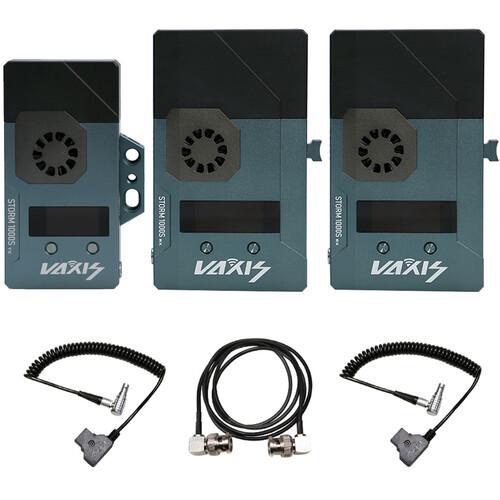

Items Included

Vaxis Storm 1000S Wireless Transmitter + Dual Receivers Kit (V-Mount)
Storm 1000S Transmitter
2 x Storm 1000S Receiver
3 x Power Cable
BNC Cable
Flight Case

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Categories: Camcorder & Camera Peripherals

Sporting both 3G-SDI and HDMI connections, the Storm 1000S Wireless Transmitter + Dual Receivers Kit from Vaxis enables transmitting visually lossless video signals to the Vaxis receiver with less than 1 ms latency. The transmitter sends a powerful line-of-sight signal up to 1148' and offers 20 channels through the 20 and 40 MHz bands, allowing you to find a clean channel to use. It also allows you to work with multiple pairs of Vaxis Storm transmitters and receivers without interfering with each other's signals.

The transmitter features one 3G-SDI input, one 3G-SDI loop output, and one HDMI input, while each of the two included receivers has one HDMI and two 3G-SDI outputs. The system supports 0' mode, which allows instantaneous playback with an ALEXA Mini. The transmitter supports multicasting to multiple receivers, and in addition, the Storm 1000S is compatible with Storm 058, 800, 2000, and 5000 systems. Each unit features a bright, clear LCD and has a cooling fan that vents to the side to avoid overheating your camera or monitor.

They can be powered using the integrated 2-pin LEMO connector, and each unit has a USB micro power input port as well. In addition, each receiver features an integrated V-mount plate for power input.

Features

All units feature internal antennas
The transmitter and dual receiver kit transmits 1080p wireless video up to 1148' line-of-sight with less than 1 ms latency
The transmitter features one SDI and one HDMI input, plus one SDI loop output
Each receiver features two SDI outputs and one HDMI output
Units are powered by separately available external sources via their 2-pin LEMO-type ports
Multicast support to transmit video from one transmitter to multiple receivers
HDMI/SDI cross-conversion support on transmitter
Timecode and metadata support
Bright LCD screen on each unit for settings, status, and to scan for open frequencies on 5.1 to 5.9 GHz range
Bright LCD info screen displays settings, status, and allows for scanning from 5.1 to 5.9 GHz
Each unit mounts on a rig using a 1/4"-20 thread
Compatible with Storm 058, 800, 2000, and 5000
V-mount plates on receivers
Optional V-mount plate on transmitter
Durable metal housing

Inputs/Outputs

Antenna I/O	No
Video I/O	Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Transmitter: 1x HDMI (Unspecified Signal) Input Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI (Unspecified Signal) Output
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel
Audio I/O	No
Power I/O	Transmitter: 1x LEMO 2-Pin Input Transmitter: 1x Micro-USB Input Receiver: 1x LEMO 2-Pin Input Receiver: 1x Micro-USB Input
Media/Memory Card Slot	Not Specified by Manufacturer

Wireless

Wireless Range	1148.3' / 350 m (Line-of-Sight)
# of Channels	20
Frequency Range	5.1 to 5.9 GHz
Latency	< 1 ms
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS
Cellular Support	No

Format Support

Video Format	SDI 1080p: 60/59.94/50/24/23.98
Audio Format	Not Specified by Manufacturer
Timecode Support	Yes

Power

Input Power	7 to 36 VDC
Battery	Receiver: 1x V-Mount on Fixed Plate

Mounting

Tripod/Accessory Mounting

1x 1/4"-20 Female

General

Environmental Resistance	No
Dimensions	Transmitter: 5.4 x 2.7 x 1" / 138 x 69.5 x 24.5 mm Receiver: 6.1 x 3.6 x 1" / 156 x 91.5 x 24.5 mm
Weight	Transmitter: 10.23 oz / 290.00 g Receiver: 15.34 oz / 435.00 g
