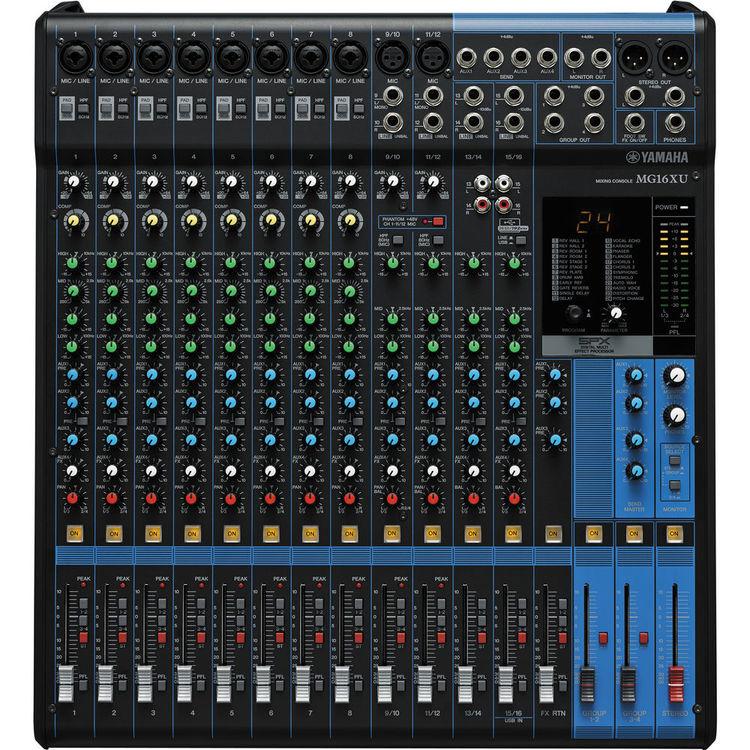

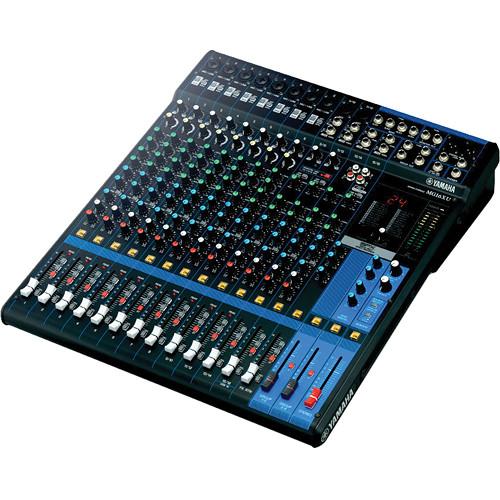

The MG16XU from Yamaha is a compact mixer capable of sixteen simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks. It also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more.
Channels 1-12 are each equipped with D-PRE mic preamps, 3-band EQ, pan control and a high-pass filter. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 each also feature 26dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums.
The MG16XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.
Each of the MG16XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, these effects can be used to help vocals and instruments sit better in your mix.

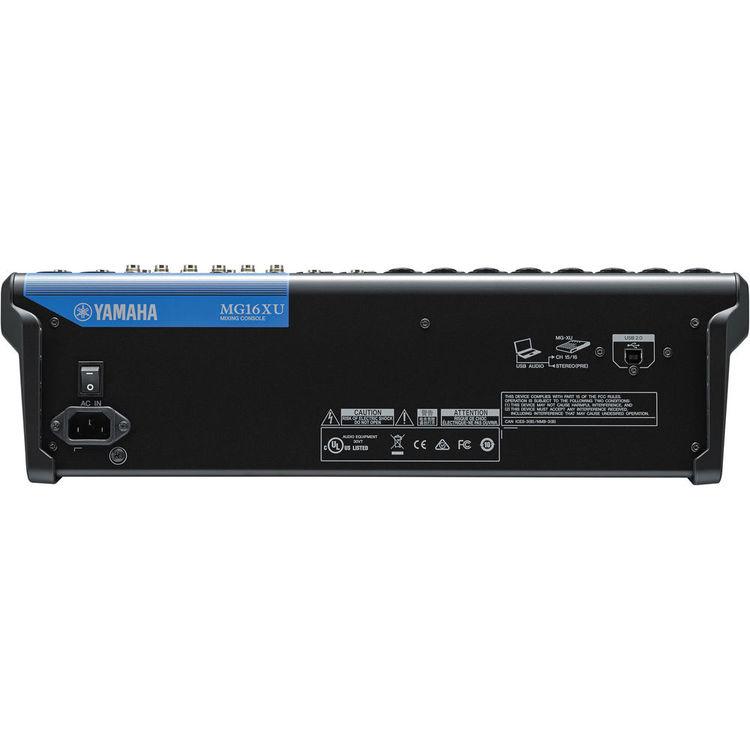

USB works with PC, Mac and the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software (download)
Four TRS auxiliary outputs with dedicated send level controls on each channel for routing aux mixes to external devices such as reverb units, monitor mixers and more
Four group buses (two stereo) with overall level control fader and dedicated outputs for creating a sub mix such as a drum group, or for routing separate mixes to amplifiers, powered speakers or other external equipment
3-band EQ on channels 1-8 and 2-band EQ on channels 9-16
Pan/balance control on each channel
One-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix

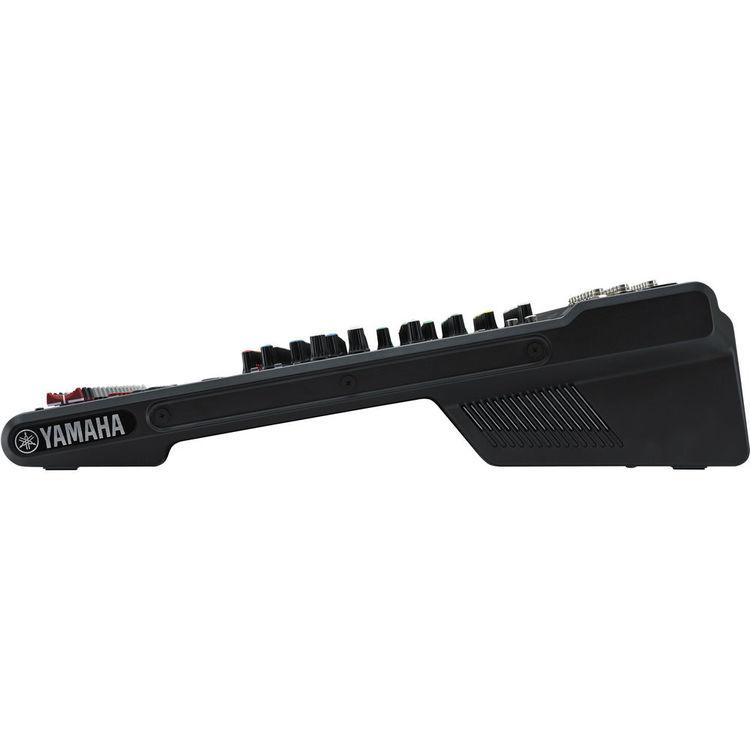

Rugged metal chassis built to withstand wear and tear
Internal universal power supply for worldwide use
| Built-in Effects | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Phantom Power | +48 V switchable, channels 1 - 12 |
| Digital I/O | USB: USB Audio Class 2.0 compliant Sampling Frequency: max 192 kHz Bit Depth: 24-bit |
| Input Channels | 8x mono [mic/line] 2x mono/stereo [mic/line] 2x stereo [line] |
| Output Channels | 2x stereo out 1x monitor out 1x headphone out 4x aux out 4x group out |
| Bus | Stereo: 1 AUX: 4 GROUP: 4 |
| Pad | 26 dB (mono) |
| HPF | 80 Hz, 12 dB/oct (mono/stereo: MIC only) |
| Compressor | Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec |
| Equalizer | EQ high gain: +15 dB/-15 dB, frequency: 10 kHz shelving EQ mid gain: +15 dB/-15 dB, frequency: mono 250 Hz - 5 kHz peaking, stereo 2.5 kHz peaking EQ low gain: +15 dB/-15 dB, frequency: 100 Hz shelving |
| LED | Peak LED turns on when post EQ signal reaches 3 dB below clipping |
| Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005% @ +24 dBu (1 kHz), GAIN knob: Min |
| Frequency Response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO master fader: min) |
| Crosstalk | -78 dB |
| Power Requirement | AC 100 - 240 V, 50 / 60 Hz |
| Power Consumption | 30 W |
| Dimensions | 17.5 x 5.1 x 19.7" (444 x 130 x 500 mm) |
| Net Weight | 15.0 lb (6.8 kg) |
