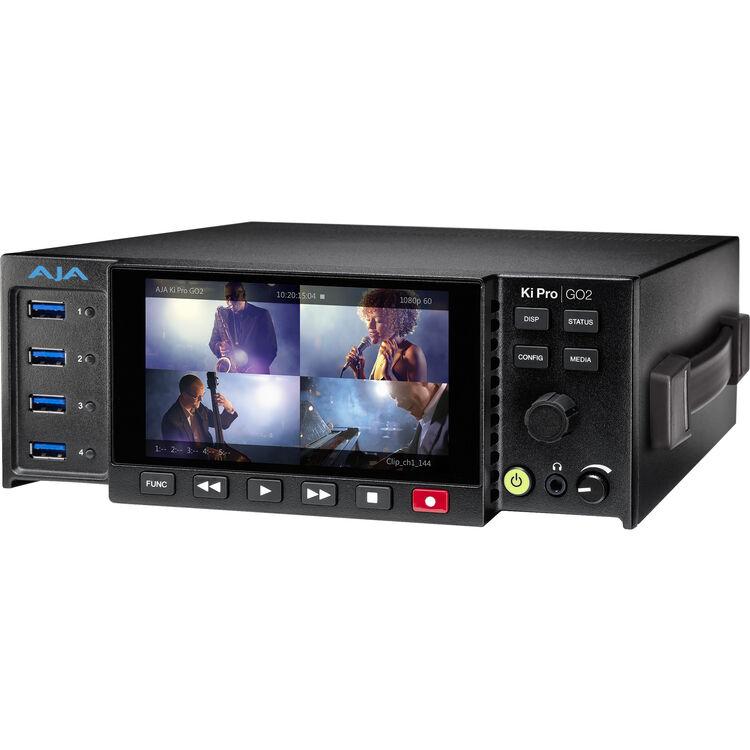

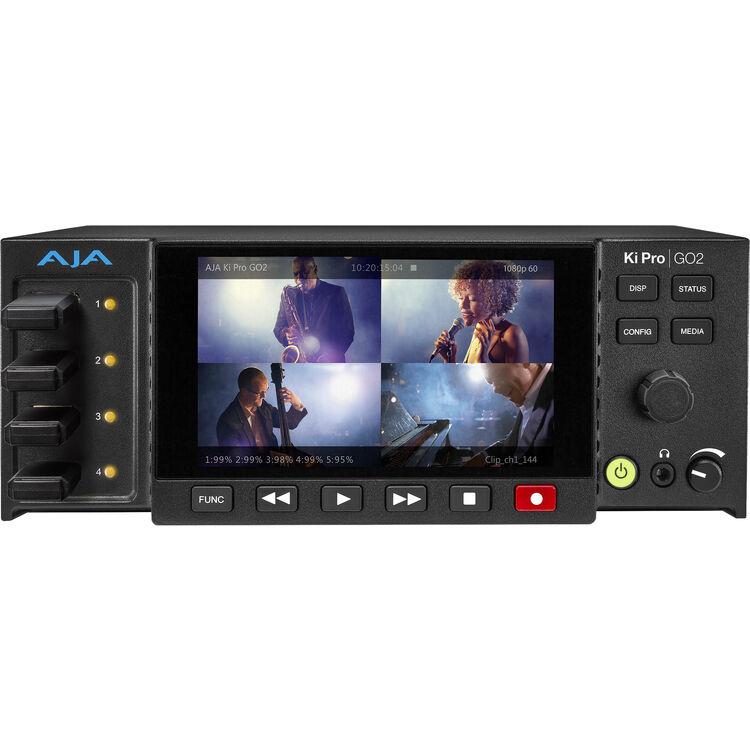

AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player

Brand: AJA

MFR: KI-PRO-GO2

SKU: SF-2443-FFTL

18,124.00

  • 4-Channel Simultaneous HD/SD Recording
  • Redundant Recordings per Channel (USB)
  • 4 x 3G-SDI and 4 x HDMI 1080p60 Inputs
  • 15 Mb/s for H.265 | 25 Mb/s for H.264
  • Hi-Res LCD with Onscreen Intuitive UI
  • Built-In Frame Syncs
  • Network Web UI-Based File Downloads

Items Included


  • AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player
  • AC Power Supply
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

The Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player from AJA is a portable recorder that supports H.265 (HEVC) and H.264 (AVC) codecs and is capable of recording up to four HD or SD channels simultaneously. It can record to qualified USB drives and/or network storage with options for redundant recording to ensure data safety.

The Ki Pro GO2 features four 3G-SDI and four HDMI digital video inputs, allowing flexible channel assignments and connectivity to various video sources, such as any 3G-SDI signal from a router, professional and prosumer cameras, and DSLRs. Thanks to the unit's input frame synchronizers, there is no need for genlocked video sources. Additionally, AJA's high-quality deinterlacers on each input enable progressive recordings from interlaced inputs.

The recorder can assign high-quality 2-channel embedded or balanced XLR analog audio to any recording channel. Multi-Channel Matrix Monitoring allows multiple video channels to be viewed on a single HDMI or SDI display, and the Enhanced Super Out provides timecode, media status, and audio meter overlays on the SDI and HDMI monitor outputs. Designed for portability or rack mounting with half-rack width and 2 RU height dimensions, the Ki Pro GO2 is ideal for various production environments, from global concert tours to local houses of worship.

Features at a Glance
  • Multichannel H.265 (HEVC) and H.264 (AVC) recording
  • Easy-to-use web UI, compatible with standard web browsers
  • Up to 15 Mb/s bit rates for H.265 and 25 Mb/s for H.264
  • Front panel button controls with integrated high-resolution LCD screen
  • Five USB recording media ports, compatible with off-the-shelf USB 3.2 Gen 1 media
  • Redundant recording to user-selectable channels with firmware update v1.5
  • Onboard exFAT drive formatting
  • Real-time recording to network (SMB) storage
  • Redundant recording to user-selectable destinations (USB or SMB)
  • Built-in Frame Syncs
  • Four 3G-SDI inputs
  • Four 3G-SDI outputs
  • One 3G-SDI monitoring output
  • Four HDMI inputs
  • One HDMI monitoring output
  • HDMI and SDI multichannel matrix monitoring
  • HDMI and SDI Enhanced Super Out for monitoring timecode, media status, and audio levels
  • Single-channel H.265 or H.264 playback
  • Selectable VBR recording settings with five options
  • Timecode SDI RP-188 Input Support with Time of Day or Timecode Value
  • LTC support is available using one channel of analog audio in
  • Balanced XLR analog audio inputs (mic/line/48v switchable)
  • 2-channel embedded audio per video input
  • Network web UI-based file downloads
  • Standalone operation

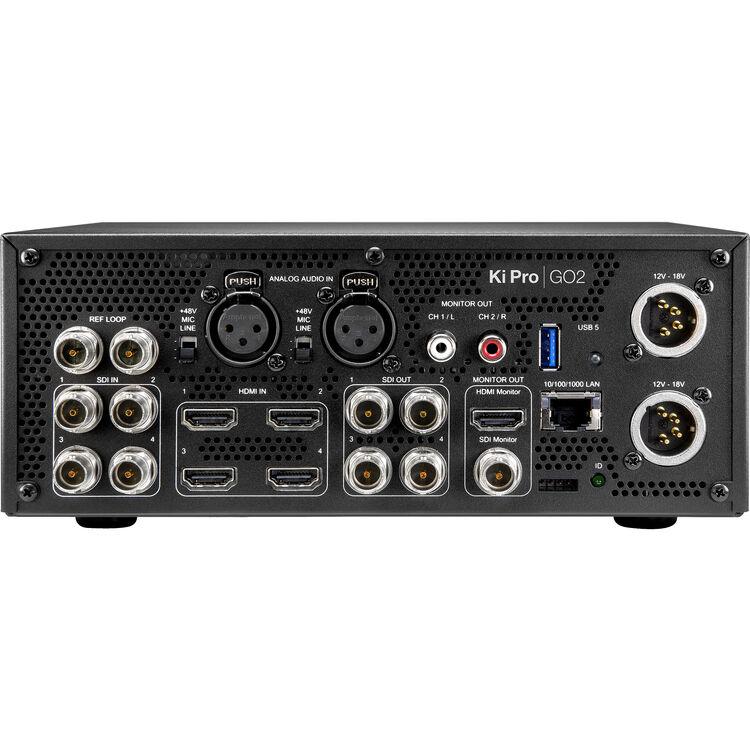

Inputs/Outputs
Video I/O
4x BNC (3G-SDI) Input
4x HDMI 1.4a Input
5x BNC (3G-SDI) Output
1x HDMI 1.4a Output
5x USB-A 3.0 / 3.1/3.2 Gen 1 Output
Embedded Audio
HDMI: 2-Channel
SDI: 2-Channel
Audio I/O
2x XLR Input
2x RCA Monitor Output
1x 1/8" / 3.5 mm Headphone Output
Power I/O
2x XLR 4-Pin Input
Other I/O
1x RJ45 (LAN)
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI (8/10-Bit 4:4:4 RGB)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576i: 50
480i: 59.94
Timecode Support
Yes
Recording
Pulldown Conversion
No
Camera Trigger
No
Pre-Roll Record
No
Encoding Formats
Up to 1920 x 1080
H.264 8/10-Bit 4:4:4
H.265 8/10-Bit 4:4:4
H.264 8/10/12-Bit 4:2:2
H.265 8/10/12-Bit 4:2:2
H.264 8-Bit 4:2:0
H.265 8-Bit 4:2:0
Maximum Audio Tracks
2
Reference Input
Looping (Non-Terminating), Tri-Level Sync
Phantom Power
+48 V
Power
Input Power
12 to 18 VDC
100 to 240 VAC, 50 / 60 Hz
Battery
No
Power Consumption
55 W (Typical)
General
Environmental Resistance
No
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
-40 to 140°F / -40 to 60°C
Dimensions
10.59 x 8.64 x 3.31" / 268.9 x 219.46 x 84.08 mm
Weight
5.07 lb / 2.3 kg
Packaging Info
Package Weight
7.925 lb
Box Dimensions (LxWxH)
13.5 x 10.5 x 6.1"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included


  • AJA Ki Pro GO2 Multichannel H.264/H.265 Recorder/Player
  • AC Power Supply
