amaran F22c RGB LED Flexible Light Mat (Gold Mount)

Brand: APUTURE

MFR: AP30235A15

SKU: SF-2443-8EPP

3,306.00

  • For Studio & Film/TV Production
  • Output: 6420 Lux at 3.3' (5600K)
  • 2500-7500K CCT; HSI Color Control
  • 2 x 2' Mat; AC/DC Operation
  • CRI 95 | TLCI 98 | CQS 96
  • On-Board, DMX, and Bluetooth Control
  • Passive Cooling for Silent Operation
  • 0-100% Dimming, 15 Lighting Effects
  • Multi-Voltage AC, Gold Mount Battery
  • Includes Softbox Frame, Diffusers & Grid

Items Included


  • amaran F22c RGB LED Flexible Light Mat (Gold Mount)

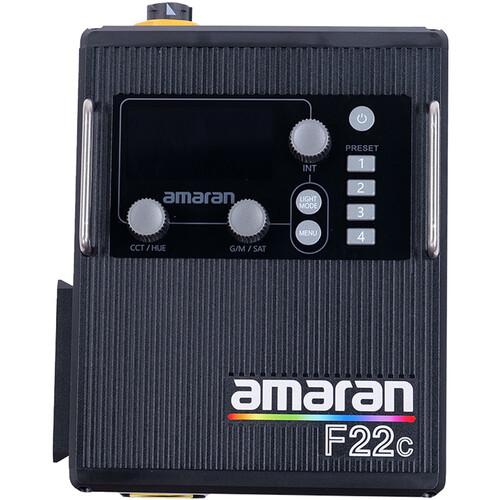

  • Control Box with Gold Mount Battery Plate

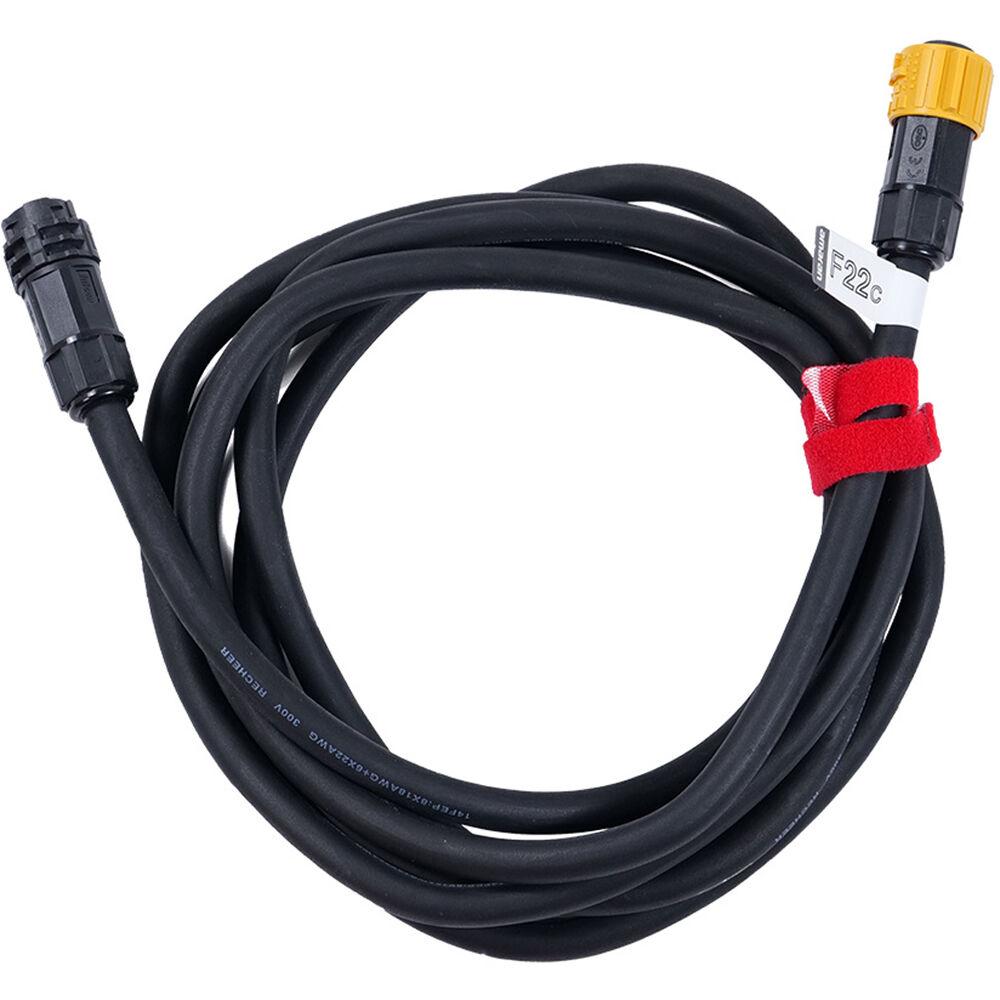

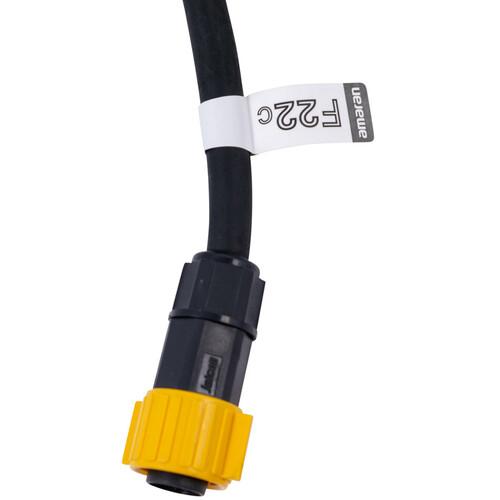

  • 9.8' Head Extension Cable

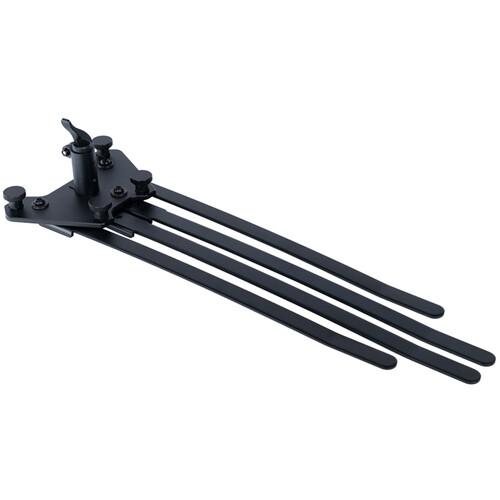

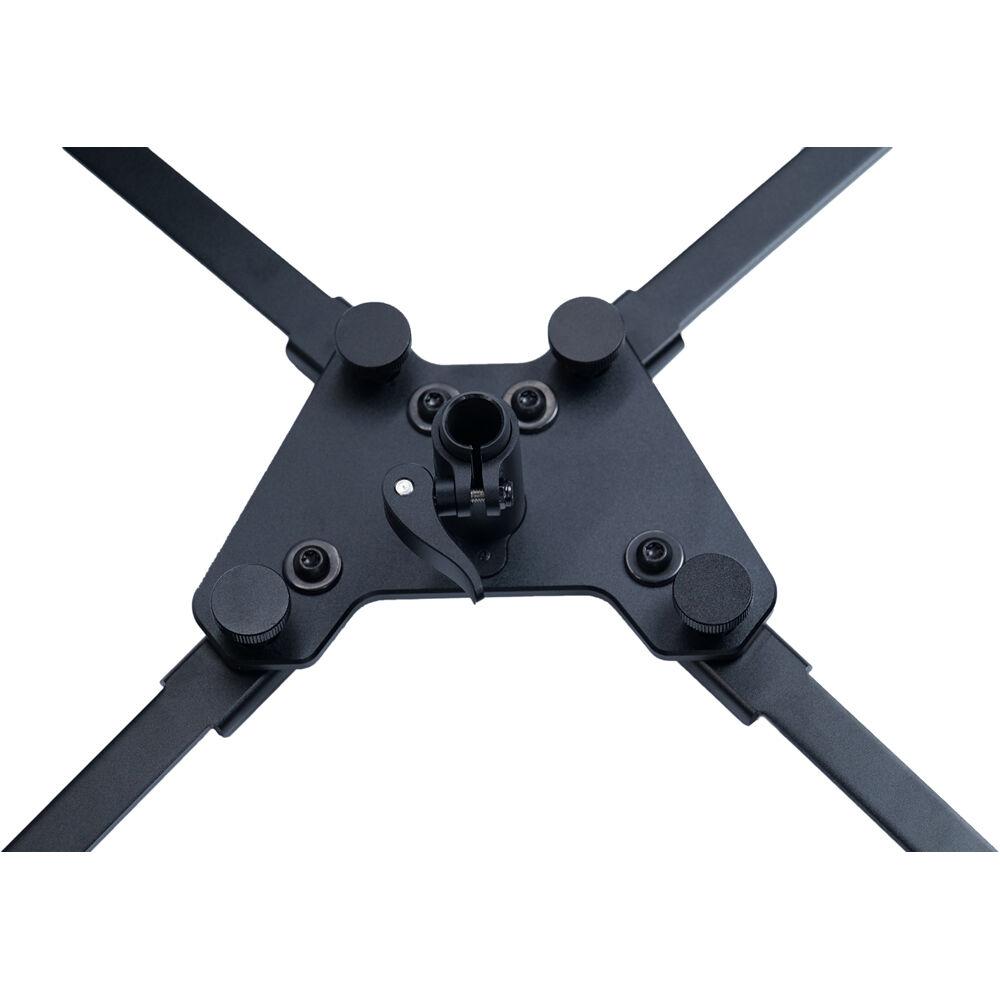

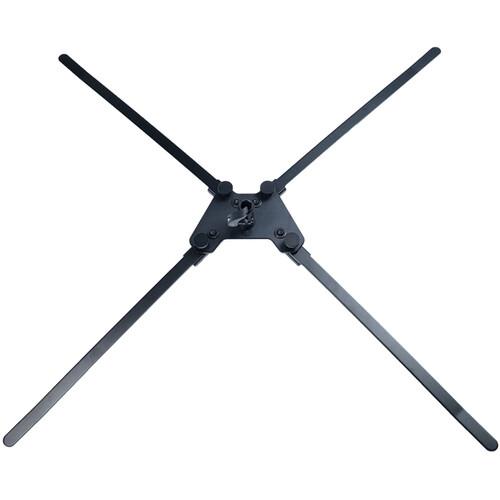

  • X-Shaped Support Mounting Frame

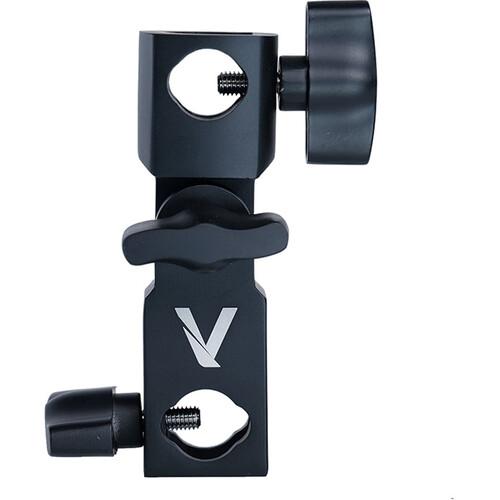

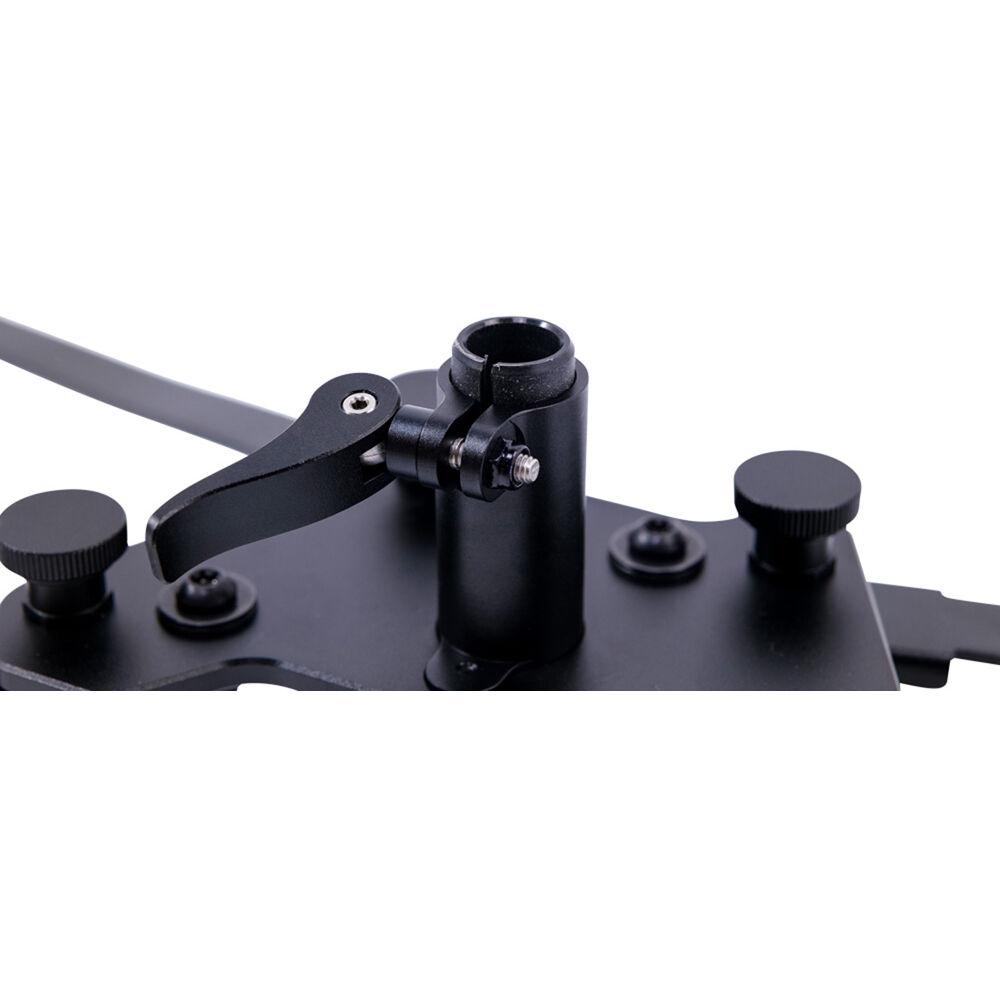

  • Tie-Down Stand Mount

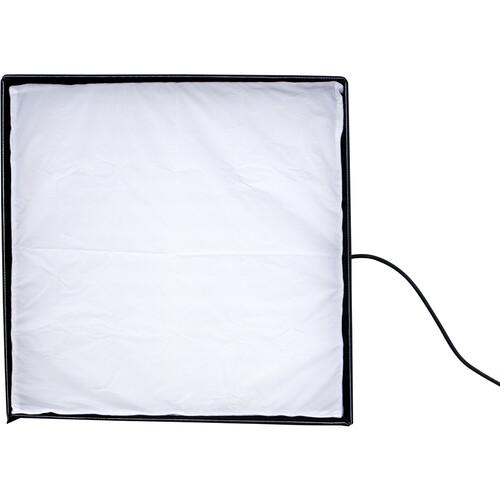

  • F22 Softbox Frame
  • F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • F22 Diffusion Cloth 2 (2.5 Stop)

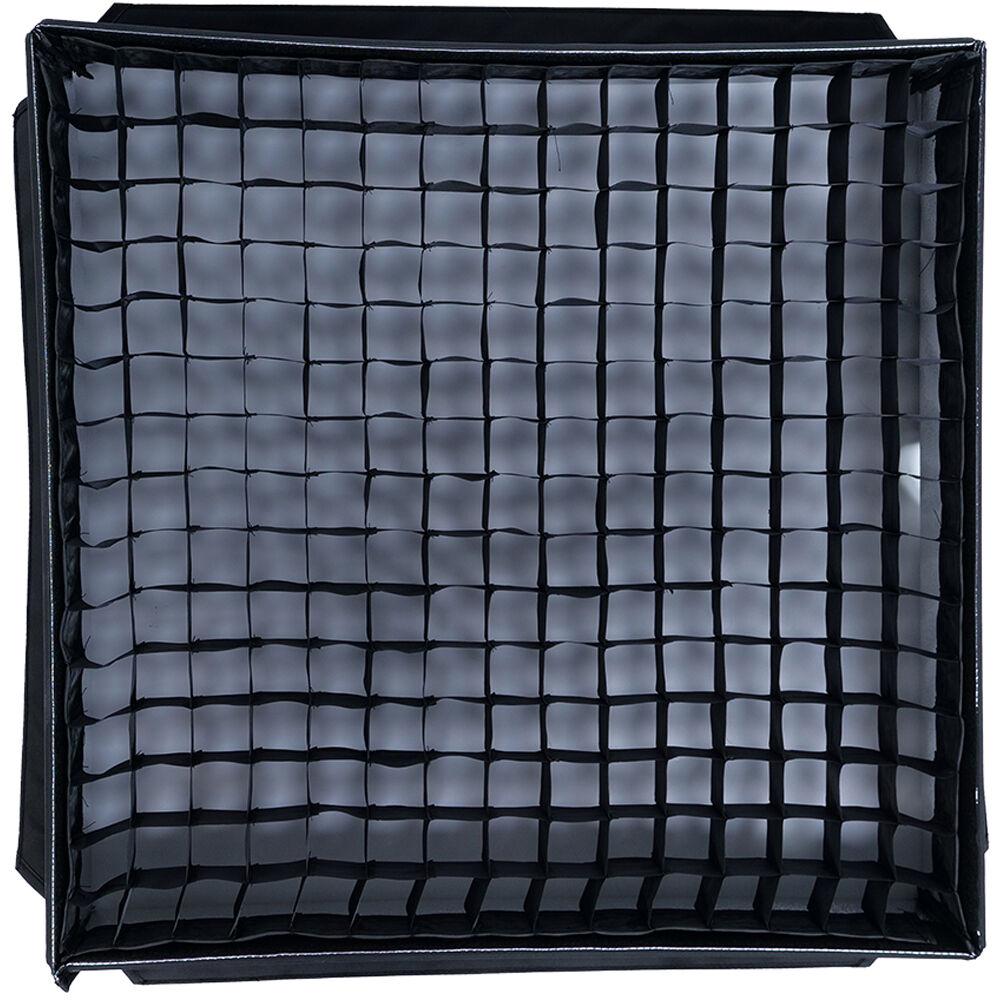

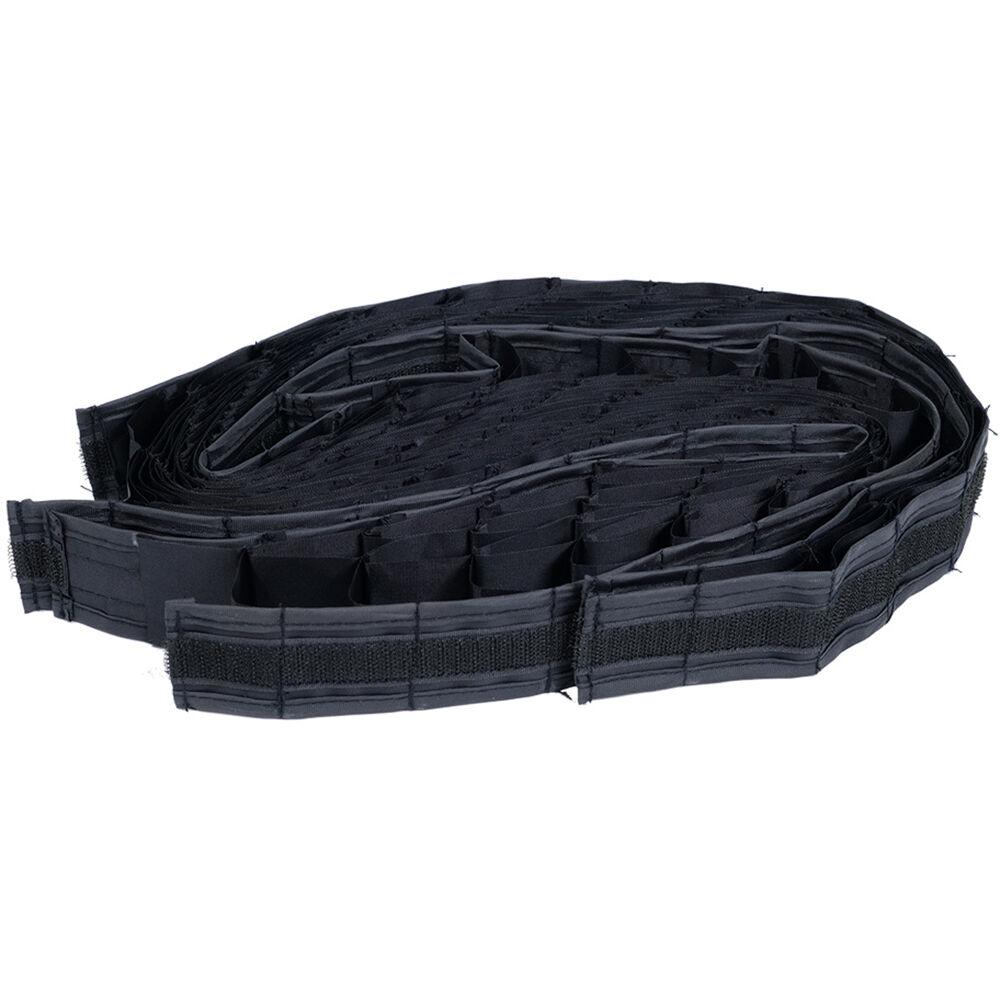

  • F22 45 ° Light Control Grid

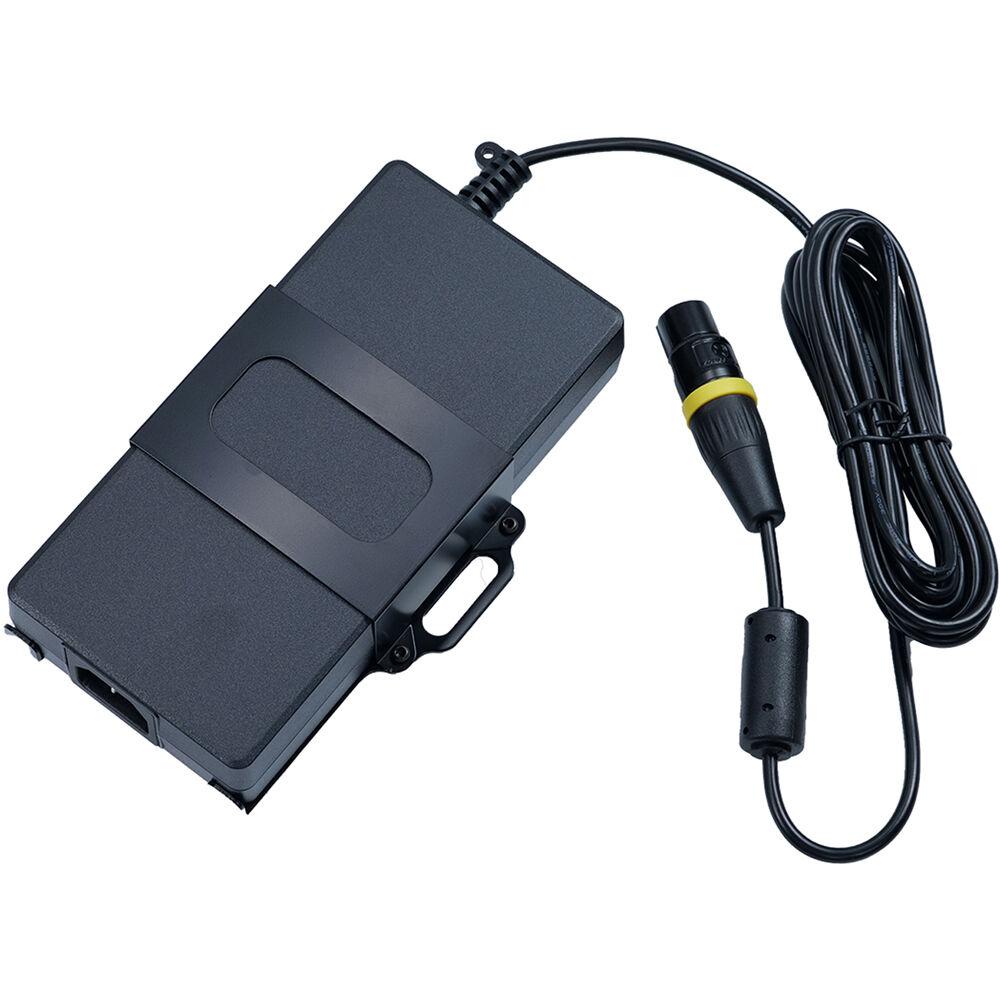

  • Multi-Voltage AC Power Supply

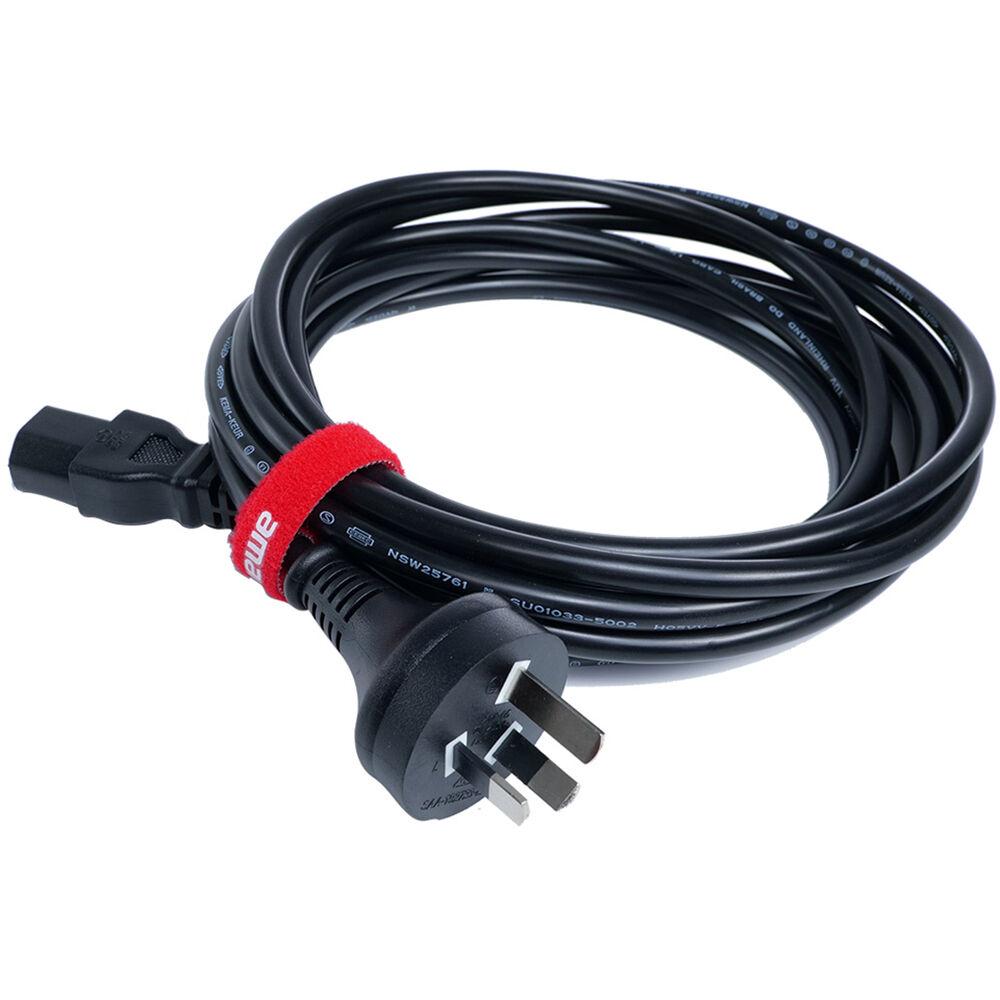

  • AC Power Cable
  • Carrying Case
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

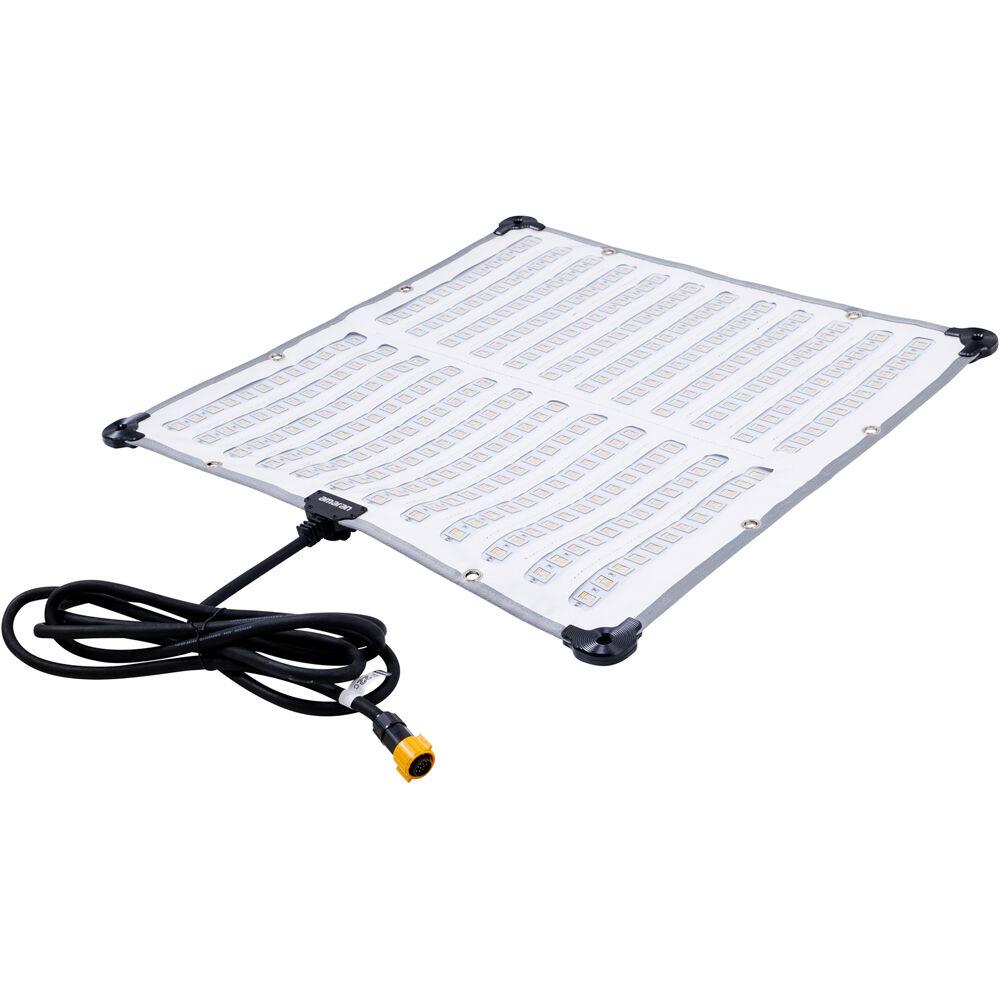

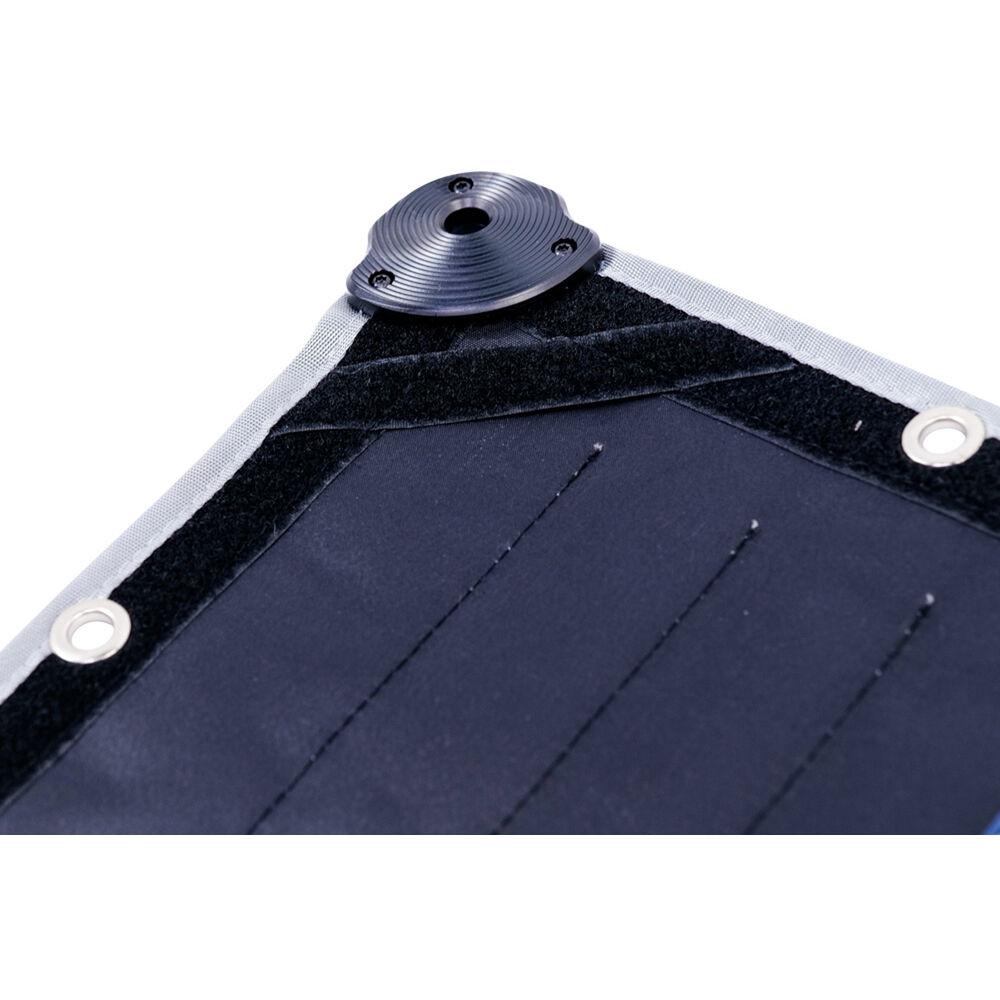

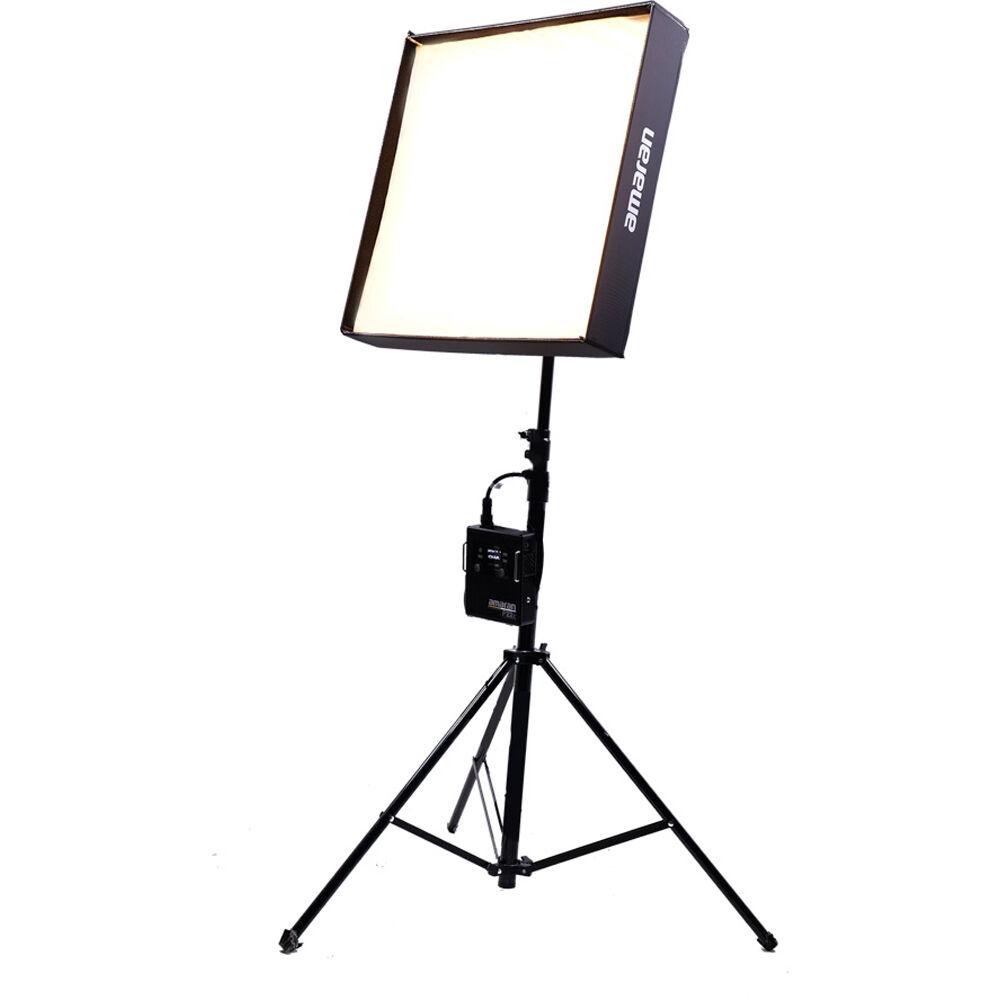

The 2 x 2' F22c RGBWW LED Mat from amaran is powerful, versatile, and flexible. Featuring powerful output and color rendering, it is suitable for filmmakers, videographers, content creators, and still photographers. It provides 200W of power with RGBWW LEDs for complete color control and adjustable CCT from 2500 to 7500K to provide endless possibilities for creative lighting. The 360° HSI control, 46 color gel presets, and 15 unique lighting effects provide even more ways to customize your lighting. Featuring 95+ and 97+ CRI and TLCI scores to ensure accurate color, it also has stepless dimming from 0 to 100%. The folding X-frame stretches the mat to form a rigid panel that you can attach directly to a C-stand grip head using the tilting tie-down stand mount. The included foldable softbox has two strengths of diffusion, and the grid has integrated hook-and-loop fabric for using the mat as an ultrathin soft light that will add controlled ambience to a scene.

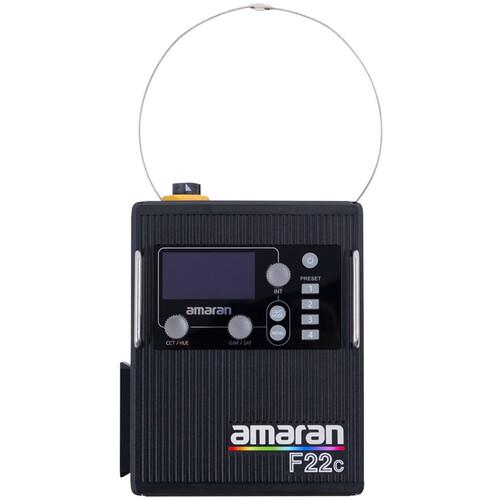

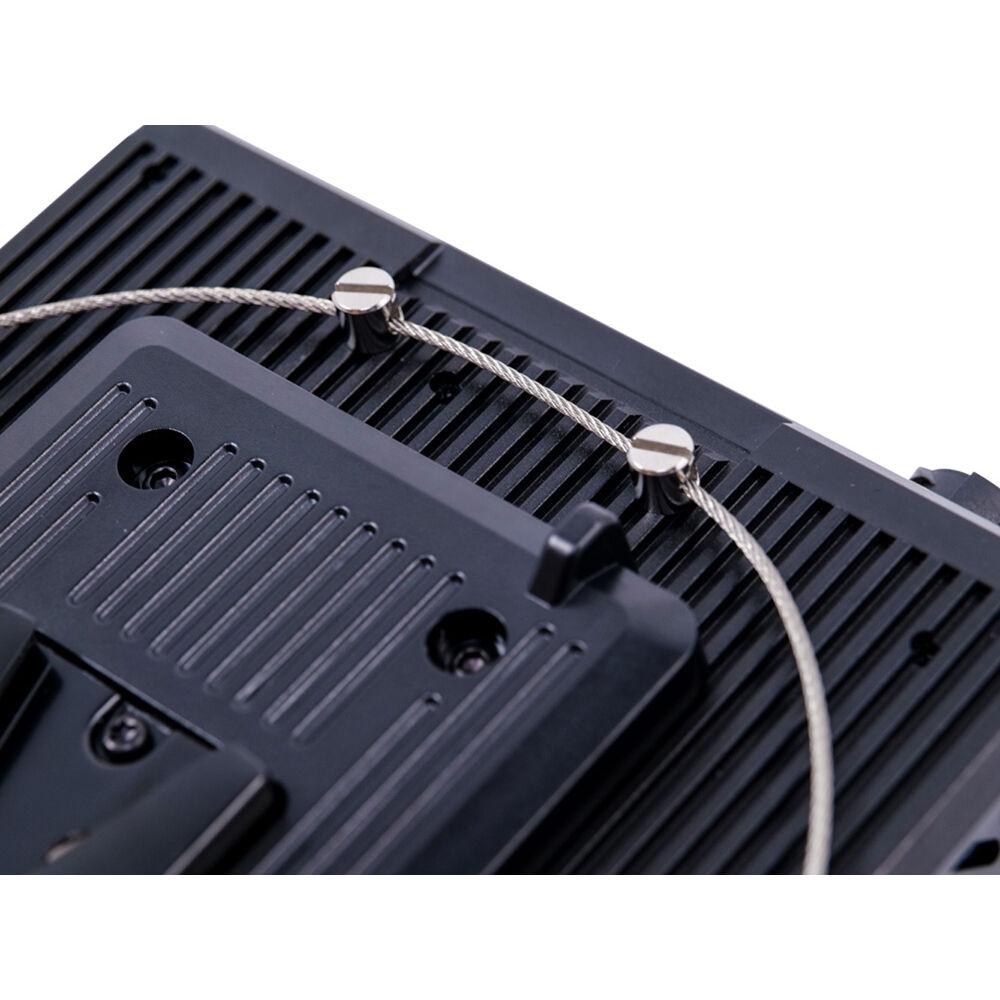

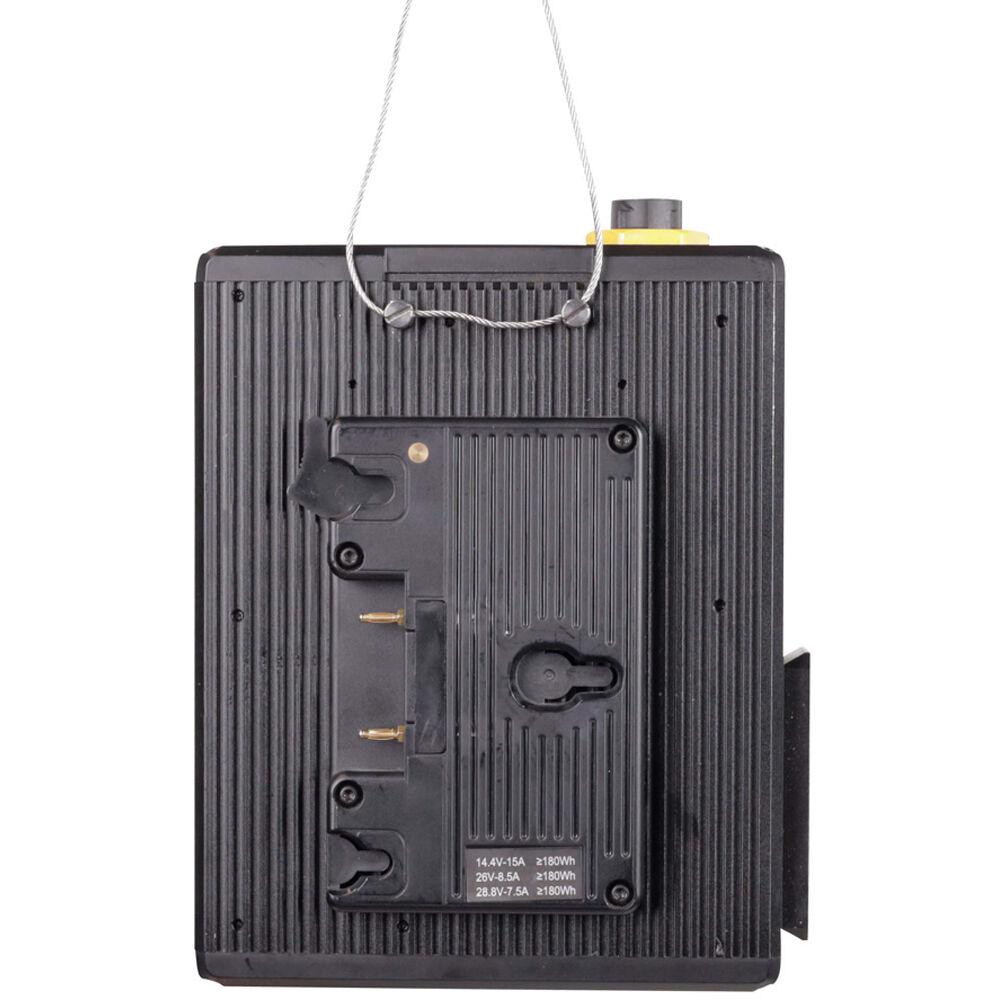

The control box is a multi-voltage AC power supply that features a Gold mount plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply and using batteries allows the F22c to be used at either half or full power, depending on battery strength.

The free Sidus Link app allows you to utilize tools unique to the Aputure and amaran ecosystems, including Source Match, Color Picker, and Custom FX. The mat can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel offers unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

  • 200W output

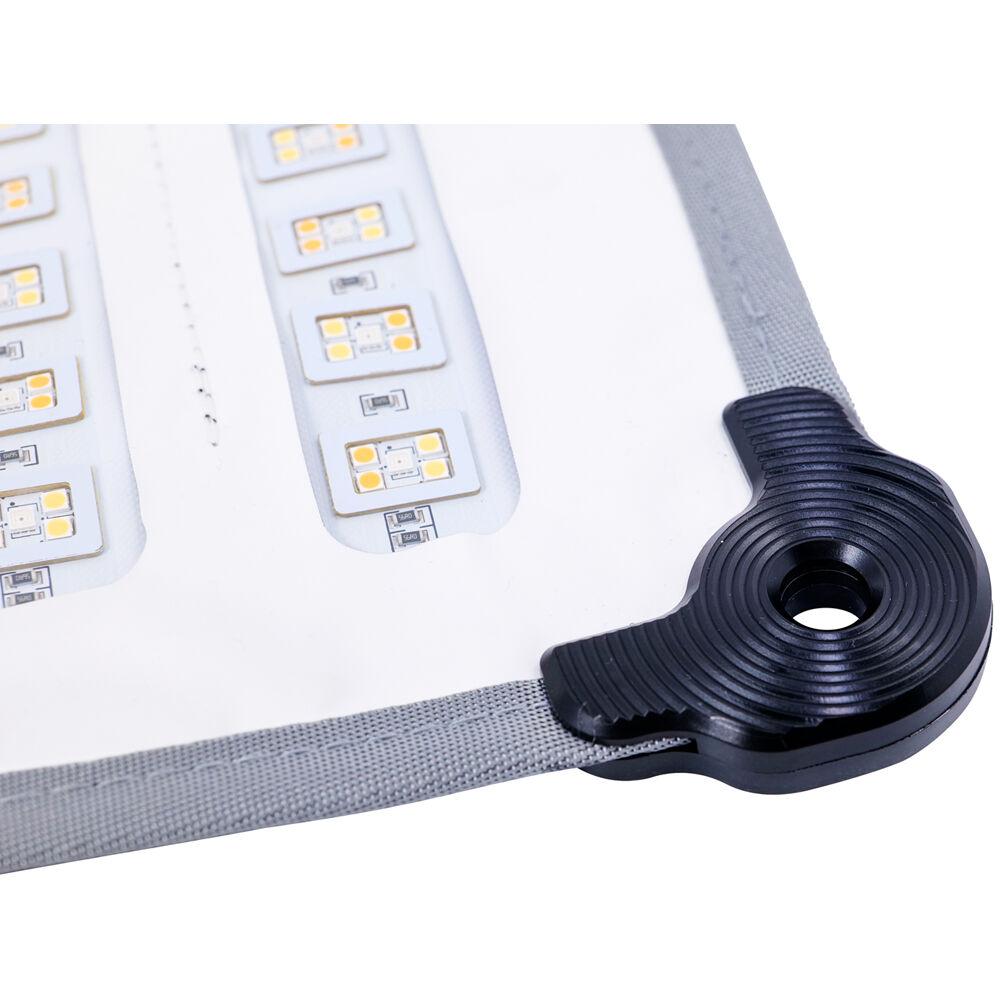

  • 2 x 2'' RGBWW flexible LED mat
  • Color temperature from 2500-7500K
  • CRI: 95+, TLCI: 97+, CQS: 96+
  • SSI (Tungsten): 83+, SSI (D56): 74+
  • HSI Full Color Control
  • Tunable green-magenta adjustment (plus/minus green)
  • Stepless dimming from 0 to 100%
  • Ultralight LED mat
  • Sidus Link App control for smartphones & tablets
  • DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
  • 15 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing, welding, police car, color chase, and more
  • 46 color gel presets
  • Easy-mounting multi-voltage AC power supply with included Gold mount battery plate
  • Multiple DC power solutions: 14.4V/26V/28.8V/48V (3-Pin XLR)
  • Soft carrying case

Light Fixture
Item Type
1x LED Flexible Light
Included Light Modifier
1x Softbox with Removable Grid
Included Storage Case
Yes
Photometrics
180° at 3200K:
534 fc / 5750 Lux at 3.3' / 1 m
65 fc / 703 Lux at 9.8' / 3 m
180° at 5600K:
596 fc / 6420 Lux at 3.3' / 1 m
73 fc / 790 Lux at 9.8' / 3 m
180° at 7500K:
657 fc / 7080 Lux at 3.3' / 1 m
80 fc / 870 Lux at 9.8' / 3 m
Color Temperature
2500 to 7500K
Color Modes
RGB
Color Accuracy Standard
CRI 95
TLCI 98
CQS 96
SSI 83 at 5600K
Dimming
Controller Included (Continuous)
 • 0 to 100%
Cooling System
Passive
Expected Lamp Life
50,000 Hours (L70)
Beam Angle
180° Unmodified
45° with Included Grid
Built-In Flash
No
Preprogrammed Effects
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
Wireless Range
262.5' / 80 m (Bluetooth)
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs

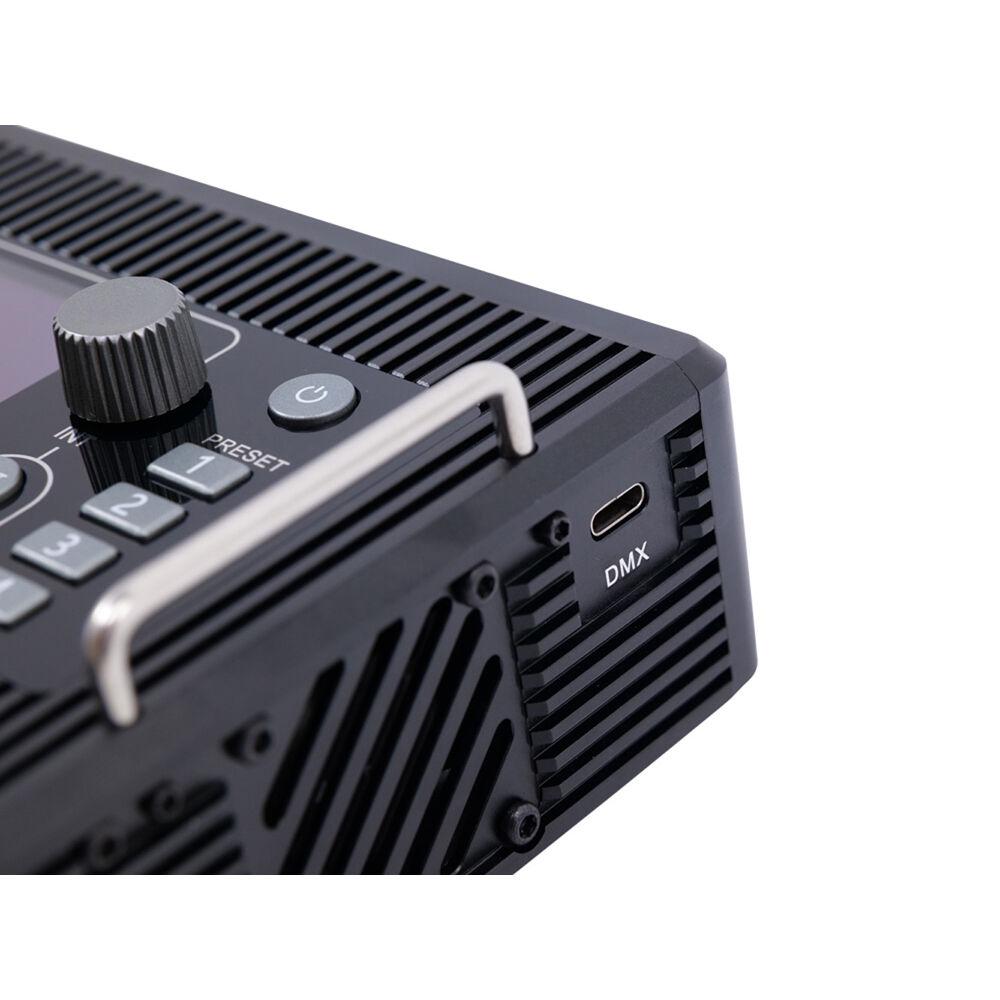

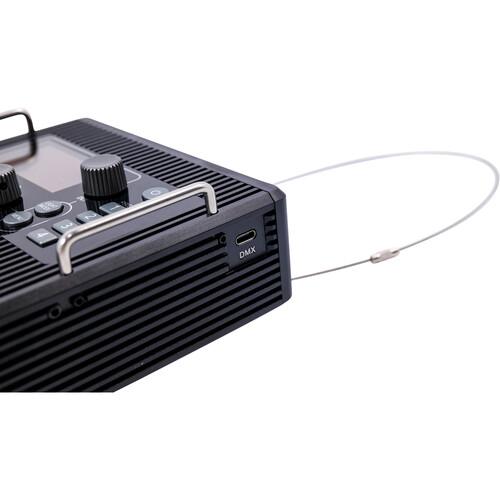

1x USB-C DMX Input
*Adapter Required (Not Included)
1x XLR 3-Pin Power Input

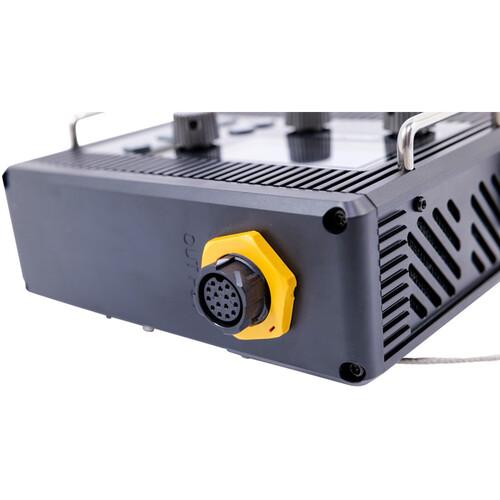

1x Proprietary Power Output
Battery Plate Type
1x Gold Mount (Built-In)
Battery
1x Rechargeable, 14.4 to 28.8 VDC (Not Included)
Input Power
48 VDC at 2.5 A
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to XLR 3-Pin AC to DC Adapter
 • 48 VDC
Inline Switch
No
Power Pass-Thru
No
Power Consumption
240 W
Mounting
Fixture Mounting
1x 5/8" Receiver
Included Adapter

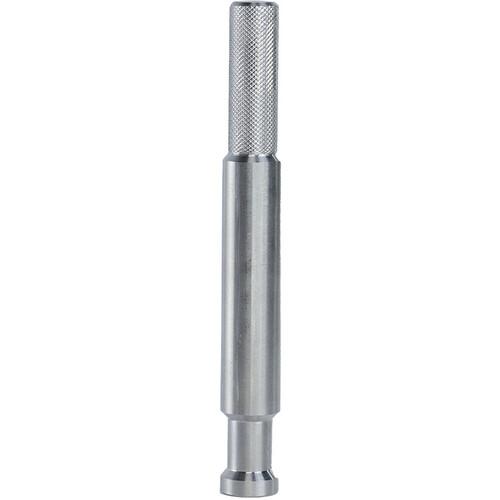

1x Non-Swivel Mount: 5/8" Receiver to 5/8" Receiver
2x Non-Swivel Mount: 5/8" Stud to 5/8" Stud
General
Display
OLED
Environmental Resistance
No
Certifications
CE, FCC, RoHS, cTUVus
Materials
Plastic (Housing)
Dimensions
23.6 x 23.6 x 0.2" / 60 x 60 x 0.5 cm (Fixture)
Weight
1.94 lb / 0.88 kg (Fixture)
2.4 lb / 1.1 kg (Power Supply/Controller)
Packaging Info
Package Weight
19.1 lb
Box Dimensions (LxWxH)
27.3 x 15.8 x 11.1"
