amaran F22x 2x2 Bi-Color LED Flexible Mat (Gold Mount)

Brand: APUTURE

MFR: AP20235A15

SKU: SF-2443-SADD

2,571.00

  • For Studio & Film/TV Production
  • Output: 6960 Lux at 3.3' (5600K)
  • 2500-7500K; HSI Color Control
  • 2x2'; AC/DC Operation
  • CRI 95 | TLCI 98 | CQS 96
  • On-Board, DMX, and Bluetooth Control
  • Passive Cooling for Silent Operation
  • 0-100% Dimming, 15 Lighting Effects
  • Multi-Voltage AC, Gold Mount Battery
  • Includes Softbox Frame, Diffusers & Grid

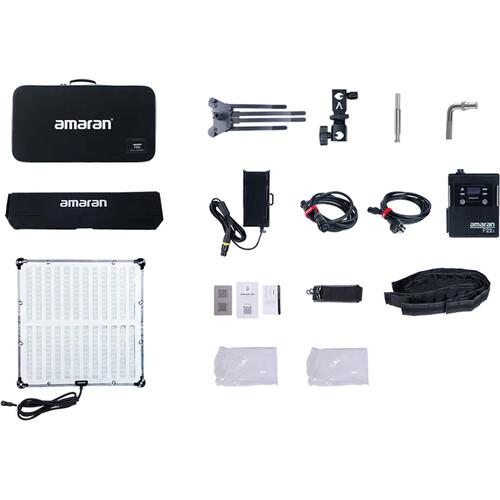

Items Included


  • amaran F22x 2x2 Bi-Color LED Flexible Mat (Gold Mount)
  • F22x Control Box with Gold Mount Plate
  • F22 9.8" Head Extension Cable
  • F22 Support Bracket
  • Flex Light Right Angle Baby Pin Adapter
  • Flex Light Straight Baby Pin Adapter
  • Tilting Stand Mount
  • F22 Softbox Frame
  • F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • F22 Diffusion Cloth 2 (2.5 Stop)

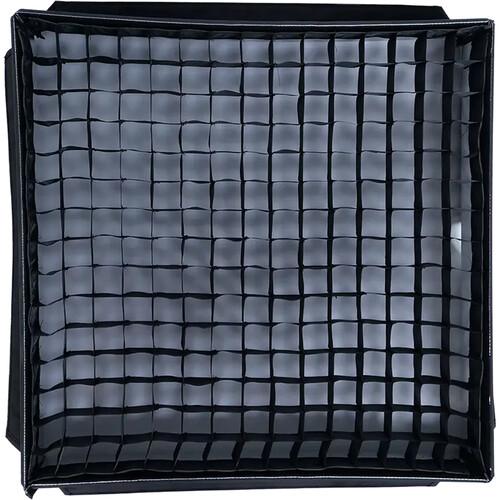

  • F22 Light Control Grid
  • Multi-Voltage AC Power Supply
  • AC Power Cable
  • Carrying Case
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

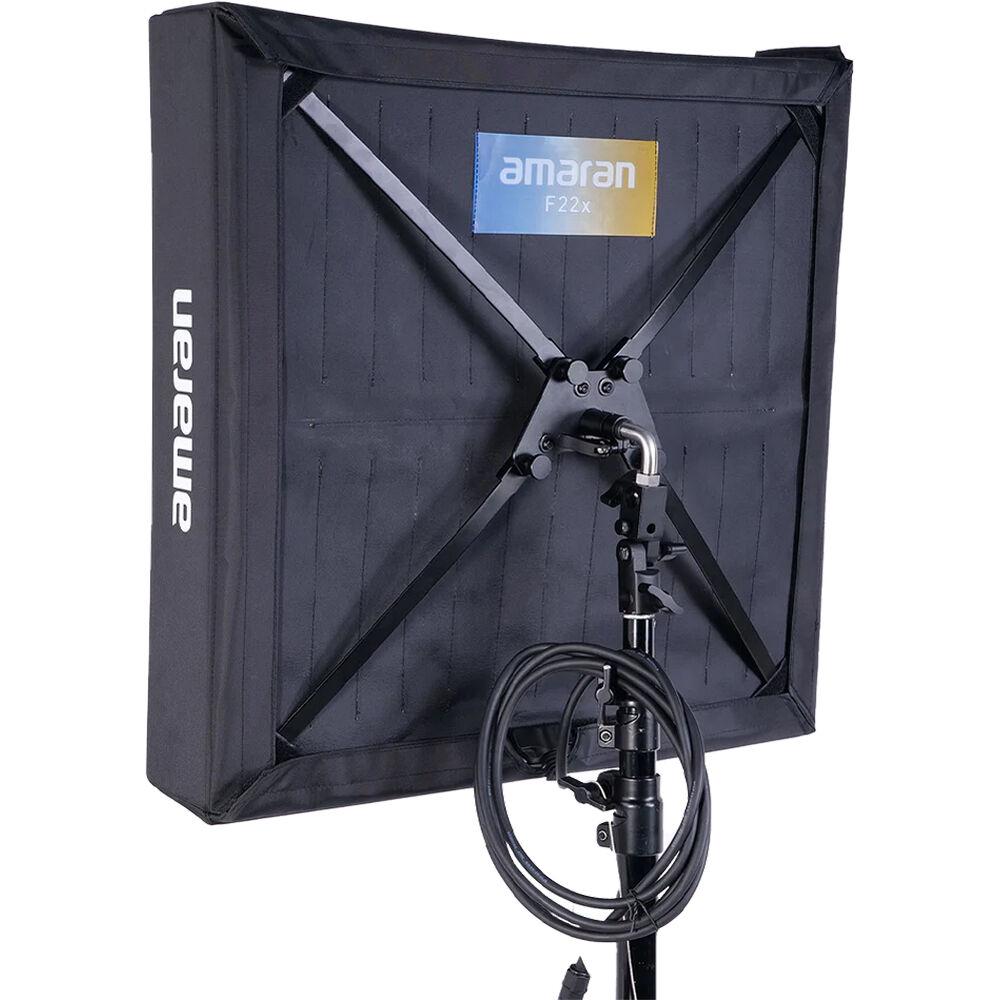

The F22x Bi-Color LED Flexible Mat from amaran is powerful, versatile, and flexible bi-color LED mat that measures 2x2'. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, this ultralight fixture's high-output bi-color chipset can be tuned from 2500K to 7500K, and features nine customizable lighting FX. It has stellar CRI and TLCI scores of 95+ and 98+, and stepless dimming from 0 to 100%. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses using an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

The control box is a multi-voltage AC power supply that also features a Gold Mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22x to be used at either half-power or full-power, depending on battery strength.

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22x can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22x is ideal for videographers who need a versatile and literally flexible lighting solution. The bi-color flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

  • 200W output

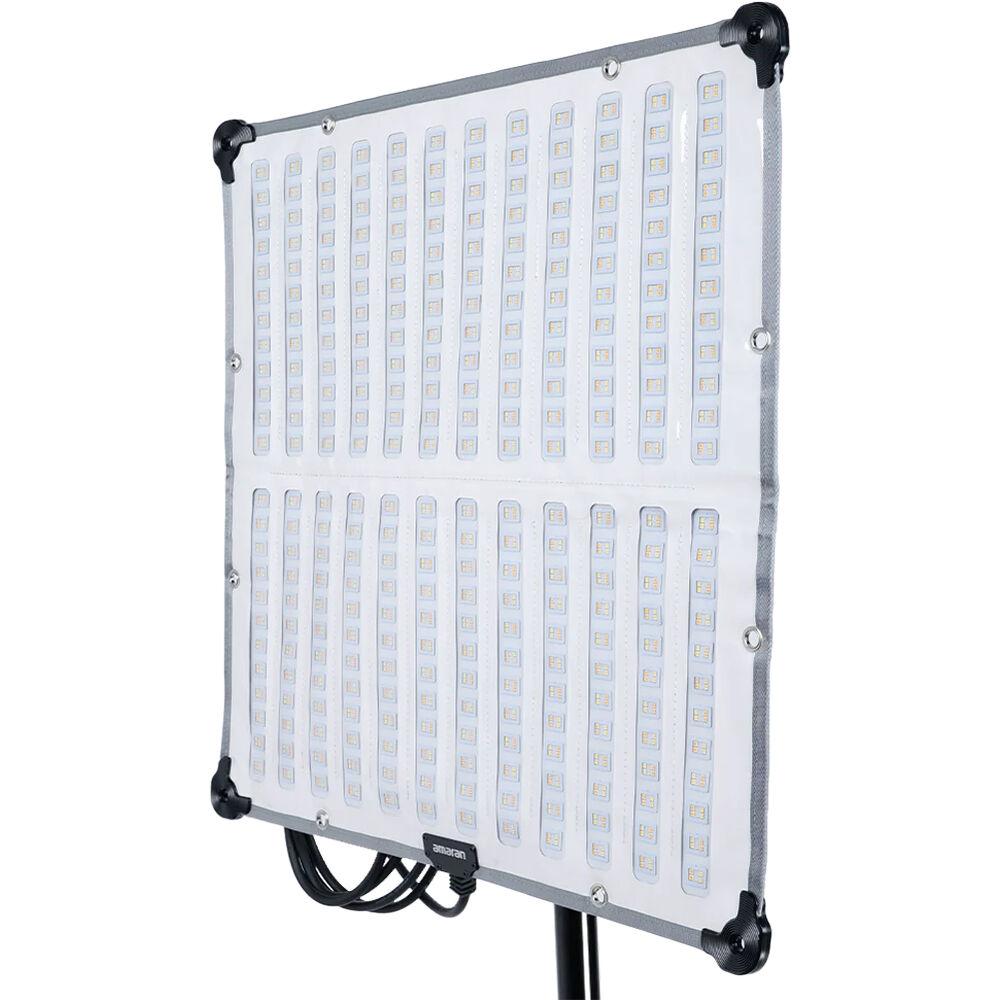

  • 2x2' bi-color flexible LED mat
  • Color temperature from 2500-7500K
  • CRI: 95+, TLCI: 98+, CQS: 96+
  • SSI (Tungsten): 81+, SSI (D56): 72+
  • Stepless dimming from 0 to 100%
  • Ultralight LED mat
  • Sidus Link App control for smartphones & tablets
  • DMX control with USB-C to 5-Pin DMX512 in & out adapter cable, separately available
  • 9 Built-in lighting FX including paparazzi, lightning, TV, candle, fire, strobe, explosion, faulty bulb, pulsing
  • Easy-mounting multi-voltage AC power supply with included Gold Mount battery mount
  • Multiple DC power solutions: 14.4V/26/28.8V/48V (3-Pin XLR)

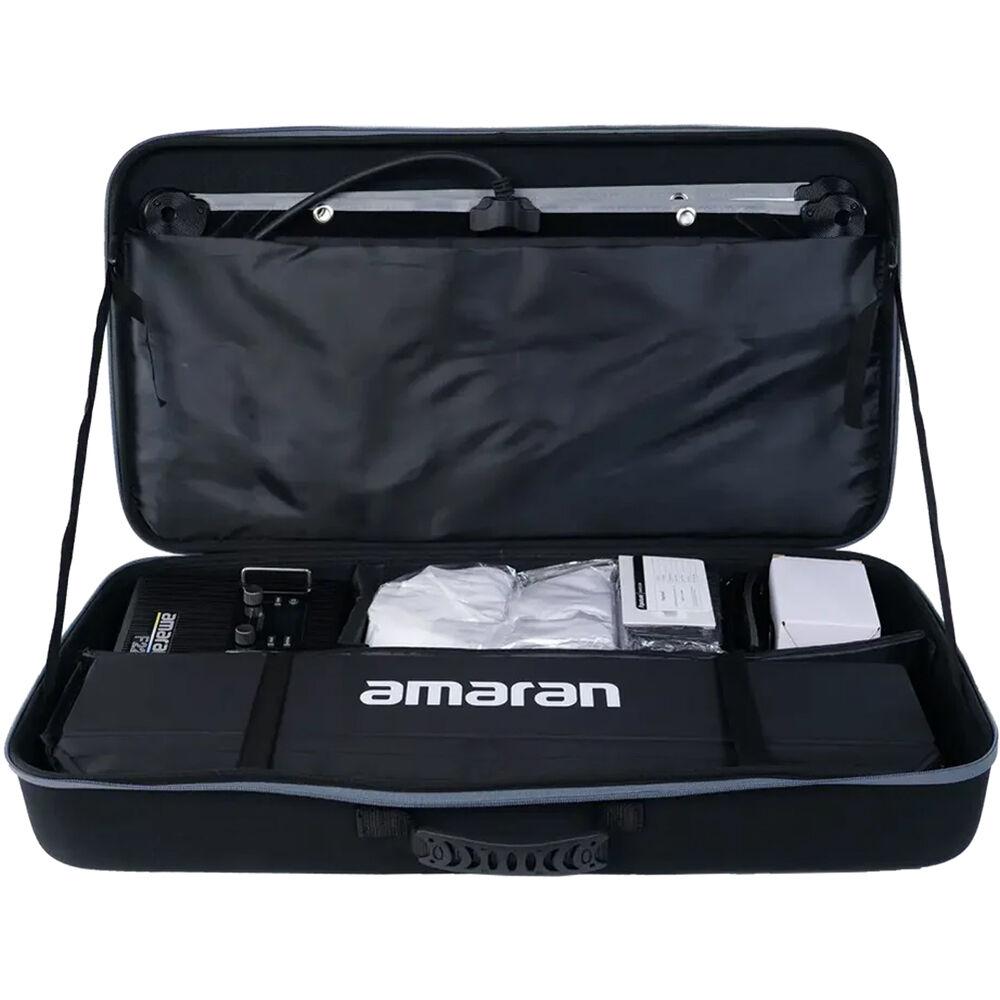

  • Soft carrying case

Light Fixture
Item Type
1x LED Flexible Light
Included Light Modifier
1x Softbox with Removable Grid
Included Storage Case
Yes
Photometrics
3200K:
562 fc / 6050 Lux at 3.3' / 1 m
5600K:
646 fc / 6960 Lux at 3.3' / 1 m
Color Temperature
2500 to 7500K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 95 at 5600K
TLCI 98 at 5600K
CQS 96 at 5600K
SSI 81 at 5600K
Dimming
Controller Included (Continuous)
 • 0 to 100%
Cooling System
Passive
Expected Lamp Life
50,000 Hours
Beam Angle
180°
Built-In Flash
No
Preprogrammed Effects
Yes
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link
Wireless Range
262.5' / 80 m (Bluetooth)
Power & I/O
Power Source
AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs
1x USB-C DMX Input
*Adapter Required (Not Included)
1x XLR 3-Pin Power Input
1x Proprietary Power Output
Battery Plate Type
1x Gold Mount (Built-In)
Battery
1x Rechargeable, 14.4 to 28.8 VDC (Not Included)
Input Power
48 VDC at 2.5 A
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to XLR 3-Pin AC to DC Adapter
 • 48 VDC
Inline Switch
No
Power Pass-Thru
No
Power Consumption
240 W
Mounting
Fixture Mounting
1x 5/8" Receiver
Included Adapter
1x Non-Swivel Mount: 5/8" Receiver to 5/8" Receiver
2x Non-Swivel Mount: 5/8" Stud to 5/8" Stud
General
Display
OLED
Environmental Resistance
No
Certifications
CE, FCC, RoHS, cTUVus
Materials
Plastic (Housing)
Dimensions
23.6 x 23.6 x 0.2" / 60 x 60 x 0.5 cm (Fixture)
Weight
1.5 lb / 0.7 kg (Power Supply/Controller)
1.8 lb / 0.8 kg (Fixture)
Packaging Info
Package Weight
18.045 lb
Box Dimensions (LxWxH)
26.7 x 16 x 5.2"
