Aputure INFINIMAT LED with Clear Softbox & 1600W Control Box Pack (20 x 20')

Brand: APUTURE

MFR: AP80039AC2

SKU: SF-2443-H50G

289,761.00

  • Modular Full-Color RGBWW LED Light Mat
  • Multiple Mounting & Rigging Methods
  • 1600W Control Boxes Pack & Cables
  • Skirts, Clear Softboxes & Carry Case
  • Air Pump, Diffusion Cloths & Grids
  • 2000 to 10,000K CCT | 96 CRI | 97 TLCI

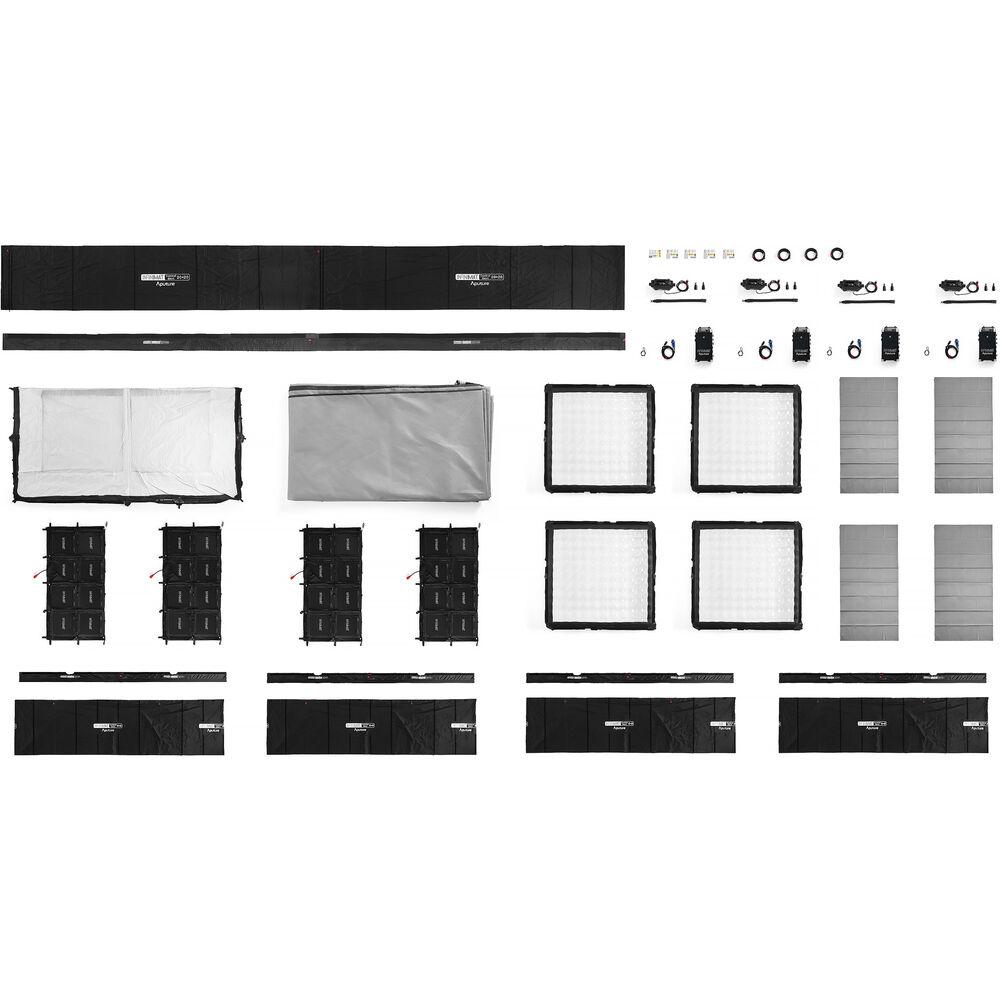

Items Included


  • Aputure INFINIMAT LED with Clear Softbox & 1600W Control Box Pack (20 x 20')
  • 4 x INFINIMAT Lamp Head (8 x 8')
  • 4 x Clear Inflatable Softbox (8 x 8')
  • 4 x Diffusion Cloth (1-Stop, 8 x 8')
  • Diffusion Cloth (1-Stop, 20 x 20')
  • 4 x Diffusion Cloth (2-Stop, 8 x 8')
  • Diffusion Cloth (2-Stop, 20 x 20')
  • 4 x Light Control Grid (8 x 8')
  • Light Control Grid (20 x 20')
  • 4 x Light Control Skirt (8 x 8')
  • Light Control Skirt (20 x 20')
  • Cushion (20 x 20')
  • 4 x Air Pump Max
  • 4 x 1600W Head Cable (24')
  • 4 x Safety Rope (4.2')
  • 4 x Patch Kit
  • 4 x Soft Carry Case for Control Grid (8 x 8')
  • 4 x INFINIMAT 1600W Control Box
  • 4 x Power Cable

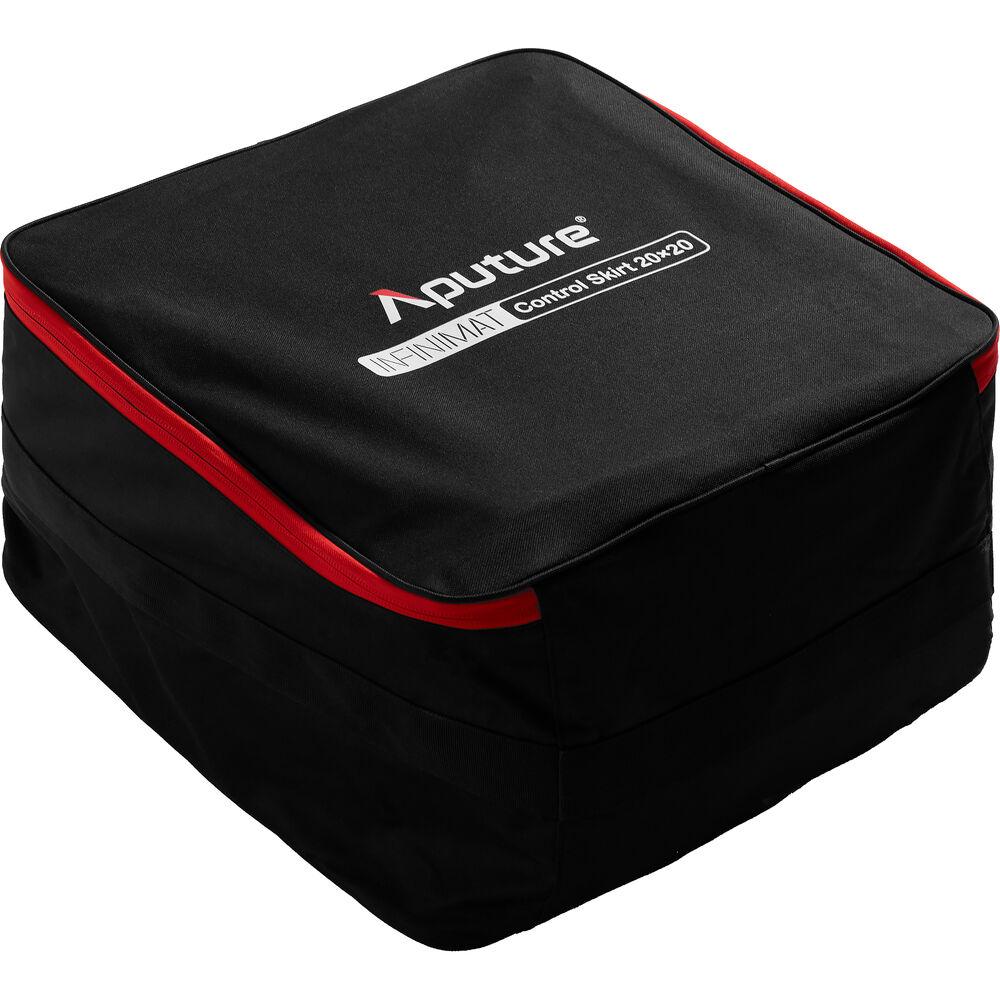

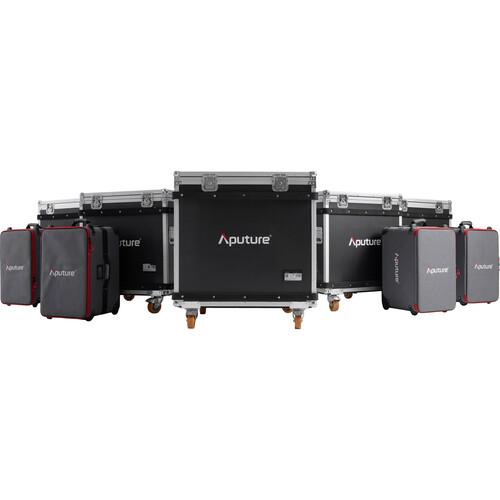

  • 4 x Soft Rolling Case for Control Box
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

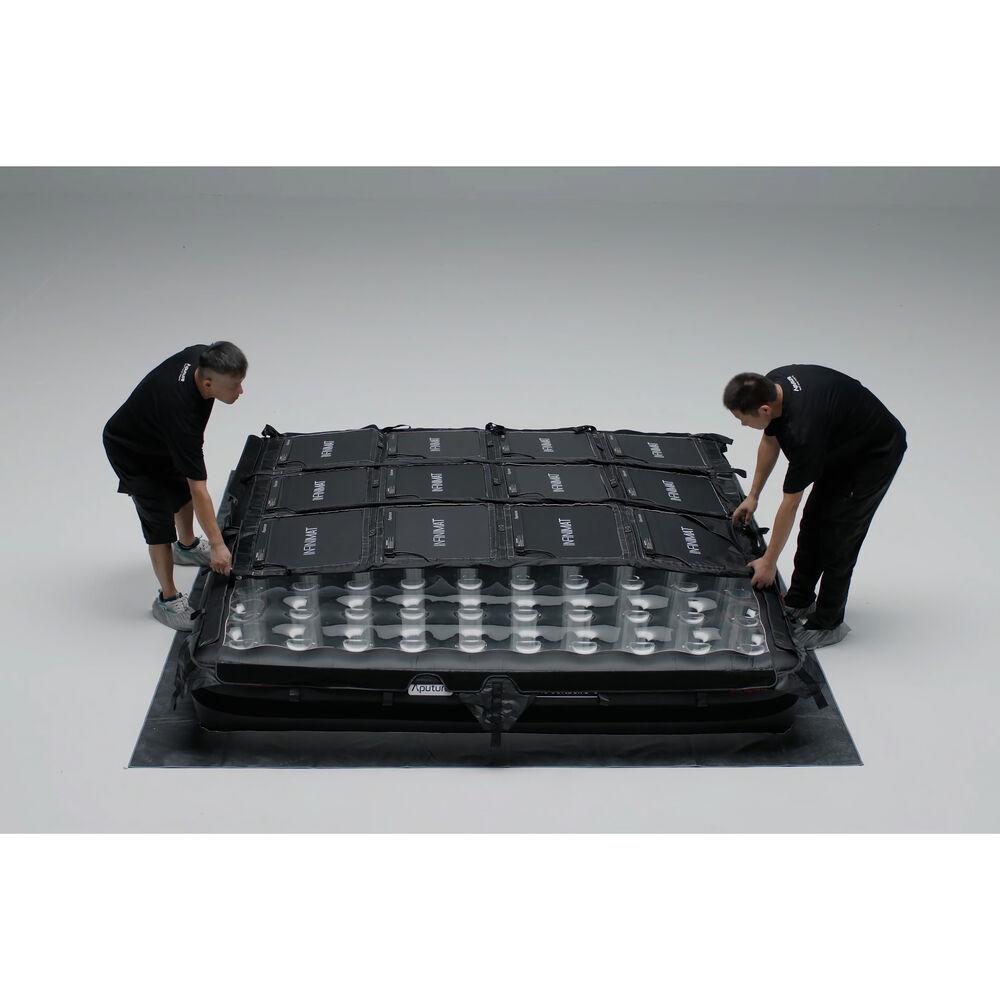

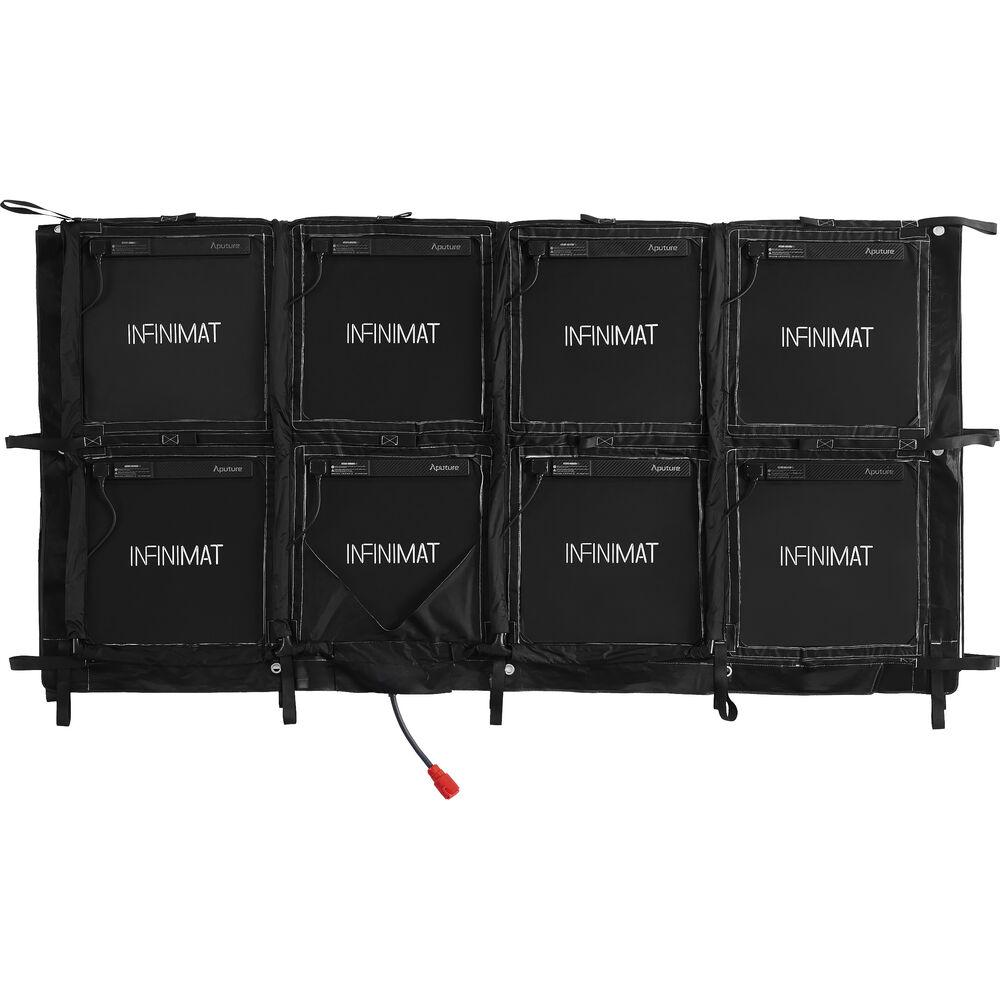

The INFINIMAT LED with Clear Softbox & 1600W Control Box Pack from Aputure includes the 20 x 20' modular, full-color RGBWW LED light mat assembly that offers multiple mounting and rigging methods and is made up of four INFINIMAT 8 x 8' mats. The light pack includes four clear 8 x 8' inflatable softboxes with 1-stop and 2-stop diffusion cloths, light control grids, light control cloths, cushions, light control skirts, safety ropes and head cables.

Also included are four 1600W control boxes featuring AC passthrough for daisy chaining to provide power to each 8 x 8' light and to control multiple light mats. The control box set also includes power cables and rolling cases for the boxes.


Light Fixture
Item Type
4x LED Inflatable Light Panel
Included Light Modifier
5x Softbox
10x Diffuser
5x Skirt
5x Grid/Louver
Included Storage Case
Yes
Photometrics
3200K:
15,825 fc / 170,350 Lux at 3.3' / 1 m (Unmodified)*
633 fc / 6814 Lux at 16.4' / 5 m (Unmodified)
322 fc / 3475 Lux at 23' / 7 m (Unmodified)
5600K:
16,826 fc / 181,125 Lux at 3.3' / 1 m (Unmodified)*
673 fc / 7245 Lux at 16.4' / 5 m (Unmodified)
343 fc / 3695 Lux at 23' / 7 m (Unmodified)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2000 to 10,000K (in CCT Mode)
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 97
CQS 95
SSI 84 at 3200K
SSI 73 at 5600K
TM-30 Rf 92
TM-30 Rg 100
Dimming
App-Controlled / Controller Included / DMX / RDM
 • 0.1 to 100%
Cooling System
Fan
Built-In Flash
No
Pixel Zones
64
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
CRMX
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link Pro
Functionality: Firmware Update, Remote Control
Wireless Range
328' / 100 m (Bluetooth)
Power & I/O
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs
: 1x Built-In Cable with Proprietary Power Input
Power Supply/Controller
To Light Fixture: 5x Proprietary Power Output
1x Unspecified AC Power Input
2x Unspecified Power Input (48 VDC)
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
2x etherCON/RJ45 Network Input/Output
1x USB-A Firmware Input
Input Power
100 to 264 VAC, 50 / 60 Hz
Included Adapter / Cable
4x USA Type-A/B Plug to Unspecified Cable
4x Proprietary to Proprietary Cable (49.2' / 15 m)
Inline Switch
No
Power Pass-Thru
No
Power Consumption
8000 W (Maximum)
Mounting
Fixture Mounting
Proprietary
General
Display
Yes
Environmental Resistance
Dust/Water-Resistant (IP65)
Operating Conditions
-4 to 122°F / -20 to 50°C
Storage Conditions
68 to 185°F / 20 to 85°C
Materials
Fabric
Dimensions
15.6 x 15.6' / 4.8 x 4.8 m (Fixture)
7.8 x 7.8' / 2.4 x 2.4 m (Fixture Panel)
21.7 x 10.7 x 10.3" / 55 x 27.3 x 26.2 cm (Power Supply/Controller)
19 x 19 x 1.2' / 5.8 x 5.8 x 0.4 m (Softbox Size)
7.8 x 7.8 x 0.9' / 2.4 x 2.4 x 0.3 m (Softbox Size)
Weight
282.2 lb / 128 kg (Fixture)
42.73 lb / 19.38 kg (Power Supply/Controller)
