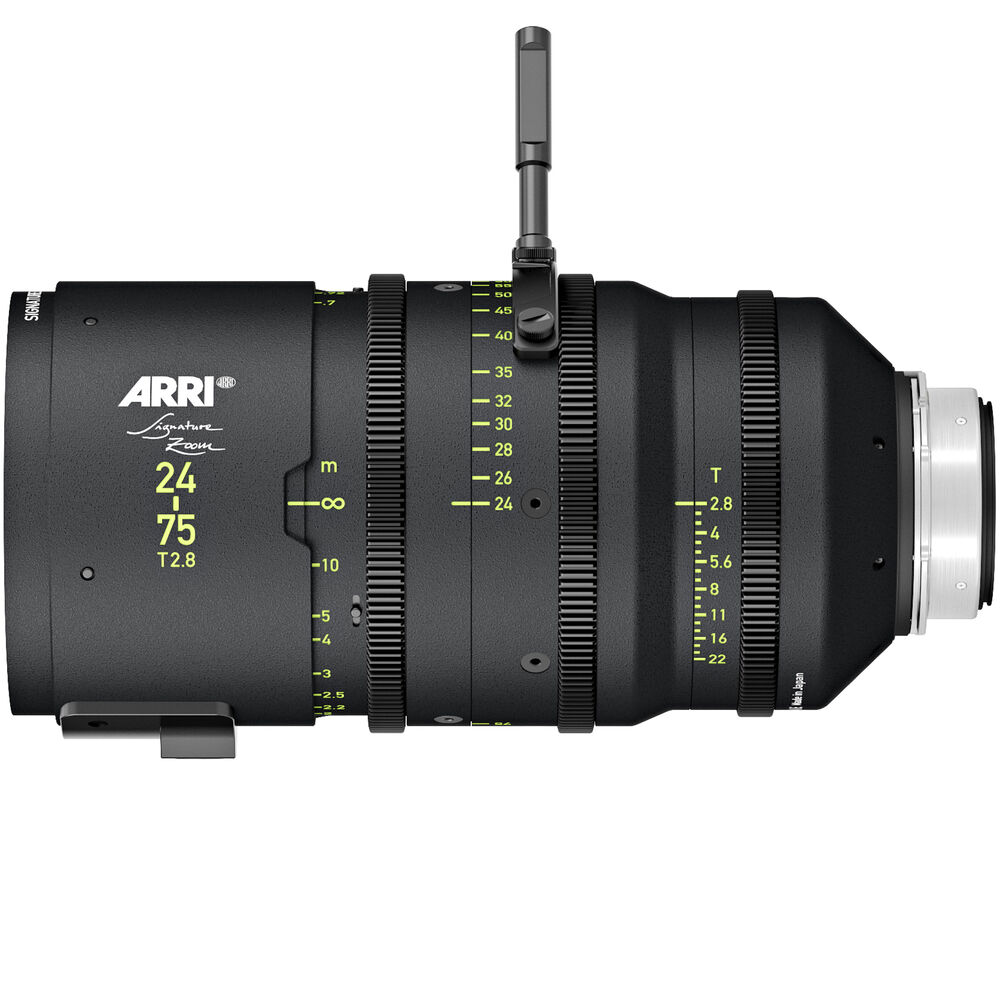

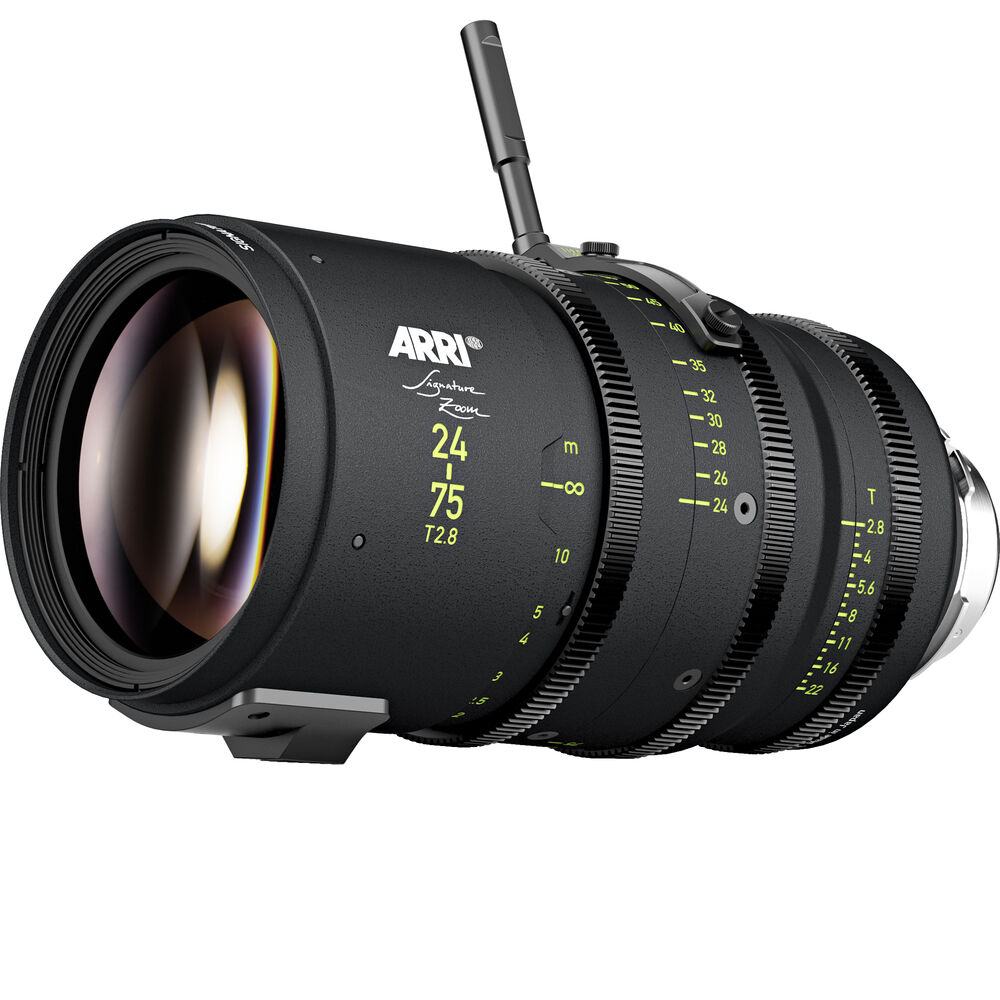

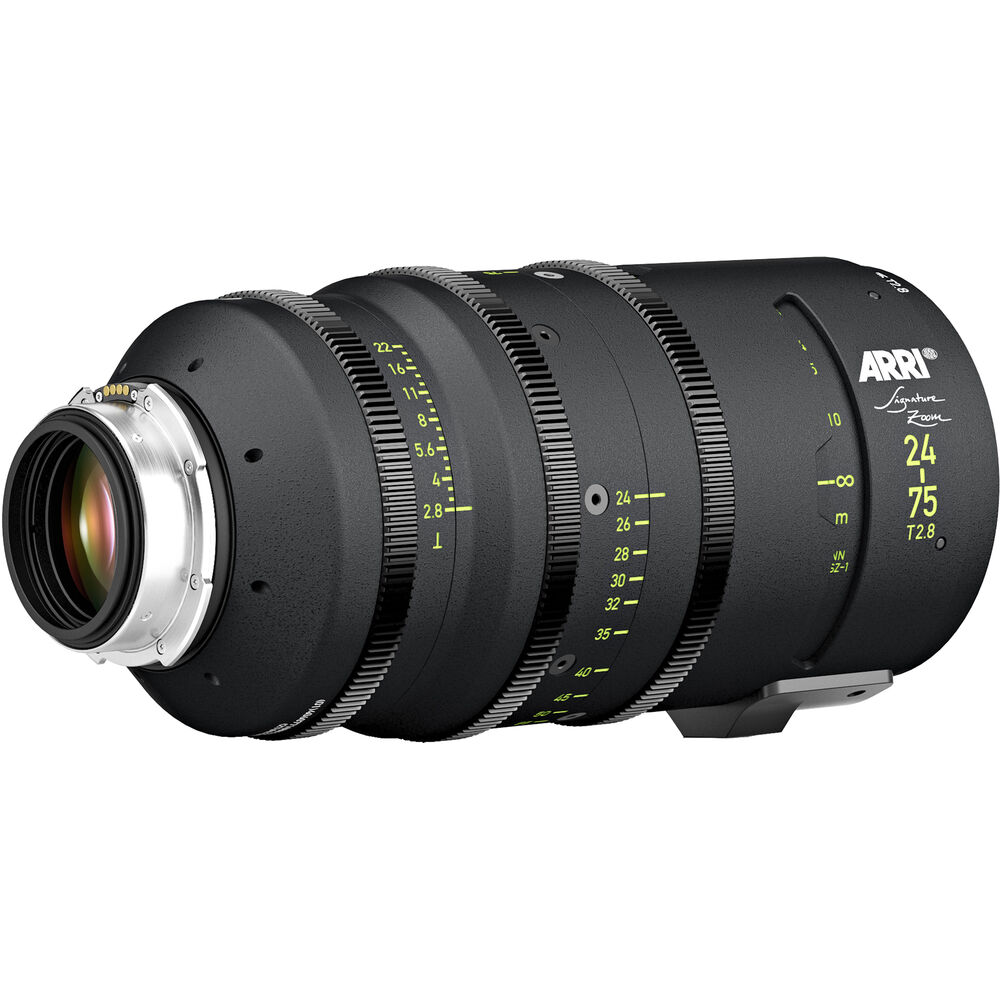

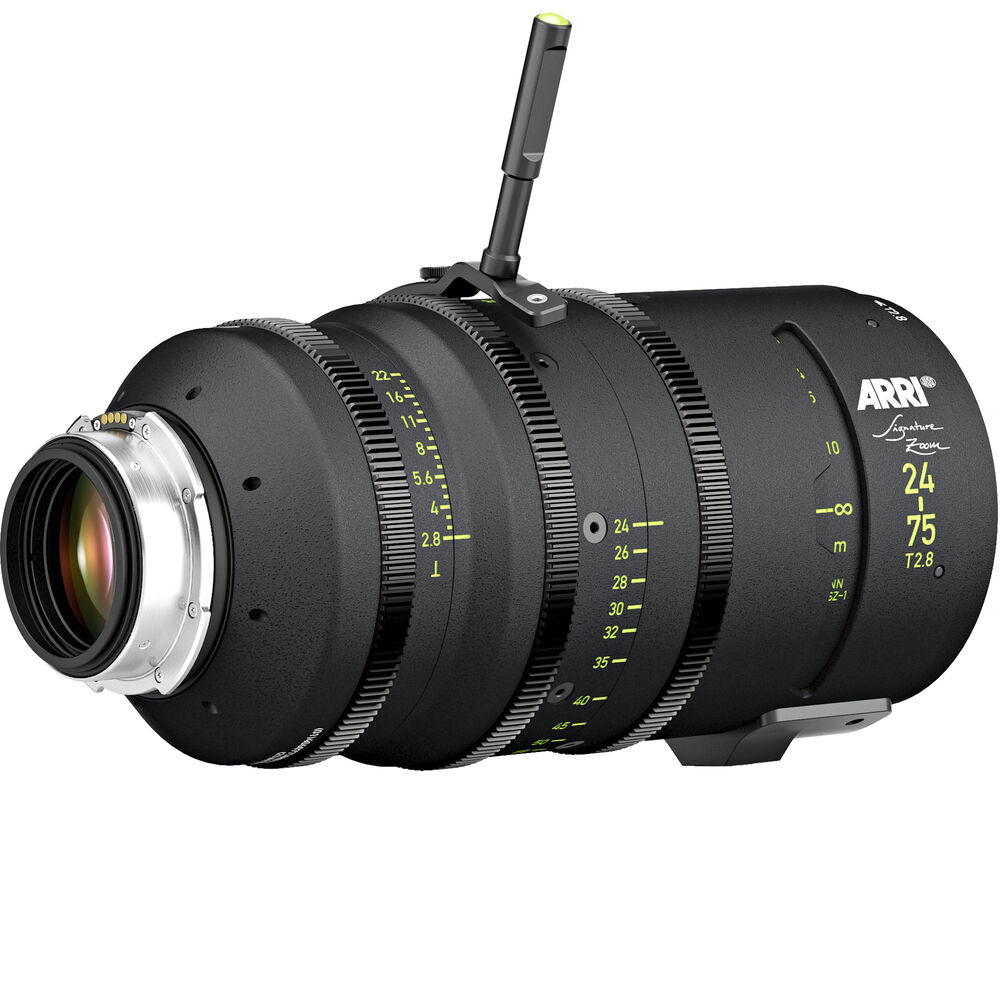

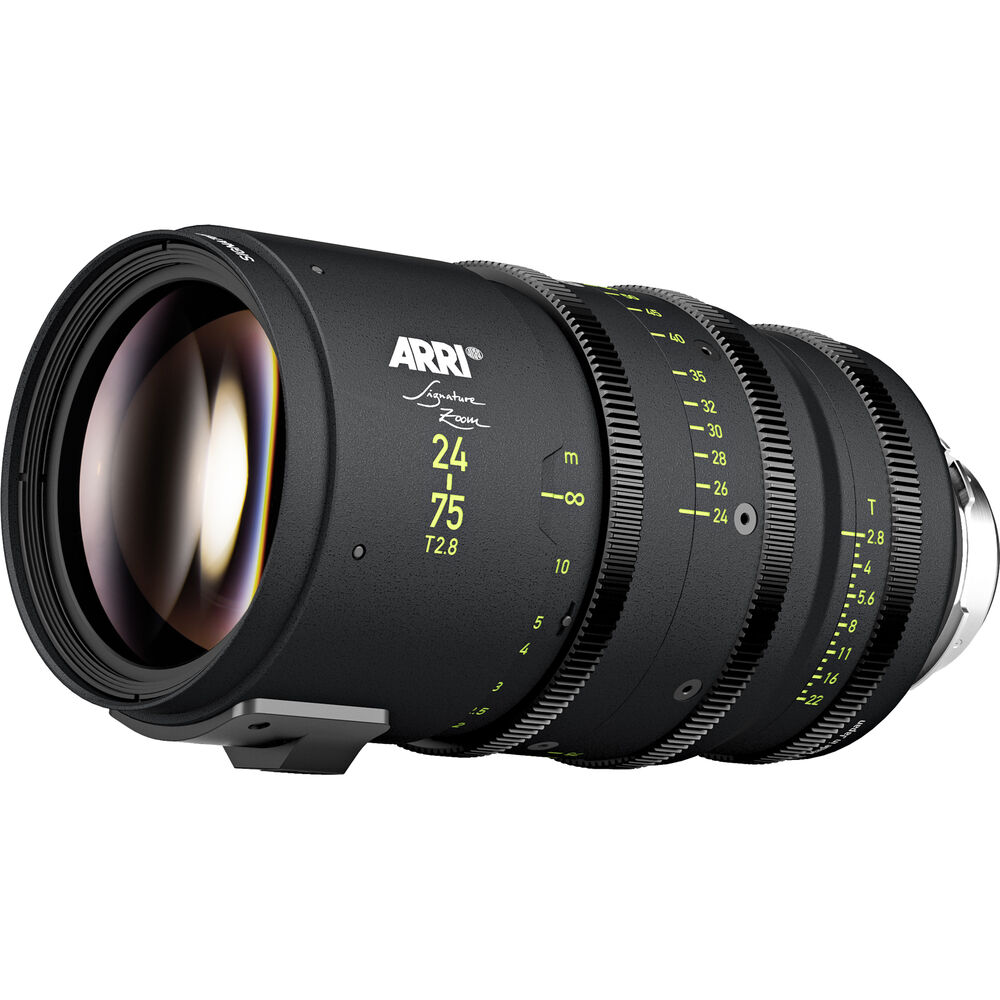

ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)
ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)

ARRI 24-75mm T2.8 Signature Zoom Lens with LPL Mount (Feet)

Brand: ARRI

MFR: KK.0038604

Price Available Upon Request
  • Covers Sensor Sizes up to Large Format
  • Suitable for 8K Image Capture
  • T2.8 to T22 Aperture over Entire Range
  • Matches Look of Signature Primes
  • Focus Scales Marked in Feet
  • LDS-2 Lens Data Compatible
  • Controlled Flares for HDR/Lower Contrast
  • 114mm Front Diameter, Weighs 9 Pounds
  • Works with Signature Rear Filter Holder
  • Lightweight & Durable Magnesium Barrel
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Lenses & Lens Accessories

Designed to match the look and feel of ARRI's Signature Prime range, the LPL-mount 24-75mm T2.8 Signature Zoom produces attractive, organic images while covering sensor sizes ranging from Super35 to full-frame, large-format. The 24-75mm zoom features controlled flaring for HDR compatibility and lower contrast ratios for opening up shadowed areas. It also maintains its T2.8 maximum aperture across its entire focal length range, negating the need for ramping while zooming.

Signature Zoom Series


This mid-length 24-75mm zoom is one of four Signature Zooms that together offer a range of 16-510mm (when used with the 1.7x extender), the widest focal length range in the pro cine industry. Like the Signature primes, each of the zoom lenses gently softens the large-format look, producing pleasant, natural skin tones and rounded bokeh. Focus falls off smoothly, highlighting your subject against its background frame.

Covers a Range of Sensor Sizes

Covers a wide range of sensor sizes and cameras from any manufacturer, from Super35 to Large Format.

Custom Rear Diffusion Options

  • For custom diffusion looks, this 24-75mm zoom can be paired with the separately available, magnetic Signature Prime rear net holder.
  • Use to add stockings, nets, or voile for custom diffusion looks.

Matches Signature Primes

This 24-75mm T2.8 zoom matches the look and feel of the Signature primes, maintaining a consistent look across your footage.

Controlled Flare Effects

  • Controls flares for HDR compatibility and lower contrast for scenes with open shadows.
  • Antireflective coatings, light baffles, and light traps help minimize any internal barrel flare.

Fast T2.8 over Entire Zoom Range

Maintains a fast T2.8 maximum aperture over the entire zoom range with no ramping required.

8K+ Optimal Image Quality

  • Optimal image quality that future-proofs your production for 8K applications.
  • Smooth, flattering flesh tones, minimal color aberration.
  • Timeless look with elegant bokeh effects.

LDS-2 ARRI LPL Mount

ARRI LPL mount transfers lens data via the LDS-2 lens data system for streamlined post-production and VFX needs.


Lighter Weight and Durable Build

  • The 24-75mm ARRI Signature Zoom focuses down to 16.2" from the lens front.
  • Features a relatively light weight of 9 pounds and a compact length of 9.6".
  • Durable magnesium barrel.

Pairs with Zoom Series

Pairs with 16-32mm, 45-135mm, and 65-300mm zooms to produce the widest focal length range in the pro cine industry.

Reversible Focus Marks

Focus marks in feet that can be flipped at a rental house with integrated marks in meters.


Focal Length24 to 75mm
Lens MountARRI LPL
Lens Format CoverageLarge Format
Maximum ApertureT2.8
Minimum ApertureT22
Diagonal Angle of ViewARRI LF Open Gate: 86.9 to 33.4°
Horizontal Angle of ViewARRI LF Open Gate: 75.5 to 27.8°
Minimum Focus DistanceFrom Front of Lens: 16.2" / 412 mm
Gear MOD & PitchFocus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter114 mm
Focus ScalesImperial
Zoom Ratio3.1x
Electronic CommunicationYes
Maximum Magnification Ratio1:18.7
Image StabilizationNo
Camera Connection1 x LEMO 4-Pin (Cooke /i Technology Lens Data / ARRI LDS) Data
Lens SupportLens Support Foot with 1/4"-20 Mounting Thread
Length9.6" / 244 mm
Weight9 lb / 4.1 kg

Packaging Info

Package Weight26.4 lb
Box Dimensions (LxWxH)21.8 x 15.7 x 14.2"
