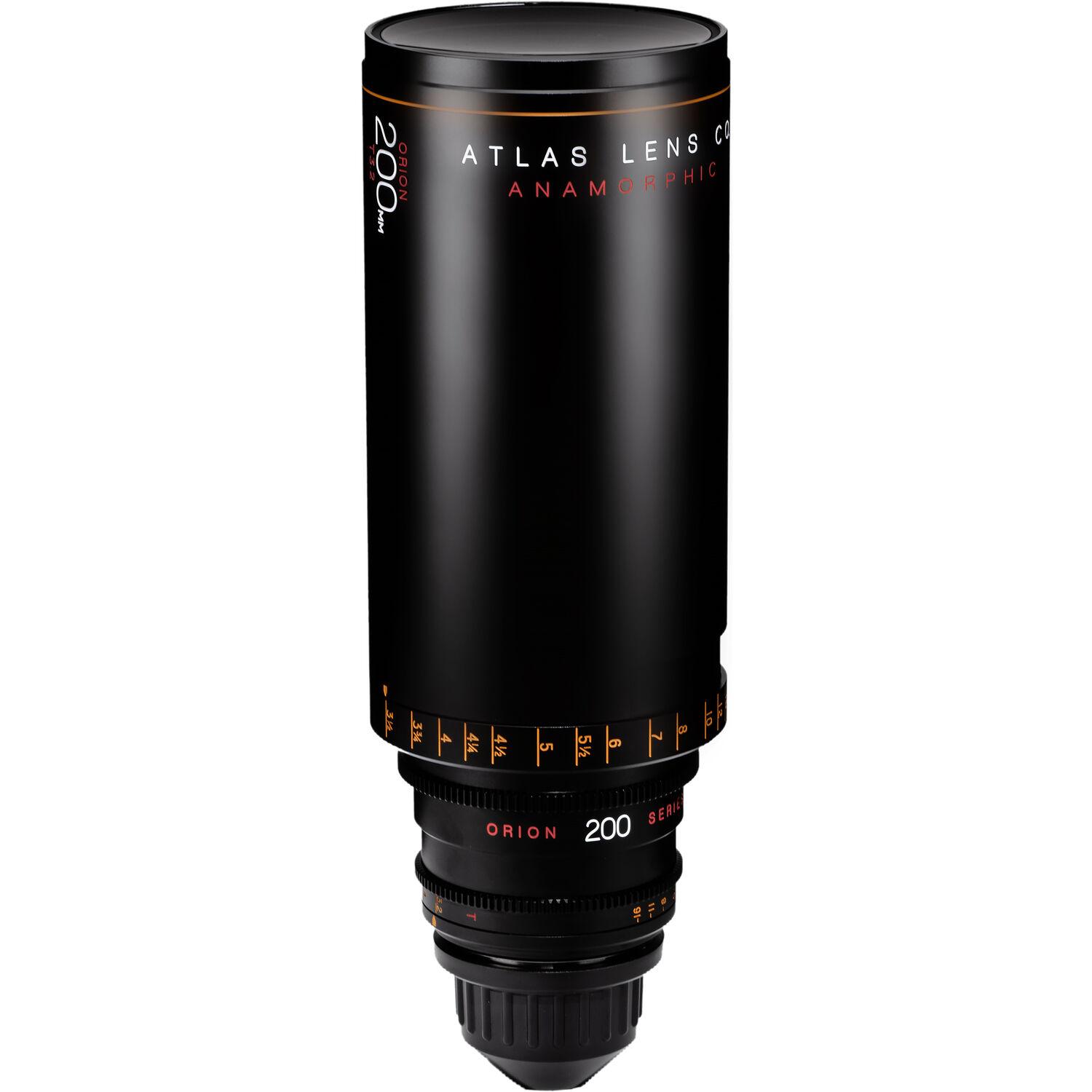

Atlas Lens Co. Orion 200mm T3.2 2x Anamorphic Prime Lens (ARRI PL, Feet)

Name: Atlas Lens Co. Orion 200mm T3.2 2x Anamorphic Prime Lens (ARRI PL, Feet)
Brand: ATLAS LENS
SKU: SF-2443-260X
Price: 55107 AED
Availability: InStock

Brand: ATLAS LENS

MFR: ORIO-0200-300S

SKU: SF-2443-260X

55,107.00 ﾹ

Covers Super 35 Format
Interchangeable EF/PL Mount
T3.2 to T16 Aperture Range
0.8 MOD Focus and Aperture Gearing
Streak Effects
3.6' Minimum Focus Distance
114mm Front Diameter
Focus Marks in Feet
Weighs 8.8 lb

Items Included

Atlas Lens Co. Orion 200mm T3.2 2x Anamorphic Prime Lens (ARRI PL, Feet)

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Quantity

Categories: Lenses & Lens Accessories

Designed by cinematographers for cinematographers, the Orion 200mm T3.2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. The 200mm creates a wide-angle field of view with the shallow depth of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas EF mount kit. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that makes lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 200mm prime comes with focus marks in feet but can be switched to meters by using a separately available focus scale.

2x Vintage Anamorphic Look

Creates twice the horizontal field with the same vertical field of view as a similar spherical lens.
Creates a wide-angle view with the shallow depth of field inherent to telephoto primes.
Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.

Interchangeable EF/PL Mount

Compatible with ARRI PL-mount cameras or Canon EF-mount cameras when used with the separately available mount kit.
Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters.

Super 35 Coverage

It covers up to Super 35-format camera sensors.
Use with the separately available Atlas 1.6x LF extender for full-frame coverage.

Fast T3.2 Aperture

A relatively fast T3.2 aperture enables low-light capture.
Stopping down produces a crisp, flat-field look.

Standardized Design

The mechanically dependable design is standardized across the series for reliable performance.
Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig.
The standardized 114mm front diameter is compatible with many filters and matte boxes.
Custom support feet are available separately.

Wide Barrel Rotation

The wide focus barrel rotation enables smooth, precise focus pulls.

Adjustable Focus Scales

The focus scales are adjustable in the field for maximum accuracy.
Focus scales in feet can be replaced by the user with those in meters, and vice versa.

Focal Length	200mm
Maximum Aperture	T3.2
Minimum Aperture	T16
Lens Mount	Interchangeable Mount with Included ARRI PL
Lens Format Coverage	Super35/APS-C (24.89 x 18.66 mm Sensor / 31 mm Image Circle)
Angle of View	Super 35 Horizontal: 14.4°
Focus Scales	Imperial
Filter Thread	No
Minimum Focus Distance	3.5' / 1.1 m
Aperture/Iris Blades	14
Image Stabilization	No
Gear Standard	0.8 MOD
Electronic Communication	No
Diameter	Front: 4.5" / 114 mm
Length	13" / 32.9 cm
Weight	8.8 lb / 4 kg
