AI-powered, auto-tracking UHD PTZ camera
Key Features
A-Eye 4K-12X PTZ camera
RS-232 serial cable (2m),
USB 3.0 A-A cable (1.5m)
lens cover
remote controller
accessory tray
wall mount rack
screw pack
power adaptor with 4 plugs
Quick Start Guide
Categories: Wireless Transmission
The Atomos A‑Eye 4K‑12X PTZ Camera is a compact, professional UHD PTZ solution built for classrooms, boardrooms, studios, houses of worship, and creative streaming environments. Equipped with a 1/2.5-inch UHD CMOS sensor and 12× optical zoom, it delivers sharp, detailed 4K video with smooth motion and excellent low‑light performance.
With support for NDI®|HX3, RTMP, RTSP, SRT, and VISCA‑over‑IP, the A‑Eye integrates seamlessly into modern IP‑based production workflows. It delivers efficient, low‑latency video over standard Ethernet networks, making it ideal for remote production, hybrid events, and multi‑camera setups.
Installation is simplified with PoE++, allowing power, video, and control through a single cable. The camera supports VISCA and IP‑based control systems and works smoothly with third‑party hardware and software controllers, ensuring flexible deployment in studios, event venues, churches, and corporate environments.
| Category | Spec | Details |
|---|---|---|
| Dimensions | Size (W × H × D) | 146 × 169 × 168 mm |
| Weight | — | Approx. 1.6 kg |
| Environmental | Operating Temperature | Up to 40°C |
| Construction | Body | ABS |
| Power | Input Voltage | DC 12V / PoE+ (802.3at) |
| Operating Power | Max 18 W | |
| Power Indicator | Yes | |
| Video | Sensor | 1/2.5" CMOS |
| Effective Pixels | 8.51 MP | |
| Lens | 12× optical, f = 4.4–52.8 mm, F1.8–F2.6 | |
| Scanning Mode | Progressive | |
| Supported Resolutions — HDMI | 4K60/50/30/25/59.94/29.97, 1080p60/50/59.94/30/29.97, 1080i60/50/59.94, 720p60/59.94 | |
| Supported Resolutions — 3G‑SDI | 1080p60/50/30/29.97/59.94/25, 1080i60/50/59.94, 720p60/59.94 | |
| Color System / Compression | YUY2 / H.264 / MJPEG / H.265 | |
| Video Format | YUY2 up to 1080p@5fps; H.264/H.265/MJPEG up to 2160p@30fps | |
| Digital Zoom | 16× | |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) | |
| Shutter | 1/30s – 1/10000s | |
| Image Flip | Supported | |
| Image Freeze | Supported | |
| White Balance | Auto, VAR, Manual, One Push, Indoor, Outdoor | |
| Backlight Compensation | Supported | |
| Noise Reduction | 2D & 3D DNR | |
| SNR | ≥55 dB | |
| Mechanical | Horizontal FOV | 71° – 8.2° |
| Vertical FOV | 42.7° – 4.5° | |
| Pan Angle | ±170° | |
| Tilt Angle | –30° to +90° | |
| Pan Speed | 1.7° – 100°/s | |
| Tilt Speed | 1.7° – 69.9°/s | |
| Preset Positions | 255 | |
| Preset Accuracy | 0.1° | |
| USB | OS Compatibility | Windows 7/8/10, macOS, Linux, Android, iOS, iPadOS |
| USB Audio | Supported | |
| USB Video Protocol | UVC 1.1 / UVC 1.5 | |
| USB PTZ Control | Supported | |
| Network | Video Compression | H.264 / H.265 / MJPEG |
| Streams | First Stream, Second Stream | |
| First Stream Resolutions | 3840×2160, 1920×1080, 1280×720, 1024×576, 720×480, 720×408, 640×480, 640×360 | |
| Second Stream Resolutions | 720×480, 720×408, 640×480, 640×360, 480×320, 320×240 | |
| Bitrate | First: 32 Kbps – 51200 Kbps; Second: 32 Kbps – 20480 Kbps | |
| Bitrate Control | CBR / VBR | |
| Frame Rate | 50 Hz: 1–50 fps; 60 Hz: 1–60 fps | |
| Audio Compression | AAC | |
| Audio Bitrate | 96 / 128 / 256 Kbps | |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast | |
| Audio | Microphone | None (no built‑in mic) |
| Audio Input | Line In | |
| Audio Output | Line Out, HDMI, USB | |

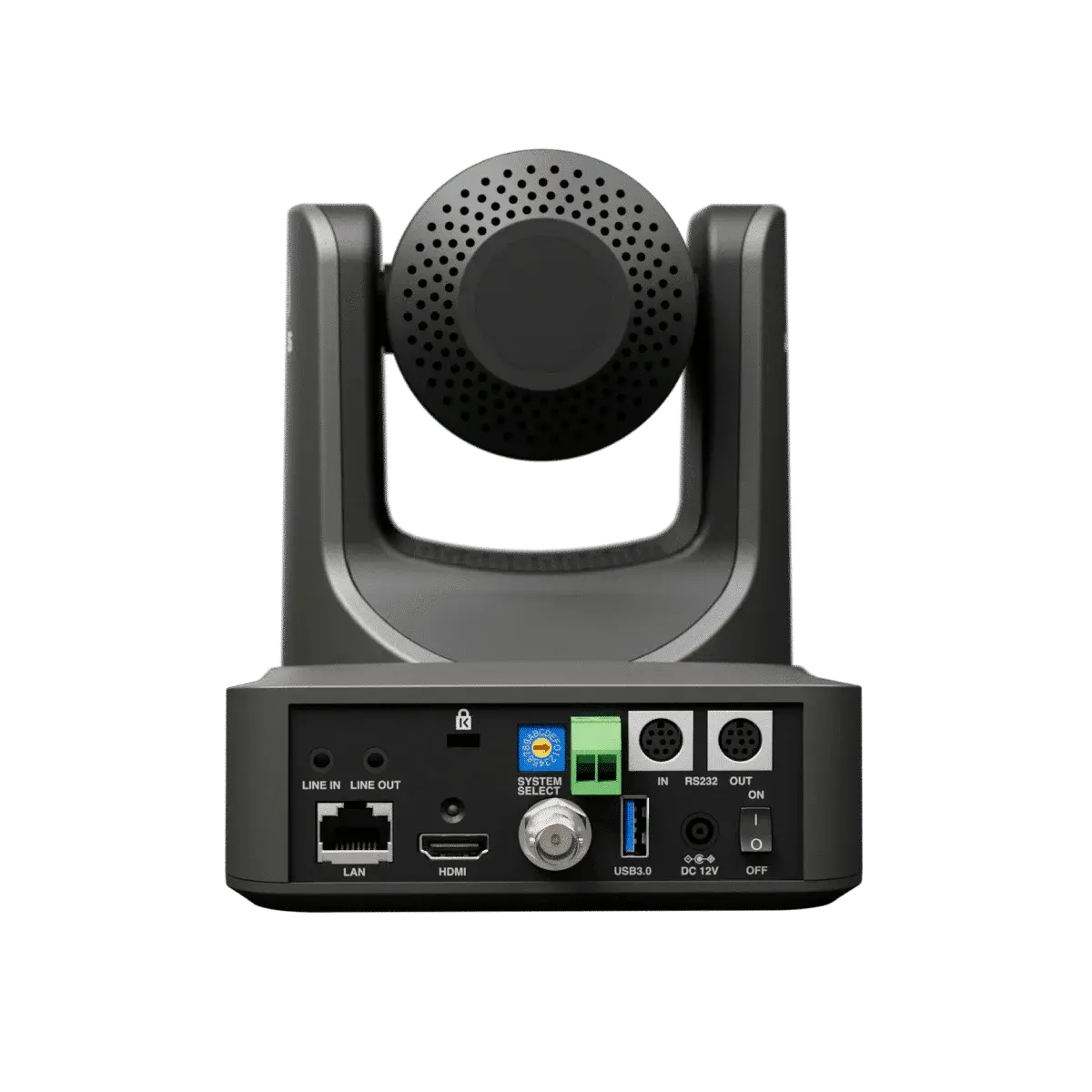

| I/O Interfaces | Line In | 3.5 mm |
| Line Out | 3.5 mm | |
| RS‑485 | 2‑pin phoenix, up to 1200 m, VISCA/Pelco‑D/Pelco‑P | |
| RS‑232 IN | 8‑pin Mini DIN, up to 30 m, VISCA/Pelco‑D/Pelco‑P | |
| RS‑232 OUT | 8‑pin Mini DIN, up to 30 m, VISCA network only | |
| Network | 10M/100M Ethernet | |
| USB | USB 2.0 Type‑A | |
| SDI | 3G‑SDI (BNC), SMPTE 424M | |
| HDMI | HDMI 1.3 | |
| Power Jack | JEITA (DC IN 12V) | |
| Tally Indicator | Yes |
