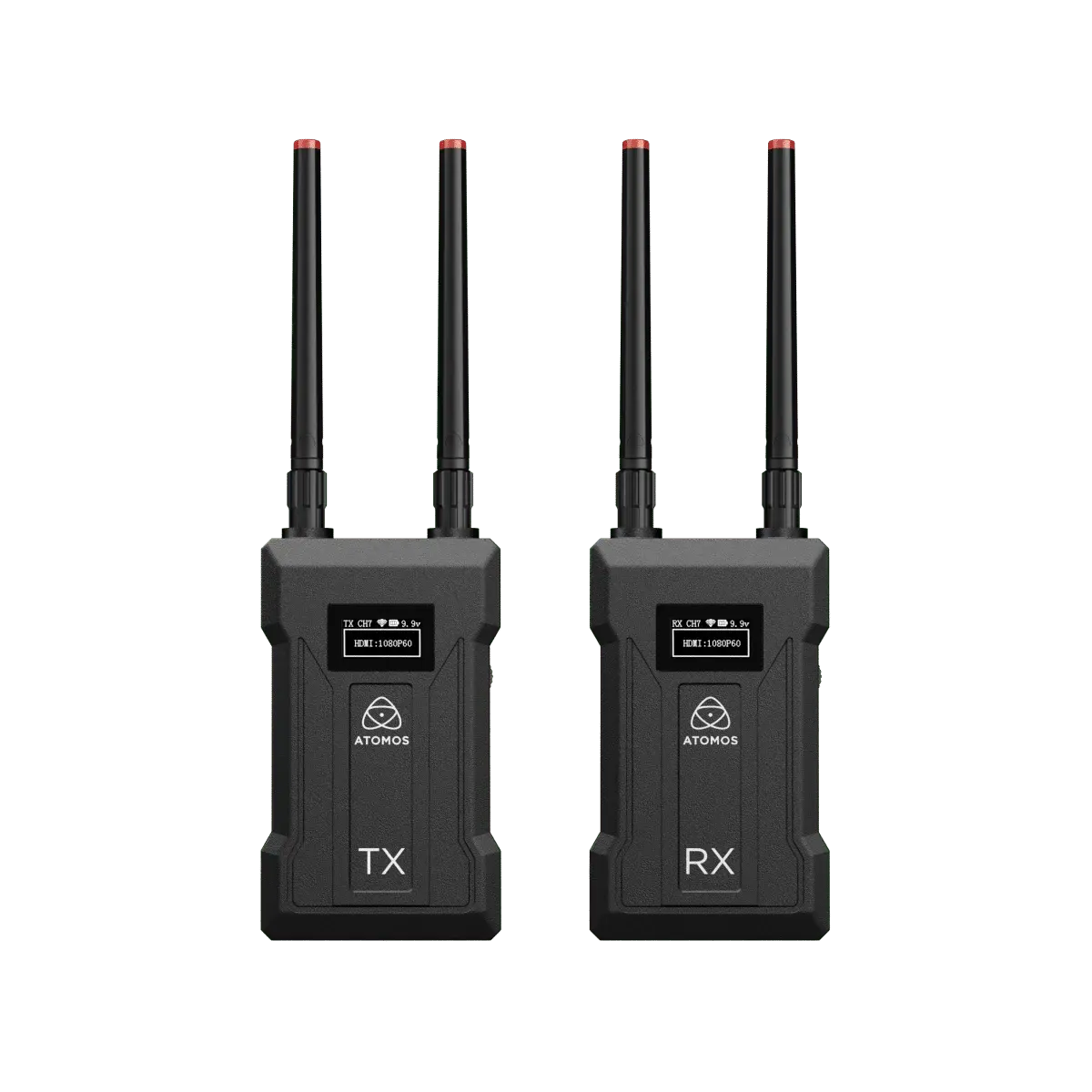

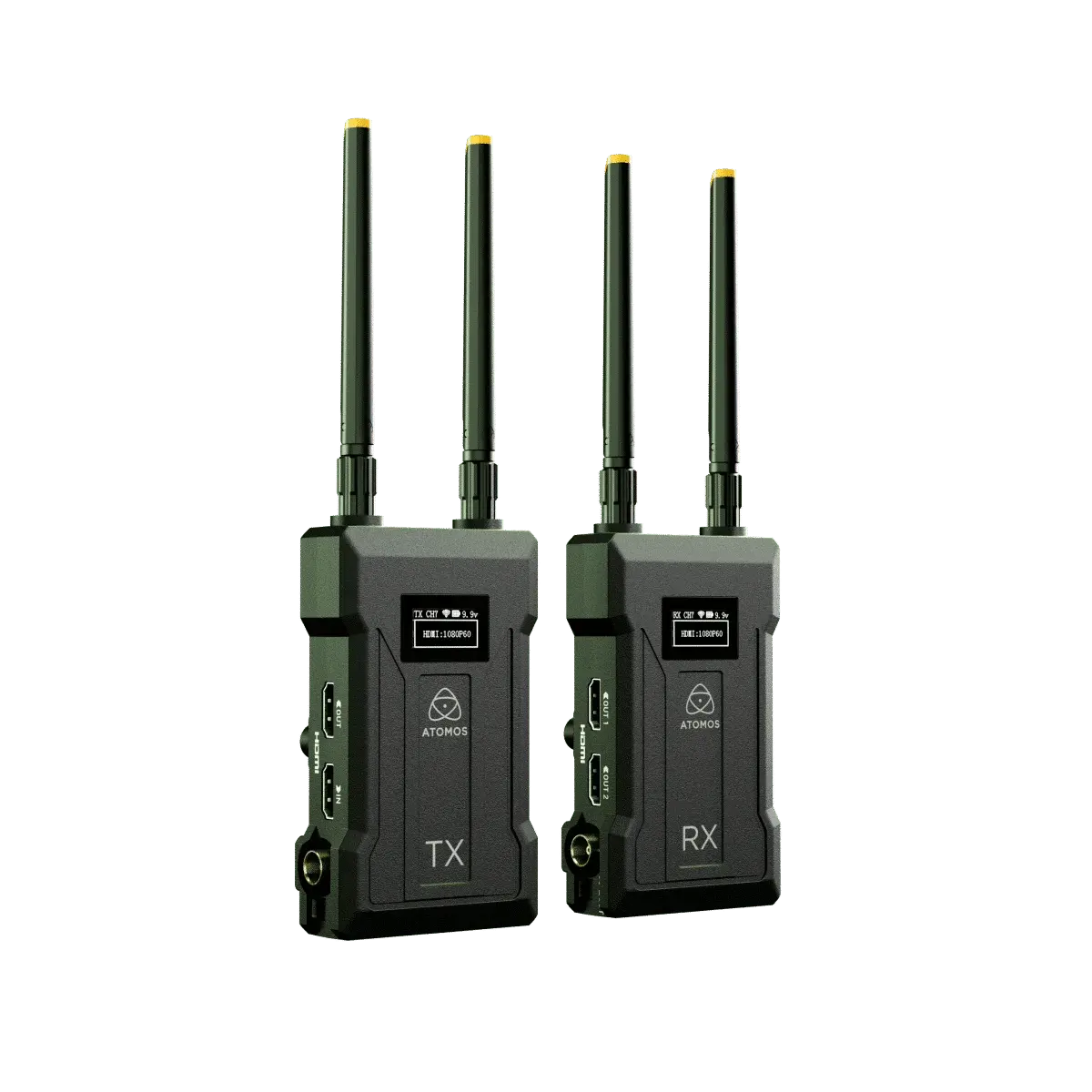

The Atomos TX/RX Wireless Video System is a compact, professional wireless transmitter–receiver kit designed for real‑time, low‑latency video monitoring. It delivers HD‑SDI and 4K HDMI video over 5GHz Wi‑Fi, providing a clean, stable signal for directors, ACs, clients, and camera operators—whether on set, in studio, or working remotely.
With a wireless range of up to 300 m (985 ft) and latency as low as 0.06 s, TX/RX ensures reliable, real‑time viewing without cables. The RX unit includes HDMI and SDI outputs, allowing routing to multiple monitors, and each TX can support up to four receivers, making it ideal for multi‑camera and multi‑monitor workflows.

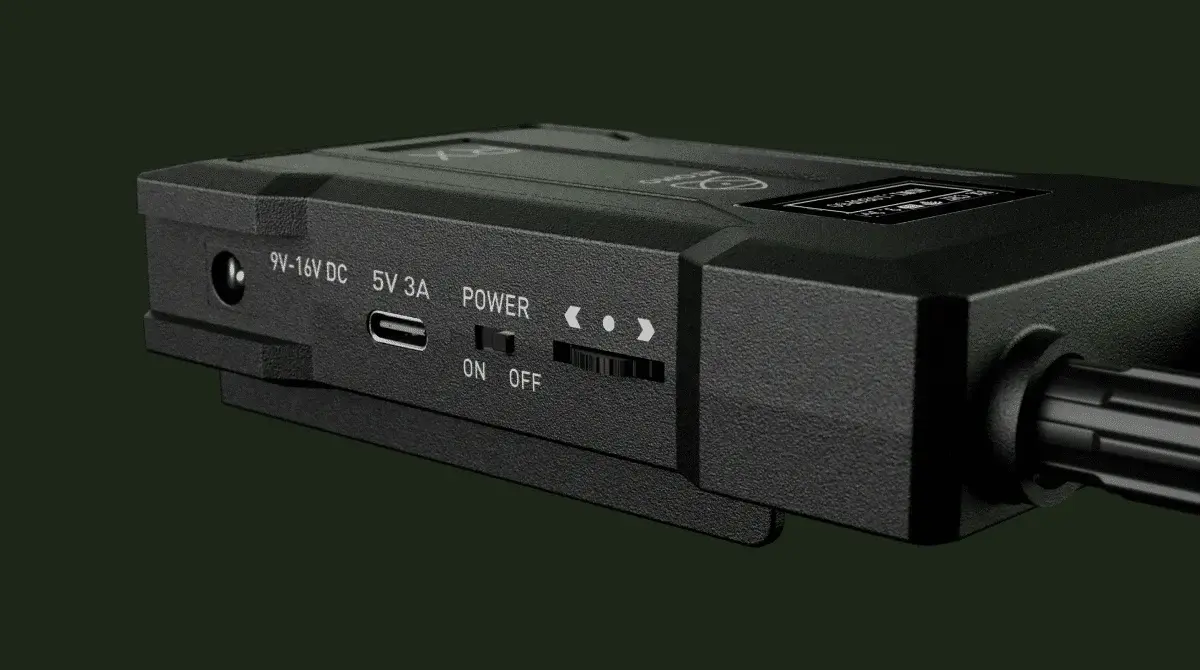

The system transmits up to 4Kp30 or 1080p60 video via HDMI, secured with AES‑128 encryption and automatic channel selection for stable performance in crowded RF environments. Quick pairing, lightweight design, and flexible power options—DC (9–16V), USB‑C (5V/3A), and NP‑F batteries—make TX/RX easy to mount, rig, or carry on any production.
Free Android/iOS Atomos RX apps turn your smartphone into a wireless monitor, expanding viewing options for mobile workflows.
| Category | Spec | Details |
|---|---|---|
| Dimensions | Size (W × H × D) | 42 × 67 × 120 mm (TX & RX) |
| Weight | — | 231 g (TX & RX) |
| Mounting | Mount Points | 1 × 1/4"-20 screw mount (bottom) |
| Environmental | Operating Temperature | Up to 50°C |
| Construction | Body | Aluminium alloy |
| Rotary Control | Channel selection | |
| Power Switch | On/Off | |
| Power | Input Voltage | 9–16 V |
| Operating Power | 4 W (TX & RX) | |
| Compatible Batteries | NP‑F970 / NP‑F750 / NP‑F550 (not included) | |
| Built‑in Battery | No | |
| Display | Resolution | 128 × 64 px |
| Size | 21.8 × 10.8 mm | |

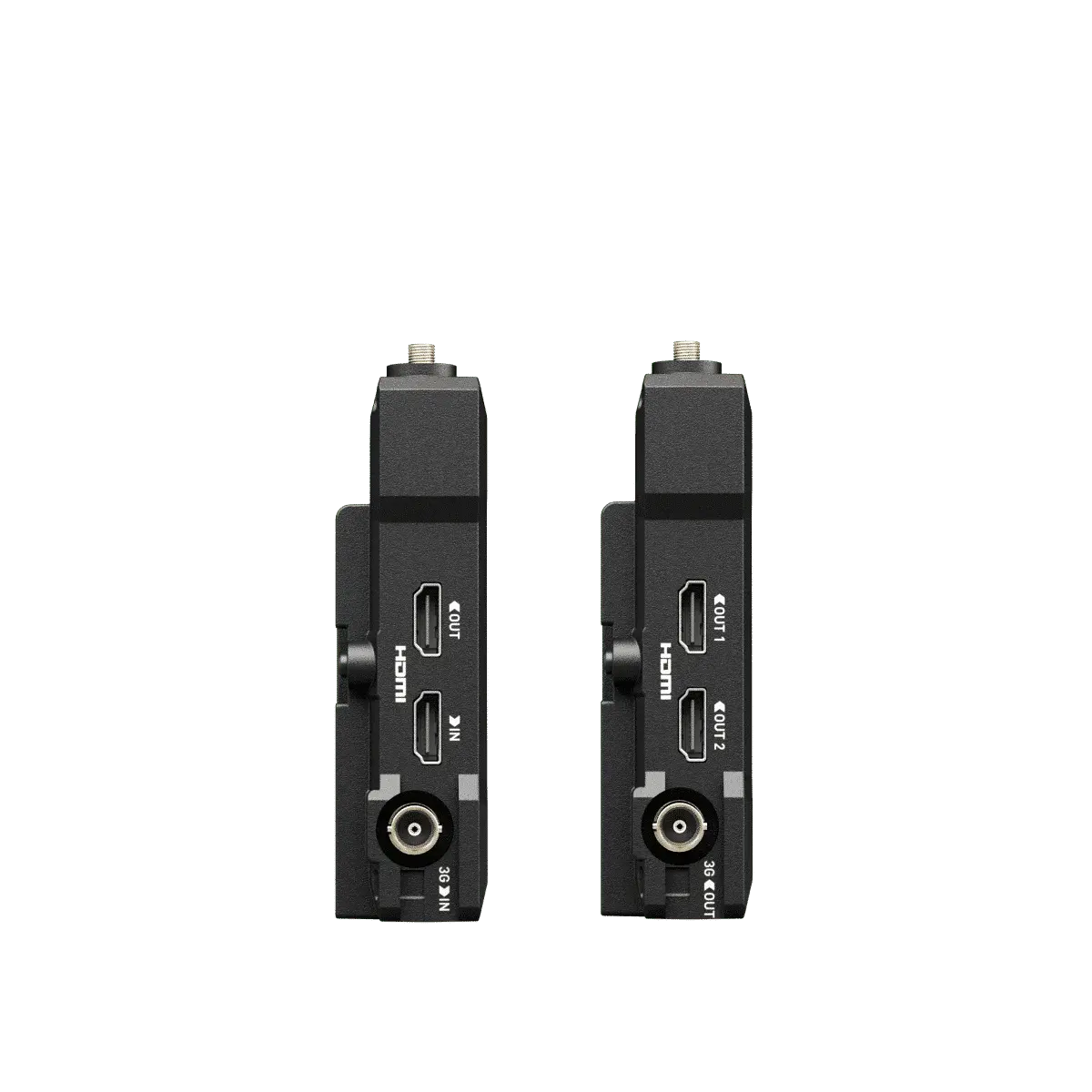

| Video I/O — TX | SDI | 1 × 3G‑SDI input |
| HDMI | 1 × HDMI input + 1 × HDMI loop‑through | |
| Video I/O — RX | SDI | 1 × 3G‑SDI output |
| HDMI | 2 × HDMI dual output | |
| Wi‑Fi | Frequency | 5 GHz |
| Channels | 9 (CH0–CH08) | |
| Latency | 60 ms | |
| Transmission Distance | Up to 300 m (985 ft) LOS | |
| Audio | Format | PCM dual‑channel |
| Supported Formats — HDMI | Resolution/Frame Rates | 4K30, 4K25 (converted to 4K30), 1080p60/50/30/25, 1080i60/50, 720p60/50 |
| Supported Formats — 3G‑SDI | Resolution/Frame Rates | 1080p60/50/30/25, 1080i60/50, 720p60/50 |
| Box Contents | Included | TX unit, RX unit, 2 × USB‑A to USB‑C cables (1 m), 4 × Wi‑Fi antennas, 10 × antenna tips, 2 × 1/4" screw mounts, Quick Start Guide |
