Atomos A-Eye 4K-20X – PTZ Camera

Brand: ATOMOS

MFR: ATOMAE4K20

SKU: SF-2443-61ZZ

8,500.00 ᄍ

Key Features

  • 1/1.8-inch UHD CMOS sensor
  • 20x optical zoom
  • AI-powered tracking
  • ±170° pan and -30° to +90° tilt range
  • For large venues, stage productions, and professional multi-camera productions

Items Included


  1. A-EYE 4K-20X PTZ camera
  2. RS-232 serial cable (2m)
  3. USB 3.0 A-A cable (1.5m) Lens cover
  4. Remote controller
  5. Accessory tray
  6. Wall mount rack
  7. Screw pack Power adaptor with 4 international plugs
  8. Quick Start Guide
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

The Atomos A‑EYE 4K 20x PTZ Camera delivers broadcast‑grade 4K imaging, smooth robotic movement, and advanced IP workflows for cloud‑ready production environments. Built for modern studios, hybrid events, worship spaces, and corporate AV, it combines precision optics with seamless network‑based control and streaming.

Powered by a 1/1.8 CMOS sensor, the A‑EYE captures crisp 4K Ultra HD 60fps video with excellent detail and low‑noise performance. The 20x optical zoom provides flexible framing from wide coverage to tight close‑ups, maintaining clarity across all focal lengths.

With NDI®|HX3, RTMP, RTSP, SRT, and VISCA‑over‑IP, the A‑EYE integrates effortlessly into IP‑based production pipelines. PoE++ enables single‑cable deployment for power, video, and control—ideal for permanent installations or rapid setup.

Designed for professional workflows, the camera supports VISCA and IP control systems, third‑party controllers, and remote operation for distributed or cloud‑managed productions.

Compact, powerful, and cloud‑ready, the A‑EYE 4K 20x is built for creators who need reliable, high‑quality remote video capture without complexity.


Environmental

  • Ambient operating temperature: Up to 40°C
  • Construction – Body: ABS

Power

  • Input voltage: DC 12V / PoE+ (802.3at)
  • Operating power: Max 18W
  • Power on indicator: Yes

Video

  • Sensor: 1/1.8" CMOS
  • Effective pixels: 8.42MP
  • Lens: 20x, f=6.25mm–125mm, F1.58–F3.95
  • Scanning mode: Progressive

Resolutions Supported

  • HDMI: 4K: 4KP60, 4KP59.94, 4KP50, 4KP30, 4KP29.97, 4KP25 FHD: 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97 Interlaced: 1080I60, 1080I59.94, 1080I50 HD: 720P60, 720P59.94
  • 3G‑SDI: 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25 1080I60, 1080I59.94, 1080I50 720P60, 720P59.94

Color System / Compression

  • YUY2 / H.264 / MJPEG / H.265

Video Format

  • YUY2: up to 1080P@5fps
  • H.264 AVC: up to 2160P@30fps
  • H.265 HEVC: up to 2160P@30fps
  • MJPEG: up to 2160P@30fps

Other Video Specs

  • Digital zoom: 16x
  • Minimum illumination: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter: 1/30s – 1/10000s
  • Image flip: Supported
  • Image freeze: Supported
  • White balance: Auto, VAR, Manual, One Push, Indoor, Outdoor
  • Backlight compensation: Supported
  • Digital noise reduction: 2D & 3D DNR
  • SNR: ≥55dB

Mechanical

  • Horizontal FOV: 60° – 3.5°
  • Vertical FOV: 35.7° – 2.0°
  • Pan angle: ±170°
  • Tilt angle: –30° to +90°
  • Pan speed: 1.7° – 100°/s
  • Tilt speed: 1.7° – 69.9°/s
  • Preset positions: 255
  • Preset accuracy: 0.1°


USB

  • Operating systems: Windows 7/8/10, macOS, Linux, Android, iOS, iPadOS
  • USB audio: Supported
  • USB video protocol: UVC 1.1 / UVC 1.5
  • USB PTZ control: Supported

Network

  • Video compression: H.264 / H.265 / MJPEG
  • Video streams: First Stream, Second Stream

Stream Resolutions

  • First Stream: 3840×2160, 1920×1080, 1280×720, 1024×576, 720×480, 720×408, 640×480, 640×360
  • Second Stream: 720×480, 720×408, 640×480, 640×360, 480×320, 320×240

Bitrate

  • First Stream: 32kbps – 51200kbps
  • Second Stream: 32kbps – 20480kbps

Frame Rate

  • 50Hz: 1fps – 50fps
  • 60Hz: 1fps – 60fps

Audio

  • Compression: AAC
  • Bit rate: 96kbps, 128kbps, 256kbps

Protocols

  • NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Audio I/O

  • Microphone: No built‑in mic
  • Audio input: Line In (3.5mm)
  • Audio output: Line Out (3.5mm), HDMI, USB

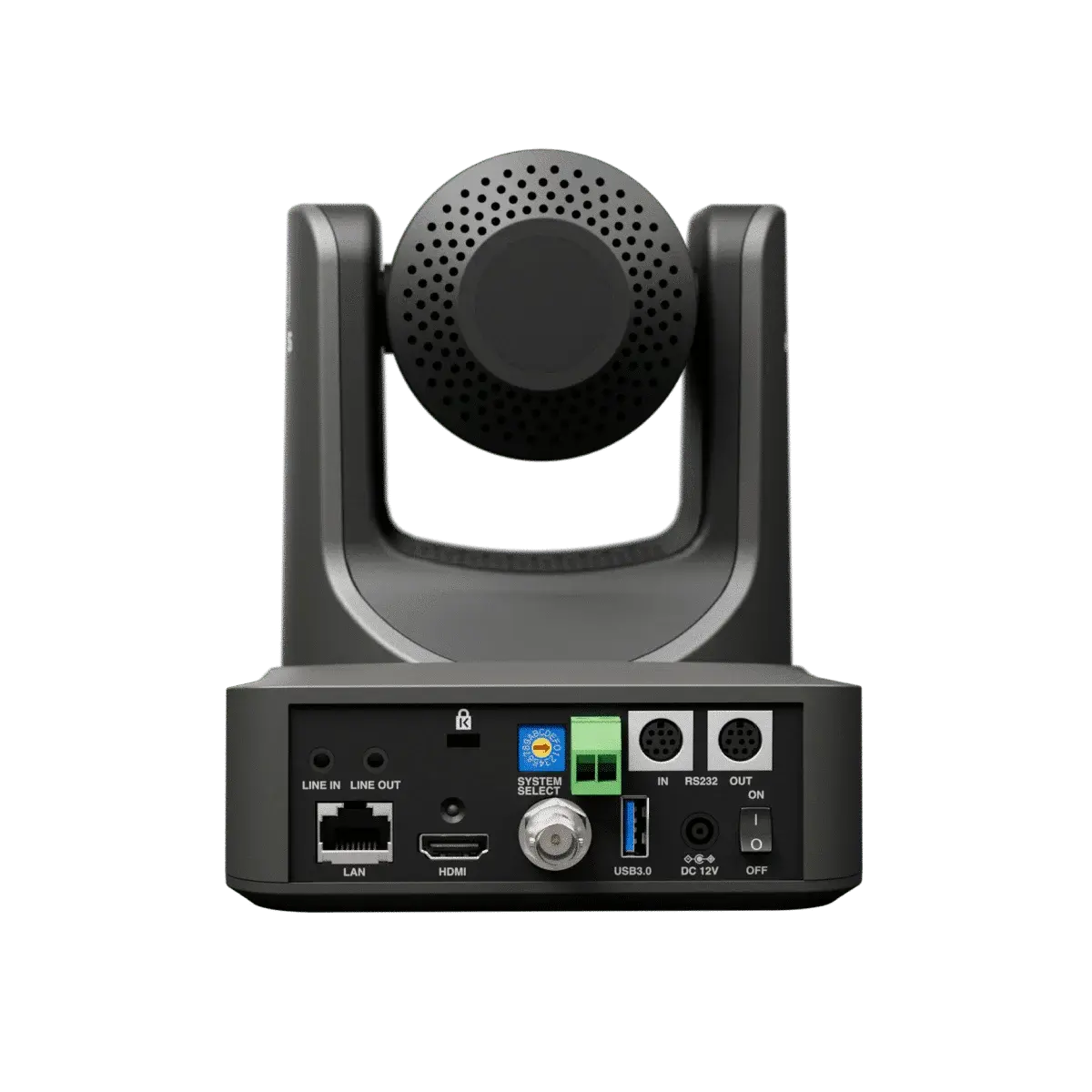

Input/Output Interfaces

  • Line In: 3.5mm
  • Line Out: 3.5mm
  • RS‑485: 2‑pin phoenix, VISCA/Pelco‑D/Pelco‑P, max 1200m
  • RS‑232 IN: 8‑pin Mini DIN, VISCA/Pelco‑D/Pelco‑P, max 30m
  • RS‑232 OUT: 8‑pin Mini DIN, VISCA network only, max 30m
  • Network: 10M/100M Ethernet
  • USB: USB 2.0 Type‑A
  • SDI: 3G‑SDI (BNC, 800mVp‑p, 75Ω, SMPTE 424M)
  • HDMI: HDMI 1.3
  • Power jack: JEITA type (DC IN 12V)
  • Tally indicator: Yes
