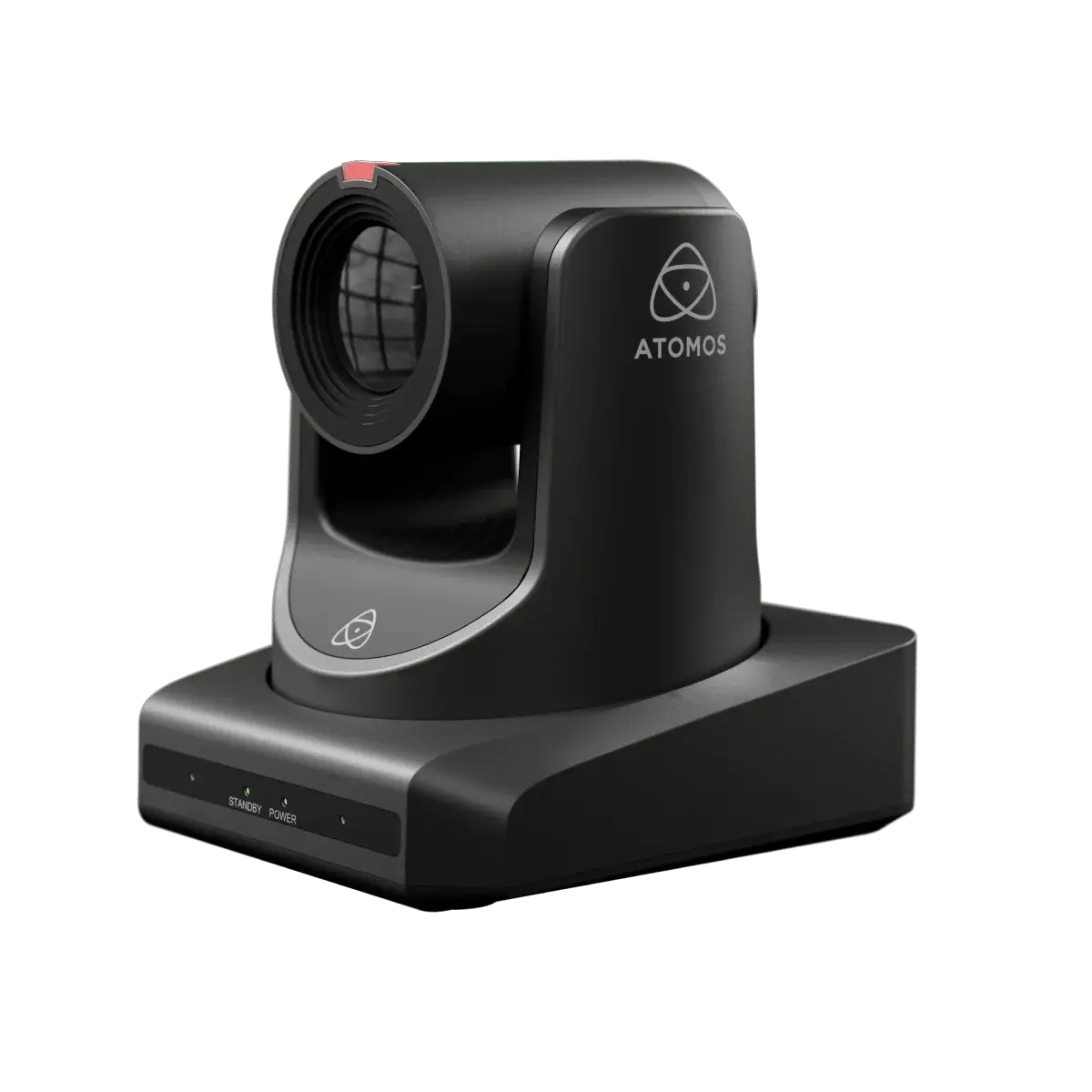

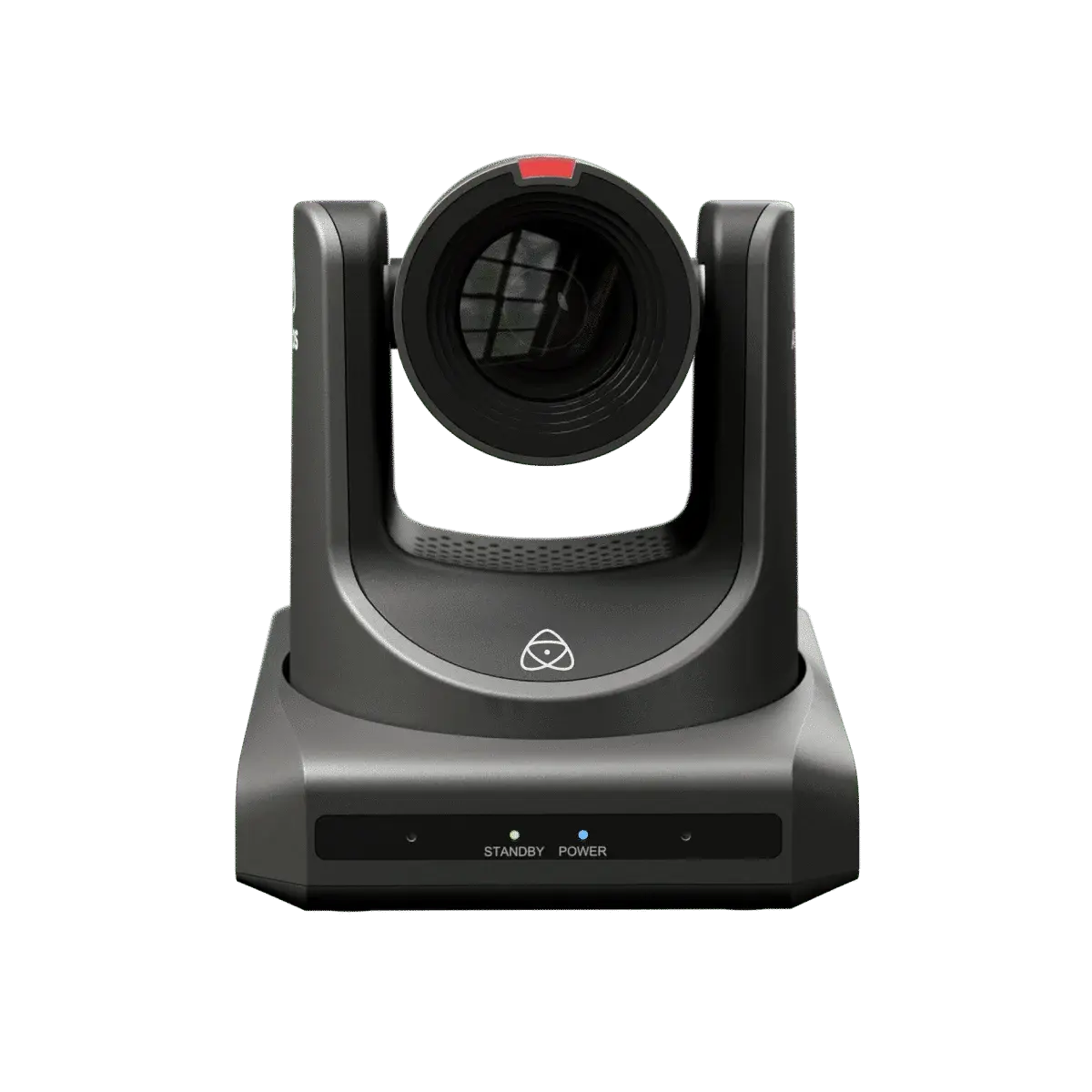

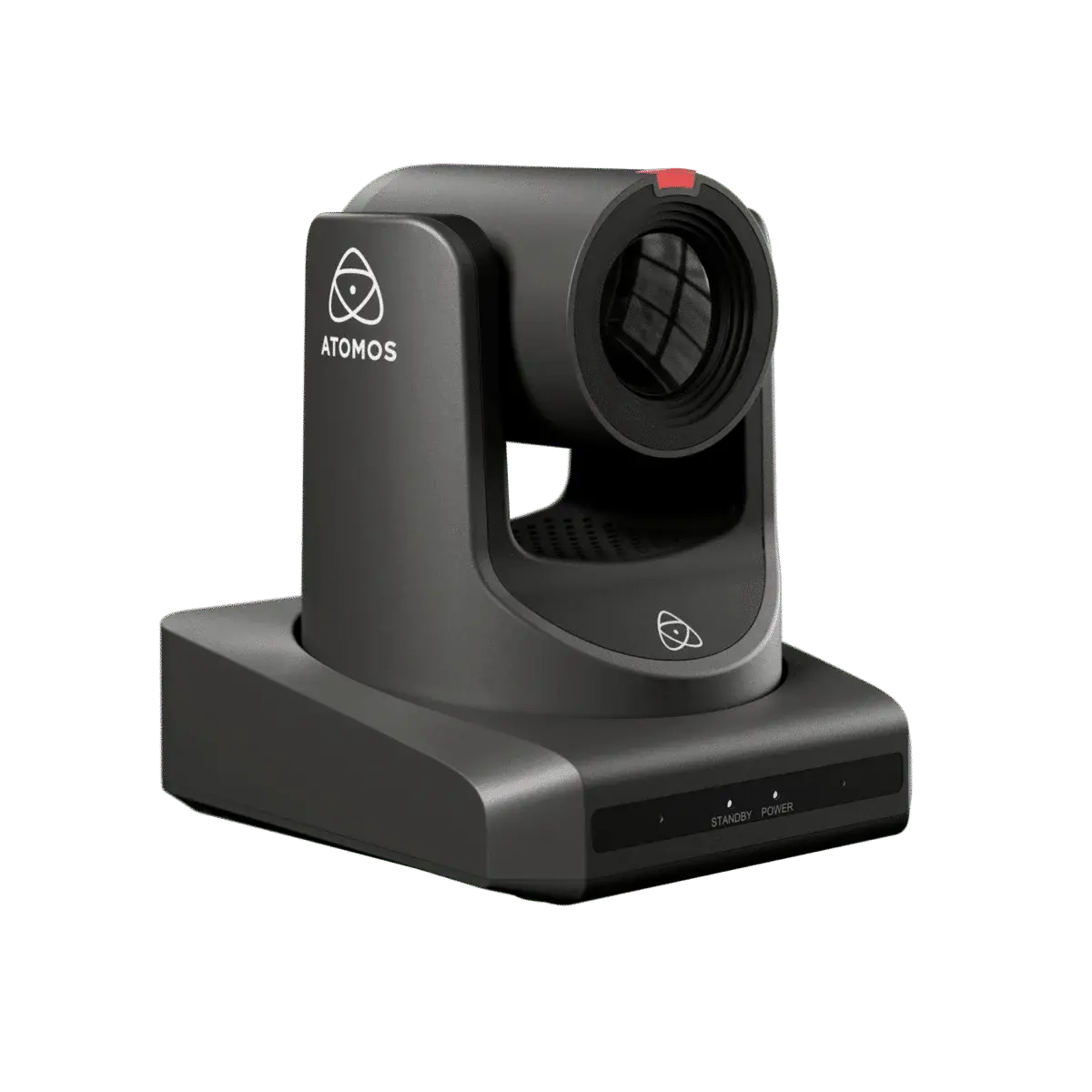

The Atomos A‑Eye HD 20X PTZ Camera delivers professional Full HD production with smooth robotic motion, making it ideal for live events, corporate studios, education, houses of worship, and streaming environments. Designed for seamless multi‑camera integration, it provides sharp 1080p60 video, responsive PTZ control, and flexible IP/AV connectivity.
Powered by a 1/2.8 CMOS sensor with 20x optical zoom, A‑Eye HD captures detailed wide shots and close‑ups even in challenging lighting. Its quiet, fluid pan‑tilt‑zoom motors ensure precise framing without mechanical noise—perfect for broadcast and live production.
The camera supports RTMP, RTSP, and NDI|HX* streaming over Ethernet, plus HDMI and 3G‑SDI outputs for traditional AV workflows. With PoE+, both power and network run through a single cable, simplifying installation for studios and fixed setups.
Control is flexible via RS‑232, RS‑422, IP, joystick controllers, software, or the optional A‑Eye Control Remote. Preset recall enables fast switching between angles during live events.
Compact, versatile, and easy to mount, the A‑Eye HD 20X fits seamlessly into new or existing production environments.
| Category | Spec | Details |
|---|---|---|
| Physical | Dimensions (W × H × D) | 139.2 × 176.5 × 165.8 mm |
| Weight | Approx. 1.5 kg | |
| Environmental | Operating Temperature | Up to 40°C |
| Construction | Body | ABS |
| Power | Input Voltage | DC 12V / PoE+ (802.3at) |
| Operating Power | Max 15 W | |
| Power Indicator | Yes | |
| Video | Sensor | 1/2.8" CMOS |
| Effective Pixels | 2.07 MP | |
| Lens | 20× optical, f = 4.42–88.5 mm, F1.8–F2.8 | |
| Scanning Mode | Progressive | |
| Supported Resolutions | 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/59.94/50 | |
| Color System / Compression | YUY2 / MJPEG / H.264 | |
| Video Format | YUY2 up to 1080p@5fps; H.264 up to 1080p@30fps | |
| Digital Zoom | 16× | |
| Minimum Illumination | 0.5 Lux (F1.8, AGC ON) | |
| Shutter | 1/30s – 1/10000s | |
| Image Flip | Supported | |
| Image Freeze | Supported | |
| White Balance | Auto, VAR, Manual, One Push, Indoor, Outdoor | |
| Backlight Compensation | Supported | |
| Noise Reduction | 2D & 3D DNR | |
| SNR | ≥55 dB | |
| Mechanical | Horizontal FOV | 60.7° – 3.36° |
| Vertical FOV | 34.1° – 1.89° | |
| Pan Angle | ±170° | |
| Tilt Angle | –30° to +90° | |
| Pan Speed | 1.7° – 100°/s | |
| Tilt Speed | 1.7° – 69.9°/s | |
| Preset Positions | 255 | |
| Preset Accuracy | 0.1° | |
| USB | OS Compatibility | Windows 7/8/10, macOS, Linux, Android, iOS, iPadOS |
| USB Audio | Supported | |
| USB Video Protocol | UVC 1.1 / UVC 1.5 | |
| USB PTZ Control | Supported | |
| Network | Video Compression | H.264 / H.265 |
| Streams | First Stream, Second Stream | |
| First Stream Resolutions | 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360 | |
| Second Stream Resolutions | 1280×720, 1024×576, 720×480, 640×360, 480×272, 320×240, 320×180 | |
| Bitrate | 32 Kbps – 20480 Kbps | |
| Bitrate Control | CBR / VBR | |
| Frame Rate | 1–60 fps | |
| Audio Compression | AAC | |
| Audio Bitrate | 96 / 128 / 256 Kbps | |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast | |
| Audio | Microphone | Built‑in dual mic (100 Hz – 16 kHz) |
| Audio Input | Line In | |
| Audio Output | Line Out, HDMI, USB | |

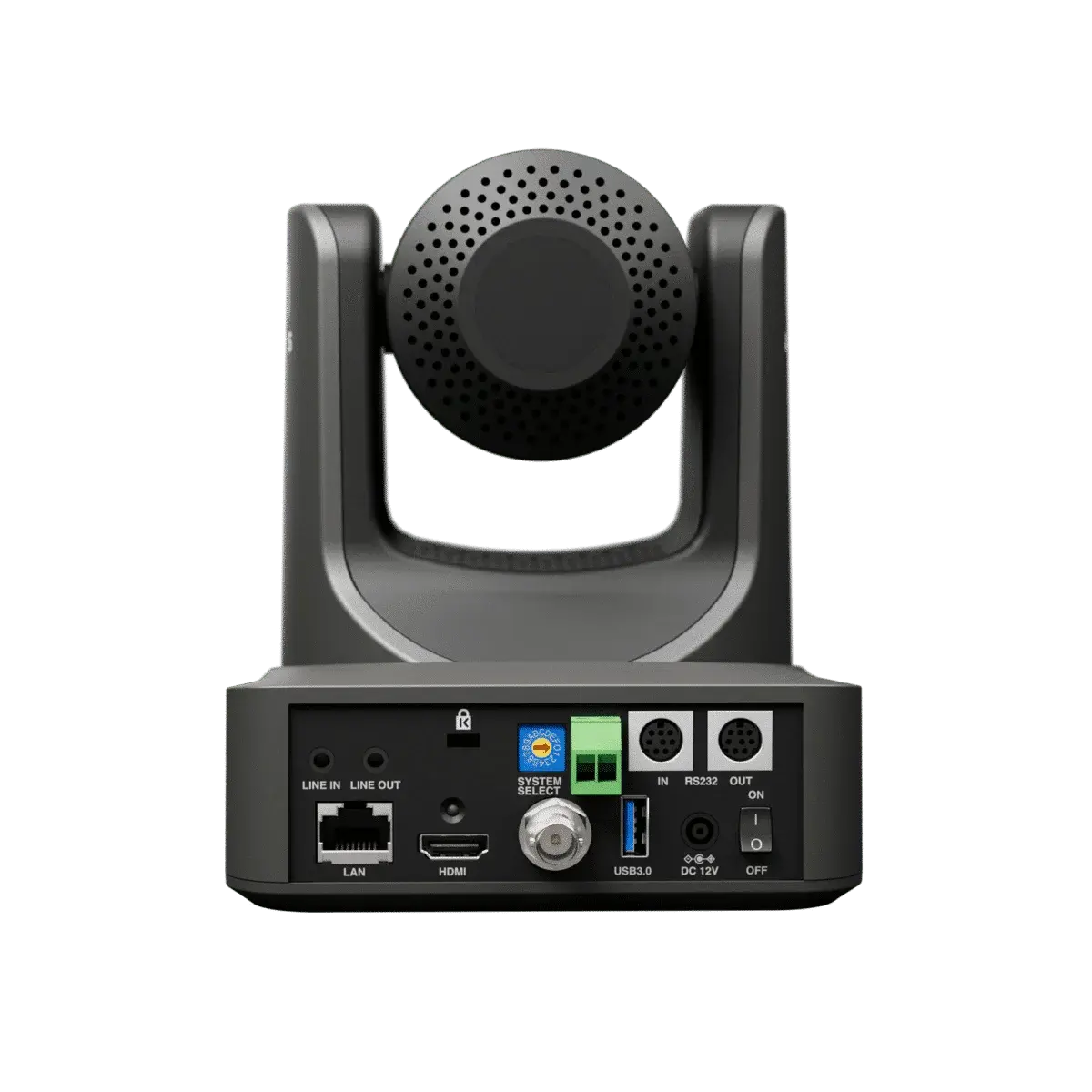

| I/O Interfaces | Line In | 3.5 mm |
| Line Out | 3.5 mm | |
| RS‑485 | 2‑pin phoenix, up to 1200 m, VISCA/Pelco‑D/Pelco‑P | |
| RS‑232 IN | 8‑pin Mini DIN, up to 30 m, VISCA/Pelco‑D/Pelco‑P | |
| RS‑232 OUT | 8‑pin Mini DIN, up to 30 m, VISCA network only | |
| Network | 10M/100M Ethernet | |
| USB | USB 2.0 Type‑A | |
| SDI | 3G‑SDI (BNC), SMPTE 424M | |
| HDMI | HDMI 1.3 | |
| Power Jack | JEITA (DC IN 12V) | |
| Tally Indicator | Yes |
