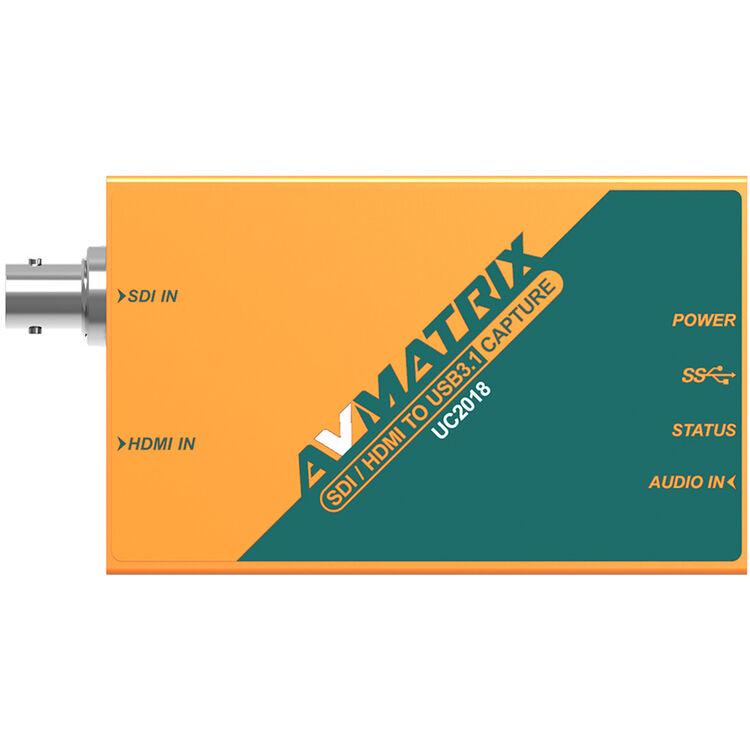

AVMATRIX UC2018 SDI/HDMI to USB 3.0 Video Capture

Brand: AVMATRIX

MFR: UC2018

SKU: SF-2443-X4NL

829.00

  • Supports up to 1920 x 1080p60 Resolution
  • Hardware Scaling and Deinterlacing
  • Performs Frame Rate Conversion
  • UVC Compatible
  • Supports YUV 4:2:2 Video Output
  • For Windows, Linus, and macOS
  • Works with Third-Party Capture Software
  • USB Powered

Items Included


  • AVMATRIX UC2018 SDI/HDMI to USB 3.0 Video Capture
  • USB Type-A Cable
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Capture Devices

Record or stream an HDMI or SDI signal via USB 3.0 with the Lilliput UC2018 SDI/HDMI to USB 3.0 Video Capture. With its 3G-SDI and HDMI v1.4a inputs, this capture device will accept resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.0 at up to 350 MB/s. It supports UVC video capture as well as YUV video output.

As this is a USB bus-powered device, you can connect multiple units to the same computer (additional USB hardware may be required). The UC1218 is compatible with a variety of available third-party software apps for Windows, Linux, and macOS.

Compatible with Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Linux, QuickTime Broadcaster, QuickTime Player, Wirecast, Potplayer, and other UVC compatible software
Compatible SDK include DirectShow and DirectSound for Windows
No drivers needed for Windows, macOS, or Linux
Automatically determines input video format

Inputs/Outputs
System Connection
USB-C 3.0 / 3.1/3.2 Gen 1

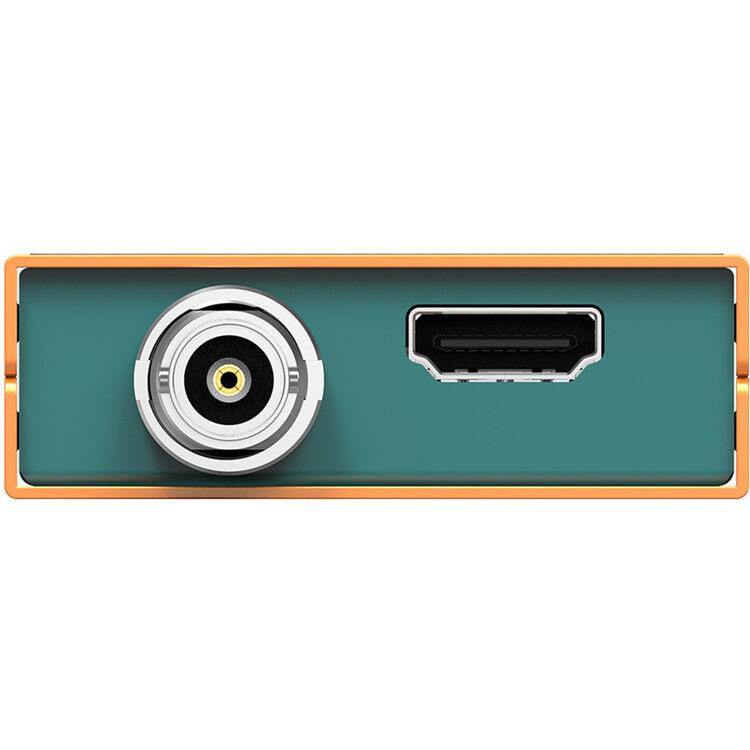

Video Inputs
1x BNC (3G-SDI)
1x HDMI (1.4a)
Audio Inputs
1x 1/8" / 3.5 mm TRS Stereo Line
Format Support
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576p at 50 fps
576i / 625 lines at 50 fps
480p at 59.94/60 fps
480i / 525 lines at 59.94/60 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Output Video Format
USB-C
WUXGA (1920 x 1200)
1080p
1650 x 1050
UXGA (1600 x 1200)
WXGA+ (1440 x 900)
1360 x 768
SXGA (1280 x 1024)
1280 x 960
WXGA (1280 x 800)
1280 x 720 (Non-Standard WXGA)
XGA (1024 x 768)
1024 x 576
960 x 540
856 x 480
SVGA (800 x 600)
768 x 576
720 x 576
720 x 480
VGA (640 x 480)
640 x 360
Output Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio
HDMI/SDI/USB
Hardware
Tally Light
Yes
OS Compatibility
Windows 7 to 10
Linux 2.6.38 or Later
macOS 10.8 or Later
Power
Power I/O

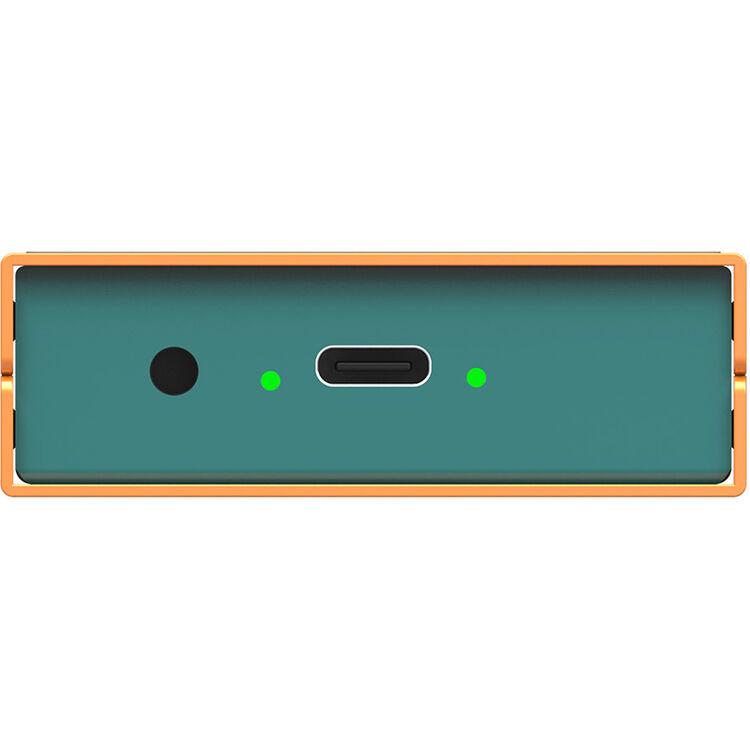

1x USB-C Input
Power Consumption
3.5 W
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
32 to 140°F / 0 to 60°C
Operating Humidity
20 to 90%
General
Dimensions
3.6 x 2.3 x 0.7" / 92 x 58 x 19 mm
Weight
7.2 oz / 205 g
Packaging Info
Package Weight
0.705 lb
Box Dimensions (LxWxH)
5.8 x 4.5 x 1.7"
