Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)

Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)

Brand: Blackmagic Design

MFR: HYPERD/PTSKD/2TB

SKU: SF-2443-3GAC

Price Available Upon Request
  • 7" Touchscreen Display
  • Broadcast Deck Controls with Search Dial
  • Includes 2TB M.2 Card
  • Records to SD and USB-C Disk
  • DCI 4K Video, HDR Color Space
  • H.264/265, ProRes, and DNx File Formats
  • 12G-SDI Input, 2 x 12G-SDI Output
  • 10 Gb/s Ethernet, Remote I/O
  • HDMI I/O, Monitor Outputs, Reference I/O
  • Webcam Ability, Teleprompter Function

Items Included

  • Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
  • M.2 PCIe NVMe Card (2TB)
  • 12 VDC Universal Power Supply
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Studio Recording

HyperDeck Shuttle 4K Pro

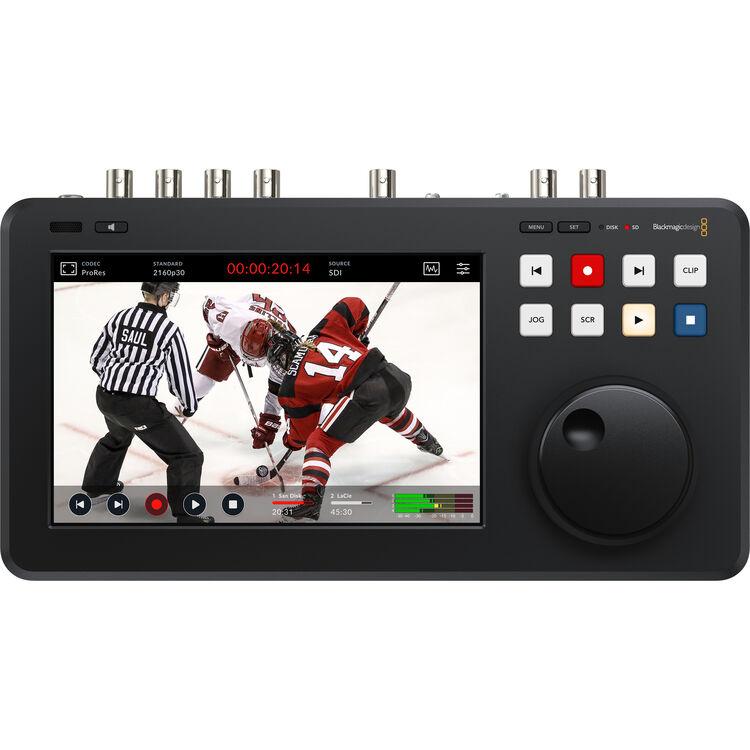

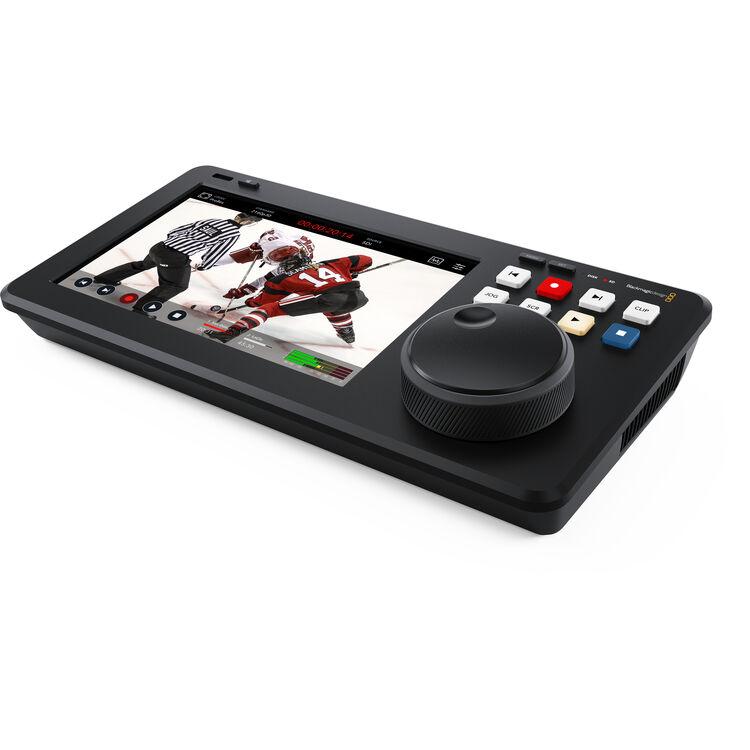

The HyperDeck Shuttle 4K Pro is a compact, professional desktop playback and mastering recorder designed for live production, broadcast workflows, and high‑quality media ingest. It features a 7" touchscreen, a machined metal search dial, traditional deck‑style controls, and a built‑in teleprompter mode for reading RTF scripts without external software.

“Add a desktop shuttle with a comprehensive video playback interface to your live production with this HyperDeck Shuttle 4K Pro…” “This version of the device includes a 2TB M.2 card for cache recording up to 16 Gb/s.”

Key Capabilities

  • Mastering Recorder: Supports ProRes, DNx, H.264/265, with selectable PCM or AAC audio for broadcast‑quality masters.
  • Media Player: Large search dial for fast clip browsing, cueing, and playback; fully controllable via Ethernet from ATEM switchers.
  • Built‑In 7" Touchscreen: HUD overlays, scopes, RGB histogram, clip timeline, LUT loading, and full menu control.
  • Traditional Deck Controls: Shuttle, jog, scroll, record, and remote deck control over Ethernet.

Recording & Storage

  • Records to SD cards, UHS‑II, USB‑C external disks, CFexpress, and the included 2TB M.2 PCIe card.
  • Supports network recording directly to shared storage; DaVinci Resolve can edit media while recording.
  • Extremely long H.264 recording times (up to 157 hours of 1080p59.94 on a 1TB card).
  • Compatible with ExFAT and HFS+ formats.

Connectivity

  • 12G‑SDI multi‑rate I/O (SD/HD/UHD/DCI 4K), SDI loop, SDI monitor out.
  • HDMI I/O with automatic standard conversion and full compatibility with ATEM Mini switchers.
  • 10G Ethernet for control, file transfer, automation (REST, FTP, HTTP/S), and broadcast server workflows.
  • USB Webcam Output: Appears as a 1080p webcam to Zoom, Teams, OBS, XSplit, and more.

Advanced Features

  • HDR Support: PQ/HLG (ST2084), Rec.2020/709, 100% DCI‑P3 display capability.
  • Built‑In Teleprompter: Reads RTF scripts, supports jog/scroll teleprompting, adjustable font and size.
  • Blackmagic Cloud: Syncs media and proxies for remote editing; H.265 proxies upload in seconds.
  • Metadata & Digital Slate: Swipe‑based slate, auto‑incrementing take numbers, reel management, full metadata saved to files.

Software Compatibility

  • Works seamlessly with DaVinci Resolve, Final Cut Pro, Premiere Pro, Avid, Fusion, After Effects, and more.
  • Files can be uploaded directly to YouTube, Facebook, Vimeo, and Twitter

Media Support

  • Supported Formats: H.264 / H.265 (HEVC) / MOV
  • HDCP Support: Yes
  • Dolby/DTS: No

Video

Recording Modes — 4:2:2 10‑Bit

  • 4096×2160p: 23.98 / 24 / 25 / 29.97 / 30 fps
  • 3840×2160p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
  • 1920×1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
  • 1920×1080i: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
  • 1920×1080PsF: 23.98 / 24 / 25 / 29.97 / 30 fps
  • 1280×720: 50 / 59.94 / 60 fps
  • 720×576i: 50 fps
  • 720×480i: 59.94 fps

Video Output (Single / HDMI / SDI)

  • 4096×2160
  • 3840×2160p
  • 1920×1080p
  • 1920×1080i
  • 1920×1080PsF
  • 1280×720
  • 720×576i
  • 720×480i

HDR Support

  • Hybrid Log Gamma (HLG)

Audio

  • Max Sampling Rate: 48 kHz / 24‑Bit

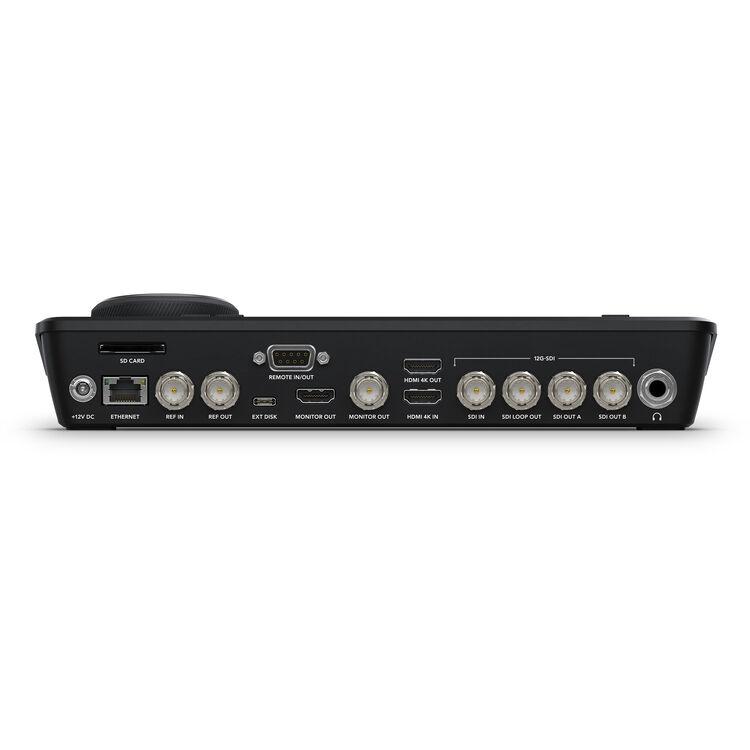

Connectivity

Video I/O

  • 1× HDMI 2.0 Output
  • 1× HDMI 2.0 Input
  • 1× BNC (12G‑SDI) Input
  • 2× BNC (12G‑SDI) Output
  • 1× BNC (12G‑SDI) Loop Output

Other I/O

  • 1× RJ45
  • 1× USB‑C (Input/Output)

Media Slots

  • Dual SD / SDHC / SDXC

Internal Storage

  • 2 TB

Power

  • Power I/O: 1× Barrel (12 VDC)
  • Input Power: 100–240 VAC, 50/60 Hz
  • Power Consumption: 60 W (Max)

General

  • Display: 7.0" LCD
  • Touchscreen: Yes
  • Rack‑Mountable: No
  • Dimensions: 6.96 × 5.51 × 1.74" (17.68 × 14 × 4.42 cm)
  • Weight: 2.39 lb (1.08 kg)
