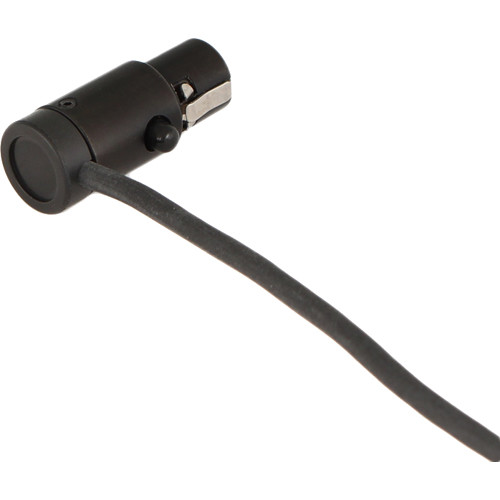

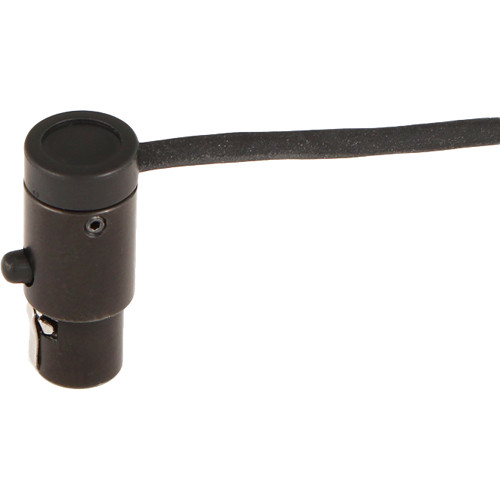

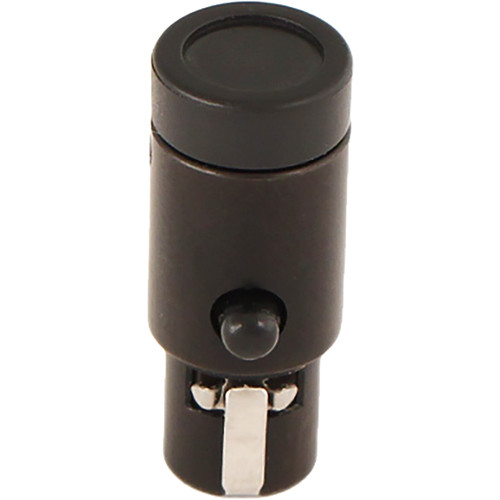

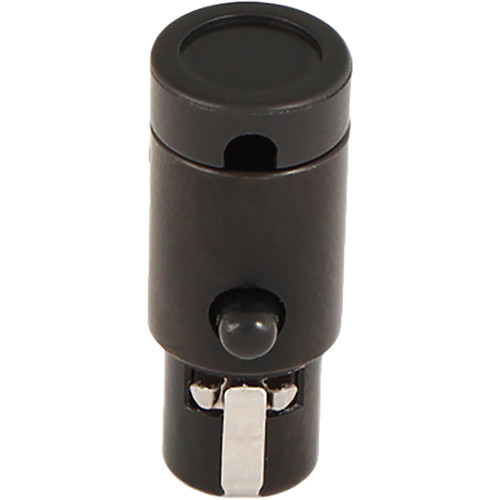

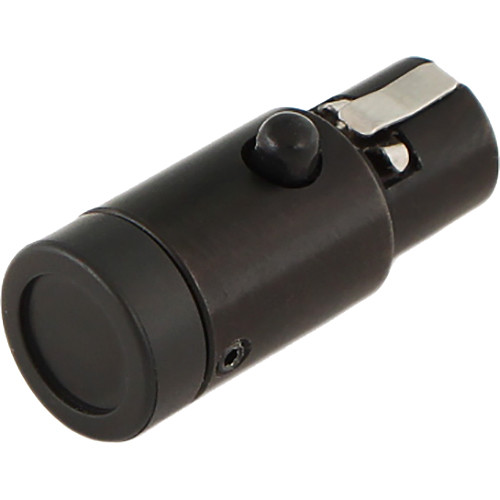

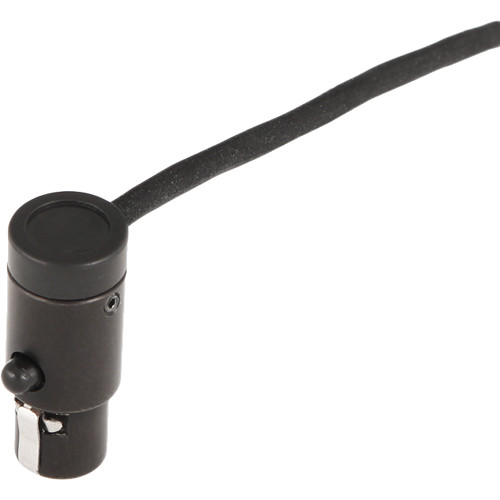

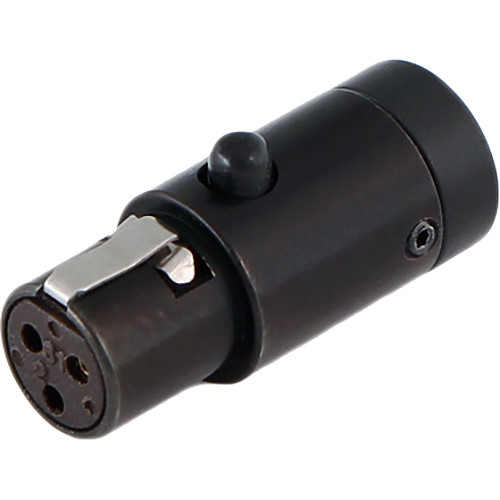

The Cable Techniques CT-LPS-TA3-180-K is a female, 3-pin mini-XLR connector. Its outlet can be adjusted from either 0 or 180° with the release button, and there's a 60° outlet adjustment range as well. Thus, you can use this XLR female connector in a variety of orientations, ensuring connections without straining cable.
With gold contacts and a black shell, the CT-LPS-TA3-180-K accepts cables with diameters up to approximately 3.0mm. You can lock down separately-available color caps with mini set-screws. The connector works with compatible Cable Techniques cables, as well as Mogami models such as W2901, W3031 and W2697.
| Cable Outlet | ±0.1" / 3.0 mm |
| Angle Adjustment | Around 0 or 180° |
| Contacts | Gold |
| Dimensions | Grub screw hex head size: 0.0" / 0.9 mm General: 0.4 x 1.0" / 10.0 x 25.0 mm |
| Weight | 0.2 oz / 5.7 g |
Packaging Info
| Package Weight | 0.02 lb |
| Box Dimensions (LxWxH) | 4.45 x 3 x 0.4" |
