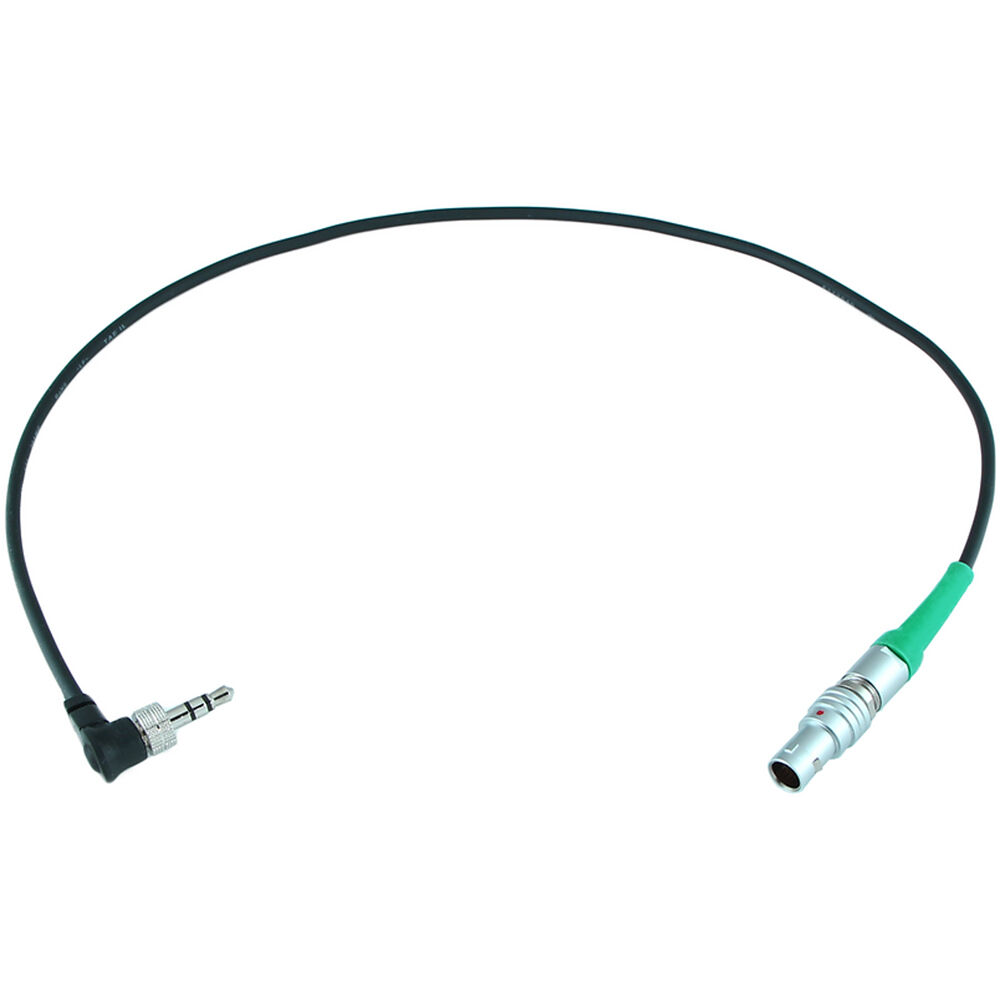

This Cable Techniques Diety TC-1 Timecode Out to 5-Pin LEMO Cable allows you to output timecode from the Diety TC-1 Timecode Generator Box and feed it into the 5-pin LEMO TC input of a compatible device.

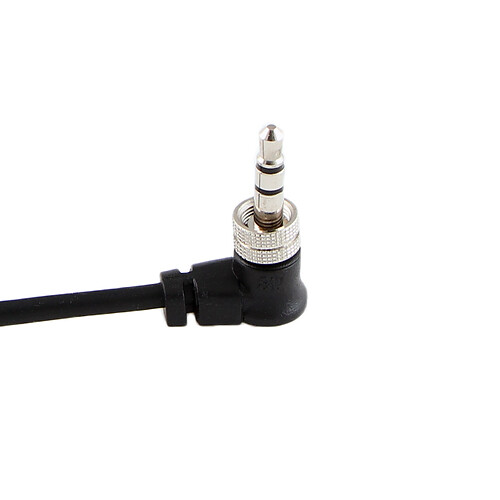

This rugged cable is 15" in length and features a 3.0mm outer diameter. On one end, it is terminated with a right-angle, locking 3.5mm TRS male connector for TC output from the Deity TC-1. On the other, it is terminated with a 5-pin LEMO male connector for TC input into a camera or recorder.
The LEMO connector features a green silicone boot and is compatible with Ambient Lockit products and other similar timecode gear, e.g. Deneke, Betso, and pro cameras.
General
| Compatibility | Deity TC-1 |
Inputs / Outputs
| Connector 1 | 1 x 5-Pin LEMO Male |
| Connector 2 | 1 x Right-Angle, Locking 3.5 mm TRS Male |
Physical
| Color | Black / Green |
| Cable Length | 15" / 38.1 cm |
Packaging Info
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 6.65 x 4.6 x 0.65" |
