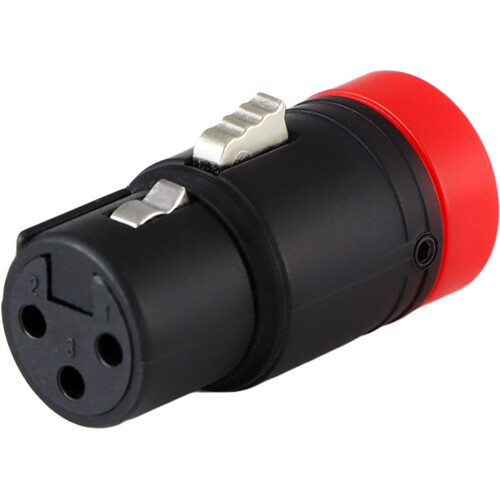

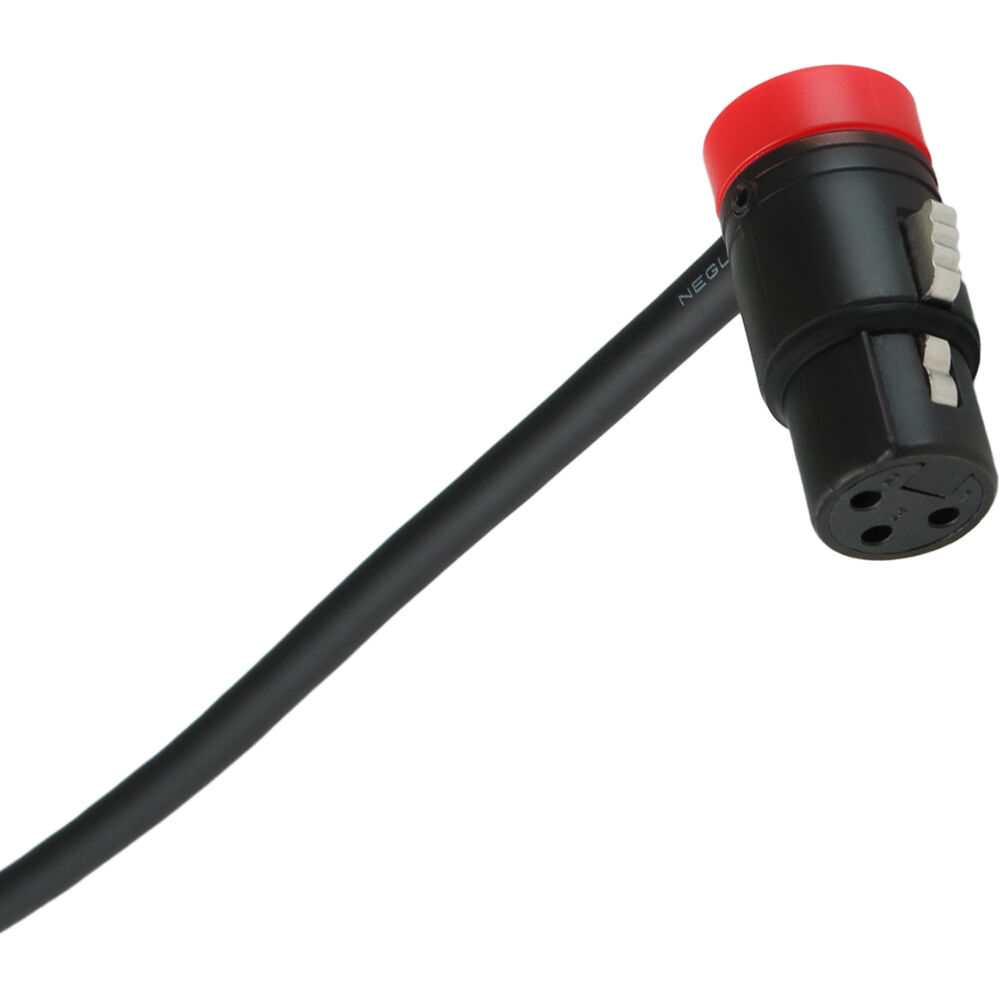

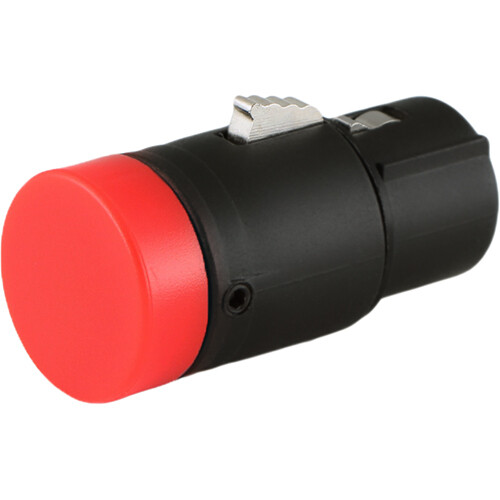

With its space-saving design, the Cable Techniques Low-Profile Right-Angle XLR 3-Pin Female Connector (Large Outlet, B-Shell, Red Cap) is ideal for use on portable recorders and field mixers in audio bags. Its large cap has a cable outlet that accommodates cabling with diameters from 3.8 to 6mm while offering 120 degrees of adjustment swing around the 6 o'clock and 12 o'clock positions, allowing perfect placement in an array of configurations. This variant features gold pins, a black shell, and a red cap.
Low-Profile Connector
Large Cap
Cable Compatibility
| Connector | Low-Profile XLR 3-Pin Female (Right-Angle Connector) |
| Cable Outlet | 0.1 to 0.2" / 3.8 to 6 mm |
| Angle Adjustment | 120 to 240° and 300 to 60° (120° Adjustment Swing) |
| Contact Plating | Gold |
| Dimensions | 1.5 x 0.7" / 39 x 18 mm |
| Weight | 1.2 oz / 34 g |
Packaging Info
| Package Weight | 0.065 lb |
| Box Dimensions (LxWxH) | 3.65 x 2.8 x 1" |
