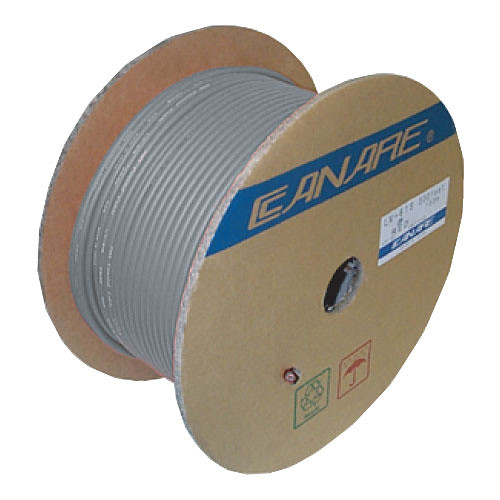

The Gray, Black Canare 4S11 4-Conductor Speaker Bulk Cable features 4 x 14 AWG gauge conductor configuration that minimizes long run noise and reduces induction rate to boost frequency characteristics with its polyethylene insulation. This 4S11 cable is suited for PA systems, Hi-Fi speakers, and DC power lines. The cable's design reduces EMI noise and offers low capacitance and resistance. This cable is designed to be flexible even in sub-zero weather.
| Number of Conductors | 4 |
| Conductor Gauge | 14 AWG |
| Cross Section Area | Pair: 4.3 mm2 Single: 2.18 mm2 (14 AWG) |
| Outer Diameter | Nominal: 0.42" (10.7 mm) |
| Conductor | Composition: 41 / 0.26 A mm |
| Twist Pitch | 3.93" (100 mm) |
| Conductor D.C.R. | 0.9 Ω / 100 m |
| Dielectric Strength | 500 VAC / min |
| Nominal Capacitance | 146 pF/m |
| Length | 328' (100 m) |
| Weight | 35.3 lb (16 kg) |
Packaging Info
| Package Weight | 38.35 lb |
| Box Dimensions (LxWxH) | 14.567 x 14.409 x 7.874" |
