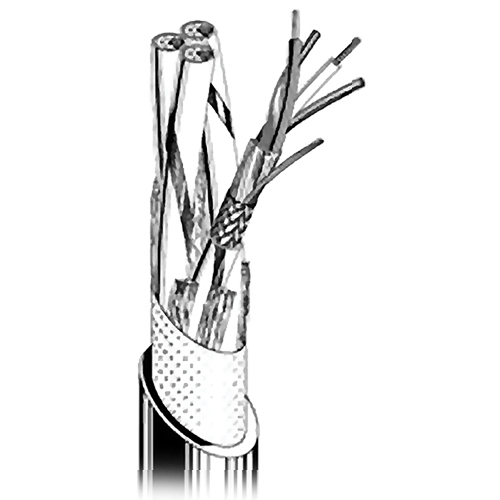

The Canare DA202 AES/EBU Digital Audio Cable (656.17’ / 200 m) is a mini version of the DA206 cable. This digital audio cable has 25 AWG conductors, which allow this cable to be used with common IDC punch down block and digital audio 110 ohm type Patchbays. Integral drain wire is provided for easy ground wiring.
| Outer Diameter | 0.197" (5 mm) (nominal) |
| Nominal Jacket Thickness | 0.03" (0.8 mm) (PVC jacket) |
| Number of Conductors | 2 (orange and white) |
| Thickness | Insulation: (16.9 mm) (IPE) |
| Conductor | AWG (AC): 25 (7/7.09 quantity/mm) Cross-Sectional Area: 0.18 mm² |
| Pitch of Quad | 1.26" (32 mm) |
| Shield Coverage | >95% braid |
| Dielectric Strength | 500 VAC/60 sec |
| Insulation Resistance | ≥ 1,000 MΩ/3 Mft |
| Electrical | Conductor D.C.R.: <32.3 Ω/1,000' (<10.6 Ω/ 100 m) Shield D.C.R.: <6.8 Ω/1,000' (<2.2 Ω/100 m) Nominal Capacitance: 45 pF/m (capacitance between conductors) Nominal Impedance: 110 Ω Nominal Attenuation at 3 MHz: 5 dB/100 m |
| Length | Maximum Recommended AES / EBU Length: 590' (180 m) Cable Length: 656.17' (200 m) |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 20.5 lb |
| Box Dimensions (LxWxH) | 11.4 x 11.3 x 6.6" |
