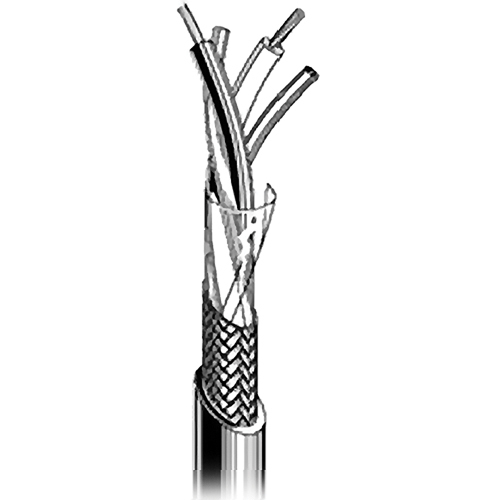

The Canare DA206 AES / EBU Digital Audio Cable (656.17' / 200 m) is suitable for long cable runs because of its large OD (Outer Diameter). Robust construction makes this cable a good choice for all digital pro audio field recording.
| Outer Diameter | 0.29" (7.3 mm) (nominal) |
| Thickness | Jacket: 0.04" (0.9 mm) Insulation: 1.19" (30.3 mm) |
| Number of Conductors | 2 (orange and white) |
| Conductor | AWG (AC): 20 (7/12.6 quantity/mm) Cross-Sectional Area: 0.56 mm² |
| Shield Coverage | >95% braid |
| Dielectric Strength | 500 VAC/60 sec |
| Insulation Resistance | ≥ 1,000 MΩ/3 Mft |
| Conductor DCR | <10.1 Ω/1,000' (<3.3 Ω/100 m) |
| Shield DCR | <4.3 Ω/1,000' (<1.4 Ω/100 m) |
| Nominal Impedance | 110 Ω |
| Nominal Capacitance | Capacitance Between Conductors: 14.6 pF/ft (48 pF/m) Capacitance Between Conductors to Shield: 22.3 pF/ft (73 pF/m) |
| Nominal Attenuation | 2.2 dB/100 m |
| Brittle Point | -56°F (-49°C) |
| Material | Jacket: PVC Insulation: IPE |
| Length | Maximum recommended AES / EBU Length: 1,180' (360 m) Cable Length: 656.17' (200 m) |
| Weight | 35 lb (16 kg) |
Packaging Info
| Package Weight | 35.75 lb |
| Box Dimensions (LxWxH) | 14.7 x 14.5 x 7.6" |
